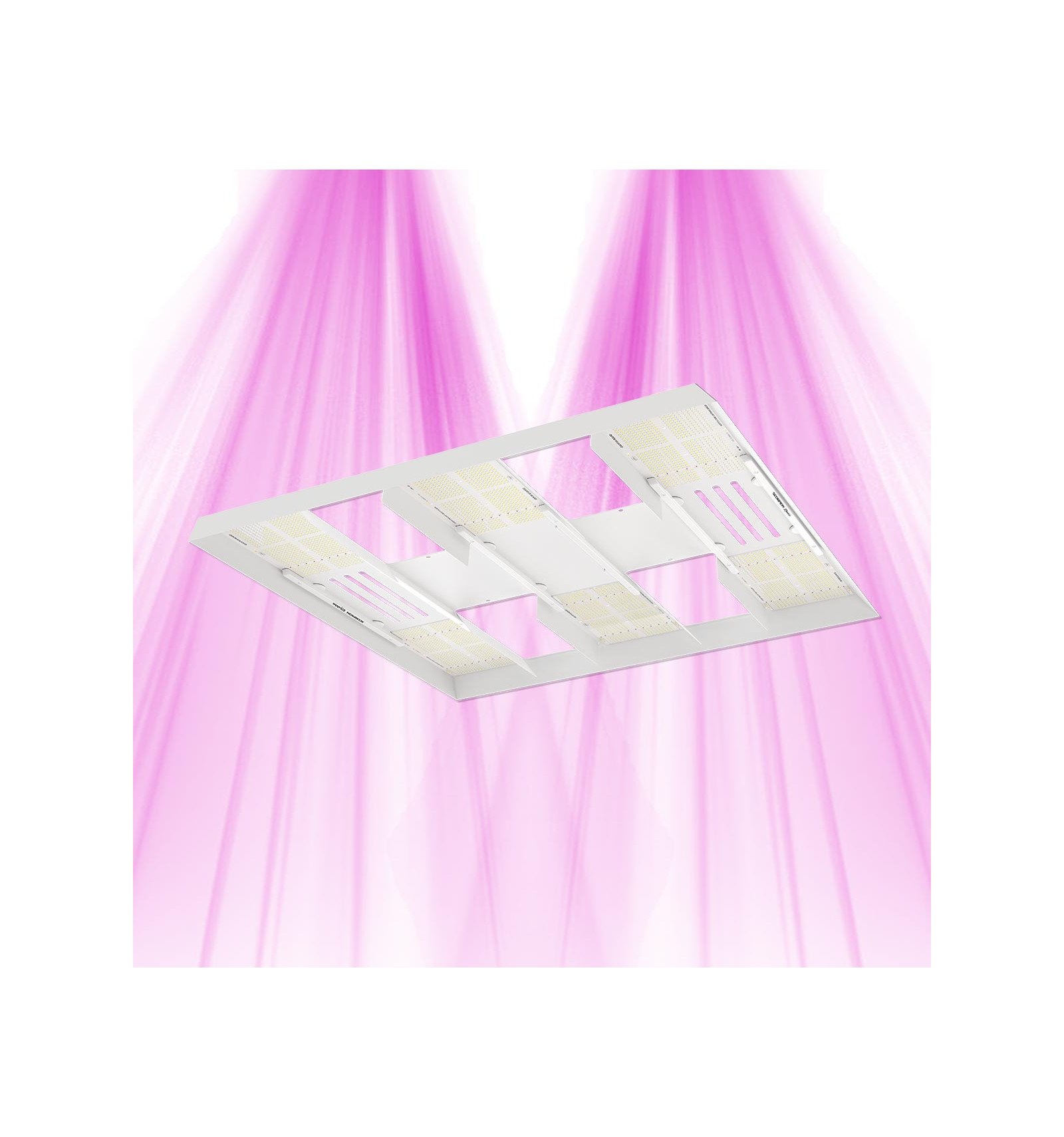

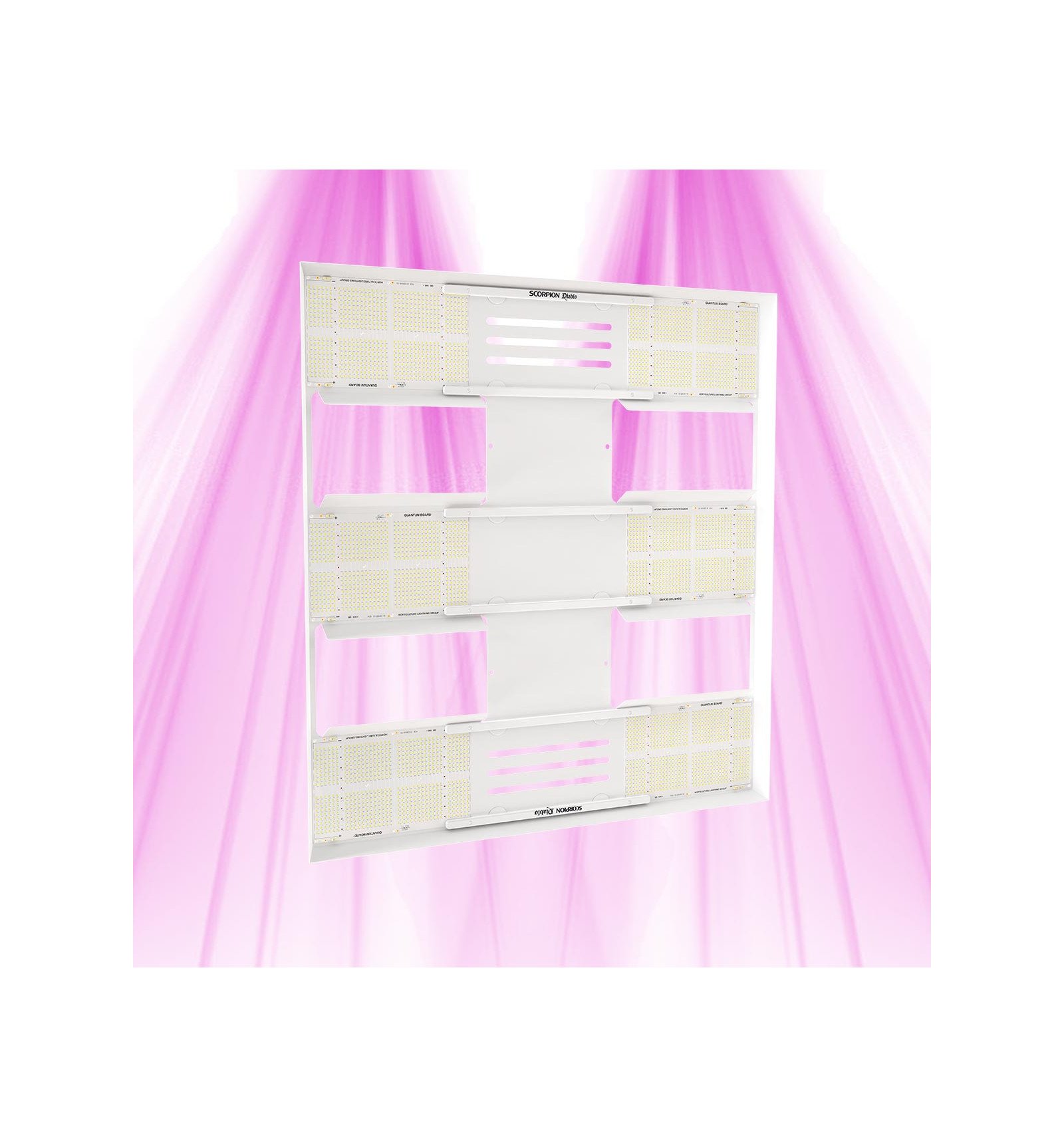

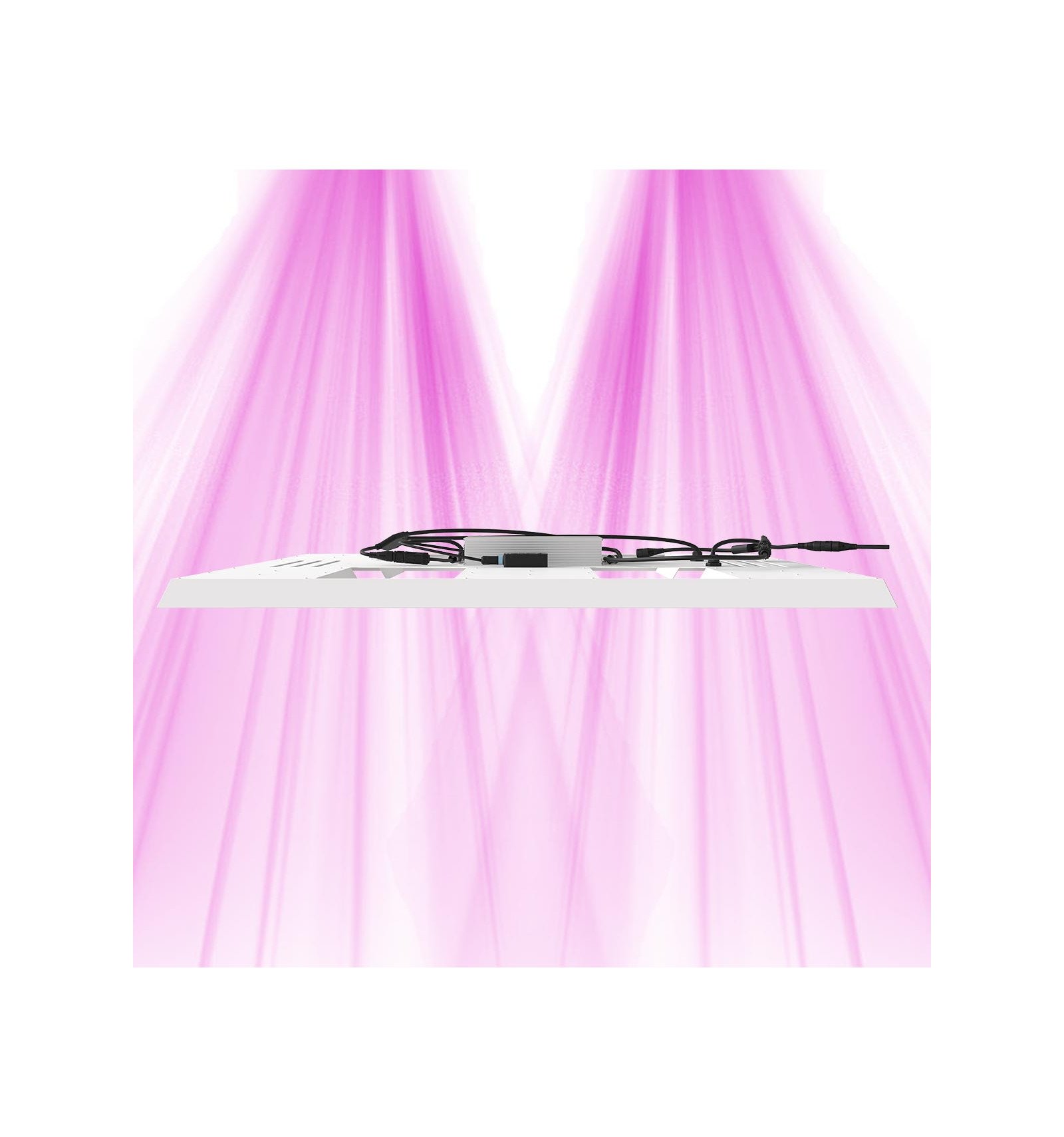

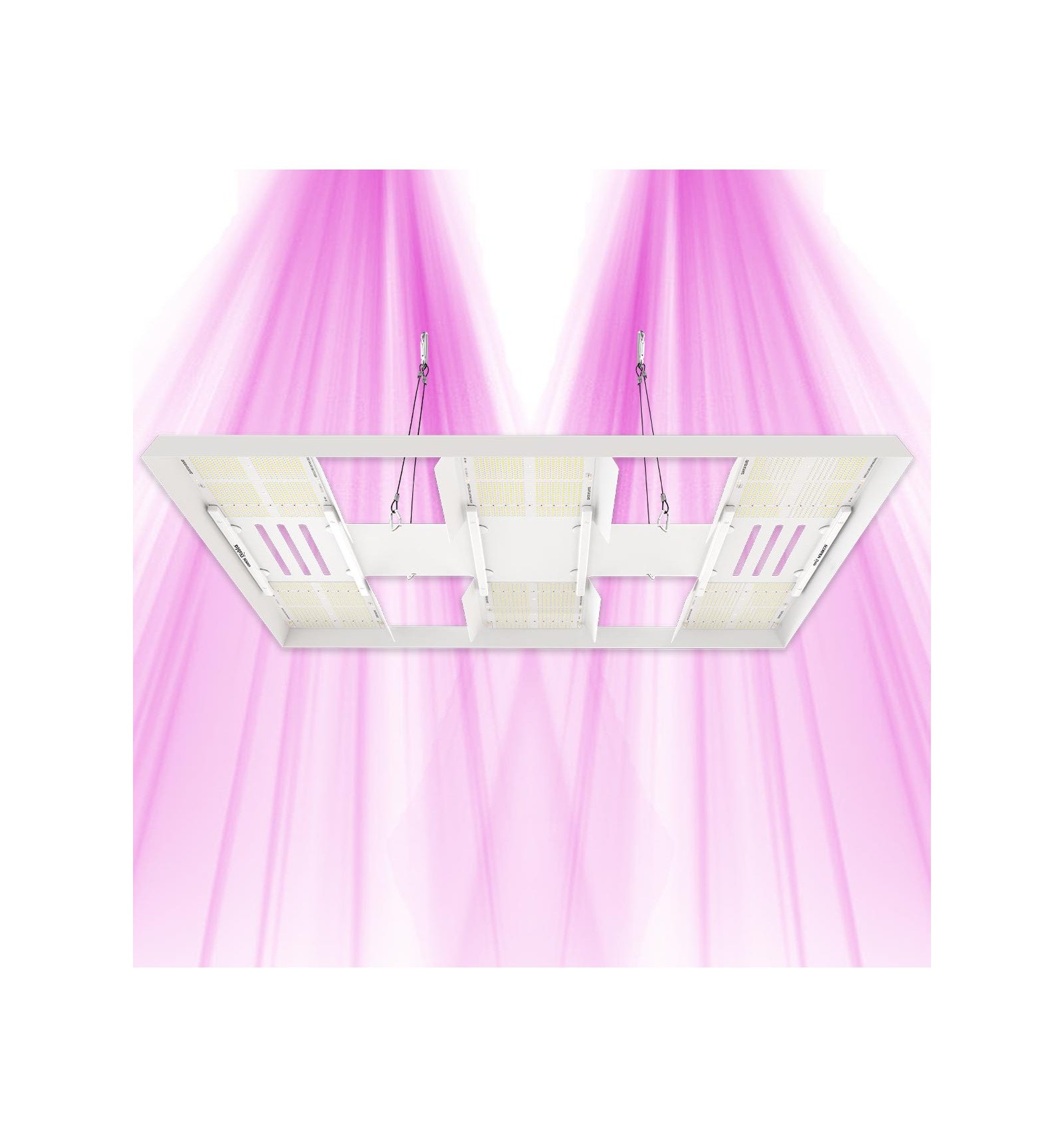

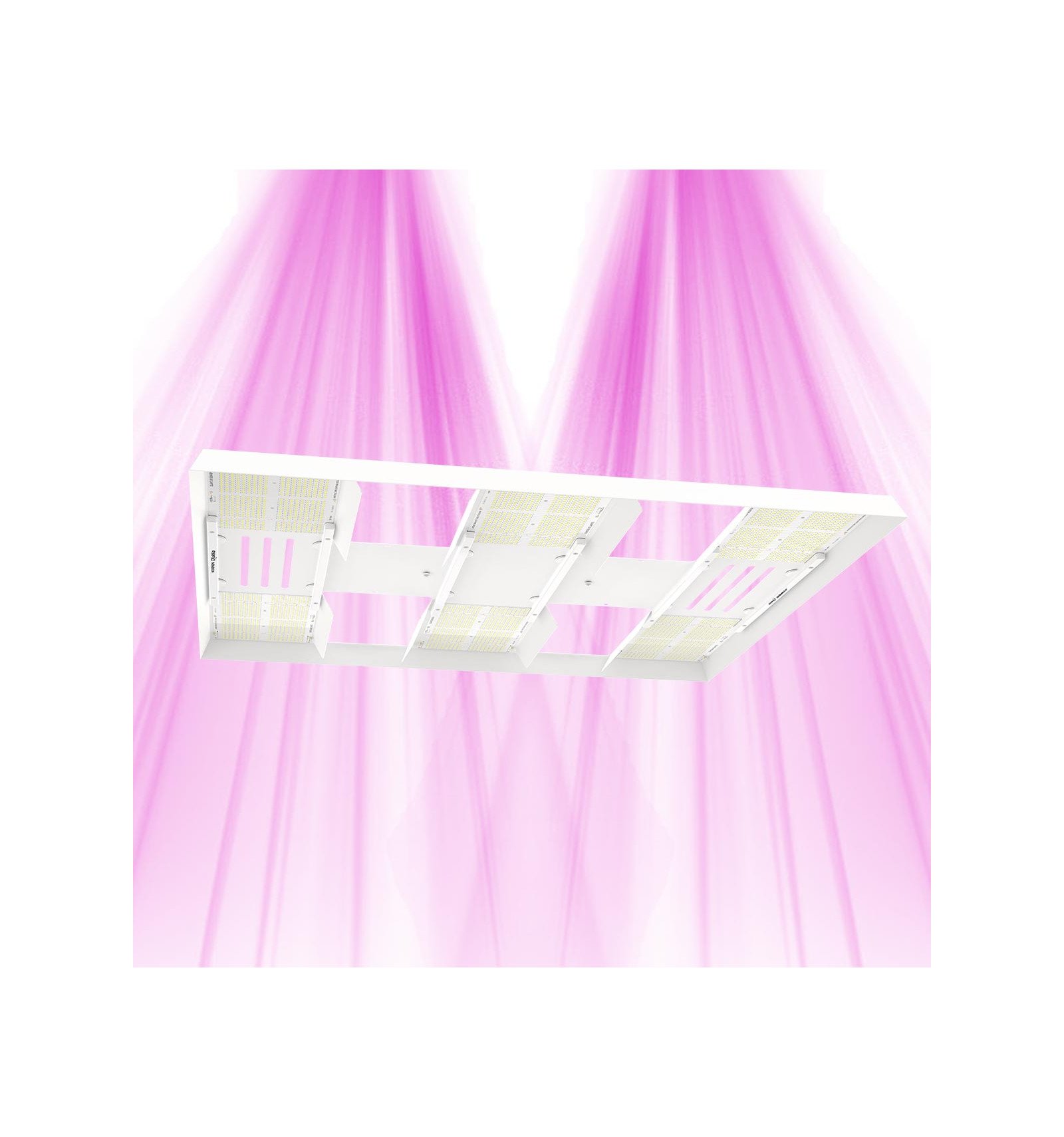

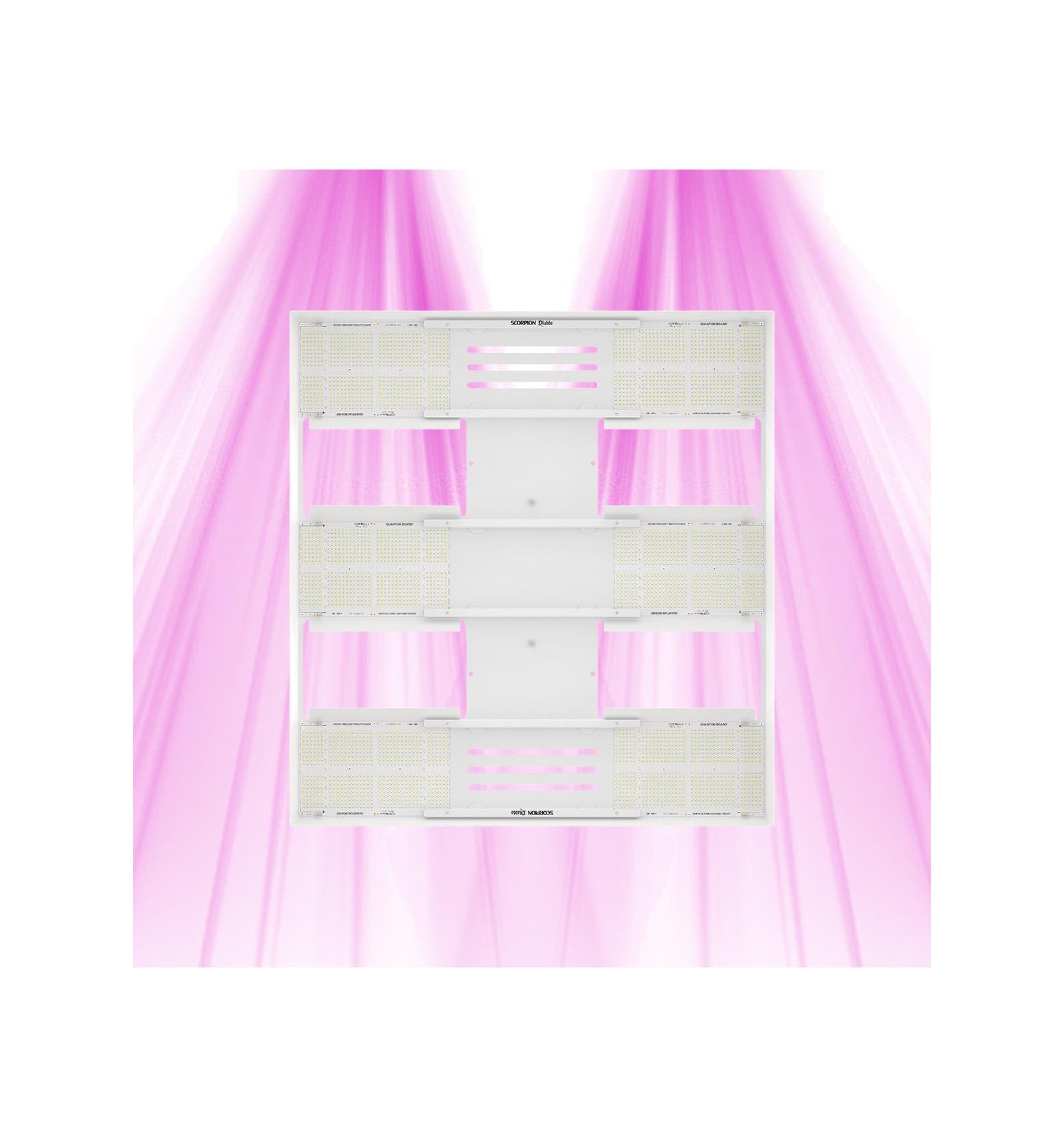

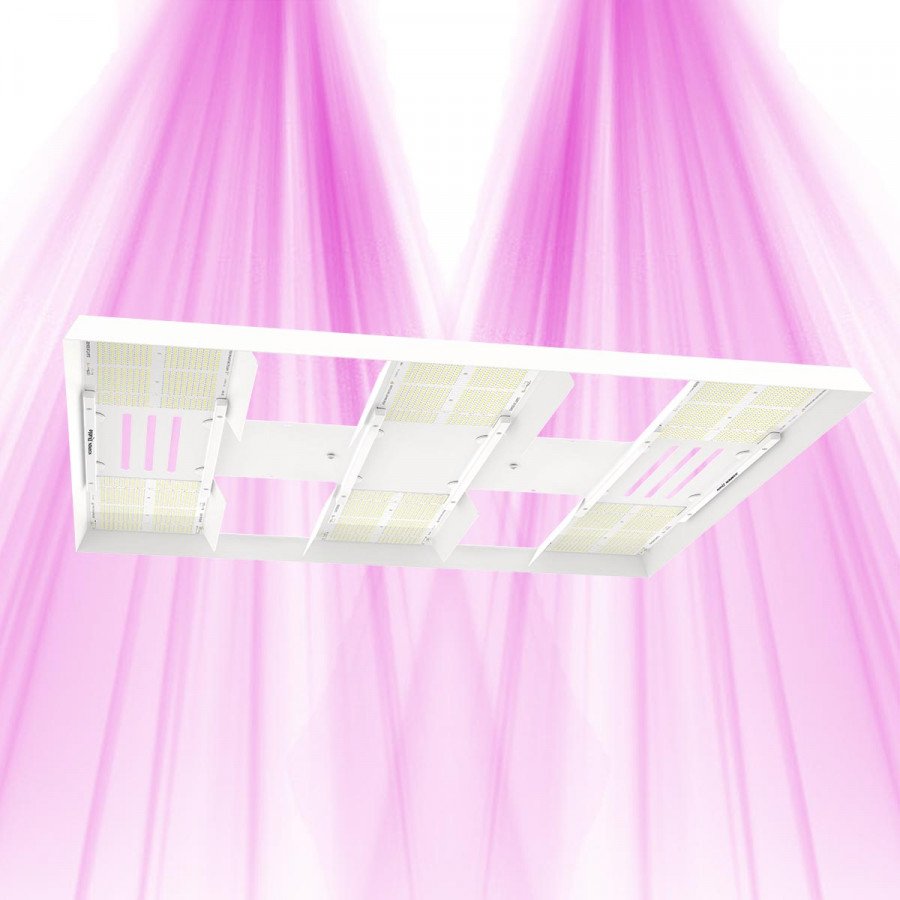

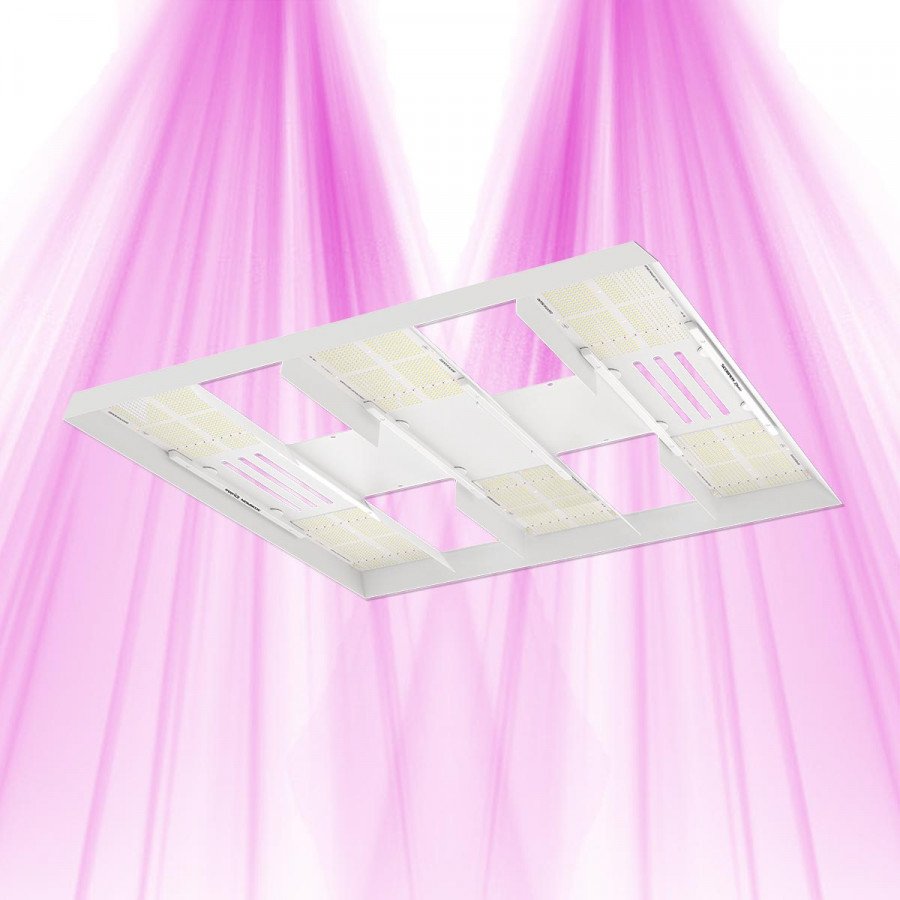

HLG Scorpion Diablo X grow light: high intensity and high efficiency
The HLG Scorpion Diablo X grow light is designed to maximize the yield of your crops thanks to its high intensity and high efficiency. With its 6 latest generation Diablo Quantum Boards, this lamp offers homogeneous light distribution.
Thanks to integrated reflectors, the HLG Scorpion Diablo With over 2100 PPF and a photon efficiency of 3.06 µmol/J, this light is a quality choice for professional and amateur growers.
Main Features:
- More than 2100 PPF with photon efficiency greater than 3 µmol/J
- Integrated reflectors to improve PPFD levels at all canopy levels
- White spectrum centered on the plant with deep red. Red:green:blue ratio of 48:32:20
- Reliable passively cooled design
- Dimmable power supply included
- 5 year warranty
Product Content
- HLG Scorpion Diablo
- Hanging hooks
- Suspension cable
- User Manual
Facility:
- Start by carefully reading the user manual that came with the lamp and verify that you have all the necessary materials and tools.
- Install the lamp in your growing space, making sure it is secure and stable. Follow the instructions in the manual to secure the lamp using the hanging hooks or other mounting brackets.
- Connect the supplied dimmable power supply to the lamp following the instructions in the manual. Make sure the power is plugged in correctly and all wires are secure.
- Turn on the lamp by pressing the main switch. Adjust the light intensity using the dimming button on the power supply or using the GrowFlux wireless dimming system if you have one.
- Place plants under the light following the manual's recommendations for recommended canopy distance and growing footprints.
- Monitor the plants regularly and adjust the light intensity according to their growing needs. Remember to clean and maintain the lamp regularly to ensure optimal operation.
Specifications:
- Power: 0-700 Watts
- Voltage Range: 240 VAC 50-60Hz
- System PPF efficiency: 3.06 μmol/J
- Total output: 2145 PPF
- Dimensions: 98.9 cm x 91.9 cm x 8.3 cm
- Certifications: UL 8800, CSA, DLC
- Warranty: 5 years
Frequently asked Questions:
What is the light spectrum of the HLG Scorpion Diablo X lamp?
The HLG Scorpion Diablo This spectrum is designed to promote plant growth and flowering.
What is the power level of the HLG Scorpion Diablo X lamp?
The HLG Scorpion Diablo X lamp is available in 0-700 Watts, making it a versatile lamp suitable for different growth stages and crop types.
What are the dimensions of the HLG Scorpion Diablo X lamp?
The dimensions of the HLG Scorpion Diablo X lamp are 98.9 cm x 91.9 cm x 8.3 cm.
What warranty is offered with the HLG Scorpion Diablo X lamp?
The HLG Scorpion Diablo X lamp is covered by a 5-year warranty.
Is the HLG Scorpion Diablo X compatible with the GrowFlux wireless scaling system?
Yes, the HLG Scorpion Diablo X lamp is compatible with the GrowFlux wireless scaling system. However, please note that you will need to purchase a hotspot separately if you want to use this feature.
Support:
The HLG Scorpion Diablo X lamp manual contains all the information necessary for optimal use of this product. Here you will find detailed instructions on installing and operating the lamp, as well as maintenance tips for confident use.
The HLG Scorpion Diablo X Lamp Test Reports present the results of extensive testing of this lamp by horticultural professionals. These reports will allow you to get a clear idea of the lamp's performance and check if it meets your growing needs.
04 — Questions sur ce produit
Product questions
Your questions about this product
- Hello, is the HLG Scorpion Diablo X lamp suitable for starting a grow with my beginner son, at a simple level, without risk of eye damage, and easy to install at home?
The HLG Scorpion Diablo X lamp is very powerful and designed to maximize yields, which makes it more suitable for experienced users. For a beginner, it can be too intense and requires protective glasses to avoid damaging the eyes due to the strong light.Regarding installation, it is well designed but requires some rigor and precautions (ventilation, lamp distance, electrical safety). If you are starting with your son, it might be better to begin with a less powerful and easier to manage light, then move on to the Scorpion Diablo X when you feel more comfortable.I remain available if you want advice on simpler and safer equipment to start together!
- Is integration possible with a home automation system for automated management via mobile app or voice assistant?
The HLG Scorpion Diablo X - Reflector Series grow light can be wirelessly managed via the GrowFlux system, but this requires a separately sold Access Point. Its direct integration into a complete home automation system with control via mobile app or voice assistant is not officially specified. For such automated management, a third-party solution could be considered, but this is not a native feature of the product.
- What is the maximum operating temperature of the HLG Scorpion Diablo X lamp during continuous use, and do you recommend additional ventilation to limit heat in a confined space?
The HLG Scorpion Diablo X lamp operates optimally up to a maximum ambient temperature of 40°C. Above that, it is advisable to take precautions to prevent overheating.
Although it has an effective passive cooling system, we strongly recommend additional ventilation in confined spaces. This helps to dissipate the hot air produced and ensures a stable temperature, which is essential for the health of your plants and the longevity of your lamp.
- What is the PPFD distribution in depth under the HLG Scorpion Diablo X lamp at full power of 700 watts, and how does it impact the overall yield in g/Watt in a dense environment?
The HLG Scorpion Diablo X – Reflector Series grow light at full power (approximately 700 W) benefits from integrated reflectors that significantly improve the PPFD distribution in depth. This design promotes a more uniform and intense distribution of the photon flux throughout the canopy, even in a dense environment, allowing for better light penetration at the lower levels of the plants.
Although precise data on the PPFD distribution in depth is not publicly available, observations on similar models indicate a high PPFD (600–700 µmol/m²/s) up to 30–60 cm below the lamp. This distribution fosters optimal photosynthesis across the entire plant, maximizing growth and yield.
With an outstanding photon efficiency of 3.06 µmol/J, this lamp ensures excellent light output. This efficiency, combined with enhanced light distribution, typically results in a high overall yield in g/W, especially in dense growing configurations where good light penetration is essential to avoid shadow areas and stimulate biomass across the entire canopy.
In summary: the HLG Scorpion Diablo X – Reflector Series offers deep and uniform light penetration that optimizes production in dense environments, ensuring a gram per Watt yield above average due to its high photon efficiency and improved PPFD distribution.
- What is the ideal distribution of the Scorpion Diablo X in a 1m by 1m growing area to optimize light penetration to the lower levels of the plant cover without creating stress zones due to excess PPFD?
For a growing area of 1m by 1m, the HLG Scorpion Diablo X is ideally placed at a height of 38 to 60 cm (15 to 24 inches) above the plant cover. This position allows for excellent light distribution while avoiding stress zones due to excess PPFD. With its built-in reflectors, light penetrates well to the lower levels of your plants.
It is important to adjust the light intensity using the dimming function, either manually or wirelessly, to balance the PPFD according to the specific needs of your crop and ensure that no area is overloaded. A single Scorpion Diablo X is sufficient for this volume, but height and power remain key for optimal penetration without light stress.
- What is the best method to adjust the light intensity of the HLG Scorpion Diablo X lamp during the different growth and flowering stages to optimize yield and quality of the harvests?
To optimize the HLG Scorpion Diablo X according to your plants' phases, it is ideal to adjust the light intensity with its integrated potentiometer for precise settings. During the growth phase, favor a less intense light by keeping the lamp at 30-36 inches, covering about 6 x 6 feet. During flowering, increase the intensity and lower the lamp to 15-24 inches to make full use of 5 x 5 feet for maximum yield.
For added convenience, control via RJ12 0-10V or wirelessly with the GrowFlux option offers fine and programmed management of light intensity, allowing you to automatically adapt your light cycles for improved quality and yield.
- What is the best way to use the HLG Scorpion Diablo X lamp in the presence of multiple plant varieties with different light needs in the same growing room?
The HLG Scorpion Diablo X offers great flexibility for managing multiple varieties with different light needs in the same room. Thanks to its dimmable system, it is possible to precisely adjust the light intensity for each area or group of plants, lowering the power for less demanding plants and keeping it higher for those that require more light.
It is also advisable to adjust the hanging height according to the growth phase (closer for flowering, farther away during vegetative stage) and to organize your space with shelves or supports at different heights. You can also place the most light-hungry plants directly under the lamp, while the others will be on the periphery, where the illumination is naturally softer.
Finally, if necessary, use barriers or reflectors to limit light diffusion in sensitive areas and thus create adapted light atmospheres. This combination of adjustments makes the HLG Scorpion Diablo X a powerful tool for harmoniously growing several varieties under the same lighting.
- What is the best method to adjust the light intensity of the HLG Scorpion Diablo X lamp between the growth phase and flowering phase to optimize yield while avoiding light stress for the plants?
To adjust the light intensity of the HLG Scorpion Diablo X between growth and flowering, several methods are possible:
- Integrated manual potentiometer to directly adjust the light power.
- Control via RJ12 0-10V connector with an external controller for precise adjustment.
- Wireless GrowFlux solution to control multiple lights simultaneously via a mobile app.
Additionally, modify the installation height: about 30-36 inches (75-90 cm) during the growth phase to limit intensity, and lower to 15-24 inches (38-60 cm) during flowering to maximize light without causing stress. This combined adjustment ensures an excellent balance between yield and plant health.
- Does the 5-year warranty on the HLG Scorpion Diablo X lamp really cover all components, including the dimmable power supply, and what is the after-sales service like in case of a breakdown?
The HLG Scorpion Diablo X - Reflector Series lamp comes with a 5-year warranty, reflecting the robust quality of this product. However, this warranty does not explicitly state the coverage of the included dimmable power supply.
In case of a breakdown, our after-sales service is at your disposal to assist you in managing repairs or replacements of the relevant components. This support relies on the warranty to ensure your peace of mind.
If you encounter any difficulties, do not hesitate to contact us directly: we will guide you with passion and precision to ensure that your installation continues to provide the best for your indoor crops.
- Is the passive cooling system sufficient for a continuous 700W session without overheating risks?
The HLG Scorpion Diablo X - Reflector Series uses a passive cooling system, meaning without fans, which naturally dissipates heat through its chassis. This cooling is effective for a continuous power of 700W, provided the ambient temperature does not exceed about 40°C.
In a well-ventilated space, this passive system is sufficient. However, in a grow tent or closed environment, it is highly recommended to add active ventilation (extraction or air supply) to avoid overheating and ensure the thermal stability of the lamp as well as the health of the plants.
In summary, for a continuous session at 700W, passive cooling alone is only suitable if the air circulation is naturally good, otherwise, additional ventilation is necessary.
- What practical difference does the HLG Scorpion Diablo X lamp bring compared to a conventional LED lamp in terms of yield and quality of cultivation in hydroponics?
The HLG Scorpion Diablo X Grow Light differs from conventional LEDs by having an optimized spectrum, with more red diodes promoting better flowering and superior fruit quality in hydroponics. Its uniqueness also lies in its reflectors that ensure an even distribution of light, guaranteeing uniform growth across the canopy.
With a higher power (up to 715 W), it maximizes the yield of photons per watt, resulting in better growth and production performance, despite slightly lower energy efficiency compared to some LEDs.
Designed to adapt to various types of setups, it is ideal for those looking to optimize their indoor cultivation in hydroponics, enhancing both yield and quality.
- Is it compatible with voice assistants like Alexa or Google Home for remote light intensity and scheduling management?
The HLG Scorpion Diablo X - Reflector Series Grow Light does not have native compatibility with voice assistants like Alexa or Google Home. It allows for manual adjustment of light intensity only, with no remote management or programming via these platforms.
For wireless control, some more advanced HLG models require a specific accessory, but this feature is not available directly on the Scorpion Diablo X model. It is possible to add external smart home compatible controllers, but this requires additional hardware.
- What is the average electrical consumption in watt-hours per day of the HLG Scorpion Diablo X lamp in standard usage for a medium-sized growing area?
The
HLG Scorpion Diablo X lamp consumes about
700 watts when operating at full power. For a medium-sized growing area of about 1.5 m x 1.5 m, used for 16 hours a day in standard usage, this results in an average electrical consumption of about
11.2 kWh per day.
This estimate takes into account its nominal power and a typical lighting duration during growth or bloom phases. The lamp is dimmable, so this consumption can be adjusted according to your needs.
- What is the ideal height for suspension to optimize light distribution and red spectrum penetration during the flowering phase with the HLG Scorpion Diablo X lamp?
For the HLG Scorpion Diablo X, the ideal suspension height during the flowering phase is between 15 and 24 inches (approximately 38 to 61 cm) above the top of the plants. This range allows for a balanced and homogeneous distribution of light while ensuring optimal penetration of the red spectrum, crucial for floral development. At this height, the light coverage of 1.5 m x 1.5 m is fully utilized, ensuring sufficient intensity reaches the lower levels of the canopy.
- What practical advice can be given to optimize the suspension distance and dimming level to achieve an optimal PPFD across the entire surface of the plant canopy with the HLG Scorpion Diablo X lamp?
To make the most out of the HLG Scorpion Diablo X lamp, it is essential to adjust the suspension distance and dimming according to the growth phase:
- Vegetation: position the lamp between 76 and 91 cm (30-36 inches) above the plant canopy.
- Flowering: bring it closer to 38-61 cm (15-24 inches) to maximize light intensity.
Adjusting the light intensity via the built-in potentiometer or an external control (RJ12 0-10V or GrowFlux) allows for precise adjustment of the PPFD and avoids unnecessary overlighting.
With the six Diablo Quantum Boards equipped with built-in reflectors, light is evenly distributed across the entire growing surface, limiting shadow areas and promoting balanced growth.
By correctly combining suspension height and dimming, you will achieve optimal lighting, perfectly suited to the size and needs of your crop, for efficient and quality production.
- What notable difference is there between this HLG Scorpion Diablo X lamp and previous models in terms of light efficiency and light distribution in a hydroponic grow?
The
HLG Scorpion Diablo X (Reflector Series) stands out from previous models due to its
improved light efficiency, with a photon output of about 3.06 to 3.07 µmol/joule, ensuring intense light while managing energy consumption.
It features integrated reflectors that optimize light distribution, promoting better penetration to the lower areas of the plants. This guarantees more uniform growth in often dense hydroponic environments, where light needs to reach all parts of the foliage.
Additionally, the two-zone dimming function allows for precise adjustment of light intensity according to growth phases, without requiring external equipment, a clear advantage over older models.
- With a variable power of up to 700 watts, how can I optimize the dimming adjustment of the HLG Scorpion Diablo X lamp to maximize the PPF without overheating my growing space?
To optimize the dimming setting of the HLG Scorpion Diablo X - Reflector Series lamp and maximize the PPF without overheating, it is important to adjust the intensity using the integrated potentiometer or an external controller (RJ12 0-10V, GrowFlux). This allows you to modulate the light between 0 and 700 watts according to your plants' needs.
For a growing area of 1 m², hang the lamp between 38 and 60 cm above the canopy. This distance ensures good light penetration while avoiding excessive PPFD that could create stress zones or increase heat.
Thanks to its excellent photon efficiency (~3.06 µmol/J), the Scorpion Diablo X provides powerful light output with controlled consumption, thus reducing the risk of overheating. So adjust the power according to the ambient temperature and the growth phase to maintain an optimal environment.
- With a spectrum so rich in deep red and a maximum power of 700W, what is the best strategy to adjust the light intensity during a SCROG to maximize light penetration in the lower canopy under this HLG Scorpion Diablo X lamp?
To make the most of the HLG Scorpion Diablo X during a SCROG and maximize light penetration in the lower canopy, it is essential to combine several parameters.
First, adjust the light intensity using the built-in dimming options: a manual potentiometer, an external 0-10V control, or via the wireless GrowFlux system. This allows you to precisely modulate the power according to the growth stage and canopy density.
Second, maintain a hanging height between 15 and 24 inches (38 to 60 cm) during flowering for even distribution and good penetration, while avoiding light stress. In the vegetative phase, a higher height (30-36 inches) will preserve optimal development.
Third, take advantage of the built-in reflectors that effectively concentrate and diffuse light to illuminate the lower areas, which is crucial in a dense SCROG cultivation.
Finally, the spectrum rich in deep red promotes vigorous growth, so adjust the intensity to provide enough light without causing burn or stress. This strategy ensures optimal light penetration and harmonious development under your lamp.
