01 — Description
Présentation du produit

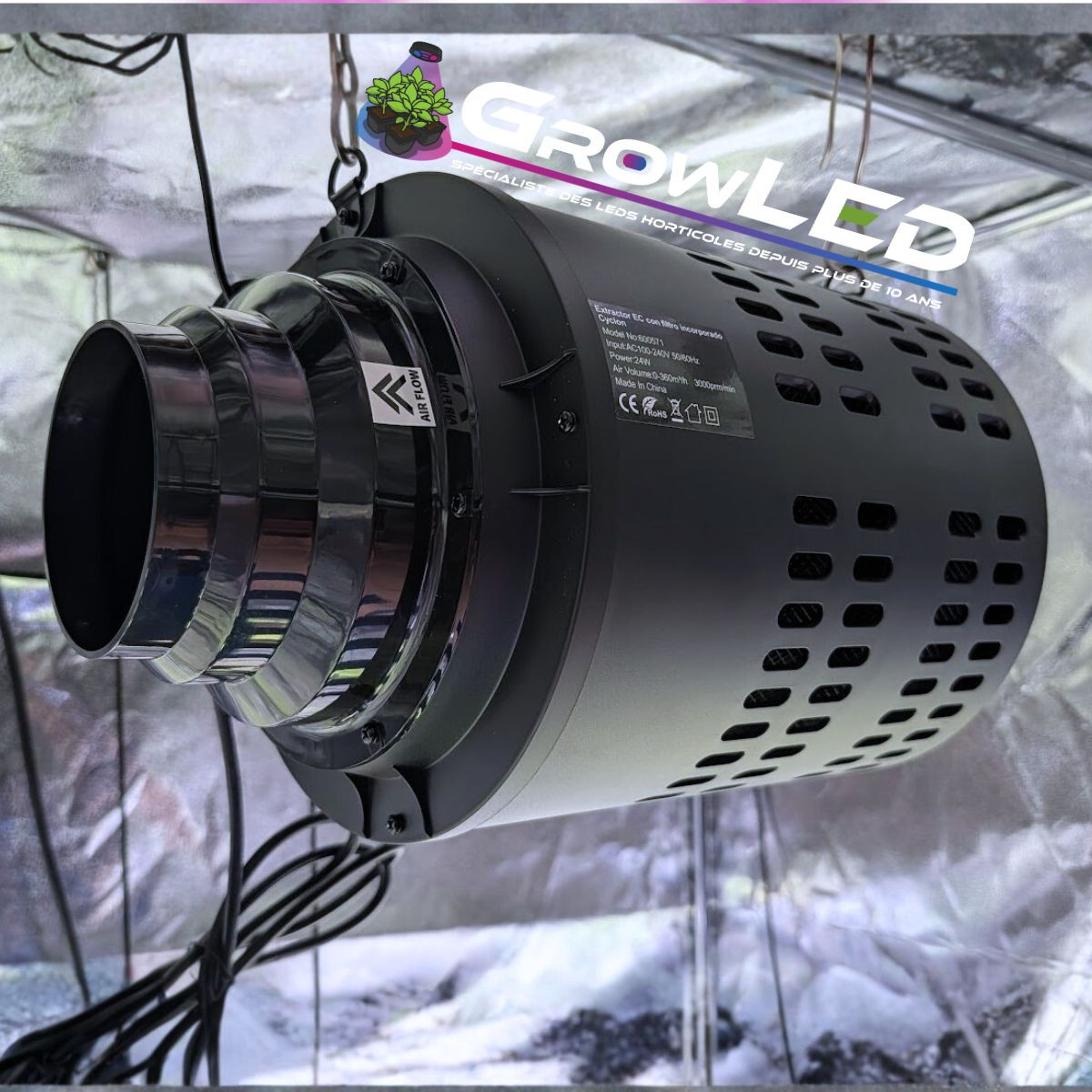

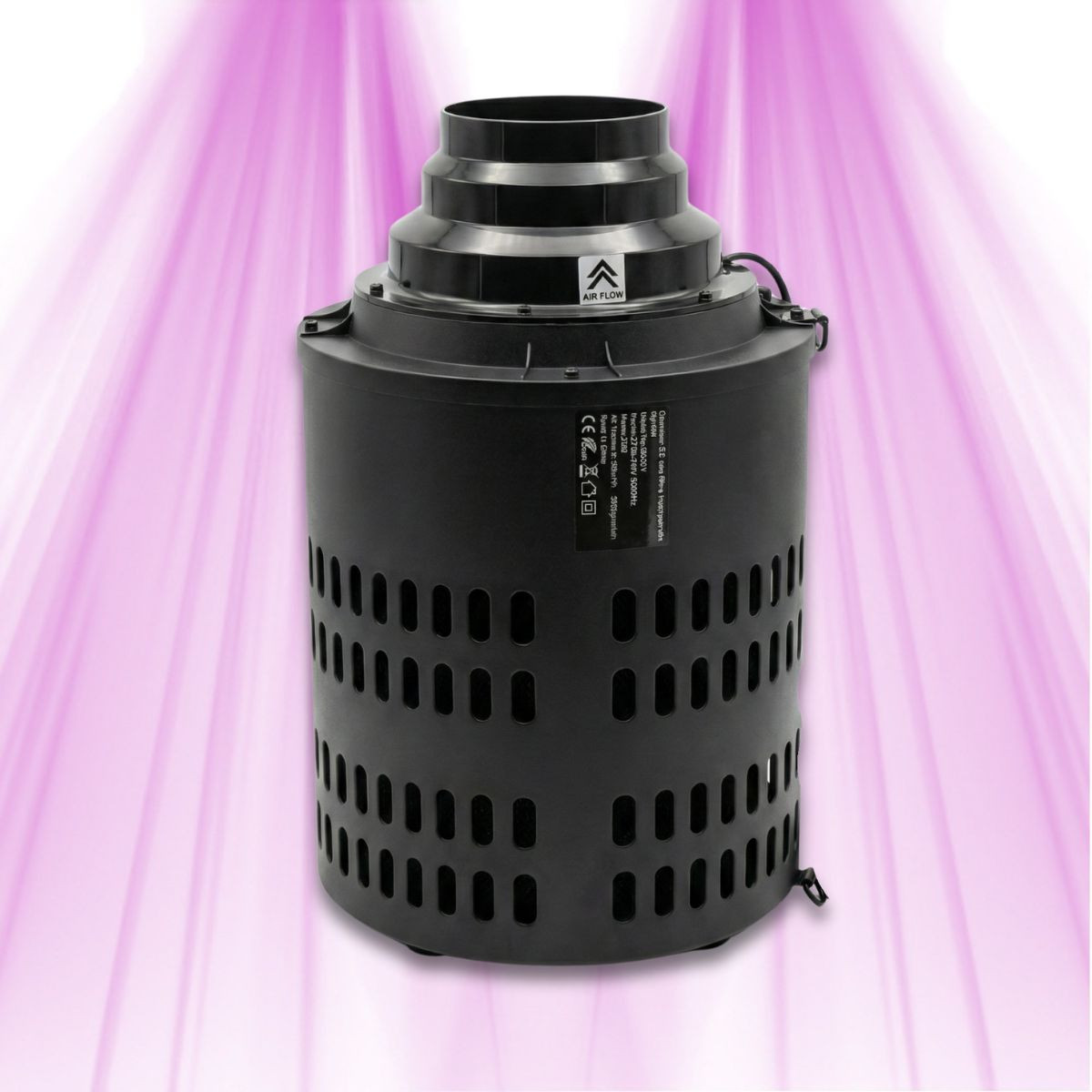

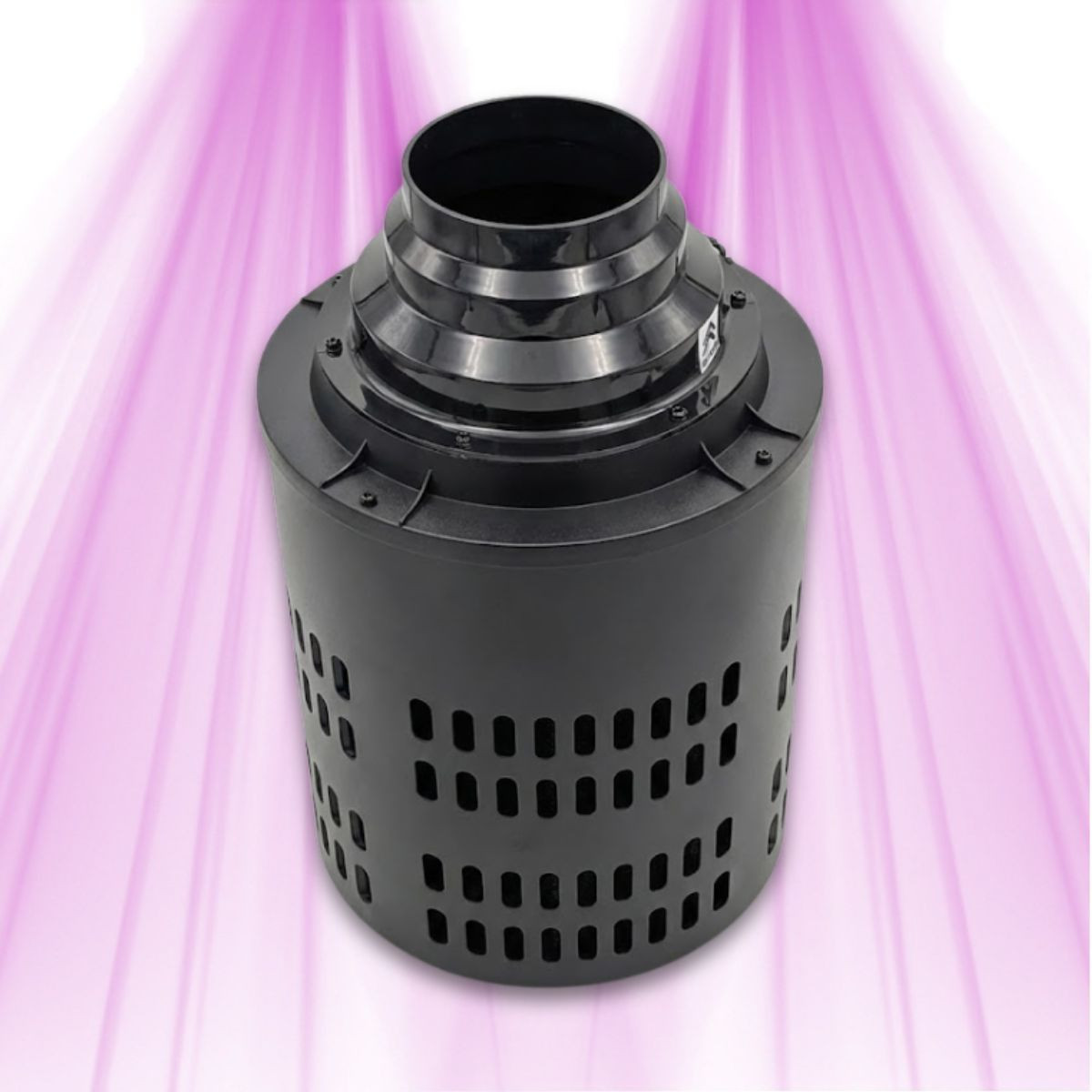

CYCLONE All-In-One Kit – EC Air Extractor + Integrated Activated Carbon Filter
550 m³/h • 24 W • Ultra-quiet • Climate control compatible (optional console)
The CYCLONE AllInOne Kit introduces a new way to manage air in indoor growing: an extractor fan and an activated carbon filter combined in a single system . Fewer parts to assemble, cleaner integration, and ventilation designed to work effectively with odor filtration.
GrowLED preview : an all-in-one approach designed to simplify installation, reduce power consumption and increase discretion.
Maximum airflow: 550 m³/h (395 CFM)
Power consumption: 24 W
Motor: EC brushless (variable frequency)
Noise level: < 32 dB
Maximum speed: ~3,300 rpm
Speed control: 0–100% dial + controller compatible
Power supply: AC 100–240 V • 50/60 Hz
Warranty: 3 years
Certifications: CE • RoHS • REACH • FCC

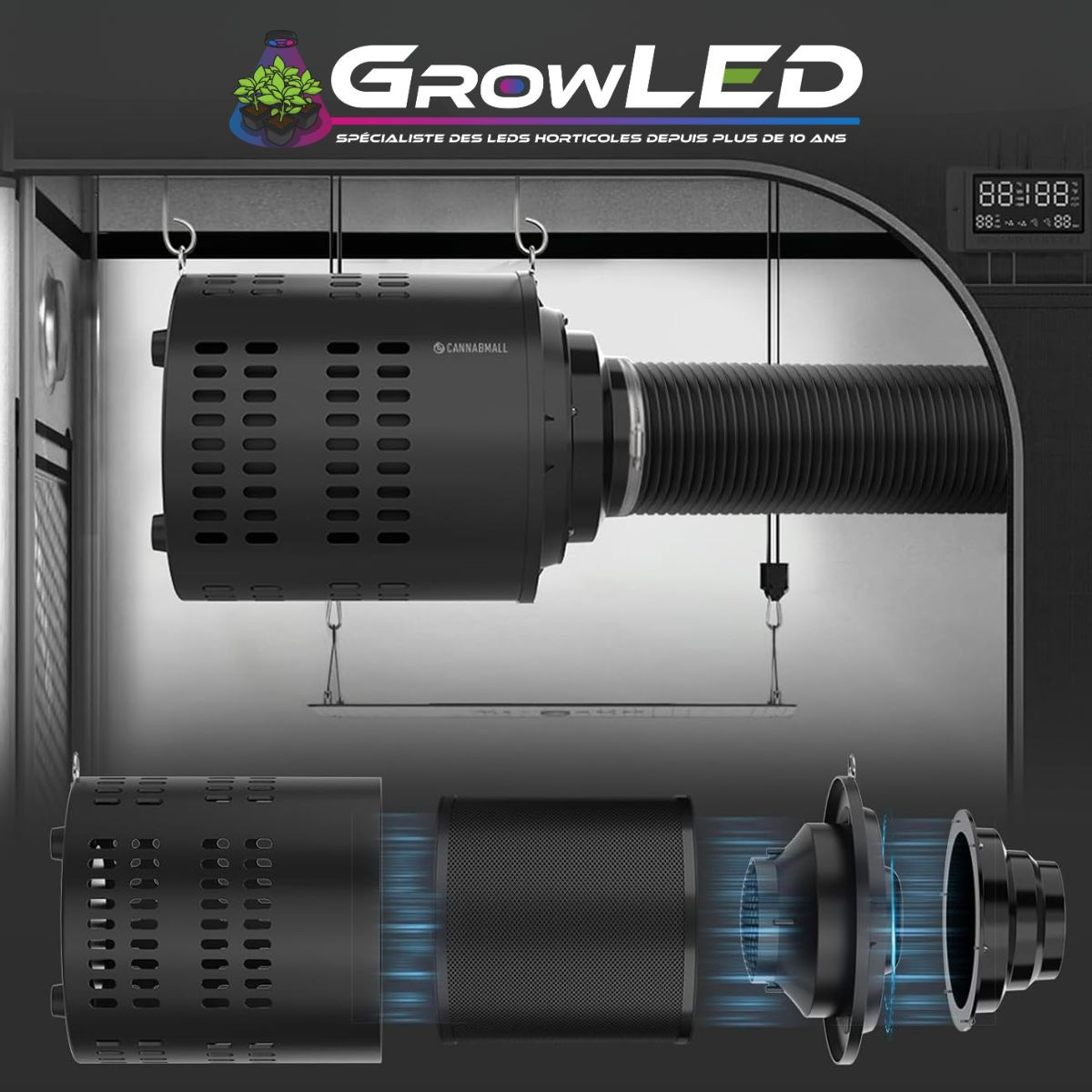

Why it's different: ventilation and coal designed as a single system
Conventional systems often rely on the assembly of several independent components. The CYCLONE adopts a more modern approach: a single unit integrating ventilation and filtration, designed to work together from the outset.
This gives you a cleaner solution to install, simpler to upgrade, and consistent for managing two essential indoor needs: air renewal and odor control .
EC motor: high flow and very low consumption
550 m³/h for only 24 W : an excellent performance/consumption ratio.
The CYCLONE uses a variable frequency brushless EC (Electronically Commutated) motor , allowing precise speed regulation while limiting electrical consumption.
- Controlled power consumption: 24W advertised

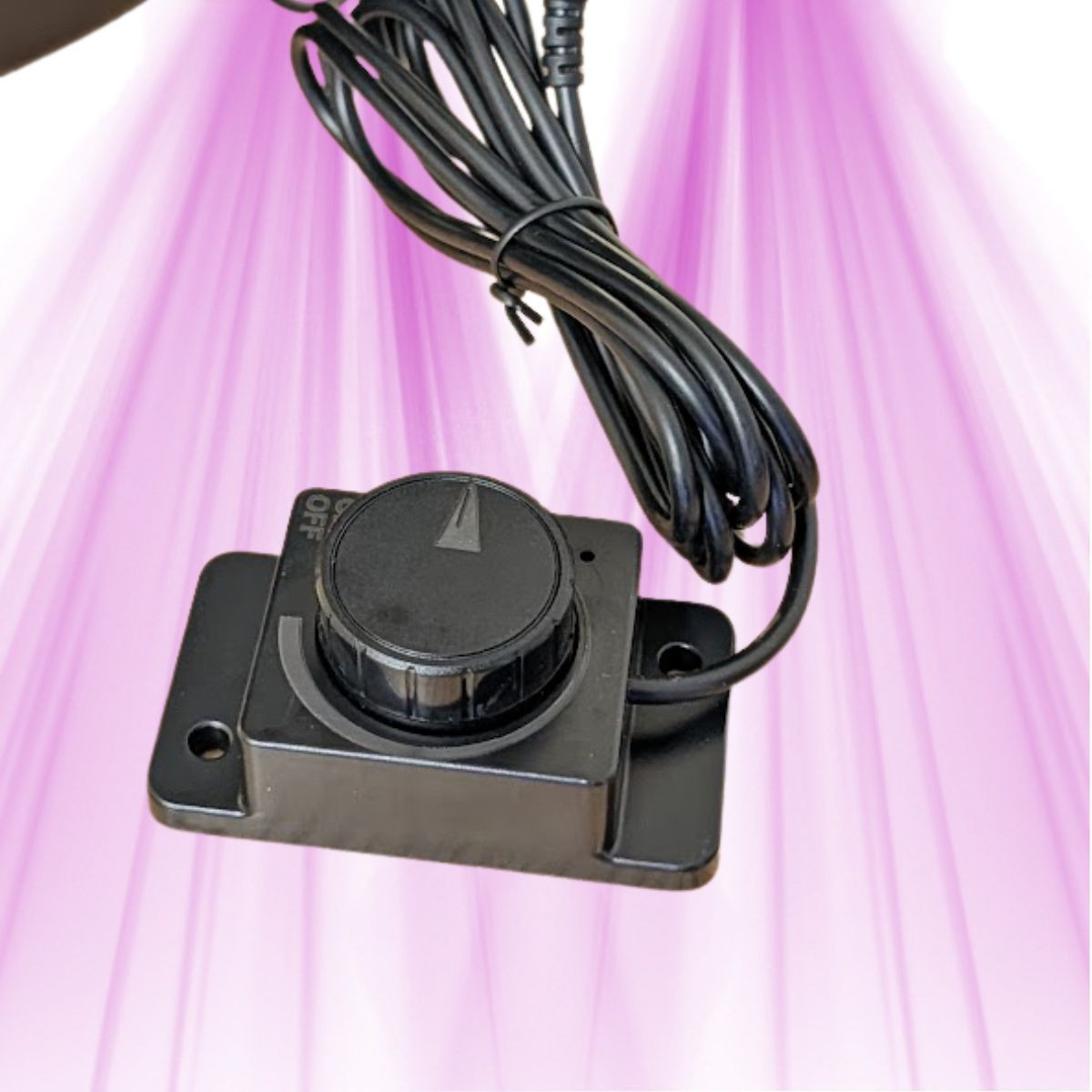

- Precise adjustment: integrated speed dial (0–100%)
- Automation compatibility: intelligent climate controllers
Silent operation (< 32 dB)
The CYCLONE is designed for quiet operation thanks to its lightweight ABS blades and optimized EC motor. The advertised noise level remains below 32 dB .
Integrated activated carbon filter (replaceable cartridge)
Odor filtration integrated directly into the ventilation system.
The activated carbon filter is an integral part of the AllInOne concept. The cartridge is replaceable to maintain optimal efficiency over time.
Recommended maintenance:
Carbon replacement is recommended every 3 months , or every 2 months in a very busy environment.
Carbon replacement is recommended every 3 months , or every 2 months in a very busy environment.
Climate control console (sold separately)
The CYCLONE can operate in manual mode, but it can also be paired with a smart control console (sold separately) to fully automate ventilation.
- High/low temperature management
- High/low humidity management
- Timer mode
- Alarm mode
- Precise regulation via 0–10 V signal
Technical specifications
- Maximum airflow: 550 m³/h
- Power: 24 W
- Speed: ~3,300 RPM
- Power supply: AC 100–240 V / 50–60 Hz
- Weight: 4.4 kg (net)
- Warranty: 3 years
GrowLED Tip:
Combining the CYCLONE with the control console allows for truly intelligent extraction, which automatically adapts to the actual conditions of your growing space.
Joseph – Director of GrowLED
02 — Fiche technique
Caractéristiques détaillées
| Power | 24 W |
| Diameter - Ø | 100/125/150mm |
| Flow in m3 | 550 m³/h |
| Speed management | Contrôlable de 0 à 100% |
| Type of extractor | EC |
03 — Avis clients
Customer reviews
Comments All reviews
Je suis agréablement surpris par la simplicité d'utilisation. Pas de galère pour l'installer, et il tourne tranquille, sans déranger. Filtre à charbon efficace, ça change la vie. Je vais en recommander pour mes potes.
Recommended to buy: Yes
Ça m’a changé la vie ce système tout-en-un. Pratique, discret, et ça filtre vraiment les odeurs. Moins de prise de tête, super pour gagner du temps. Un must pour qui veut du sérieux dans un format compact.
Recommended to buy: Yes
04 — Questions sur ce produit
Product questions
Your questions about this product
- How to install the AllInOne CYCLONE Kit for optimal ventilation in indoor cultivation?Simply plug the kit into your grow tent, attach it to the exhaust duct, and turn it on. Its all-in-one design with EC extractor and built-in carbon filter ensures a 5-minute installation with no complex tools, for an immediate flow of 550 m³/h.
- What is the frequency of replacing the charcoal filter of the CYCLONE to maintain effective odor filtration?Replace the filter every 2-3 months depending on the intensity of odors and VOCs in your space. This ensures optimal adsorption of volatile organic compounds and continuous odor removal, prolonging the performance of the kit.
- Is the CYCLONE Kit compatible with automatic indoor temperature control?Yes, its brushless EC motor easily connects to a climate control console to precisely adjust the speed and maintain an ideal climate, with a powerful flow of 550 m³/h and minimal consumption.
- Why choose the CYCLONE with only 24 W for silent and energy-efficient extraction?At 24 W, it delivers 550 m³/h ultra-silent (<32 dB) thanks to its efficient EC motor, surpassing traditional extractors in energy savings and discretion, ideal for indoor ventilation without disrupting your daily life.
- How does the integrated activated carbon filter of the CYCLONE excel against VOCs and odors?Activated carbon effectively adsorbs VOCs, formaldehyde, and persistent odors like those from cooking or tobacco, creating clean and healthy air. Its all-in-one design optimizes this filtration for proven indoor purification efficiency.
- What advantages does the CYCLONE Kit offer for a profitable and serene indoor cultivation?Save on electricity (24 W), set it up in a snap, eliminate 100% of odors with built-in filtration, and precisely regulate via EC: the professional choice for optimal yields without noise or a hefty bill.
