ATS 200W PRO - Compact 200W horticultural LED panel - Lumatek

Your questions about this product

• ATS 200W PRO: Does it effectively compensate for lighting arrangement in a growing space of 80cm by 80cm without creating shadow zones under the canopy?
  The LED panel ATS 200W PRO is perfectly suited for a growing space of 80x80 cm. Thanks to its uniform distribution of diodes on its bars, it ensures homogeneous coverage without creating shadow zones under the canopy. Its full spectrum and excellent light efficiency promote optimal growth across the entire surface.
• Can we synchronize two ATS 200W PRO panels on a single timer to manage a culture in parallel without the risk of electrical overload?

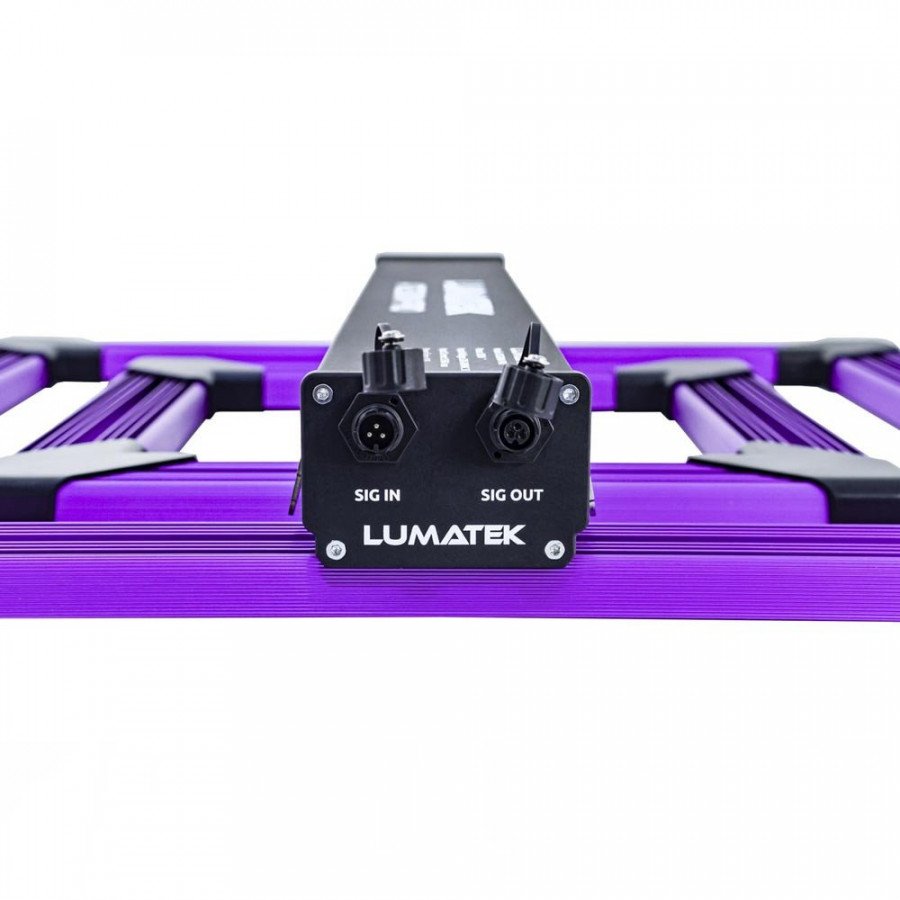

  It is quite possible to synchronize two ATS 200W PRO panels on a single timer. These panels offer a daisy chaining control function through the SIG IN and SIG OUT ports, allowing simultaneous management via a 0-10V protocol.

  In terms of consumption, two panels total approximately 410W, which translates to a current of about 1.78 A at 230 V, well below the standard capacity of household sockets and timers (often 10 A or more). Therefore, there is no risk of electrical overload as long as the circuit and timer are suitable and compliant.

  For optimized management, prefer a compatible 0-10V timer or controller, such as the Digital Panel Plus 2.0, which synchronizes dimming and facilitates management for up to 100 panels.

• What is the ideal growing depth to optimize the light penetration of the ATS 200W PRO over a surface of 80cm x 80cm?

  For the ATS 200W PRO panel, the growing depth is not the key parameter. The essential aspect to optimize light penetration over 80 cm x 80 cm is to position the panel at an appropriate height. We recommend placing it between 40 and 60 cm above the plant canopy: higher (around 60 cm) during the growth phase, and closer (around 40 cm) during flowering if the plants can handle this intensity. This distance ensures uniform coverage and a good balance between power and light penetration.

• Can the ATS 200W PRO be used in parallel with another LED panel to increase the cultivation area without modifying the overall electric consumption or the light distribution on the plants?
  It is entirely possible to use the ATS 200W PRO in parallel with another LED panel to cover a larger area. To avoid increasing the overall electric consumption, the power of each panel must be adjusted using their 100% dimmable function, by reducing the power of each to remain within the same total consumption.

  To ensure an even light distribution, it is essential to choose a second panel with a similar full spectrum and a diffusion angle close to 120°, like that of the ATS 200W PRO. This will allow for a uniform penetration of light across all plants.

  Thus, by adjusting the power via the dimmer and pairing compatible panels, you can effectively expand your growing space without altering consumption or light quality.

• Does the ATS 200W PRO LED panel heat up sufficiently little to avoid the need for an additional fan in an 80x80 box?

  The ATS 200W PRO LED panel from Lumatek has a very efficient passive cooling system, which significantly limits the heat generated. Its high photon efficiency allows it to convert a large part of the energy into usable light, thereby reducing the emitted heat.

  However, in an 80x80 cm box, even with this fanless cooling, minimal ventilation is still recommended. This allows the accumulated heat to dissipate and maintains a stable and optimal temperature for your plants. An extraction fan or an air circulation system is not strictly essential but ensures ideal thermal control and the best possible performance of your cultivation.

• Is this 200W LED panel compatible with app management for automatic power adjustment according to the growth phase?
  The Lumatek ATS 200W PRO LED panel is not compatible with a mobile application for automatically adjusting power according to the growth phase. However, it can be controlled via the Lumatek Control Panel Plus 2.0, a controller that offers light programming, automatic intensity adjustment, as well as advanced modes like Sunrise & Sunset. This panel also supports dimming via a 0-10V signal, allowing precise and efficient management of light power tailored to your needs.
• What is the actual lifespan of the ATS 200W PRO panel under standard usage conditions without a significant loss of light efficiency?

  The horticultural LED panel ATS 200W PRO offers an actual lifespan exceeding 60,000 hours under standard usage conditions, without a significant loss of light efficiency. This longevity is ensured by its robust design, an efficient passive heat sink, and a protective coating that prevents corrosion while ensuring high light transmission.

  Additionally, the latest generation of integrated drivers with multiple protections guarantees stability and reliability over the long term. You can therefore count on several years of effective and consistent lighting before noticing a significant drop in performance.

• No need for an additional fan with ATS 200W PRO for an 80x80 grow?

  The LED panel ATS 200W PRO is designed with an innovative passive cooling system, thanks to a high-performance heat sink that uses natural convection. For a grow area of 80x80 cm, there is therefore no need to add an additional fan, as the panel heats very little and operates quietly without hot spots.

  However, it remains important to ensure good air circulation in your growing space for the comfort of the plants and to avoid excessive humidity, but regarding the cooling of the panel itself, no additional fan is required.

• Does the LED really live up to its promises in terms of durability and performance after several months of use in real conditions?

  The Lumatek ATS 200W PRO LED panel demonstrates excellent durability and performance even after several months of use in real conditions. Its robust construction with an IP65 housing protects against dust and splashes, while its passive cooling system ensures effective thermal management without noise, limiting the wear of components.

  In terms of performance, it delivers a powerful light output of 508 µmol/s at 2.5 µmol/J, ideal for a cultivation area of 60x60 to 80x80 cm, with a full spectrum suitable for all growth phases. The intensity adjustment allows for precise light tuning according to plant needs.

  With a claimed lifespan of over 50,000 hours and a 3-year warranty, this model is designed to maintain its performance over time, confirming that it truly lives up to its promises in prolonged use.

• What is the maximum operating temperature of the Lumatek ATS 200W PRO panel without additional fan to ensure optimal performance and prevent overheating?

  The Lumatek LED ATS 200W PRO is designed for passive cooling operation, without additional fan, thanks to optimized natural heat dissipation. Although no specific maximum temperature is provided, it is recommended to maintain a grow room ambient temperature around 25 to 30 °C to ensure optimal performance and prevent overheating.

  An integrated thermal control via the digital controller protects the panel, but good air circulation remains essential to preserve its performance and durability over time.

• What is the actual light yield of the ATS 200W PRO when I grow several varieties with different light requirements in the same area of 80cm by 80cm?

  The Lumatek ATS 200W PRO provides optimal light yield for an area of 80 x 80 cm, thanks to its PPF of 508 µmol/s and a photon efficiency of 2.5 µmol/J. Its uniform light distribution avoids areas that are too strong or too weak, which is ideal for growing several varieties with varying light needs in the same area.

  Additionally, its adjustable full spectrum via dimmer allows for precise light adaptation according to the different growth phases of each plant, ensuring harmonious and effective growth, regardless of the variety.

• What is the optimal height to suspend the ATS 200W PRO panel to achieve maximum PPFD over 80cm x 80cm without burning the plants?

  For the LED horticultural panel ATS 200W PRO from Lumatek, the optimal height for suspension to achieve a maximum PPFD over 80 cm x 80 cm is generally between 30 and 40 cm above the canopy. This distance allows for an even distribution of light without creating hot spots or risking burning the plants.

  Thanks to its natural heat dissipation, the panel can be suspended quite close to the plants, providing excellent light penetration while avoiding thermal stress. Additionally, its dimmable feature allows the intensity to be adjusted according to specific needs and growth stages.

• What is the precise distribution of the light spectrum in nm for the ATS 200W PRO and how does it impact the yield g/W in the growth versus flowering phases?

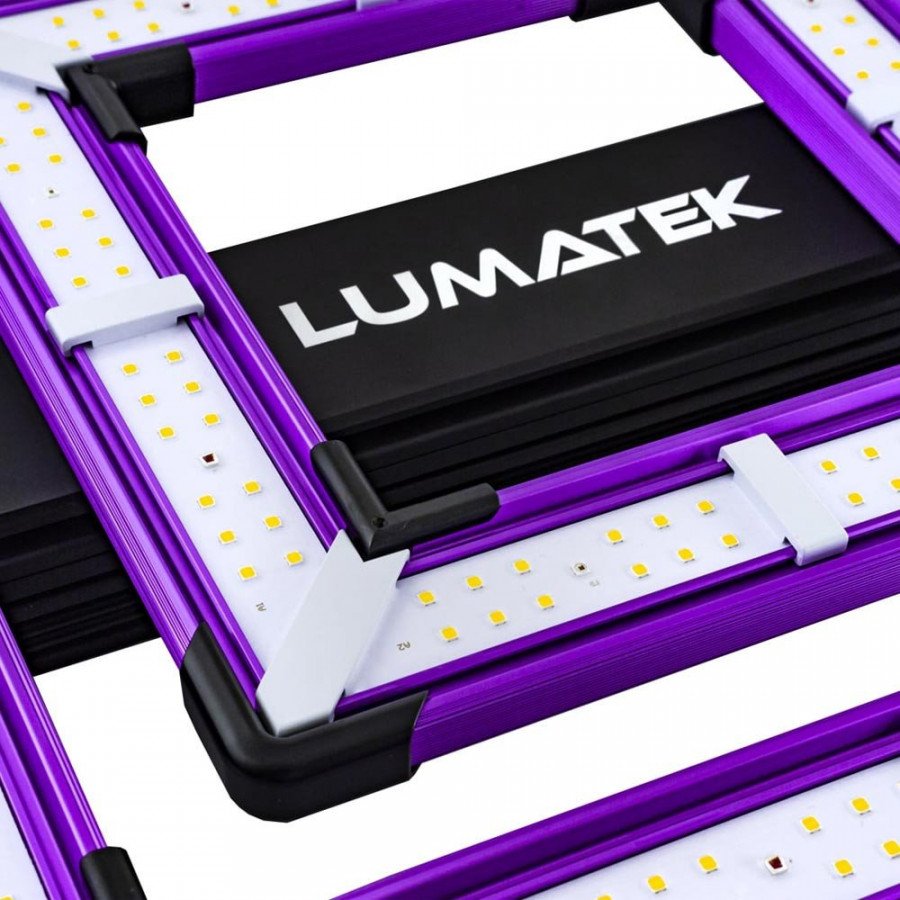

  The ATS 200W PRO panel combines a full and targeted spectrum with 74% of 4000K white diodes (400–700 nm), 14% of red diodes at 660 nm, and 12% of far red at 730 nm. This composition ensures an optimal balance: white light primarily supports vegetative growth with good penetration, while deep and far reds promote flowering and morphogenesis.

  In terms of efficiency, each type of diode offers high light yield (2.6 µmol/J for white, 3.0 µmol/J for red 660 nm, 2.2 µmol/J for far red), resulting in an impressive total yield of 2.5 µmol/J. This means that the ATS 200W PRO is efficient and energy-saving during both growth and flowering phases, allowing plants to develop their structure and flowers well.

• What is the maximum temperature emitted by the ATS 200W PRO panel during continuous operation, and can we do without the oscillating fan in a compact installation?

  The ATS 200W PRO panel from Lumatek does not officially specify its maximum temperature during continuous operation. Thanks to its passive design and IP65 rating, it effectively dissipates heat without an integrated fan, ensuring silent and long-lasting operation.

  However, in a compact installation, it is highly recommended to use an external oscillating fan. This promotes good air circulation, preventing local overheating and maintaining an optimal environment for your plants and equipment. Even though passive cooling is efficient, the fan contributes to the longevity and thermal stability of your cultivation.

• Can the Lumatek ATS 200W PRO panel easily replace a standard 300W HPS light for an 80x80 area without loss of performance?

  The Lumatek ATS 200W PRO panel is perfectly suited for a cultivation area of 80x80 cm. It delivers a photosynthetic photon flux (PPF) of 508 µmol/s with a luminous efficiency of 2.5 µmol/J, which is at least equivalent to, if not superior to, a standard 300W HPS lamp.

  Its light is evenly distributed, its complete spectrum is optimized for growth, and its low heat emission ensures performance without loss of yield. Additionally, its lower power consumption and silent system add real comfort in use.

  In summary, the ATS 200W PRO can easily replace a 300W HPS lighting for 80x80 cm while providing better control and efficiency.

• Is it compatible with existing home automation systems like Home Assistant or Jeedom for remote lighting automation and temperature/humidity monitoring?

  The Lumatek ATS 200W PRO LED panel can be controlled via the Lumatek Digital Panel Plus 2.0 controller, which offers advanced lighting cycle management and dimming with a 0-10V output.

  Regarding integration with home automation systems like Home Assistant or Jeedom, there is no official native integration. However, due to the support for the 0-10V signal, it is feasible to connect this LED panel to a home automation system via an appropriate universal controller (RJ to 0-10V converter), allowing for lighting automation.

  On the other hand, remote monitoring of temperature and humidity is not included natively in this model. For this functionality, external sensors compatible with your home automation system will be required.

  In summary: automation is possible with an appropriate 0-10V interface, but for remote temperature/humidity monitoring, an external solution is necessary.

• Is the ATS 200W PRO suitable for an 80x80 grow without a dimmable LED or a quiet extractor?

  The Lumatek ATS 200W PRO is perfectly suited for a growing area of 80x80 cm. It delivers a powerful and efficient light output (508 µmol/s, 2.5 µmol/J), ideal for ensuring optimal growth and flowering without overconsumption.

  Its passive cooling system is completely silent, eliminating the need for an additional quiet extractor to limit noise. Regarding dimmability, even if you do not use this function, the panel performs very well at full power.

  In summary, this LED panel is an excellent choice for your 80x80 cm grow, with a good balance between performance and sound comfort.

• What is the light yield in µmol/J of the ATS 200W PRO under real growing conditions and how does this translate into production gain on 80x80cm compared to the previous model?
  The Lumatek ATS 200W PRO offers a real light yield of about 2.5 µmol/J, with a total photon flux (PPF) of 508 µmol/s, perfectly suited for a cultivation area of 80x80 cm. This efficiency is achieved through an optimized spectrum combining white, red, and far-red diodes, promoting growth and flowering.

  Compared to the previous model (2.1-2.3 µmol/J and PPF around 430-450 µmol/s), the ATS 200W PRO delivers more light for the same energy consumption, ensuring better light penetration and uniformity over the cultivated area. In practice, this translates into a significant increase in production and plant quality on 80x80 cm, thanks to optimal light intensity and better energy efficiency.

• For an area of 80x80 cm, can this panel suffice as the only light source, or is it always necessary to combine it with other LEDs to optimize flowering?

  For a growing area of 80x80 cm, the Lumatek ATS 200W PRO LED panel is perfectly suited as a single light source. With a photosynthetic flux of 508 µmol/s and an optimized full spectrum, it provides homogeneous light that easily replaces a 300W HPS lamp for this surface.

  Therefore, it is not necessary to add other LEDs to optimize flowering. However, we highly recommend an external oscillating fan to ensure good air circulation, avoid overheating, and thus guarantee an optimal environment for your plants.

• What is the yield in micromoles per real joule measured under cultivation conditions (with reflector) on 80x80cm?

  The LED horticultural panel Lumatek ATS 200W PRO delivers a real photon yield of 2.5 micromoles per joule (µmol/J) under cultivation conditions, with reflector, over a surface of 80x80 cm. This figure corresponds to a PPF output of 508 µmol/s for an electrical consumption of 200W.

  This panel is designed to provide uniform coverage over this area, with an optimized full spectrum combining white diodes (4000K), red (660 nm), and far red (730 nm), ideal for growth and flowering phases.

  Its efficiency makes it a perfectly suitable solution for small indoor setups.
