SANlight EVO 3 - 80 - 190W Sanlight - 1 Expand

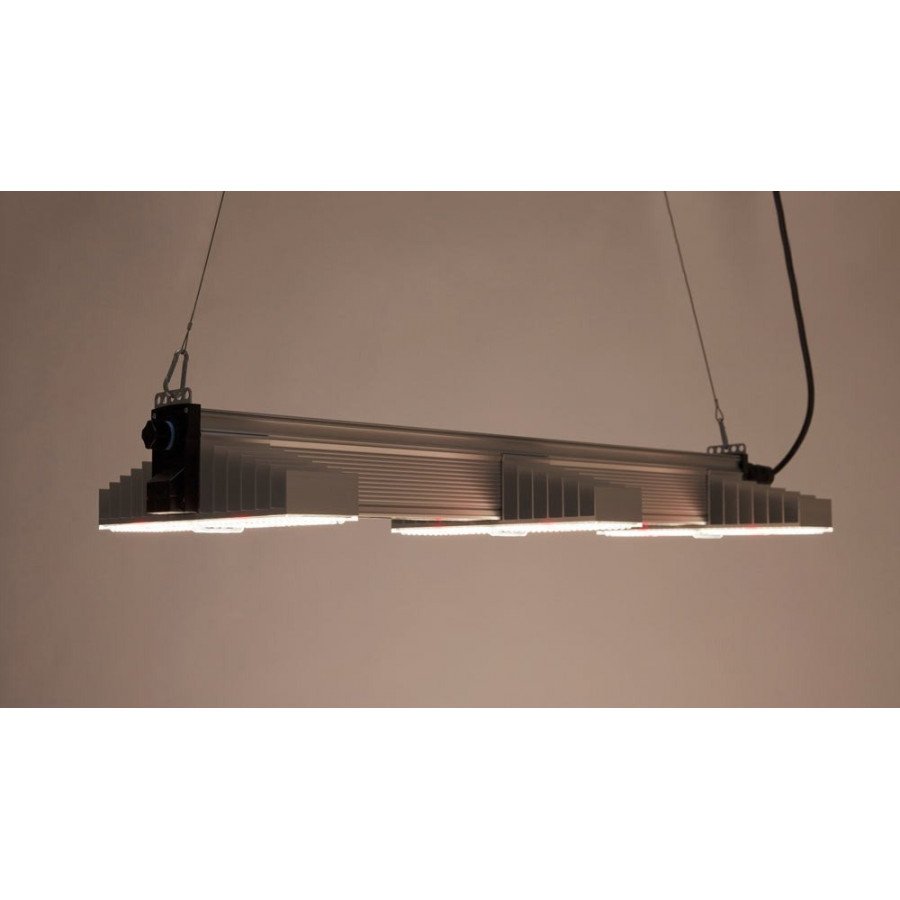

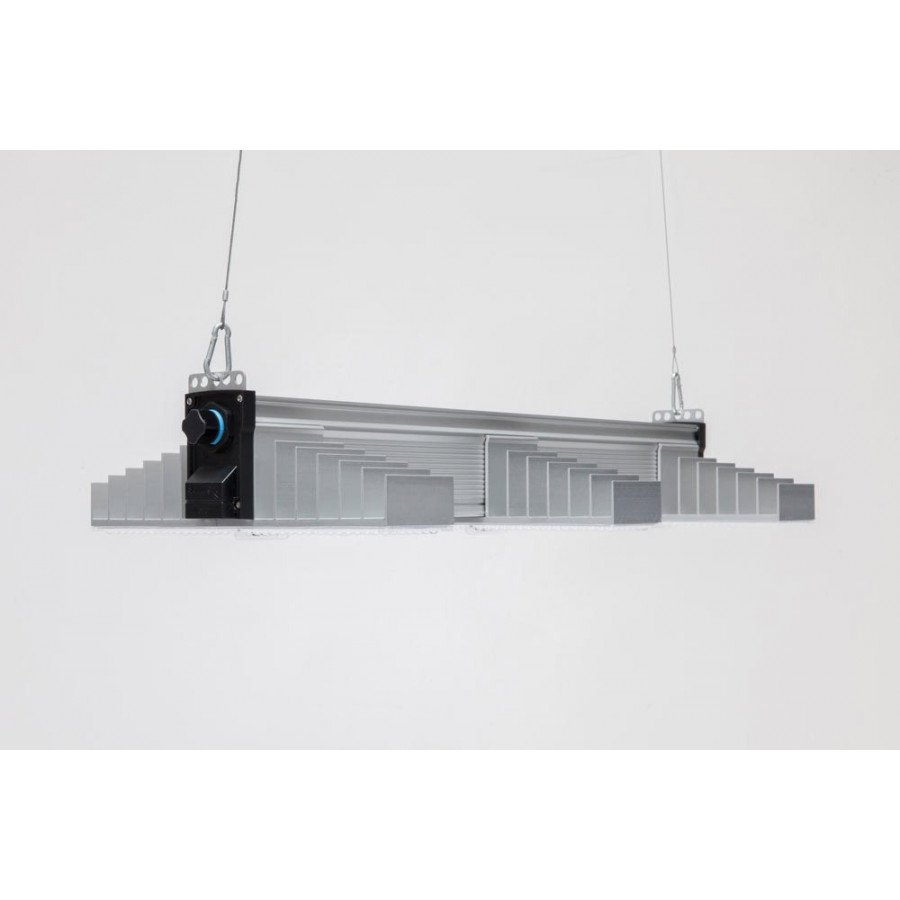

SANlight EVO 3 - 80 - 190W

SANLIGHT-EVO-3-80

Discover the ideal LED horticultural lighting system for your indoor cultivation, growth and flowering. You will benefit from a powerful, efficient and durable LED lamp.

Cultivation area: 80 x 80cm - Dimmable product (dimmer not supplied) - Power supply sold separately

More details

Ce produit a une excellente note des utilisateurs !
364,00 € tax incl.

ou payez 10x 36,40 €
- This product is no longer in stock -

paiement materiel horticole lampe led culture plantes growshop
delivery led grow light growshop ups

Points forts

LEDs

OSRAM & WICOP Seoul Semiconductor

Lighting aera

Rectangular

Warranty

2 years

Consumption

190W

Noise

Yes

Waterproof

Yes

More info

Discover the ideal LED horticultural lighting system for your indoor cultivation, growth and flowering. You will benefit from a powerful, efficient and durable LED lamp.

The SANlight EVO have been developed to be ultra-efficient. They have an efficiency of more than 3µmol/J at the module level. The yield per zone has also been boosted as well as the spectrum. This extends considerably, even beyond the usual PAR range. Thanks to the deep red LEDs, you will obtain abundant harvests with excellent quality.

Improved homogeneity and technology

On the EVO models, you will find OSRAM High Power LEDs for the deep red LEDs, but also WICOP white LEDs from Seoul Semiconductor.

The SANlight EVO have been improved compared to previous models. The optics have been resized, which allows for more homogeneous lighting, and with better light intensity. The secondary optics also prevent too much loss of photons for your plants, but also protect the LEDs from the growing environment.

The products are dimmable. You will be able to vary the intensity of the panel according to the life phase of your plants, in order to avoid consuming too much (for nothing) during the germination/growth phases. Please note, the SANlight magnetic dimmer is sold separately.

Features

  • Cultivation area: 80 x 80cm
  • Possibility of tilting the secondary optic
  • Dimmable (not supplied)
  • Consumption: 190 watts
  • Number of modules: 3 LED bars
  • 520 µmol/s
  • Weight: 3.8kg
  • Size: 643 x 291 x 116mm
  • Waterproofing: IP65

Data sheet

Coverage areaRectangular
Type of UseGrowth and Flowering
Lighting typePanels
FunctionsNot Dimmable
WaterproofYes
Thermal managementPassive - Completely silent
PowerBetween 100W and 200W
Power consumption190W
LEDsOSRAM & WICOP Seoul Semiconductor
Plug & PlayNo
Mobile appNo
WifiNo
Zero noiseYes
Temp. working environment-20°C ~+40°C
Size643 x 291 x 116mm
Product weight3.8kg
Manufacturer's Warranty2 years

Your questions about this product

  • Is the cooling system quiet enough for an 80x80 grow cabinet without adding additional ventilation?
    The SANlight EVO 3-80 features a passive cooling system, which means it is completely silent. For an 80x80 cm grow cabinet, it is perfectly suitable and does not require additional ventilation to manage its own heat. However, good air circulation is always recommended to maintain ideal temperature and humidity inside the cabinet.
  • SANlight EVO 3 - 80 - 190W Question: Is it possible to use this SANlight EVO 3 - 80 - 190W lamp to grow several varieties with different light needs in the same room, by adjusting the tilt of the secondary optics and the dimmable function to optimize the lighting for each variety?
    The SANlight EVO 3 - 80 - 190W is perfectly suited for growing several varieties with different light needs in the same room. With its adjustable secondary optics, you can precisely adjust the light distribution to optimize the lighting for each plant. Additionally, its dimmable function allows you to modulate the light intensity according to the growth phases or the specifics of each variety. This combination offers fine light control, ideal for a diverse and productive cultivation.
  • Is the SANlight magnetic dimmer easy to install and adjust to optimize consumption according to the different growth phases?
    The SANlight EVO 3-80 - 190W is compatible with a dimming option that allows for easy adjustment of light intensity according to the different growth phases. While a specific magnetic dimmer is not explicitly mentioned, this dimmable system offers excellent flexibility to optimize energy consumption while meeting the plants' needs. The installation is designed to be simple and integrates naturally with the panel, thus facilitating light management throughout the vegetative and flowering cycle.
  • How do you manage the SANlight EVO 3 dimmer to optimize consumption according to the growth phases without losing light intensity?

    Managing the dimmer on the SANlight EVO 3 - 80 - 190W is essential to optimize electrical consumption according to growth phases without compromising light intensity. This model is compatible with an optional dimmer, available in a manual version (M-Dimmer) or Bluetooth (BT-Dimmer), which allows precise adjustment of light intensity.

    During germination and early growth phases, it is advisable to reduce the intensity via the dimmer to limit consumption while providing light suitable for plant development. In advanced growth and flowering stages, intensity should be gradually increased to maximize photosynthesis and yield.

    This adjustment directly at the LED level ensures quality lighting without loss of efficiency while modulating the electrical power consumed. The dimmer sold separately remains the most effective tool for controlling your lighting according to the specific needs of each growth stage.

  • Is the dimmable control compatible with an external timer to automate the variations in light intensity according to the cultivation phases?

    The SANlight EVO 3 - 80 - 190W features a dimmable control that allows for manual adjustment of light intensity, ideal for adapting light to different cultivation phases. However, this control is designed as an independent device and does not seem to be compatible with a standard external timer (programmable plug or digital timer) to automate intensity variations.

    To automatically control the lighting, a system with a specific interface (0-10V, PWM, etc.) would be required, which is not indicated for this model. If automation is essential, an appropriate solution or another lighting system designed to be integrated into a home automation system could be considered.

  • Does the warranty really cover manufacturing defects such as a decrease in LED power after a few months of intensive use?
    For the SANlight EVO 3 - 80 - 190W, the three-year warranty does indeed cover manufacturing defects, including a decrease in power from the LEDs after a few months of intensive use. However, this warranty applies only if the installation, use, and maintenance have been carried out in accordance with the manufacturer's manual. Any non-compliant use, overload, overheating, or unauthorized intervention voids the warranty.

    If a decrease in power is suspected, the product should be returned via the point of sale or an authorized partner for inspection. If the defect is confirmed to be original, repair or replacement will be covered.

    In summary, the warranty is reliable and effectively protects against manufacturing defects, provided that the conditions for use and maintenance are strictly observed.

  • Does the SANlight EVO 3 - 80 dimmable system allow for precise management of light intensity to optimize a SCROG under LED without a noticeable decrease in photon efficiency?

    The SANlight EVO 3-80 is indeed equipped with a dimmable system that allows for fine modulation of light intensity, which is a real advantage for managing a SCROG. This precision in lighting allows for adjusting power according to different growth phases, thereby optimizing the health and development of the plants without wasting energy.

    Moreover, with a photon efficiency superior to 3 µmol/J, the decrease in efficiency when you dim the light remains very low, ensuring good photosynthetic yield even at reduced intensity. Its uniform distribution eliminates overly lit areas that can stress the plants, which truly optimizes your LED cultivation.

  • Integrable with existing home automation systems for remote monitoring and control via smartphone or voice assistant?

    The SANlight EVO 3 - 80 - 190W does not offer native integration with home automation systems or remote control via smartphone or voice assistant. It lacks Wi-Fi connectivity and a dedicated app.

    However, it is possible to adjust the light intensity with an optional Bluetooth dimmer, allowing simple remote control. However, this dimmer does not directly integrate with traditional home automation systems (e.g., MQTT or REST API). For intelligent remote operation, a third-party intermediate module would be necessary.

    If you are looking for advanced home automation management, this model will require appropriate additional hardware.

  • How does the light coverage and spectral uniformity of the SANlight EVO 3 80 behave on a cultivation area of 80x80cm with different plant varieties that have varying light requirements?

    The SANlight EVO 3 - 80 (190W) is perfectly suited for a cultivation area of 80x80 cm. It delivers a high light intensity (520 to 545 µmol/s) and, thanks to its secondary optics and an LED tilt system, ensures an even distribution of light across the entire surface, thus avoiding hotspots and inadequately illuminated areas.

    Its broad spectrum (400-780 nm) covers all the essential wavelengths for photosynthesis, making it suitable for plant varieties with varying light needs. The option for dimming via an optional dimmer allows for precise adjustment of the light intensity according to the specific requirements of each plant, thereby optimizing their development in the same area.

    In summary, this panel offers ideal light and spectral uniformity for managing diverse crops on 80x80 cm, with an excellent balance between performance and energy efficiency.

  • How can I integrate the separately sold SANlight dimmer to adjust the light intensity between growth and flowering with the EVO 3 - 80 model?

    To integrate the SANlight dimmer with the EVO 3 - 80 - 190W model and adjust the light intensity between growth and flowering, simply purchase the compatible dimmer, available in a manual version (M-Dimmer) or Bluetooth (BT-Dimmer). Then, connect this dimmer between the power supply and your EVO 3 - 80 panel. You can adjust the brightness either manually via a knob or remotely with the Bluetooth app depending on the chosen version.

    This modulation allows you to perfectly adapt the intensity: low at the beginning for germination and initial growth, stronger for flowering, thereby optimizing plant health while controlling electrical consumption.

  • Is integration possible with voice assistant to manage the intensity variations and the lighting schedule of the SANlight EVO 3-80?

    The SANlight EVO 3 - 80 - 190W offers intensity adjustment via an integrated dimmer, but it does not offer native integration with voice assistants to manage intensity variations or lighting schedules.

    There are specific Bluetooth accessories, such as the Bluetooth dimmer or the M-Dimmer for the EVO series, which allow for remote control of intensity, but without direct compatibility with voice assistants or conventional home automation systems.

    For voice control or automated scheduling, it is necessary to go through intermediate home automation modules capable of controlling these accessories, as this function is not available as standard on the SANlight EVO 3-80.

  • What real gains can I expect in yield and crop quality with the SANlight EVO 3 80 compared to traditional LEDs or CMH over a surface area of 80x80cm?

    The SANlight EVO 3 - 80 - 190W offers a very efficient light output with 520 µmol/s for only 190W consumed, optimized for a surface area of 80x80 cm. Unlike traditional LEDs or CMH lamps, it provides a perfectly uniform light distribution without hotspots, promoting homogeneous and higher quality plant growth.

    It generates less heat, making thermal management easier and reducing ventilation or air conditioning costs. Additionally, the dimming function allows for precise adjustment of intensity according to growth phases, maximizing yield and final quality.

    In summary, you can expect a notable gain in production due to a better photosynthetic efficiency and suitable light, superior to traditional LEDs and CMH, particularly on this cultivation area.

  • What is the average lifespan of the LEDs on this SANlight EVO 3 - 80 - 190W model and does the system require regular maintenance to maintain its optimal efficiency?
    The average lifespan of the LEDs of the SANlight EVO 3 - 80 - 190W is approximately 90,000 hours according to the LM90 standard, ensuring stable long-term performance. This system is designed to be particularly robust and low-maintenance. Thanks to its titanium oxide coating and IP65 certification, it effectively withstands humidity and dust, thereby reducing the risks of degradation.

    Regular maintenance is therefore not necessary to maintain its efficiency. However, occasional cleaning to remove dust and check the general condition can help preserve the light performance. Additionally, the LED panel is easily detachable, allowing for simple replacement if needed after several years of use.

  • What is the optimal distance to maintain between the SANlight EVO 3 80 190W and a micro-culture 80x80 to maximize homogeneity and avoid plant burning?

    To optimize the lighting with the SANlight EVO 3 - 80 - 190W over a cultivation area of 80x80 cm, it is advisable to position the lamp at a distance of about 30 to 40 cm above the canopy. This distance fully leverages the tiltable 11° secondary optics, which ensures an even light distribution without hot spots, thus reducing any risk of burning.

    It is also important to adjust the light intensity using the integrated dimmer, especially during sensitive phases like germination or young growth. Start with a lower intensity and then increase it during flowering to maximize growth while preserving plant health.

    This setup ensures even light, promotes balanced plant development, and minimizes light stress.
