01 — Description
Présentation du produit

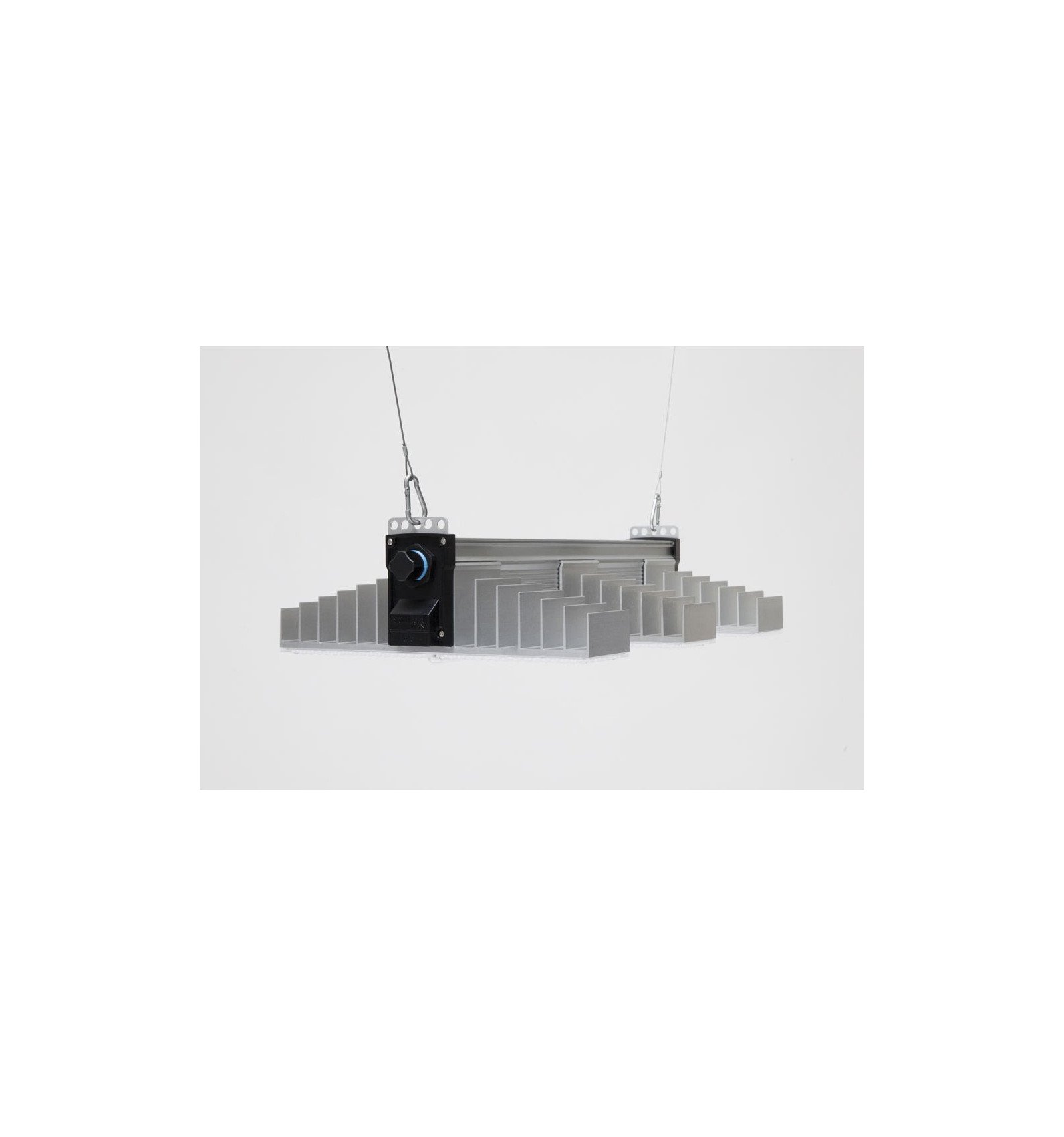

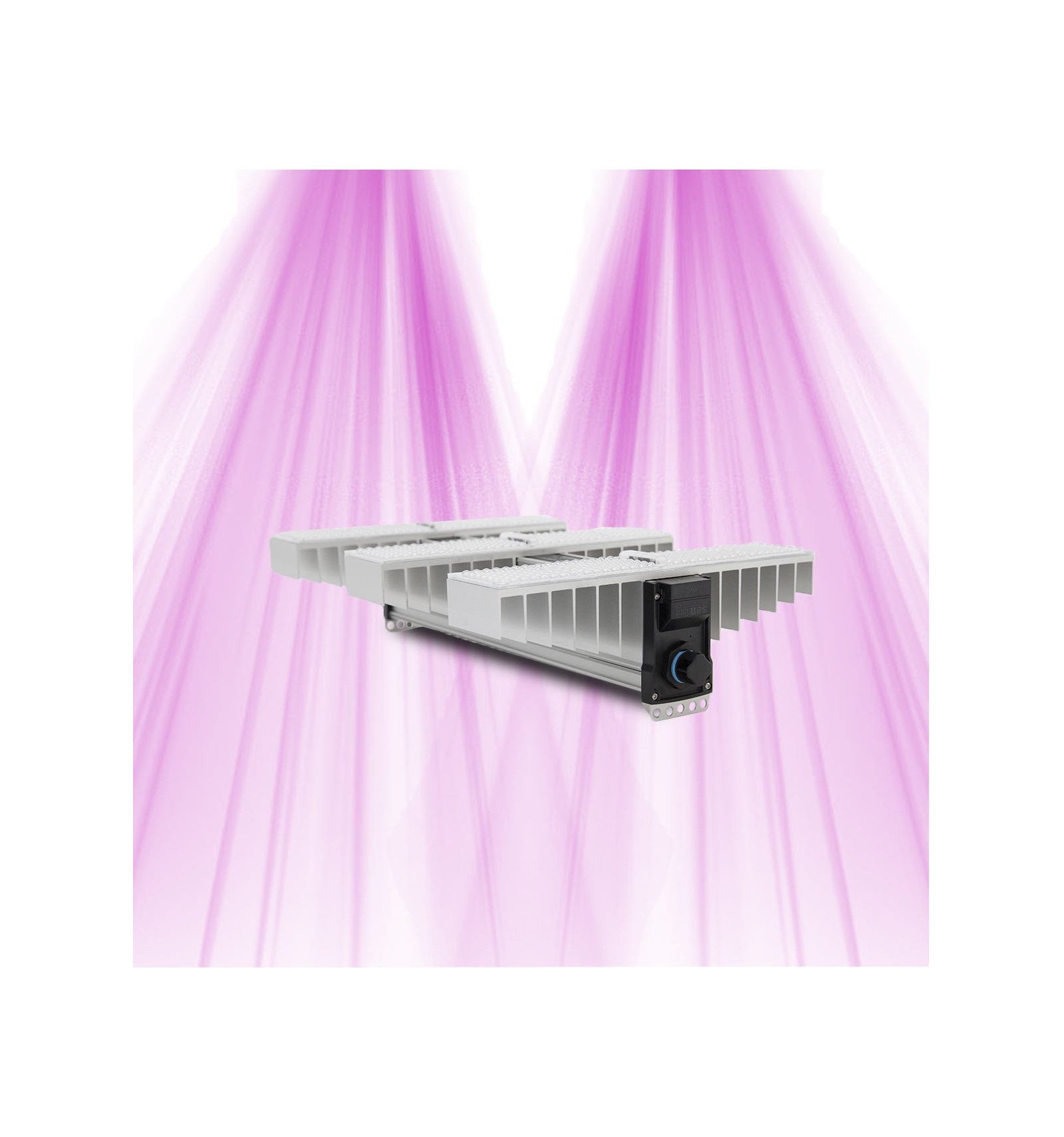

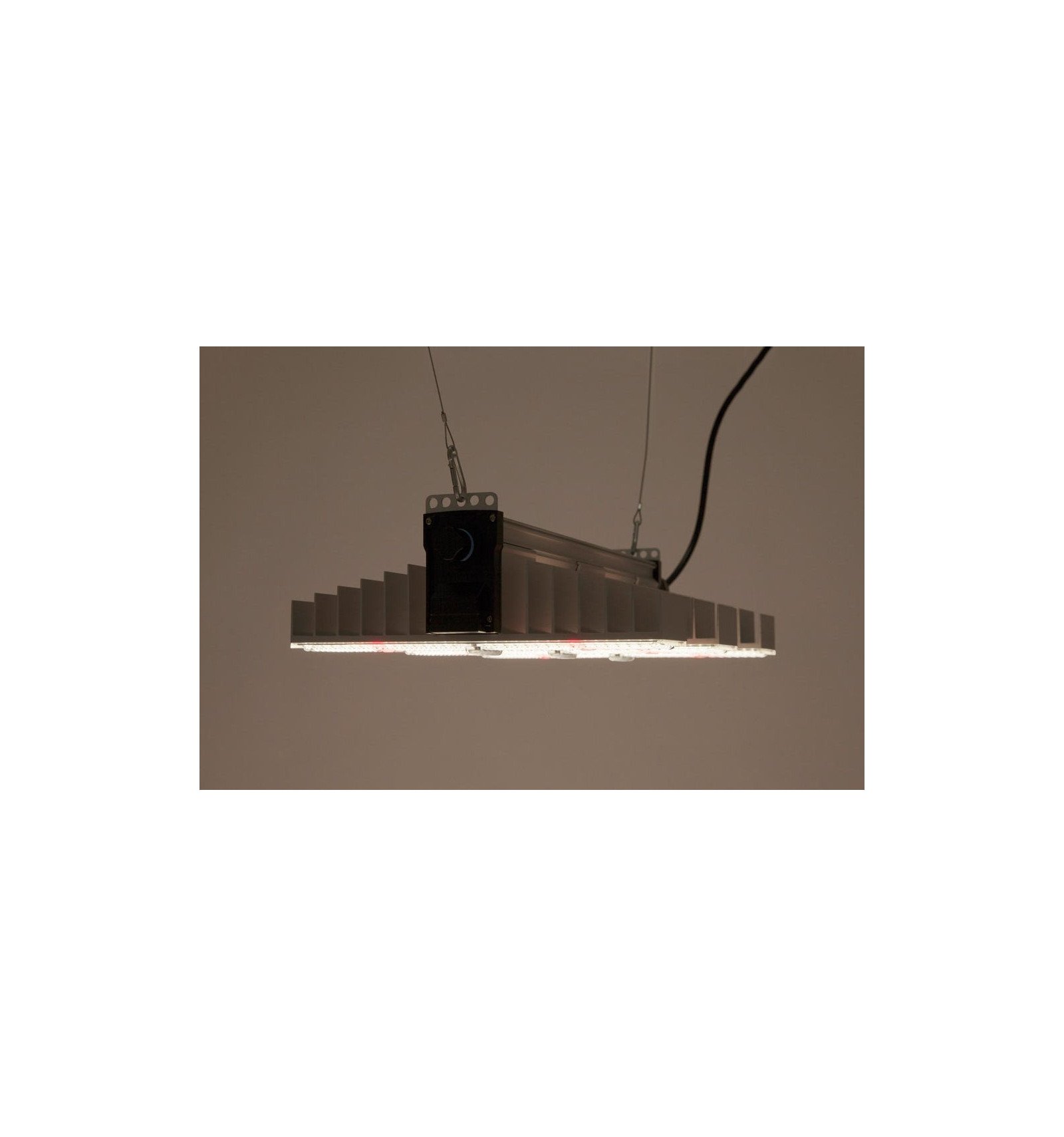

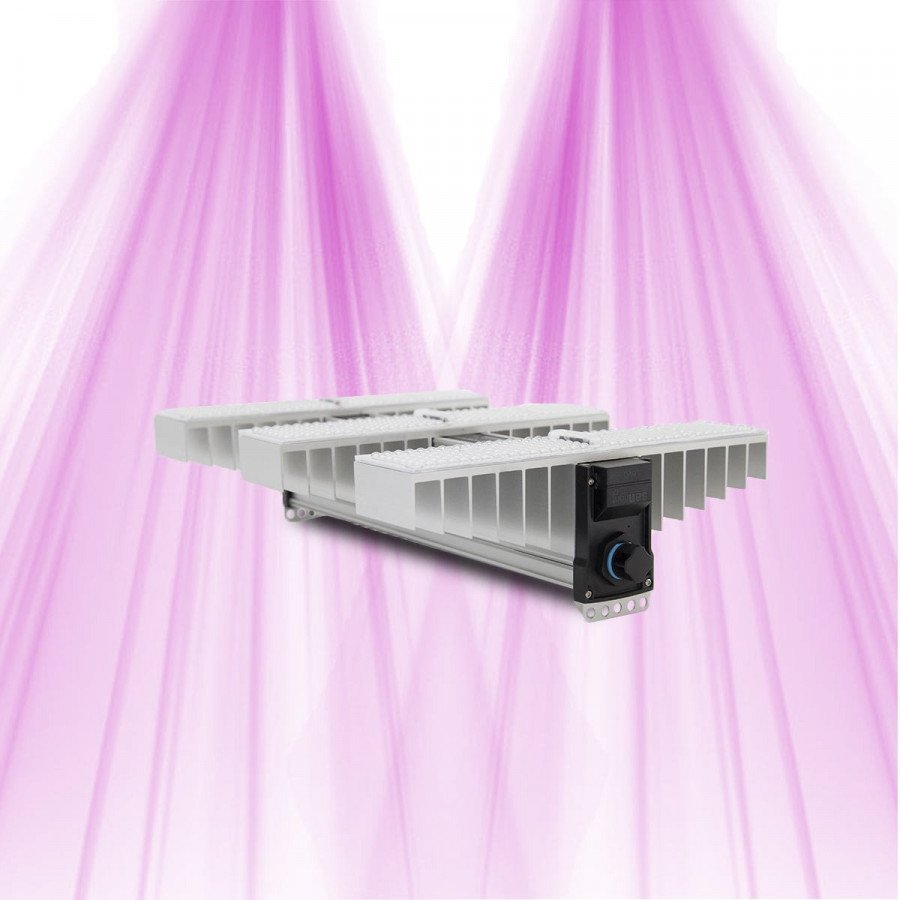

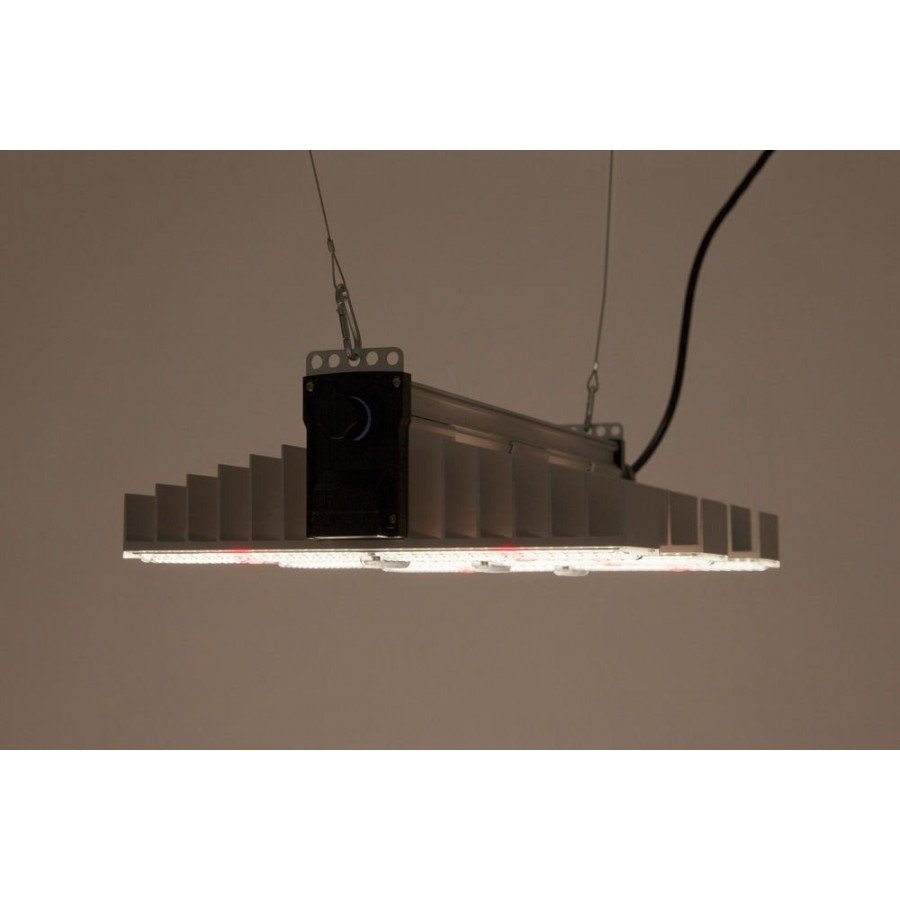

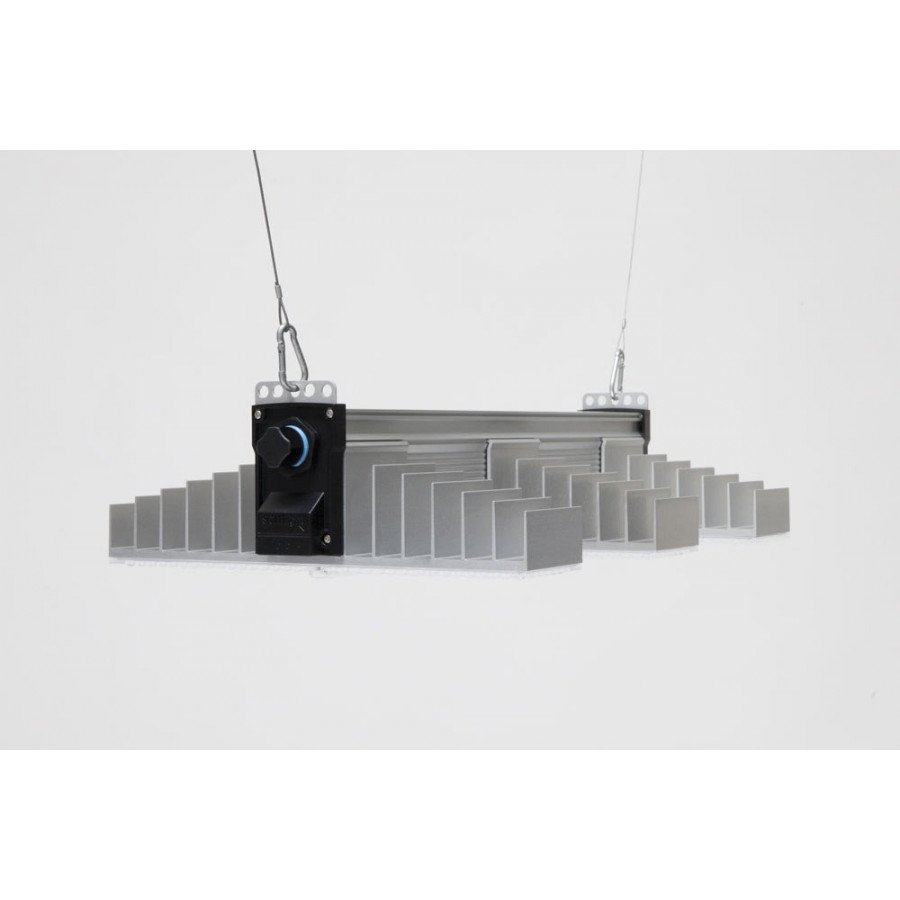

Discover the ideal LED horticultural lighting system for your indoor cultivation, growth and flowering. You will benefit from a powerful, efficient and durable LED lamp.
The SANlight EVO have been developed to be ultra-efficient. They have an efficiency of more than 3µmol/J at the module level. The yield per zone has also been boosted as well as the spectrum. This extends considerably, even beyond the usual PAR range. Thanks to the deep red LEDs, you will obtain abundant harvests with excellent quality.
Improved homogeneity and technology
On the EVO models, you will find OSRAM High Power LEDs for the deep red LEDs, but also WICOP white LEDs from Seoul Semiconductor.
The SANlight EVO have been improved compared to previous models. The optics have been resized, which allows for more homogeneous lighting, and with better light intensity. The secondary optics also prevent too much loss of photons for your plants, but also protect the LEDs from the growing environment.
The products are dimmable. You will be able to vary the intensity of the panel according to the life phase of your plants, in order to avoid consuming too much (for nothing) during the germination/growth phases. Please note, the SANlight magnetic dimmer is sold separately.
Features
- Cultivation area: 60 x 60cm
- Possibility of tilting the secondary optics
- Dimmable (not supplied)
- Consumption: 190 watts
- Number of modules: 3 LED bars
- 520 µmol/s
- Weight: 3.6kg
- Size: 468 x 291 x 116mm
- Waterproofing: IP65
02 — Specifications
Caractéristiques détaillées
| Functions | Not Dimmable |
| Waterproof | Yes |
| LEDs | OSRAM & WICOP Seoul Semiconductor |
| Plug & Play | No |
| Temp. working environment | -20°C ~+40°C |
| Marque | SANlight |
| Dimensions (cm) | 468 x 291 x 116mm |
| Puissance consommée (W) | 190 watts |
| Marque des LED | OSRAM/Seoul |
| Poids (kg) | 3,6kg |
| Silencieux (zéro bruit) | Oui |
| Type de LED | LED |
| PPF | 520-545 µmol/s |
| Efficacité (µmol/J) | 3 |
| Contrôle connecté | Non |
| Durée de vie (h) | 90000 |
| Dimensions (mm) | 468x291x116 |
03 — Customer reviews
Customer reviews
Comments All reviews
J'ai eu beaucoup de chance de tomber sur ce modèle : il éclaire parfaitement sans chauffer, et reste silencieux. Après plusieurs jours, je suis toujours content de cet achat.
Recommended to buy: Yes
Excellent produit. Fonctionne
Excellent produit. Fonctionne super bien, consomme pas trop. Livraison rapide. Satisfait de mon achat.
Recommended to buy: Yes
C'est un super
C'est un super produit. Facile à utiliser et ça fait vraiment son job. Reçu en bon état, livraison nickel. Je recommande sans hésiter.
Recommended to buy: Yes
04 — Questions about this product
Product questions
Your questions about this product
- Would the SANlight EVO 3 - 60 - 190W LED horticultural lighting system be effective for indoor strawberry cultivation in winter?Absolutely, the SANlight EVO 3 - 60 - 190W LED horticultural lighting system is designed to provide optimal brightness for plants for any type of indoor cultivation. With a coverage area of 60x60cm and a light intensity of 545µmol/s, this lamp is ideal for indoor strawberry cultivation in winter. In addition, this model features a broad light spectrum that ensures healthy growth of your strawberries. Besides, SANlight EVO 3-60 - 190W light is dimmable, which allows you to control the light intensity according to the specific needs of your crops. We also recommend the use of the dimmer to modulate the light intensity and thus optimize the growth phases of strawberries. In short, SANlight EVO 3 - 60 - 190W is a great option for successful indoor strawberry cultivation during winter.
- Does the SANlight EVO 3 - 60 panel support easy integration with home automation controllers via MQTT protocol or REST API to automate dimmer management according to growth phases?The SANlight EVO 3 - 60 - 190W panel does not, to our knowledge, have native integration via MQTT protocol or REST API to automatically manage the dimmer according to growth phases.However, there are accessories such as the Bluetooth dimmer or the M-Dimmer for the EVO series, but these do not seem to be directly compatible with home automation systems via MQTT or REST API.To automate with controllers using these protocols, an intermediary or a module compatible with these technologies is often required, but this is not a standard feature of this model.
- Can multiple SANlight EVO 3 - 60 - 190W panels be synchronized with a single dimmer controller to optimize the lighting for two crops in parallel in the same space?The SANlight EVO 3-60 - 190W panel is equipped with a dimmer that allows individual adjustment of light intensity. However, there is no clear information regarding the possibility of synchronizing multiple panels with a single dimmer controller to control the lighting of two crops in parallel.To manage multiple panels simultaneously, you might consider centralized control systems or third-party solutions that can synchronize multiple dimmers. This approach would optimize lighting and simplify overall management.In summary, each panel can be adjusted independently, but for unique synchronization, one must check the compatibility of suitable controllers. Management flexibility is essential to meet the specific needs of different crops in the same space.
- What is the optimal installation height to maximize uniformity and yield on a 60x60 cm growing surface with the SANlight EVO 3-60 190W without degrading the light spectrum?To maximize the uniformity and yield of the SANlight EVO 3-60 - 190W on a 60x60 cm surface, it is recommended to hang it at a height of about 30 to 40 cm above the plants. This distance allows for an even distribution of light thanks to the integrated secondary optics while avoiding the risk of overheating that could affect the quality of the light spectrum.
Also, make sure to maintain good ventilation around your setup to preserve light efficiency and ensure an optimal environment for your plants.
- What are the tips for adjusting the light intensity with the separately sold dimmer to optimize growth and flowering in a 60x60 cm area with the SANlight EVO 3 60 190W lamp?
To optimize growth and flowering in a 60x60 cm area with the SANlight EVO 3-60 (190W) lamp, use the separately sold dimmer to finely adjust the light intensity:
- Growth phase: set the dimmer to 50-60% power to promote healthy development and limit plant stress.
- Flowering phase: gradually increase the intensity to 80-90% to stimulate flower production.
- Installation height: hang the lamp at an appropriate height to ensure even distribution and avoid burns, about 30 to 40 cm depending on canopy density.
This dynamic light management allows you to fully utilize the power and efficiency of the SANlight EVO 3-60 while preserving plant health.
- Possible integration with voice assistant for remote control of light intensity?The SANlight EVO 3 - 60 - 190W offers adjustable light intensity via a Bluetooth dimmer compatible with a mobile app, but it does not provide native voice control with an assistant like Alexa or Google Assistant. For voice control, it would be necessary to consider integrating this dimmer into a third-party home automation system capable of processing voice commands, but this requires external configuration.
- What is the impact of the inclination of the secondary optics on the homogeneity and light penetration in a 60x60cm cultivation area with the SANlight EVO 3 60 190W lamp?The inclination of the secondary optics on the SANlight EVO 3-60 190W allows for precise adjustment of the light beam angle (between 90° and 112°) to optimize both light homogeneity and penetration on a cultivation area of 60x60 cm. By modulating this angle, you improve the uniform distribution of light across the entire canopy while enhancing light penetration to the lower levels of the plants. This contributes to a more uniform growth, avoiding areas of shade or excessive light, and fully exploiting the power of the panel for optimal light yield over this compact area.
- What is the real impact of the tilt of the secondary optics on the uniformity of lighting and the distribution of photons in a 60 by 60 cm grow space with this SANlight EVO 3 60 190W model?
The tilt of the secondary optics on the SANlight EVO 3-60 190W plays a crucial role in optimizing the uniformity of lighting and the distribution of photons in a 60 x 60 cm grow space. With this feature, it is possible to precisely adjust the angle of the light beam, which reduces over-illuminated or overly shaded areas.
These optics offer an asymmetric diffusion angle between 90° and 112°, perfectly suited to effectively cover the entire target surface. In practice, this results in a better light homogeneity across the entire area, promoting balanced plant development even in a limited space.
This ability to adjust gives the SANlight EVO 3-60 great flexibility and optimal photonic efficiency, perfectly meeting the specific needs of a 60 cm square grow area.
- What is the average lifespan of the LEDs on this EVO 3 60 model and how does it impact the light output over time?
The average lifespan of the LEDs in the Sanlight EVO 3-60 190W is around 90,000 hours. This longevity is ensured by quality protected LED chips, as well as lenses made of durable materials, guaranteeing robustness against environmental factors.
Regarding light output, the panel maintains more than 90% of the initial luminous flux even after these 90,000 hours of use, according to LM90 standards. In other words, degradation is very slow, ensuring stable and efficient light, ideal for optimal long-term growth.
This stability is enhanced by a waterproof design (IP65), which protects against dust and moisture, two factors that can accelerate efficiency loss. Thus, you benefit from durable, efficient, and economical horticultural lighting.
- What is the average lifespan of the LEDs on this EVO 3 60 model and how does it impact the lighting power over time?
The average lifespan of the SANlight EVO 3-60 190W LEDs is approximately 90,000 hours according to the LM90 standard, which realistically incorporates the gradual deterioration of light output over time. This deterioration is very gradual due to the high quality of the Seoul Semiconductor LED chips and a protective titanium oxide coating, which allows for sustained high lighting power over many years.
In practice, brightness decreases slowly, ensuring effective maintenance of the intensity necessary for plant growth. Additionally, using the dimmer to adjust light intensity helps preserve the health of the LEDs and prolong their usage life.
Criterion Detail Average LED lifespan More than 90,000 hours (LM90 standard) Light degradation Gradual and limited due to the protective coating and quality of the LEDs Impact on power Slow and controlled decrease, maintaining very good efficiency Optimization Adjustment via dimmer to adapt intensity and prolong longevity - What is the average lifespan of SANlight EVO 3 60 LEDs and their light degradation after several seasons of intensive cultivation?
The SANlight EVO 3 - 60 - 190W has an announced average lifespan of 90,000 to 100,000 hours of use, which corresponds to several years of intensive indoor lighting.
Regarding light degradation, this model is equipped with protective optical lenses that limit oxidation and soiling, ensuring a very low light loss, generally less than 10% over this period. Its design also ensures constant light uniformity, even after several seasons of intensive cultivation.
In summary, this LED panel offers remarkable durability and performance stability, suitable for both demanding enthusiasts and intensive professional cultivation.
- Which controller do you recommend to automate dimming and synchronize the SANlight EVO 3 60 with the complete light cycle?
To automate dimming and synchronize multiple SANlight EVO 3 - 60 - 190W, it is ideal to use the official SANlight dimmer, available in magnetic or Bluetooth version. These dimmers allow for precise control of light intensity, humidity suited, and with no wear.
However, multi-panel synchronization on a complete cycle is not provided as standard. You then need to consider a centralized controller or a third-party home automation system equipped with relay modules or compatible converters to simultaneously control multiple dimmers.
This approach offers complete automation, integrating programming and synchronization, but requires installation tailored to your control system.
- What is the optimal cultivation depth to ensure uniform coverage with the SANlight EVO 3 - 60 lamp and maximize light yield over 60x60cm?
The optimal cultivation depth for uniform coverage with the SANlight EVO 3 - 60 - 190W over an area of 60x60 cm is generally between 30 and 45 cm below the lamp. This setting, combined with the adjustable secondary optics angle between 90° and 112°, allows for precise adaptation of light dispersion to minimize shadow areas and maximize light penetration into the foliage.
Thanks to this flexibility, the light is evenly distributed, promoting balanced growth and optimal yield across the entire canopy. Feel free to use the optional dimmer to adjust the intensity according to your plants' growth stage.
