01 — Description
Présentation du produit

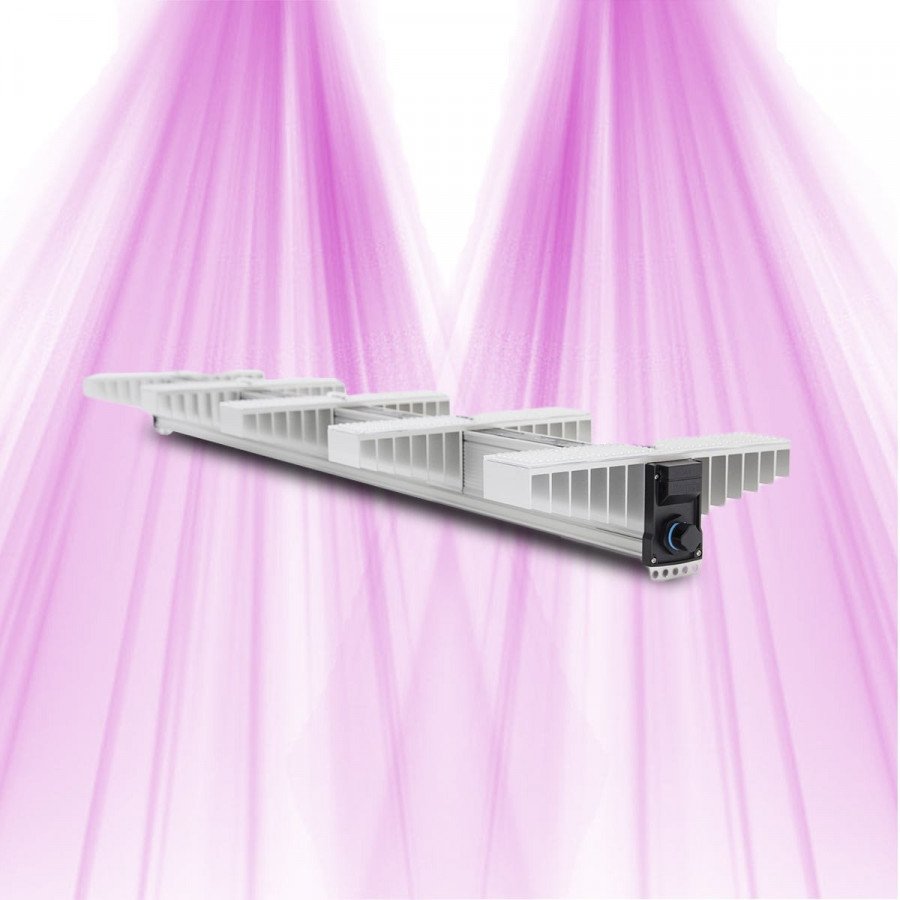

Discover the ideal LED horticultural lighting system for your indoor cultivation, growth and flowering. You will benefit from a powerful, efficient and durable LED lamp.
The SANlight EVO have been developed to be ultra-efficient. They have an efficiency of more than 3µmol/J at the module level. The yield per zone has also been boosted as well as the spectrum. This extends considerably, even beyond the usual PAR range. Thanks to the deep red LEDs, you will obtain abundant harvests with excellent quality.
Improved homogeneity and technology
On the EVO models, you will find OSRAM High Power LEDs for the deep red LEDs, but also WICOP white LEDs from Seoul Semiconductor.
The SANlight EVO have been improved compared to previous models. The optics have been resized, which allows for more homogeneous lighting, and with better light intensity. The secondary optics also prevent too much loss of photons for your plants, but also protect the LEDs from the growing environment.
The products are dimmable. You will be able to vary the intensity of the panel according to the life phase of your plants, in order to avoid consuming too much (for nothing) during the germination/growth phases. Please note, the SANlight magnetic dimmer is sold separately.
Features
- Cultivation area: 120 x 120cm
- Possibility of tilting the secondary optics
- Dimmable (not supplied)
- Consumption: 320 watts
- Number of modules: 5 LED bars
- 870 µmol/s
- Weight: 6.4kg
- Size: 1318 x 291 x 116mm
- Waterproofing: IP65
03 — Avis clients
Customer reviews
Comments All reviews
Réception soignée, emballage impec. Montage simple même pour un non pro. Le panneau est assez lourd mais la qualité donne confiance. Déjà vu la différence par rapport à mon ancienne lampe, vraiment content de cet achat. Luminosité top sans chauffer exagérément.
Recommended to buy: Yes
C'est un excellent investissement
C'est un excellent investissement pour qui veut des résultats rapides. J'ai testé d'autres marques avant, et celle-ci surpasse largement la concurrence. La qualité de fabrication est visible, pas de défaut. Fonctionne sans problème depuis le jour 1. Livraison rapide et bien emballée. Vraiment satisfait de mon achat, je vais en recommander à mes amis.
Recommended to buy: Yes
Franchement, c'est un excellent
Franchement, c'est un excellent produit. Après quelques jours, j'ai vu une vraie différence. Efficace, économique, facile à utiliser. Livraison rapide et soignée. Service client excellent. Les résultats sont au rendez-vous. Je recommande sans hésiter.
Recommended to buy: Yes
Très bon éclairage
Très bon éclairage. Efficace et économique. Les résultats sont visibles rapidement. Bon rapport qualité-prix. Merci pour le service.
Recommended to buy: Yes
Excellent rapport qualité-prix. Ce
Excellent rapport qualité-prix. Ce produit fonctionne exactement comme décrit. Les résultats sont visibles rapidement. Livraison rapide et produit bien protégé. Service client très courtois. Je recommande vivement ce produit à tous.
Recommended to buy: Yes
04 — Questions sur ce produit
Product questions
Your questions about this product
- Is the cooling system sufficient to ensure a durability truly exceeding 5 years without notable loss of power?The SANlight EVO 5-150 - 320W features a design optimized for heat dissipation, ensuring high efficiency (over 3 µmol/J) and a long lifespan for the LEDs. Its cooling system, although not precisely detailed, relies on robust materials and intelligent thermal management, promoting noteworthy durability.
Additionally, the dimmable function allows for adjusting the power to avoid excessive strain, which also helps to preserve the components over time. While no formal guarantee of over 5 years without notable loss of power can be given, the experience and quality of the components suggest excellent longevity under optimal usage conditions.
- Is your lighting system SANlight EVO 5 - 150 with 320W optimal for a cultivation area of 120x120cm considering the positioning and inclination of the secondary optics to ensure uniform and maximum coverage of the plants throughout the flowering phase?The lighting system SANlight EVO 5 - 150 - 320W is perfectly suited for an area of 120x120 cm. With its 5 LED bars and adjustable asymmetric secondary optics up to 11°, it ensures uniform and maximum light coverage, essential for homogeneous flowering.This device combines a broad and efficient light spectrum, a high output (~870 µmol/s), and excellent light distribution without shadow areas or overexposure. By precisely adjusting the inclination and positioning of the optics, you will promote optimal development and high yield of your plants across the entire area.
- What is the yield evolution curve in µmol/j at full power over an area of 120x120cm with this SANlight EVO 5-150 320W?
The SANlight EVO 5 - 150 - 320W delivers a very stable yield of around 870 µmol/s at full power, corresponding to a total light output of about 50 million µmol/j over an area of 120x120 cm (1.44 m²) with 16 hours of light per day.
Thanks to the inclination of the LEDs and their arrangement, the light is evenly distributed without a central hotspot, ensuring a constant and uniform intensity across the entire surface. The yield evolution curve at full power is therefore almost flat, reflecting stable light production without a noticeable drop.
With an energy efficiency of around 2.7 µmol/J, this panel is perfectly suited for indoor cultivation in this area, ensuring powerful and consistent lighting throughout the usage period.
- What is the best way to integrate the SANlight dimmer sold separately to automate brightness variation according to the growth phases on this EVO 5 150 320W panel?
To automate the brightness variation of the SANlight EVO 5 - 150 - 320W panel according to the growth phases, two methods are available:
- Integration with a centralized control system: The panel is compatible with greenhouse management systems. Simply connect the dimmer control to the dedicated socket on the panel to automatically control the intensity via software, ideal for professional or automated installations.
- Using an external SANlight dimmer: For a simpler and more flexible solution, the magnetic or Bluetooth dimmer easily connects to the power cable of the panel. The Bluetooth dimmer allows programming and managing the lighting remotely via an app, perfect for more modular and home-based cultivation.
Both options ensure precise management tailored to each growth stage, with compatible accessories that are easy to install for smooth and effective automation.
- What is the reliability over time of the cooling system and the deep red OSRAM LEDs used? Is the dimmable output compatible with all standard dimmers or only with the proprietary dimmer sold separately?The SANlight EVO 5 - 150 - 320W features a robust cooling system designed for a long lifespan in intensive cultivation. The integrated OSRAM High Power deep red LEDs are known for their excellent reliability and performance, contributing to an optimal and durable spectrum.
For the dimmable output, the product is ready-to-dim and compatible with most standard dimmers used in horticulture. However, the dimmer is not included and can be chosen from classic options, or the proprietary magnetic or Bluetooth dimmer offered by SANlight.
In summary, you have a high-performance lighting system that is reliable over time, with great flexibility for adjusting light intensity.
- Should we prefer centralized control for several SANlight EVO 5 lamps in a space of 1m² to 3m² with a separately sold dimmer, or is a dimmer per lamp more effective in terms of consumption and flexibility?
For an area of 1 to 3 m² with several SANlight EVO 5 - 150 - 320W lamps, it is preferable to opt for centralized control via the Bluetooth Dimmer. This system allows for simultaneous control of several lamps while offering the possibility to individually adjust each fixture through the dedicated application.
This solution facilitates overall lighting management, optimizes energy consumption by avoiding inconsistent settings, and enhances flexibility without multiplying the number of physical dimmers to install. Conversely, using a dimmer per lamp limits coordination and can make management more complex.
In summary, the Bluetooth Mesh centralized control offers the best combination of simplicity, flexibility, and energy efficiency for several EVO 5 in a confined space.
- Does the separately sold SANlight dimmer offer precise and reliable control of light intensity without impacting the longevity of the LEDs, especially for prolonged use?
The SANlight M-Dimmer sold separately for the EVO range, which includes the EVO 5-150 model, ensures precise and reliable control of light intensity. Its coded connection prevents wiring errors, guaranteeing secure and durable handling. Moreover, this system is wear-free and moisture-resistant, eliminating the risks of wear associated with prolonged use.
This specific design protects the longevity of the LEDs, which already have a reported lifespan of up to 90,000 hours. Using this dedicated dimmer is therefore the best assurance for effective regulation without compromising reliability or the lifespan of the panels.
- Possible integration with a voice assistant to adjust the light intensity remotely on this SANlight EVO 5 150 320W dimmable but without a dimmer includedThe SANlight EVO 5 - 150 - 320W allows you to adjust the light intensity via an optional dimmable module, but this model is sold without a built-in dimmer. There is no native compatibility with a voice assistant to adjust the lighting remotely.
To operate the intensity by voice, it is essential to integrate a third-party dimmer controller compatible with a home automation system (Wi-Fi, Zigbee, etc.) that can interface with Alexa, Google Assistant, or others. This solution requires additional equipment and a custom configuration.
In summary: external dimmer adjustment possible, but no native voice control directly on this model.
- Can the SANlight dimmer sold separately be easily integrated to adjust the intensity according to the phases of cultivation such as germination and flowering?
The SANlight EVO 5-150 (320W) is perfectly compatible with the SANlight dimmer sold separately. This system includes a dimming function that allows you to easily adjust the light intensity according to the plants' needs, especially during delicate phases such as germination or flowering.
Thanks to this official compatibility, you can modulate the light power to optimize growth while saving energy, which is a real plus for precise and effective cultivation.
- Does the evo5 system have a sufficient thermal tolerance for intensive SCROG use under LED in a confined space of 120x120cm?
The SANlight EVO 5-150, with its power around 320-340W and its optimized passive cooling system, is well-suited for intensive SCROG use in a confined space of 120x120 cm. Its design helps limit heat emission and allows for installation near the ceiling, thus maximizing ventilation space.
However, to ensure optimal thermal tolerance, good ventilation management is crucial. Make sure that an effective air renewal system quickly removes hot air to prevent thermal stress on your plants.
In summary, the SANlight EVO 5-150 combines performance and reliability, provided that sufficient air circulation is maintained in your grow tent.
- Is the SANlight EVO 5-150 320W suitable for growing in a space of 80x80 cm with the possibility of being dimmable, and what power do you recommend to avoid overconsumption during the growth phase?The SANlight EVO 5-150 of 320W is initially designed to cover about 1.5 m², so it is a bit powerful for a space of 80x80 cm (0.64 m²). However, thanks to its dimmable function, you can adjust the power to avoid excess light and electrical overconsumption.
For your setup, it is recommended to reduce the power to around 200W or less depending on the growth phase and the distance between the lamp and the plants. This flexible adjustment allows you to tailor the lighting precisely to your plants' needs without wasting energy.
- Does the tilt of the secondary optics on the SANlight EVO 5 150 really allow for better deep light penetration into plants compared to a standard setup?
The SANlight EVO 5 - 150 has secondary optics that ensure a very homogeneous light distribution with high illumination levels, optimizing light efficiency across the entire growing area.
The possible tilt of the optics allows for adjusting the light beam, which could theoretically improve light penetration and distribution depending on the arrangement of the plants. However, no precise data confirms a clear improvement in deep light penetration compared to a standard configuration.
In summary, this tilt offers interesting flexibility for modulating light, without a clearly measured effect on penetration being documented.
- What real gains on growth and flowering do you achieve with the tilt of the secondary optics and the use of the separately sold dimmer?
For the SANlight EVO 5 - 150 - 320W, the tilt of the secondary optics improves the light distribution across the entire growing area, eliminating shadow areas and optimizing penetration into the canopy. This promotes a more uniform growth and a more abundant and homogeneous flowering, particularly in spaces up to 120x120 cm.
The use of the separately sold dimmer allows for precise modulation of the light intensity according to the needs of the plants at each stage, maximizing their development while reducing energy consumption and heat. This fine control also protects the LED and extends its lifespan while optimizing the overall yield of the crop.
By combining these two features, you achieve balanced growth and an efficient flowering cycle, with light always tailored to your plants.
- What is the best light intensity strategy with the SANlight EVO 5 150 to optimize growth in SCROG over an area of 1.2 m by 1.2 m under dimmable LED without risking burning the plants?
To optimize growth in SCROG over an area of 1.2 x 1.2 m with the SANlight EVO 5-150, the best strategy is to use two fixtures to ensure even coverage and avoid shadow areas.
Set the light intensity to achieve a PPFD between 600 and 900 µmol/m²/s, starting with a lower level in early growth and gradually increasing it to prevent any risk of burning. Adjust the height of the panels and use their tilt optics for optimal diffusion and uniform lighting across the canopy.
Avoid exceeding a PPFD of 1000 µmol/m²/s without CO₂ supplementation, in order to preserve plant health. This approach will provide you with vigorous and balanced growth without stress for your SCROG plants.
- What is the maximum temperature reached by the SANlight EVO 5 - 150 during continuous operation, and what recommendations can be made to limit heating without sacrificing efficiency?
The SANlight EVO 5 - 150 does not have an officially stated maximum temperature during continuous operation. However, under optimal conditions with a controlled ambient temperature around 26°C, heating remains well regulated, avoiding any harmful overheating.
To limit heat without sacrificing efficiency, it is recommended to install two units in a suitable tent (approximately 1.5×1.5 m). This arrangement ensures an even distribution of light, preventing excessive heat concentration. Additionally, maintaining active ventilation and good air circulation within the tent is essential to dissipate heat, as the SANlight uses effective passive cooling but greatly benefits from dynamic airflow.
Optimizing the angle of the luminaires and effective spatial management also promote a stable temperature while ensuring excellent lighting on the growing surface.
- What is the real gain in yield compared to a classic 320W panel in a 120x120 box with the SANlight EVO 5?
The SANlight EVO 5 - 150 - 320W offers a significant real gain compared to a classic 320W LED panel in a 120x120 cm box. It delivers a light output of approximately 870 µmol/s with an energy efficiency of 2.7 µmol/J, which is far superior to the usual 1.5–2.0 µmol/J of standard panels. This results in an increased light yield of 20 to 45% thanks to a homogeneous light distribution with no shadow zones or overexposure.
This combination of efficiency and optimized coverage significantly improves indoor crop performance in this area, maximizing plant growth and development.
- integrable with a home automation system via standard protocol or proprietary API to control intensity and remote programming?
The SANlight EVO 5 - 150 - 320W offers a dimming option allowing for manual adjustment or adjustment via a compatible controller of the light intensity. However, this model does not have native integration with a home automation system via standard protocol or proprietary API, nor a remote programming function.
For advanced home automation control, it would be necessary to consider a third-party solution or an appropriate external controller, as no standard home automation interface is officially available for this product.
- What is the maximum operating temperature of this lamp and how does the cooling system help limit overheating to maximize light output?
The SANlight EVO 5 - 150 - 320W does not explicitly specify its maximum operating temperature, but it incorporates an optimized passive cooling system that effectively limits heat dissipation. This system dissipates heat without fans, reducing vibrations and wear, which contributes to the longevity and efficiency of the LEDs.
To maximize efficiency, it is important to maintain good ventilation in the growing area, allowing for rapid renewal of warm air. This thermal management ensures that the lamp stays within an optimal temperature range, thus promoting stable and high light output while protecting your plants.
- How do you manage heat dissipation to maintain optimal LED performance in this EVO 5 320W model without a dimming kit included?
The SANlight EVO 5 - 150 - 320W uses a passive heat dissipation system, without a fan, thanks to an optimized mechanical design that promotes natural heat dissipation. This approach ensures silent operation and stable LED performance, even at full power.
Thus, even without a dimming kit included, effective thermal management allows the panel to deliver a constant light output of around 870 µmol/s, without the risk of overheating or performance degradation over the long term. This thermal robustness ensures the longevity and optimal reliability of the LEDs, without the need to reduce power.
- Is the integrated driver accessible and replaceable in case of failure, or does the entire module need to be replaced?
The SANlight EVO 5 - 150 - 320W features an integrated driver that is not designed to be user-accessible or replaceable. In case of a failure, it is generally necessary to replace the entire module or return it to a specialized service for repair or refurbishment. This waterproof and compact design is common in high-end horticultural LEDs, ensuring performance and durability but limiting direct interaction with internal components.
- Is the dimmable SANlight EVO 5-150 LED compatible with all dimmers or only with the separately sold SANlight magnetic dimmer?The SANlight EVO 5-150 dimmable LED is compatible only with the separately sold SANlight magnetic dimmer. This model is "ready-to-dim" but only works with this specific dimmer, designed to ensure safe and optimal power management of the SANlight EVO 5-150 LEDs. Classic dimmers are not compatible.
- Is integration possible with a voice assistant to adjust the light intensity remotely?
The SANlight EVO 5 - 150 - 320W does not have a native voice control for adjusting the light intensity. However, it is compatible with the external dimmer SANlight M-Dimmer, which allows for precise control of brightness.
To control the light via a voice assistant like Alexa or Google Assistant, a compatible third-party home automation dimmer controller must be integrated with your connected system. This solution requires additional equipment and proper configuration.
In summary, the intensity is adjusted with the dedicated dimmer, but voice control necessarily requires an external home automation device.
- What is the optimal coverage in growth and flowering for the SANlight EVO 5 - 150 320W in a space of 120 cm by 120 cm?
The SANlight EVO 5 - 150 - 320W is perfectly suited for an area of 120 cm x 120 cm, close to its recommended optimal coverage of around 1.5 m². It delivers a high intensity of 870 µmol/s with uniform distribution thanks to its adjustable secondary lenses and 3D optics, ideal for growth and flowering phases.
To optimize its performance, it is advisable to reduce the power to about 200W in growth to avoid excess intensity in this slightly smaller space and to switch to full power (320W) in flowering. The lamp operates with passive cooling, so good ventilation is essential to maintain a stable temperature and preserve the equipment.
In summary, with adequate suspension near the ceiling and an effective air renewal system, this lamp will ensure an optimal light environment and vigorous development of your plants.
- Does the SANlight EVO 5 - 150 panel allow for easy adjustment of light intensity according to growth phases without risking disruption to plant development?
The SANlight EVO 5 - 150 - 320W panel indeed allows for easy adjustment of light intensity to support the different growth phases of your plants, provided the optional dimmable module SANlight M-Dimmer is added. This external dimmer, secured by a coded connection, ensures precise adjustments without the risk of error or equipment damage.
Water-resistant and designed for durability, this system ensures optimal light adaptation during germination, growth, or flowering stages, without disrupting plant development. For even greater flexibility, centralized management via Bluetooth Mesh is possible, ideal for controlling multiple panels simultaneously.
In summary, with this reliable dimmer sold separately, the SANlight EVO 5-150 offers excellent control over lighting to maximize the health and growth of your crops.
- At maximum power level, does it heat up a lot or is it manageable without additional ventilation system?
The SANlight EVO 5 - 150 - 320W uses a passive heat dissipation system, without a fan, designed to naturally dissipate heat. At full power, the heating remains perfectly manageable thanks to its optimized design, with no risk of excessive overheating.
However, it is important to provide good general ventilation in the growing room to ensure effective air exchange. Thus, no additional ventilation system directly on the panel is necessary, but room ventilation remains essential to guarantee the longevity and performance of your LED lighting.
- What is the maximum temperature generated by the SANlight EVO 5 150 during continuous operation in a confined space of 120x120cm, and does the system require active cooling to maintain optimal efficiency?
The SANlight EVO 5 - 150 - 320W does not generate a precisely documented maximum temperature in a confined space of 120x120 cm. Its design incorporates a very effective passive heat dissipation system, without a fan, allowing for natural heat dissipation.
This system ensures stable and silent operation at full power, meaning it does not necessarily require active cooling. However, it remains essential to ensure good ventilation in the growing area to dissipate warm air and guarantee an optimal environment for your plants.
The recommended ambient temperature for the device is between 5°C and 35°C, which corresponds to ideal conditions for preserving both the equipment and the health of the plants.
