- 1 x 240 Watt LED luminaire with driver
- 1 x Power Cable
- 1 x 3m signal cable
- 2 x Adjustable Pulley Kit
- 2 x Fixed Suspension Kit
01 — Description
Présentation du produit

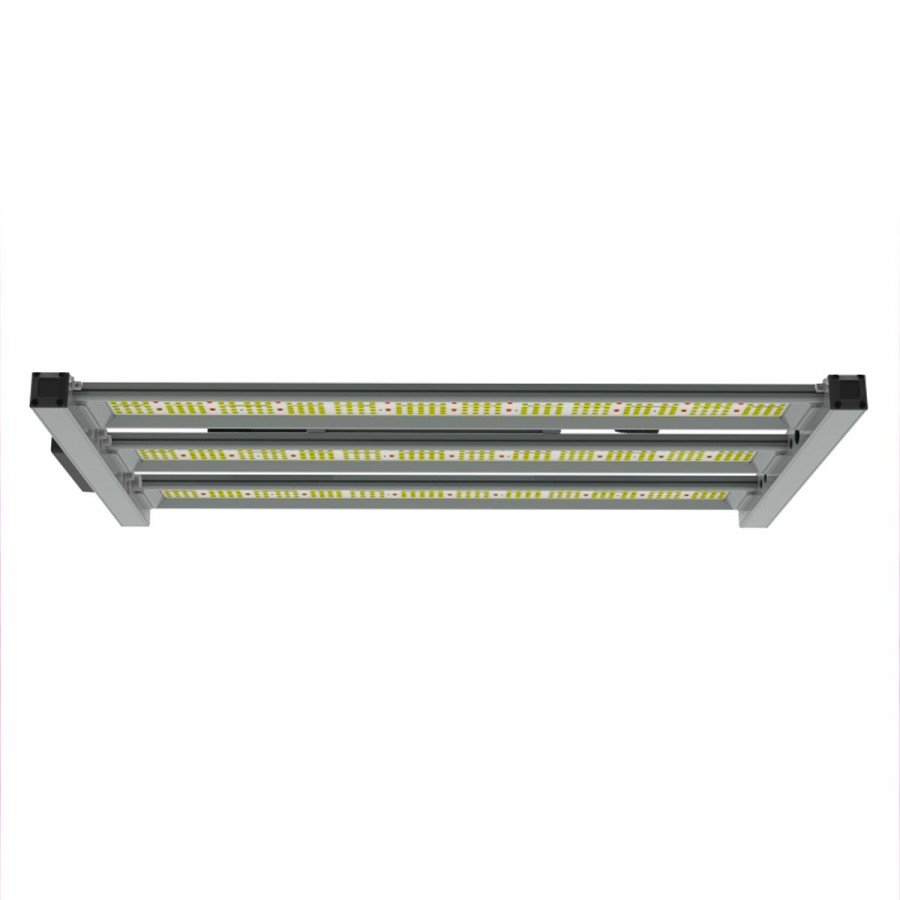

The “Pure Led PRO 240W” is a latest generation LED panel designed for indoor cultivation. It has a combination of diodes with different spectrums, for a light very similar to that emitted by the sun. It thus offers exceptional light efficiency. It is manufactured by the Pure Led brand and has a power of 240W.
Quiet cooling
The passive cooling system helps to effectively remove heat without causing noise, ensuring quiet operation.
Light control
Thanks to its dimming function, it is possible to regulate the power of the light according to the needs of your crop, from seed germination to the bud maturation phase. It is also possible to connect several luminaires to the same device to control switching on and off, imitate sunrise and sunset, or even for automatic shutdown in the event of an emergency or overheating.
Technical characteristics
The "Pure Led PRO 240W" uses high quality LED diodes to emit full spectrum light. These diodes emit wavelengths of light that are particularly beneficial for plant growth, especially during flowering and fruiting periods.
The LED panel is powered by a control box that allows you to adjust the light intensity and program light cycles according to the growth stage of the plants.
| Characteristic | Value |
|---|---|
| Consumption (at 100%) | 240W (+/-5%) |
| PPF | 683.15 mol/s |
| Yield | 2.82 mol/J |
| Size | 815 x 415 x 80mm |
| Weight | 5.5kg |
| Input voltage | AC, 100-277V, 50/60Hz |
| Light source/diode type | Samsung LM281B+ Pro (1071 pcs), Honglitronics SMD 3535 (54 pcs) |
| Beam angle | 120º |
Content
The Pure Led Pro V2.0 from Pure Factory is manufactured by a brand renowned for the quality of its products. So you can buy it with confidence to get the best indoor growing results. Package contents include:
Advantages of Pureled PRO 240W
Using “Pure Led PRO 240W” lighting has several advantages over using fluorescent lamps or incandescent lamps. First, LEDs use less energy and produce less heat, which helps reduce running costs and prevent overheating plants.
By choosing the Pure LED Pro V2.0 for your indoor cultivation, you are opting for performance, versatility and quality. It is designed to give you the best results while reducing energy costs. Order now to get your Pro V2.0 LED Lighting and experience for yourself the stunning results it can deliver. With easy installation, a long lifespan and a quality guarantee, you can be sure you have made the right choice for your indoor cultivation. Enjoy fast delivery and our dedicated customer service to answer all your questions. Order now and grow your plants like never before with the Pure LED Pro V2.0 from Pure Factory.
Conclusion
The "Pure Led PRO 240W" is an efficient and economical LED lighting solution for indoor growing. With its high-quality LED diodes and programmable control box, it allows you to control plant growth conditions and maximize crop yields.
Questions about Pure Led PRO V2.0 lighting - 240W
What is the efficiency of this LED lamp?
The efficiency of this LED lamp is 2.82 mol/J for the 240W model and 2.88 mol/J for the 520W model.
Is this fixture dimmable?
Yes, this LED lamp is dimmable. It is possible to regulate the light power with 5 different types, 0 %-25% -50 %-75% -100%
Is this fixture silent?
Yes, thanks to its passive ventilation system, it effectively eliminates heat without causing noise.
Can I connect several lights together?
Yes, it is possible to connect several lights to the same device to control switching on and off, imitate sunrise and sunset, or even for automatic shutdown in case of emergency or overheating.
02 — Fiche technique
Caractéristiques détaillées
| Coverage area | Rectangular |
| Functions | Dimmer and Console Compatibility |
| Waterproof | Yes |
| Thermal management | Passive - Completely silent |
| Power | Between 200W and 300W |
03 — Avis clients
Customer reviews
Comments All reviews
Montage rapide, la lumière est vraiment agréable sans être agressive. Pas de bruit du tout, ça change des anciens modèles. Le prix reste correct vu la qualité. Je recommande sans hésiter.
Recommended to buy: Yes
Très efficace et
Très efficace et économique. Livraison rapide. Je recommande sans hésiter.
Recommended to buy: Yes
04 — Questions sur ce produit
Product questions
Your questions about this product
- Is it possible to connect multiple Pure LED Pro V2.0 panels together to synchronize the lighting and automate light cycles, and how does the dimming adjustment work via the control box?Yes, it is absolutely possible to connect multiple Pure LED Pro V2.0 panels together to synchronize the lighting and automate light cycles. This enables simultaneous control of all panels for harmonized lighting and shutdown phases.The dimming of light intensity is managed via a control box compatible with a 0-10V signal. This technology allows for gradual modulation of light power, thus providing precise control of brightness according to the plants' needs.This feature is ideal to simulate natural light cycles, with gradual sunrises and sunsets, as well as to reduce intensity during specific phases or in emergency situations.
- Does the Pure LED Pro V2.0 240W panel support a simple integration with external controllers such as Arduino or home automation systems to fully automate the management of light cycles?The Pure LED Pro V2.0 240W features a dimming function and a control box allowing the programming of light cycles according to growth phases. Regarding integration with external controllers such as Arduino or home automation systems, the panel is compatible with a 0-10V control, which opens the possibility for connection through suitable interfaces. However, direct and simple integration is not specifically provided, and complete automation may require intermediate equipment to ensure compatibility.
- Does the Pure Led Pro V2.0's dimming system allow for differentiated management of light intensity between growth and flowering to optimize yields without excess electricity consumption?The Pure LED Pro V2.0 240W is equipped with a built-in dimmer that allows for precise adjustment of light intensity according to the growth or flowering phases. This differentiated dimming optimizes the light provided to the plants while limiting unnecessary electrical consumption. With a full spectrum and high efficiency, it ensures maximum energy efficiency, thus promoting better yields without overconsumption.
- What is the exact measure of the photon yield in µmol/J for the Pure LED PRO 240W compared to other models in the same power range?
The Pure LED Pro V2.0 240W has a photon yield of 2.82 µmol/J, which is very efficient for a panel of this power. In comparison, the model Pure LED Grow Light Q240 V2.0 240W offers a slightly lower efficiency of around 2.7 µmol/J. The more powerful model Pure LED Pro V2.0 520W reaches a slightly higher efficiency of 2.88 µmol/J, demonstrating increased optimization at higher power levels.
- What is the minimum and maximum dimming power of the Pure LED Pro V2.0 240W to adjust the light intensity according to the different growth phases in indoor environments?
The Pure LED Pro V2.0 240W offers precise dimming of its light power at 0%, 25%, 50%, 75%, and 100% of its maximum capacity, ranging from 0 W to 240 W. This allows for perfect adjustment of light intensity for the different growth phases of your indoor plants, ensuring efficiency and flexibility throughout the cycle.
- Does the Pure LED Pro 240W really replace a 400W CMH lamp in terms of light output and quality of cultivation in hydroponics?
The Pure LED Pro V2.0 240W offers an exceptional light output of 2.7 to 2.82 μmol/J, higher than a standard 400W CMH lamp (1.5 to 2 μmol/J). This means it produces equivalent, if not better, photosynthetically active light while consuming about 40% less energy.
Its 4000K white spectrum combined with 660nm red is perfectly suited for hydroponics, ensuring optimal plant development during all cultivation phases. Additionally, its low heat emission allows for precise temperature control, a major advantage in avoiding thermal stress.
For an area of about 80x80 cm, this LED panel is therefore a very effective and reliable alternative to a 400W CMH, combining energy efficiency, light quality, and growing comfort.
- Does the Pure Led Pro 240W generate significantly less heat than a CMH 315W lamp while maintaining a comparable PPF output to optimize indoor cultivation?The Pure LED Pro V2.0 240W does indeed generate much less heat than a CMH 315W lamp, which is a major advantage in limiting thermal stress on plants and reducing ventilation needs. Moreover, it offers a comparable photon output (PPF), with a higher energy efficiency (2.7 to 2.82 µmol/J), thus ensuring optimal light for growth while consuming less energy. It is an excellent choice for high-performing and controlled indoor cultivation.
- what notable difference in terms of yield and energy consumption versus a classic less powerful LED panel like a 150w for indoor hydroponic cultivation
The Pure LED Pro V2.0 240W offers superior luminous efficiency (2.7 to 2.82 μmol/J) compared to a classic 150W LED panel, often below 2.5 μmol/J. Even though it consumes more energy (240W vs 150W), it produces more optimal and better-distributed light, essential for successful indoor hydroponic cultivation.
In addition, this panel offers precise intensity adjustment and generates less heat, helping to better control temperature and plant stress. The 150W remains an economical option for smaller areas or specific stages, but to maximize yield and quality of cultivation, the Pure LED Pro V2.0 is clearly a more efficient choice.
- Is integration possible with a voice assistant to manage dimming and lighting cycles remotely, and to synchronize multiple LED panels on the same installation?
The Pure LED Pro V2.0 240W does not natively offer management via a voice assistant for dimming or programming lighting cycles, nor for automatic synchronization of multiple panels. However, it may be compatible with certain external controllers that allow advanced dimming and lighting management.
However, integration with voice assistants like Amazon Alexa or Google Assistant will depend on the controller used, and this feature is not confirmed for this model. For easy voice management and synchronization, it would be wise to consider a dedicated control system that is compatible with these options.
- pure led pro v2.0 240w panel suitable for a 80x80 box or is it better to prioritize a higher model in terms of coverage and light intensity?
The Pure LED Pro V2.0 240W is perfectly suitable for an 80x80 cm box, providing a good light intensity with a PPF of about 565 to 683 mol/s according to various sources. It will effectively cover this surface and is suitable for healthy plant growth.
However, if you want higher intensity or more uniform coverage, a higher model like the Pure LED Pro V2.0 520W or 680W might be considered. These models offer greater light output and are particularly recommended for demanding crops or larger spaces.
In summary, for an 80x80 cm box with standard needs, the 240W is more than sufficient. For more power or maximum yield, a more powerful model should be prioritized.
- Does the Pure LED Pro V2 240W declare a yield of 2.82 mol per joule? Are there any independent measurements confirming this yield under real indoor growing conditions?
The Pure LED Pro V2.0 240W officially displays a photonic yield of 2.82 µmol/J, a very good score for an LED panel of this power. This figure comes from the manufacturer's technical data and specialized retailers.
As of today, no independent measurements conducted under real indoor growing conditions by third-party laboratories are publicly available to confirm this precise yield.
However, the technology used (Samsung SMD2835 LEDs, Honglitronics) and the passive design of the panel promote excellent efficiency and good heat dissipation, two essential factors for optimizing growth indoors.
Since the system is programmable and dimmable, it allows for precise adjustments of lighting to meet the plants' needs, which can help maximize performance in practical use.
In summary, the yield of 2.82 µmol/J is well-attested from a technical standpoint, but there is still a lack of independent testing to confirm it in an indoor growing context.
- Does the brightness control and dimming really work reliably and accurately after several months of intensive use?
The Pure LED Pro V2.0 240W offers reliable and precise brightness dimming, with fixed steps at 0%, 25%, 50%, 75%, and 100%. This function allows easy adjustment of light intensity according to your cultivation needs.
Regarding durability, although specific feedback after several months of intensive use is rare, the Pure LED Pro range is recognized for its robustness and offers warranties of up to 5 years, which demonstrates good manufacturing quality and lasting reliability.
In summary, you can count on stable and effective light control over time, provided it is used according to recommendations.
- How to optimize the use of the dimming mode and the connection of multiple Pure LED Pro V2.0 240W panels to effectively manage several varieties of plants with different light needs in the same growing room?
To optimize the use of the dimming mode of the Pure LED Pro V2.0 240W, it is advisable to adjust the light output on the five available levels (0%, 25%, 50%, 75%, 100%) according to the specific needs of each variety and growth phase. For example, favor a low intensity (25-50%) during germination, then increase to 75-100% during flowering for more demanding plants.
The connection of multiple panels in a network allows for centralized control to create distinct light zones within the same room. This way, you can independently manage the dimming of each group of panels, adapt the light cycles to each variety, and synchronize the on/off to replicate natural conditions.
This spatial and functional organization, combined with the passive cooling system of the panel, ensures optimal lighting and controlled energy consumption while meeting the diverse needs of plants in an indoor environment.
- Is integration possible with voice assistants like Alexa or Google Home to control dimming and lighting cycles remotely?
The Pure LED Pro V2.0 240W offers precise dimming via its integrated control box, but it does not provide native integration with voice assistants like Alexa or Google Home. Therefore, control of the lighting cycles and dimming remotely via these assistants is not directly supported.
However, it is theoretically possible to connect this panel to a third-party home automation system compatible with the 0-10V protocol to control dimming via voice command. This, however, requires additional hardware and a custom setup, as this functionality is not provided out of the box.
- Does the Pure LED Pro 240W support continuous use on overlapping cycles or do you recommend a pause time between growth phases to optimize its lifespan and luminous performance?
The Pure LED Pro V2.0 240W is designed for continuous operation thanks to its passive cooling system that ensures effective heat dissipation, limiting any risk of overheating. It perfectly supports overlapping cycles without requiring mandatory pauses between growth phases.
To preserve longevity and optimize luminous performance, it is however recommended to adjust the light intensity according to the plants' needs (for example, 25-50% during germination, 75-100% during flowering). This precise management avoids unnecessarily stressing the LEDs at full power continuously.
The use of timers or external control systems allows for fine-tuning these light cycles to simulate natural lighting, which benefits both cultivation and the durability of the panel.
- How do multiple Pure LED Pro 240W panels connect to automate lighting according to growth phases?
Multiple Pure LED Pro V2.0 240W panels connect via their built-in signal cable (3 m), allowing you to link the units together or to an external controller.
To automate and adjust the lighting according to growth phases, it is ideal to use a 0-10V compatible controller. This device will simultaneously manage the turning on, turning off, light intensity variations (dimming), as well as effects like sunrise and sunset.
With this configuration, your panels will be synchronized and will be able to precisely modulate their power according to the evolving needs of your plants, from germination to maturation, thus providing a fine-tuned and tailored management of your indoor lighting.
- How do you integrate dimmer control and the management of multiple panels into an existing home automation?
The Pure LED Pro V2.0 240W does not have native home automation control, but it features a step dimmer (0%, 25%, 50%, 75%, 100%) managed via its control box. To integrate it into a home automation system, it is necessary to use a compatible 0-10V external controller that converts home automation signals (0-10V, PWM, relay) into commands usable by the panel.
To control multiple panels simultaneously, a central home automation system (like Jeedom, Home Assistant, Fibaro…) is recommended, capable of sending commands to several synchronized 0-10V modules. Each panel can be connected to its own controller or shared on a multi-output controller to manage light intensity in groups or individually.
Finally, voice control is possible via compatible home automation interfaces that will translate voice commands into signals suitable for the dimmer. This method ensures precise and flexible management of your horticultural LED lighting within an existing automation.
- What is the real light yield of the Pure LED Pro 240W panel in dense cultivation, and how can the light distribution be optimized in a space of 1.20 x 1.20?
The Pure LED Pro V2.0 240W panel offers a real light yield of approximately 2.7 to 2.82 µmol/J, with a PPF of 683 µmol/s, which is very efficient for horticultural LED lighting. However, for an area of 1.20 x 1.20 m in dense cultivation, a single 240W panel is not sufficient to ensure uniform coverage.
To optimize light distribution, it is advised to combine multiple 240W panels or opt for a more powerful version suitable for this area (like 520W or 680W). Positioning the panels about 30–40 cm from the foliage allows for optimal diffusion. Adjusting the power according to the density of the foliage using the gradual settings of the panel also helps to maximize efficiency.
Finally, using reflective walls (mylar, white paint) in the tent improves diffusion and uniformity of light across the entire cultivated area, thereby avoiding shadow zones.
- Is the Pure LED Pro 240W suitable for micro cultivation in 60x60 with good light penetration and advanced spectrum management?
The Pure LED Pro V2.0 240W is perfectly suited for micro cultivation in 60x60 cm. Its power of 240W and high efficiency (2.82 μmol/J) ensure excellent light penetration, comparable to or even better than a 400W CMH lamp, while consuming less energy.
Spectrum management is also very advanced thanks to the Samsung LM281B+ Pro and Honglitronics SMD 3535 LEDs, providing a complete and balanced spectrum (white 4000K + red 660nm). Additionally, the multi-level dimming (0% to 100%) allows for precise adjustment of intensity according to the plants' needs at each phase.
In summary, this panel offers optimal light coverage and fine spectrum control, ideal for maximizing growth and flowering indoors in a limited area.
- What is the maximum recommended power in parallel for this Pure LED Pro 240W panel to ensure good thermal control and prevent overheating of the driver?
For the Pure LED Pro V2.0 240W panel, there is no specific official limit regarding the maximum number of panels that can be connected in parallel to prevent driver overheating. However, the general rule is to respect the electrical capacity of the circuit; for example, a 16 A circuit at 230 V can power about 15 panels of 240 W, or approximately 3,680 W, depending on cable size and ventilation.
To ensure good thermal control and prevent overheating, it is important to:
- ensure efficient ventilation around each panel,
- use the integrated dimmer to adjust power according to conditions,
- respect the recommended spacing of at least 100 x 50 cm per panel for optimal heat dissipation.Applying these best practices allows you to get the most out of this LED panel while maintaining excellent thermal management.
- How can I integrate this Pure LED Pro 240W panel into a centralized management system to adjust the brightness and synchronize with automatic watering?
The Pure LED Pro V2.0 240W panel integrates a dimming system via a 0-10V signal, allowing precise brightness adjustment between 0% and 100%. To integrate it into a centralized management system, a compatible 0-10V controller (PLC, Arduino/Raspberry Pi with 0-10V interface, or specialized horticultural controller) will be required.
This controller will modulate the light according to a predefined program (growth phases, timing) and can synchronize this variation with an automatic watering system by controlling both devices simultaneously. Coordination requires home automation software or interface capable of managing these scenarios and the necessary protocols (0-10V for the LED, relays for watering).
In summary, even though the panel does not offer a native home automation interface, its dimmable 0-10V control facilitates customized integration into a complete automated management of lighting and watering, via a suitable external controller.
- Is the Pure LED Pro 240W suitable for micro-cultivation in a 60x60 cm space in terms of light coverage and energy efficiency?
The Pure LED Pro V2.0 240W is perfectly suited for micro-cultivation in a 60 x 60 cm space. Its optimal light coverage, recommended up to 100 x 50 cm, ensures homogeneous and powerful lighting over this smaller area.
In terms of energy efficiency, this panel offers an excellent output of 2.82 µmol/J, significantly surpassing traditional solutions like 400W CMH lamps. This means intense and high-quality light while consuming about 40% less energy, ideal for limiting heat and consumption in a confined space.
Its full spectrum 4000K with a red peak at 660 nm promotes optimal plant development, from growth to flowering, and its passive thermal dissipation ensures silent operation without overheating.
For effective and energy-efficient micro-cultivation in 60 x 60 cm, this panel is a particularly relevant and efficient choice.
- Does the dimming function work smoothly for precise brightness adjustment in different growth phases?
The Pure LED Pro V2.0 240W offers a perfectly smooth and continuous dimming function, allowing for very precise brightness adjustment. Thanks to its built-in dimmer or via a 0-10V controller, you can modulate the light intensity seamlessly, from very low power up to the full 240W power. This fine dimming is ideal for adapting the lighting to different growth phases, promoting optimal development of your plants.
Moreover, this panel integrates advanced features such as sunrise and sunset simulation, and automatic reduction in case of overheating, thus enhancing the quality of light management throughout the cycle.
In summary, the dimming system of the Pure LED Pro V2.0 is reliable, precise, and durable, perfect for optimal control of your indoor cultivation.
- Can we use this Pure LED Pro 240W panel to grow two different crops in parallel with a single dimming and programming system without compromising the optimal growth of each crop?
The Pure LED Pro V2.0 240W is dimmable at five levels and designed for a unique control of light intensity. You can use it for two crops in parallel with a single dimming and programming system, provided that the light requirements of these two crops are very similar (same photoperiod and intensity). This prevents compromising their development.
However, if the crops require different light cycles or intensities (for example, growth vs flowering or species with contrasting needs), a single control will not allow for individual optimization of their lighting, which could impact growth.
In that case, it is better to opt for two separate panels with independent controls, in order to perfectly adapt the lighting to each crop.
- Does the Pure Led Pro 240W panel provide excellent light output and control, but is its full spectrum fully optimized for SCROG/LST techniques under LED, and how to adjust the power according to the trellising phase?
The Pure LED Pro V2.0 240W panel is perfectly suited for trellising techniques such as SCROG and LST thanks to its full spectrum of 4000K white with a red peak of 660 nm. This spectrum provides homogeneous and balanced lighting, ideal for stimulating branching, vegetative vigor, and flowering under netting or trellised branches.
Its wide light diffusion at 120° ensures optimal coverage under the SCROG net, while its integrated dimmer with 5 levels allows precise power adjustment according to phases:
- Beginning of trellising / growth: 25-50% power (60-120 W) to promote harmonious growth without stress.
- Advanced growth: 75% (approximately 180 W) to enhance the filling of the net.
- Flowering / end of trellising: 100% (240 W) to maximize production through intense light output.
This fine management of intensity optimizes photosynthesis and yield by limiting light and thermal stress, making the Pure LED Pro V2.0 a high-performing and flexible choice for indoor growing in SCROG/LST.
- Is the Pure LED Pro 240W suitable for micro cultivation in a 60x60 space, or does one need a more powerful or more compact model?
The Pure LED Pro V2.0 240W is perfectly suitable for micro cultivation in a 60x60 cm space. Its power of 240W with excellent light efficiency ensures optimal and uniform coverage, without overconsumption or excess heat. Its gradual adjustments allow for light modulation according to growth phases, which is ideal for precisely controlling your environment.
A more powerful model would be excessive for this area and could generate too much heat, while a less powerful model might lack intensity or uniformity. Its compact size makes installation easy without clutter.
- Is the passive cooling system sufficient for an 80x80 cultivation or is a silent extractor recommended?
The Pure LED Pro V2.0 240W uses a very efficient passive cooling system for a cultivation area of 80x80 cm. Its thermal design optimizes heat dissipation without fans, ensuring silent operation and no additional maintenance.
However, even though the panel does not require active extraction for its own cooling, it is highly recommended to install a silent air extractor in the tent. This helps to remove the overall accumulated heat, renew the air, and maintain a stable temperature, which are essential conditions for healthy plant development.
In summary, the panel's cooling is sufficient for 80x80 cm, but overall ventilation with a silent extractor remains indispensable.
- What are the practical advantages of the dimming system and multiple connection for managing light differently during the growth and flowering phases with the Pure LED Pro 240W?
The Pure LED Pro V2.0 240W offers a five-level dimming system (0 to 100%) that allows precise adjustment of light output according to the growth phase. This ensures soft and non-stressful lighting during germination or growth, then more intense and suitable for flowering, optimizing plant health while minimizing electricity consumption.
Moreover, the multiple connection allows simultaneous management of multiple panels with independent settings. This way, you can create distinct light zones in the same space, each with its intensity and schedules, which is ideal for growing different varieties or development stages in parallel.
In summary, this system offers flexibility, energy savings, and fine control of lighting for efficient indoor cultivation perfectly tailored to the evolving needs of plants.
- pure led pro v2.0 240w : what is the max lux and what is the minimum distance for optimal ppf yield without exceeding 240w?
The Pure LED Pro V2.0 240W offers a PPF of 683.15 μmol/s with an efficiency of 2.7 to 2.82 μmol/J, but the maximum lux value is not specified. For optimal yield without exceeding 240W, it is recommended to position this panel at approximately 30 to 60 cm above the plants. This distance helps maximize useful light while avoiding photoinhibition and maintaining an adequate temperature.
- The Pure LED Pro V2.0 240W has an impressive technical sheet for grow yield with its full spectrum and power of 240W. I wonder: is it easy to connect multiple panels together to cover a larger area without struggling with the installation?
The Pure LED Pro V2.0 240W offers a full spectrum and optimal power, perfect for high-quality indoor cultivation. To cover a larger area with multiple panels, it is entirely possible to install them together, but each panel remains autonomous in terms of power supply, without an integrated daisy chain connection system.
Therefore, it will be necessary to provide an appropriate electrical installation (power strips or separate wiring) for each panel. Light intensity management can be centralized with a compatible 0-10V controller, making collective regulation easier. The compact and lightweight design of the panel makes its installation simple, but there is no "plug & play" connection between several Pure LED Pro V2.0 panels.
In summary, you can deploy multiple panels to expand your growing area without major technical difficulties, as long as you carefully organize the wiring and power supply for each.
