01 — Description
Présentation du produit
Introduction: A Giant among horticultural LEDs

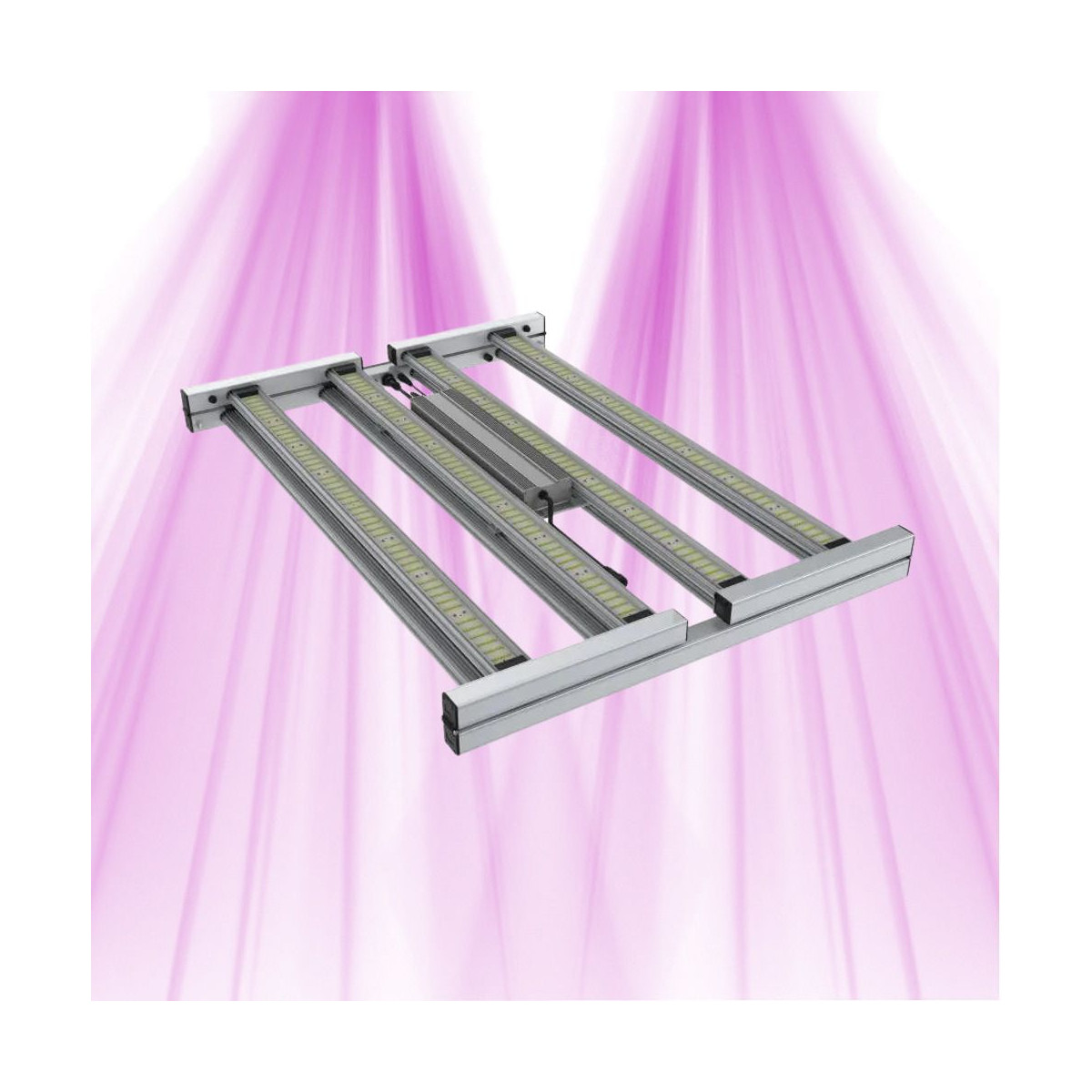

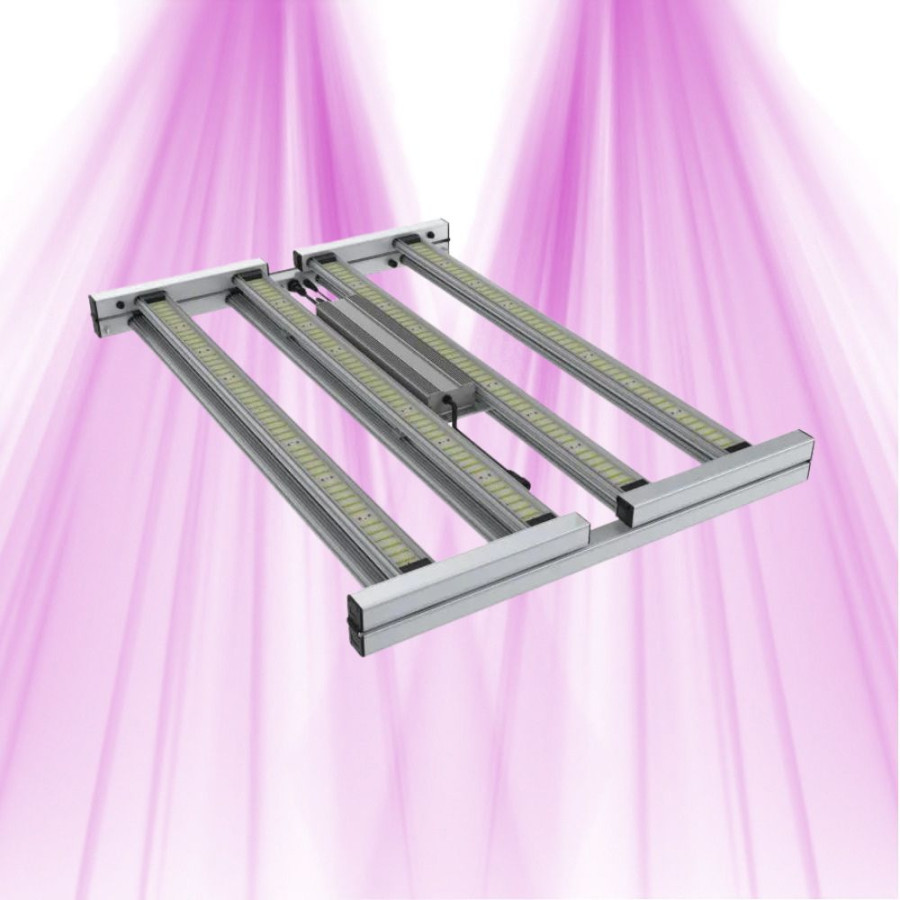

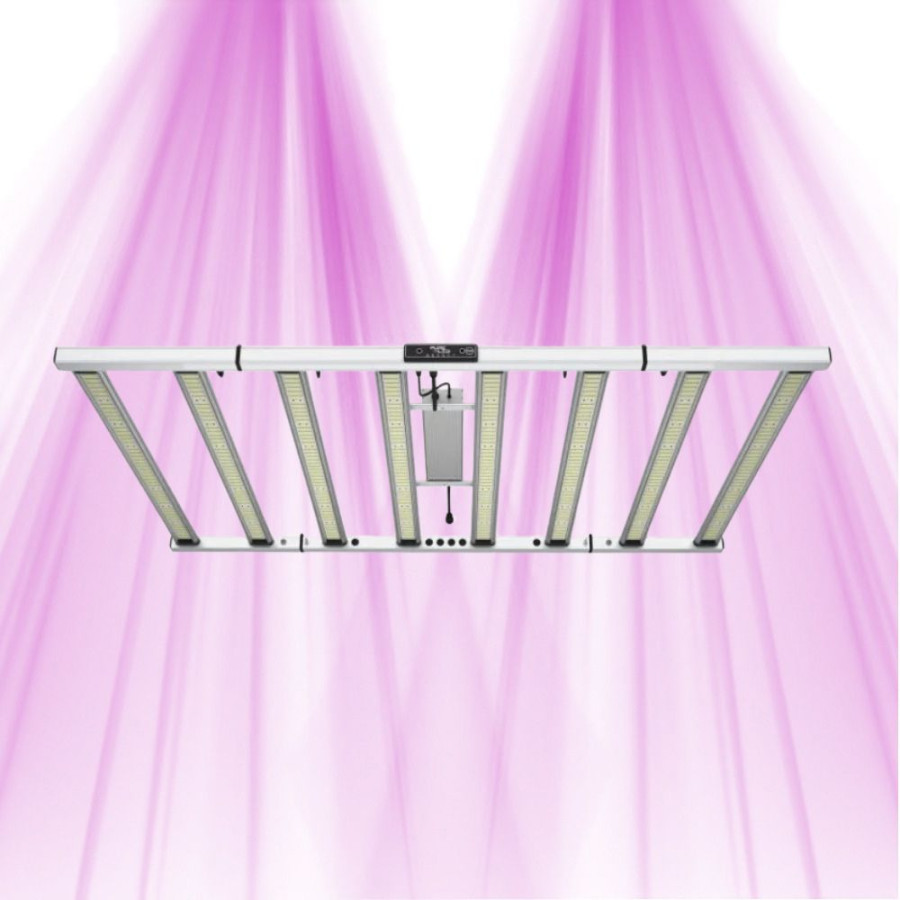

Meet the Pure Led Max 1000W, a first-class LED panel now available. Designed for professionals, this panel is ideal for large growing spaces up to 3m², combining power and advanced technology to optimize your yields.
Presentation of this 1000W Pure LED lighting
The Pure Led Max 1000W stands out with its impressive dimensions of 1500 x 1100 x 90 mm, offering extensive coverage and unrivaled power with a PPF of 2750 mol/s and a luminous efficiency of 2.75 mol/J. Equipped with a passive heat dissipation system, this panel is both powerful and energy efficient.
Benefits and Key Features
- High Performance : Equipped with Samsung 4000K LM281B+ and Honglitronics SMD3030 diodes, the panel offers a light spectrum suitable for all phases of plant growth.
- Energy saving and Flexibility : The dimmable system allows you to adjust the light intensity according to the needs of your plants, with adjustment options from 0% to 100%.
- Intelligent design : Easy storage thanks to its foldable design and advanced control with the intelligent controller 2.0 (not included), for optimal management of photoperiod and lighting conditions.
Instructions
- Installation : Make sure the panel hangs at least 60cm above the plants during flowering and can be moved closer during the growth phase with reduced intensity.
- Intensity adjustment : Adjust the driver according to the cultivation phase to optimize energy consumption and the necessary light intensity.
Some questions about this lighting
Can I connect multiple panels together?
Yes, with Smart Controller 2.0 you can link multiple units to synchronize their settings.
How long do LED diodes last?
High quality LED diodes provide long durability, ensuring several years of performance under normal use.
Is the panel difficult to install?
No, the Pure Led Max 1000W is designed for easy installation, with detailed instructions provided.
To further your reading:
Find out how to optimize your growing space with LED lighting by consulting our complete guide .
Conclusion
The Pure Led Max 1000W is the ultimate choice for serious growers looking for the best LED technology on the market. Its power, coupled with flexible light management, makes this panel a profitable investment to maximize the growth and flowering of your plants.
Technical specifications:
- Power : 1000W (+/-5%)
- Dimensions : 1500 x 1100 x 90 mm
- Weight : 15.5 kg
- PPF : 2750 mol/s
- Efficiency : 2.75 mol/J
- Diodes : Samsung 4000K LM281B+ (3264 pcs.), Honglitronics SMD3030 (660 nm) (144 pcs.)
- Lighting angle : 120º
- Input voltage : 100-277 V, AC - 50-60 Hz
- Recommended for a growing space of : 2 x 1.5 m
For any questions or additional assistance, please do not hesitate to consult our expert team.
04 — Questions sur ce produit
Product questions
Your questions about this product
- What is the maximum area that the Pure Led Max 1000W can effectively cover?
The Pure Led Max 1000W is a high-performance lighting system that ideally covers a maximum area of 3 square meters. This performance is ideal for a 2.0 m x 1.5 m setup. However, be careful about the distance between the lights and your plants, it should be between 20 and 60 cm for optimal yield. If you are searching for efficient lighting for large cultivation areas, this lamp is an excellent option.
- Hydroponics kit compatibility? Is the Pure Led Max 1000W easy to integrate into a home hydroponic setup? Easy installation and adjustment on a complete kit?
The Pure Led Max 1000W is perfectly suitable for installation in a home hydroponic system. Its multi-bar system offers effective coverage and good light output, ideal for intensive cultivation. Installation is quite simple thanks to clear instructions, although precise adjustment of light intensity may require a little adaptation time. For a complete kit, it integrates easily with most common hydroponic equipment. In summary, it is a powerful and flexible choice for your hydroponic kit.
- What is the ideal operating temperature to avoid overheating with the passive cooling system of the Pure Led MAX 1000W?
The ideal operating temperature for the Pure Led MAX 1000W - 2.76 umol/J is between -20°C and 35°C. Its passive cooling system ensures silent heat management without fans, but it remains essential to maintain good ventilation in the room to avoid any heat buildup. For optimal safety, a controller can also be used to reduce power in case of overheating.
- How do you passively manage thermal dissipation without a fan on this panel to ensure optimal LED lifespan?
The Pure Led MAX 1000W panel uses a 100% passive thermal dissipation system, without a fan. Its ingenious design and specific materials effectively dissipate the heat generated by the LEDs, ensuring silent and stable cooling. This passive cooling preserves the durability and reliability of the panel by avoiding failures related to moving parts.
Moreover, an integrated electronic management system can adjust the power in case of overheating, protecting the LEDs against excessive thermal stress and ensuring a long lifespan.
- Is the passive thermal dissipation system sufficient to prevent any overheating even during continuous intensive use over long periods?
The passive thermal dissipation system of the Pure Led MAX 1000W is designed to operate without fans, thus providing completely silent operation suitable for intensive use. This innovative system effectively dissipates heat, which is a real advantage for prolonged use.
However, even though this passive dissipation is efficient, it is advisable to combine it with natural ventilation or an external controller capable of reducing power in case of overheating. These precautions ensure optimal temperature and protect your installation during continuous use over long periods.
- PPFD max in flower at what distance to fully utilize the 2750 umol/s without saturation? Effective dimmable adjustment between 60% and 100% for what specific conditions?
The Pure Led MAX 1000W offers a total PPF of 2750 µmol/s ideally distributed over approximately 3 m². To fully utilize this power without saturating your plants, position the panel between 20 and 60 cm above the canopy. This range allows for optimal PPFD, generally between 1000 and 1500 µmol/m²/s during flowering, which corresponds to the maximum zone of photosynthetic efficiency without excessive light stress.
The system is dimmable with an effective range between 60% and 100%. Use 60% for growth stages, young plants, or high heat conditions to limit intensity and stress. At 100%, you will benefit from maximum intensity suitable for intense flowering, with high PPFD and optimal yield, provided there is adequate ventilation.
In summary, adjust the height and power according to the stage of your crop and the ambient temperature to fully exploit the potential of 2750 µmol/s without compromising the health of your plants.
- What is the actual electricity consumption for an area of 1.5x1.5 m with a Pure Led Max 1000W panel in combined growth and flowering use?
For an area of 1.5 × 1.5 m (i.e., 2.25 m²), the Pure Led Max 1000W is somewhat oversized. In combined growth and flowering use, for 12 hours a day, it is recommended to reduce the power via its dimmable control to about 50–60%, or 500–600 W actual.
The actual electricity consumption will therefore be close to 2,628 kWh per year (600 W × 12 h × 365 days). Depending on the electricity rate (for example, €0.20/kWh), this represents an annual cost of around €525 to €576. This setting optimizes the power for the area and avoids stressing your plants with excess light.
In summary, use the dimmable mode to adapt the light power to the size of your crop, ensuring controlled consumption and excellent yield.
- what is the actual electricity consumption in kWh for a week of using the Pure Led Max 1000W at full power in an area of 2m by 2m
The actual electricity consumption of the Pure Led MAX 1000W panel at full power depends on the daily usage time.
If the panel operates 24 hours a day for 7 days, the consumption will be 168 kWh/week (1000 W × 24 h × 7 days).
For more common usage in horticulture, around 18 hours per day, the consumption is approximately 126 kWh/week (1000 W × 18 h × 7 days).
This calculation perfectly applies to a cultivation area of 2m × 2m, recommended for this model.
- What is the approximate temperature of the Pure Led Max 1000W panel in continuous operation without additional ventilation?
The Pure Led MAX 1000W panel features a passive thermal dissipation system, without fans, allowing it to dissipate heat quietly and efficiently. In continuous operation without additional ventilation, its internal temperature is electronically regulated to prevent overheating, but no specific value is communicated.
It is designed to operate optimally within an ambient temperature range of -20°C to 35°C. However, for intensive use, we recommend suitable ventilation to avoid excessive heat build-up around the panel.
- What are the optimal parameters for running two growing cycles in parallel with this Pure Led Max 1000W panel, particularly regarding light intensity adjustment and suspension height?
To fully utilize the Pure Led MAX 1000W panel in two parallel growing cycles, optimizing light intensity and suspension height is essential. With its dimmable system, you can adjust the intensity to 0%, 25%, 50%, 75%, or 100%, allowing precise adaptation of the light to the plants' needs based on their stage (germination, growth, or flowering).
Regarding the suspension height, a range between 20 cm and 60 cm is recommended. A lower height (around 20 cm) is suitable during the vegetative phase to maximize lighting, while during flowering, it is better to increase the distance (~60 cm) to limit heat and excessive intensity.
Finally, for two simultaneous cycles, it is wise to divide the growing area under the panel, which can cover up to 2 x 2 meters, into two distinct zones. This way, each group of plants benefits from an appropriate adjustment for optimal development.
- PureLedMax1000W announces 2.75 umol per joule, but in practice, what real yield in g per watt can I expect in hydroponic culture with a full flowering + vegetative cycle?
The Pure Led Max 1000W, with its energy efficiency of 2.75 µmol/J, is ideal for a hydroponic system on 3 m², covering the entire vegetative and flowering cycle thanks to its full spectrum. In practice, the yield in grams per watt will depend on multiple parameters: control of temperature, humidity, CO₂ levels, and nutrient quality.
Generally, in optimized hydroponics, one can expect a yield between 0.5 and 1.5 g/W for a full cycle. This wide range reflects the natural variability of crops and conditions. Thus, even though Pure Led Max offers great light efficiency, the final yield still depends on the environment and cultivation practices.
To maximize your results, combining this panel with a good ventilation system, suitable fertilizers, and strict parameter control is essential.
- What is the actual electrical consumption in kWh for a 12-hour session with Pure Led Max 1000W at 80 percent power on 1.5x1.5 m? What is the light yield in umol/J under real conditions?
For a 12-hour session with the Pure Led MAX 1000W set at 80% of its power, the actual electrical consumption will be approximately 9.6 kWh (or 800 W x 12 h).
The nominal light yield is 2.75 µmol/J. Under real conditions, this yield remains very close to this value, especially if the cooling system is efficient. Over an area of 1.5 x 1.5 m, the light intensity per m² will be more concentrated, which can optimize the intensive growth of your plants.
- What is the ideal gap to maintain between the Pure LED MAX 1000W panel and the canopy to optimize light penetration without risking burning the plants during the flowering phase?
To optimize the light penetration of the
Pure LED MAX 1000W while avoiding burning the plants during the flowering phase, it is advised to maintain a distance between
20 and 60 cm above the canopy. This range takes into account the high power of the panel and its thermal dissipation system.
In practice, it is recommended to start around 50-60 cm, then gradually adjust towards 20 cm while always monitoring for signs of plant stress. This ensures intense and even light suitable for flowering, maximizing yield while preserving leaf health.
- Is it possible to integrate the Pure Led Max 1000W panel with a home automation system via the intelligent controller 2.0 to automate the adjustment of light intensity according to the plant growth phases?
The Pure Led MAX 1000W is perfectly compatible with a home automation management solution via the intelligent controller 2.0. This panel is dimmable on 5 levels (0-25-50-75-100%) to precisely adjust the light intensity to the different growth phases. The controller 2.0 allows synchronizing multiple panels, automatically managing lighting cycles (dawn, dusk), adjusting the power according to needs, and even intervening in case of overheating.
This configuration offers complete and reliable automation, ideal for intensive and intelligent lighting control in your cultivation.
- What is the best strategy for differentiated management of the light intensity of the Pure Led MAX 1000W between the growth phase and the flowering phase to optimize yield and energy consumption?
To optimize yield and energy consumption with the Pure Led MAX 1000W, it is advised to modulate the light intensity according to the growth phase:
- Growth phase: prioritize a moderate intensity, between 25% and 50%, to ensure healthy vegetative development without light stress, while saving energy.
- Flowering phase: gradually increase the intensity between 75% and 100% to maximize photosynthesis and flower production, thereby optimizing the final yield.
The dimmable system of the Pure Led MAX, with its 5 levels, allows for precise adjustment, while a smart controller (sold separately) facilitates centralized management to adapt lighting based on actual conditions. Maintaining a distance of 20 to 60 cm between the lamp and the plants is also essential for optimal efficiency.
This differentiated management, simple and effective, fully leverages the performance of the Pure Led MAX to combine quality of culture with control over electricity consumption.
- What is the average electrical consumption of the Pure Led MAX 1000W when dimmed to 50 percent and how does it impact thermal dissipation without external fan?
The average electrical consumption of the Pure Led MAX 1000W when dimmed to 50% is between 500 and 600 W, which is about half of its rated power. This reduction directly affects thermal dissipation, as the system uses passive cooling without a fan.
Reducing the power to 50% decreases the heat generated, making thermal management easier with the innovative passive cooling system. This allows the panel to operate silently while extending the lifespan of the components due to a lower internal temperature, without the need for external ventilation.
- Is the passive thermal dissipation system of the Pure Led Max 1000W truly effective in maintaining low temperatures and thus preserving the diodes in the long term under intensive growing conditions?
The passive thermal dissipation system of the Pure Led MAX 1000W is ingeniously designed to efficiently dissipate heat without fans. Thanks to its design and specific materials, it keeps the diodes at optimal temperatures (between -20°C and 35°C), essential for their longevity in intensive cultivation.
Additionally, an electronic management adjusts the power in case of overheating, providing even better protection for the LED components. Nevertheless, proper ventilation of your growing space is still recommended to avoid the accumulation of ambient heat and ensure optimal long-term performance.
In summary, this passive system is reliable and suitable for intensive use, preserving the quality and lifespan of the diodes without noise nuisance.
- Can multiple Pure Led MAX 1000W panels be easily connected to cover a larger area without complicating the installation?
Yes, it is indeed possible to connect multiple Pure Led MAX 1000W panels to cover a larger area without complicating the installation. With the Smart Controller 2.0, you can easily synchronize multiple lights, manage their on/off settings, adjust brightness, and ensure overheating protection through centralized management.
This feature simplifies daisy chaining and avoids the tedious individual management of each panel, making the whole setup modular and efficient for intensive cultivation over several square meters.
In summary, the Pure Led MAX 1000W is an ideal, flexible, and effective solution, perfectly suited for large areas with simplified installation.
- Does the dimmable mode of the Pure Led Max 1000W allow for fine adjustment of light intensity to optimize SCROG under LED on 200x200 cm?
The dimmable mode of Pure Led MAX 1000W allows for fine adjustment of light intensity, essential for optimizing a SCROG grow on 200x200 cm. You can adjust the power between 60% and 100% via an integrated button or an external controller, with several levels (0-25-50-75-100%) for perfectly tailored lighting for each growth phase.
Thanks to its multi-bar design, it ensures even coverage over this area, avoiding compacted or underlit zones. This precise adjustment also helps limit heat and stress for the plants, promoting optimal development under LED.
- What is the minimum recommended distance in cm for a cultivation space of less than one square meter with this 1000W panel?
For the Pure Led MAX 1000W - 2.76 umol/J in a space of less than one square meter, the minimum recommended distance between the panel and the plants is 20 cm, with a maximum advised distance of 60 cm. This positioning ensures a good balance between intense light and effective heat dissipation, essential for successful intensive cultivation.
- What is the actual warranty offered on this LED panel and how does customer service react in case of breakdown or faulty diodes?
For the Pure Led MAX 1000W panel, the warranty details are unfortunately not officially communicated. The available sources do not mention the duration or exact terms of the manufacturer's or commercial warranty.
However, this product benefits from remarkable quality with recognized brand diodes (Samsung, Honglitronics) and a passive heat dissipation technology that limits the risk of breakdown. The lifespan of the LEDs is announced to be over 50,000 hours, a guarantee of durability.
Regarding customer service, there is no detailed information on the procedure in the event of defects or faulty diodes. We therefore recommend that you carefully check the coverage conditions offered by the seller at the time of your purchase to ensure assistance in case of problems.
- What is the ideal distance to maintain between several Pure Led Max 1000W panels to avoid overheating and ensure an even distribution of brightness over an area of 200x200 cm?
To cover an area of 200x200 cm with the
Pure Led MAX 1000W - 2.76 umol/J, it is ideal to install two panels side by side, spacing them about
10 to 20 cm apart to ensure an even light distribution while avoiding any overheating. Each panel covers about 150x110 cm, so this spacing allows lighting areas to slightly overlap without excessive heat build-up.
The recommended suspension height is between 30 and 60 cm above the canopy, which optimizes light intensity while facilitating good heat dissipation. Pairing this setup with adequate ventilation also helps maintain a stable temperature and an ideal environment for intensive cultivation.
- Does the Pure Led MAX 1000W support a SCROG installation with an area of 1x1m while maintaining sufficient light penetration for intensive LST under LEDs?
The Pure Led MAX 1000W is perfectly suited for a SCROG setup over an area of 1x1 m. Its high power (1000 W) combined with an efficiency of 2.76 µmol/J and uniform coverage up to 3-4 m² ensures excellent light penetration, even under a dense canopy typical of intensive LST training.
Its multi-bar system with a 120° light diffusion angle allows for uniform light distribution, while the ideal distance of 20 to 60 cm from the foliage optimizes this penetration. Additionally, the ability to precisely adjust the light intensity ensures adequate lighting throughout the growth phases, without overheating.
In summary, this professional LED system is a reliable and efficient choice for your SCROG in 1x1 m, providing the power and flexibility needed for optimal vegetative development under intensive LST.
