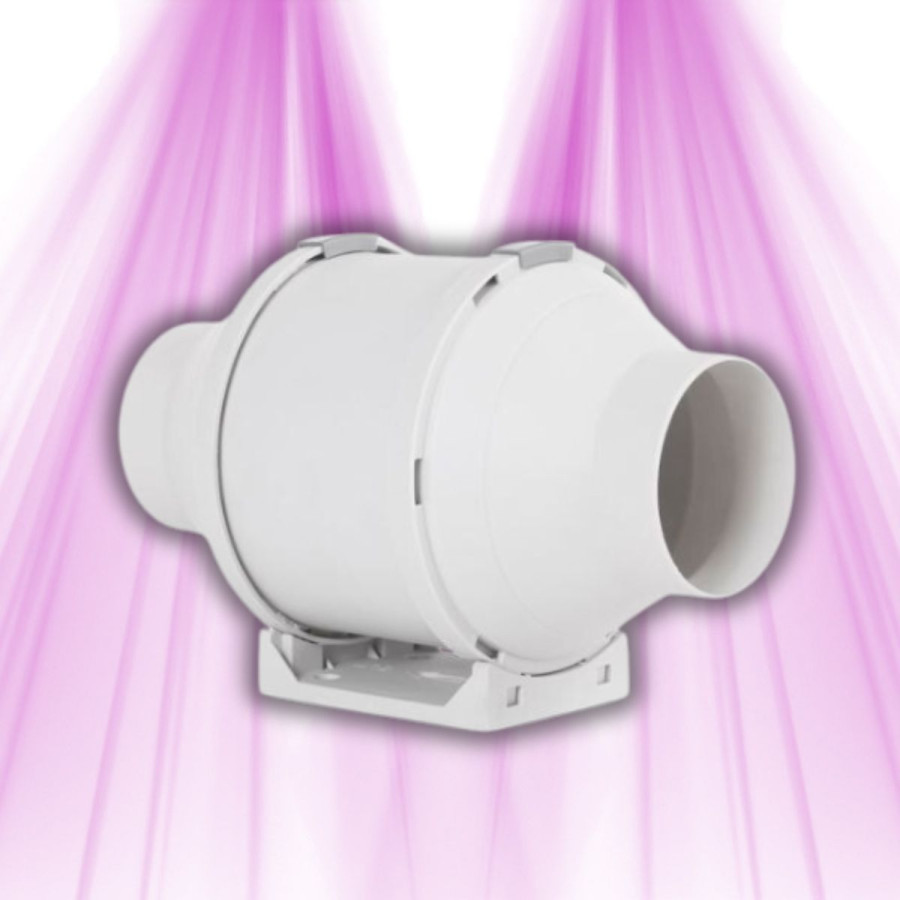

VANGUARD HYDROPONICS TT 100 mm Extractor - 2 Speeds, Max Flow 187 m³/h
- Optimizes air circulation
- Quick and easy installation
- Two adjustable speeds
- Energy efficient
- Durable and compact design
Product presentation
Discover the VANGUARD HYDROPONICS EXTRACTOR TT, essential equipment for all growers passionate about indoor gardening and hydroponics. This two-speed TT 100 mm extractor offers incomparable performance and efficiency to guarantee optimal ventilation of your growing spaces.
Performance and Efficiency The VANGUARD HYDROPONICS EXTRACTOR TT is designed to offer maximum performance with an air flow of up to 187 m³/h. Thanks to its double speed, it easily adapts to the specific needs of your growing space. At minimum speed, it provides a flow rate of 145 m³/h, ensuring adequate ventilation while saving energy with a consumption of only 21 W.
Technical characteristics
- Maximum flow: 187 m³/h
- Minimum flow: 145 m³/h
- Inlet diameter: 100 mm
- Consumption at minimum speed: 21 W
- Total consumption: 33 W
- Maximum speed: 2385 rpm
- Minimum speed: 2180 rpm
- Dimensions: 100mm
Key Benefits The TT EXTRACTOR is equipped with two speeds, allowing you to choose the configuration best suited to your specific ventilation needs. Its optimized energy consumption at minimum speed helps reduce electricity costs without compromising performance. With an inlet diameter of 100 mm, it can be easily integrated into various ventilation systems.
Durability and Design Made with high quality materials, the VANGUARD HYDROPONICS EXTRACTOR TT is designed to last. It provides reliable and consistent performance, even with continuous use. The compact dimensions of the extractor (100 mm) make it easy to install, even in tight spaces.
Opinion from an Expert Grower "Using the VANGUARD HYDROPONICS EXTRACTOR TT for several months, I have noticed a clear improvement in the quality of the air and the health of my plants. The ease of installation and the two speeds have allowed me to to optimize ventilation according to the needs of my crops. I highly recommend this extractor to all growers." - Opinion from an expert grower.
Questions answers
Q: How do I install the TT 100 mm EXTRACTOR in my growing space?
A: Installation is simple. Fix the extractor to the wall or ceiling using the brackets provided, connect the air ducts to the 100mm inlet diameter and plug it into a power source.
Q: What is the energy consumption of the TT EXTRACTOR?
A: At minimum speed, the extractor consumes 21 W, and at maximum speed, it consumes 33 W.
Q: How long does this extractor last?
A: Thanks to its high-quality materials, the TT EXTRACTOR is designed for long-lasting use. With regular maintenance, it can function optimally for many years.
Q: Can the speed of the extractor be adjusted as needed?
A: Yes, this extractor has two speeds, allowing you to adapt the air flow according to the specific needs of your growing space.
Q: Does the TT EXTRACTOR make a lot of noise?
A: The TT EXTRACTOR is designed to operate quietly, minimizing noise pollution in your growing space.
The VANGUARD HYDROPONICS EXTRACTOR TT is a wise choice for all growers looking to improve the ventilation of their growing space. Its performance, energy efficiency and ease of use make it an essential tool for thriving and healthy crops.
Features detailed
| Speed management | 2 speeds |
|---|---|
| Type of extractor | Extracteur de gaine |
| Marque | Vanguard Hydroponics |
| Matière | Plastique ABS |
| Puissance consommée (W) | 33 W |
| Technologie | Centrifuge |
| Durée de vie (h) | 40000 |
| Diamètre (mm) | 100 mm |
| Débit (m³/h) | 145 -187 m3/h |
| Type de moteur | Cuivre/roulements billes |
| Isolation phonique | Non |
| Debit (m3/h) | 145/187 |
Reviews customers
Soyez le premier à donner votre avis !
Partagez votre expérience avec ce produit.
Your questions
Easy installation with included brackets? Noise level tolerable for indoor use? Regular maintenance needed for durability?
Noise level: This model is known for being one of the quietest extractors on the market, ideal for indoor use, even in small spaces. However, noise perception can vary depending on individual sensitivity.
Maintenance: While no intensive maintenance is specifically required, the mounting system makes it easy to remove for occasional cleaning, which is recommended to ensure longevity and optimal performance.
Does the noise level of the VANGUARD HYDROPONICS EXTRACTOR TT vary significantly between the two speeds and is it suitable for a small and quiet grow room?
The VANGUARD HYDROPONICS TT 100 mm indeed has two speeds to adjust the airflow between 145 and 187 m³/h. However, the noise level remains quite high even at low speed, which means that the difference between the two speeds is not enough to make the extractor discreet.
This model is sized for small grow spaces, but if you want a truly silent grow room, it may not meet that requirement. For an environment where silence is paramount, it is better to opt for an extractor specifically designed to reduce noise, with excellent acoustic insulation.
What is the exact noise level in decibels at full speed and at minimum speed? I am looking for an extractor that does not disturb the tranquility of the space even during continuous operation.
Is the speed change automatic according to the temperature or is external management needed to optimize ventilation?
The VANGUARD HYDROPONICS TT 100 mm Extractor does not have an automatic speed change according to temperature. It offers two speeds manually adjustable via a button, allowing you to adjust ventilation according to your needs.
For automatic management based on temperature, it is necessary to add a compatible external control system, which can modulate the speed according to the conditions of your growing space.
Can the speed between the two levels be easily adjusted during cultivation without disturbing the plants?
The VANGUARD HYDROPONICS TT 100 mm extractor allows for easy switching between speeds thanks to a simple system that requires no dismantling. This adjustment is made smoothly, without air jolts or vibrations, thus preventing any disturbance to the plants during cultivation. Its silent operation also ensures a calm and stable environment. Therefore, you can confidently adjust the airflow between the two levels, perfectly adapting the ventilation to the needs of your plants.
What is the noise level in decibels at full power, and after several months of use, does the noise level remain constant or is there degradation due to component wear?
Is the dual speed easy to set up with a standard switch or does it require a specific system to manage the two speeds?
The VANGUARD HYDROPONICS TT 100 mm extractor has a dual speed that is easy to manage thanks to its pre-wiring. You just need a standard switch or a small selector to switch from one speed to another, without the need for a complex electronic system. This simple adjustment allows for quick adaptation of the air flow between the two available speeds, optimizing ventilation according to your cultivation needs.
What is the precise noise level of the extractor TT 100 mm at minimum and maximum speed for discreet use without sacrificing ventilation?
Although the exact sound levels in decibels are not specified, user feedback confirms a very low noise disturbance on both settings, with the noise described as "super silent," particularly at low speed. This extractor is therefore a wise choice for discreetly growing while ensuring good ventilation.
What is the exact consumption in kWh over 24 hours at continuous use at minimum speed with a flow rate of 145 m³/h and maximum efficiency per watt?
The electrical consumption of the VANGUARD HYDROPONICS TT 100 mm Extractor at continuous use at minimum speed, with a flow rate of 145 m³/h, is 21 W (0.021 kW). Over 24 hours, this represents a consumption of approximately 0.5 kWh, which corresponds to the maximum efficiency per watt for this mode of operation. This efficiency allows for excellent air renewal while controlling energy consumption.
How do you manage the automation of the extractor TT 100 mm speeds according to temperature and humidity variations in the greenhouse?
The extractor VANGUARD HYDROPONICS TT 100 mm offers two speeds tailored to your needs: a low speed of 145 m³/h for economical ventilation, and a high speed of 187 m³/h for enhanced extraction.
To automate management based on the temperature and humidity of your greenhouse, the most effective solution is to use a climate controller equipped with sensors. This device automatically switches between the two speeds according to the thresholds you define (for example, activating the high speed above 26-28°C or when humidity is too high), thus ensuring optimal extraction without wasting energy.
This automation is performed via a controlled outlet or a relay compatible with the extractor, facilitating its integration into your ventilation system. This setting protects your plants by maintaining a healthy and stable climate while managing electricity consumption.
Is the noise level at maximum speed compatible with a small silent space like a 80x80 cm grow room?
The VANGUARD HYDROPONICS TT 100 mm has a very discreet noise level of 36 dB(A) at its maximum speed, which corresponds to a sound close to a whisper. For a 80x80 cm grow room, this extractor is perfectly compatible with a quiet environment.
Its operation at minimum speed is even quieter (27 dB(A)), ideal when less intense ventilation is sufficient. Additionally, its anti-vibration features ensure usage without excessive nuisance, even in small spaces. It is a reliable and efficient choice for discreet indoor cultivation.
possible integration with home automation system for automatic speed modulation according to temperature or CO2 level in real time
The Extractor VANGUARD HYDROPONICS TT 100 mm offers two manually adjustable speeds via a simple switch, without integrated electronics for automatic modulation.
For home automation management that allows speed adjustment according to temperature or CO₂ level in real time, it is necessary to add an external system, such as an ambient controller associated with a relay, capable of switching between the two speeds based on the installed sensors.
This approach allows for automated operation despite the absence of native electronic control in this model.
Is the difference in consumption between the two speeds really advantageous for reducing the electricity bill in the long term in a medium-sized hydroponic space?
The difference in consumption between the two speeds of the VANGUARD HYDROPONICS TT 100 mm is indeed an asset for managing your electricity bill in the long term. At low speed, it consumes only 21 W, which is about 0.5 kWh per day, making it very economical for constant air renewal in a medium hydroponic space.
The high speed, while more demanding, is ideal only during peaks of heat or humidity to ensure rapid extraction. Primarily using the low speed, coupled with an automatic control system with sensors, offers an efficient and flexible management of ventilation.
This dual speed allows for optimizing energy consumption while maintaining a stable environment for your plants, which is perfect for a growing space of about 1 to a few square meters.
How to optimize the use of the two speeds of the TT 100 mm extractor for an efficient day-night cycle in indoor horticulture?
To optimize the use of the two speeds of the TT 100 mm extractor (145/187 m³/h), it is recommended to adopt a suitable day-night cycle:
During the day, prioritize the high speed (187 m³/h) to ensure maximum air exchange. This effectively evacuates the heat and humidity related to lighting, protects your plants from diseases, and supports their active growth.
During the night, switch to low speed (145 m³/h). This gentler cadence maintains a constant air exchange while limiting electricity consumption and stress on the plants during their rest phase.
For easy and precise management, a timer or an automatic controller can switch automatically between these speeds according to your lighting cycles. It is also crucial to position the extractor well to maximize the extraction of warm, humid air.
This alternation optimizes air quality, reduces energy costs, and prolongs the lifespan of your extractor, while maintaining an ideal environment for your indoor crops.
Is the TT 100 mm extractor sufficient for a micro space of 60x60x160 cm at minimum speed, or should I switch to a more powerful model?
For a micro space of 60x60x160 cm (0.576 m³), the VANGUARD HYDROPONICS TT 100 mm extractor is perfectly suited. At minimum speed, it provides an airflow of 145 m³/h, well above the 17-35 m³/h needed for optimal air exchange in this volume.
This margin ensures effective ventilation without excess consumption, with a power of 21 W at low speed being ideal for healthy and energy-efficient cultivation.
Thus, you do not need a more powerful model for this type of setup.
What is the difference in noise between the minimum and maximum speed on the VANGUARD HYDROPONICS TT 100 mm extractor and how does it affect installation in restricted spaces?
The difference in noise between the two speeds of the extractor VANGUARD HYDROPONICS TT 100 mm is about 9 dB(A), with 27 dB(A) at low speed (very quiet, like a whisper) and 36 dB(A) at full speed (moderate but tolerable noise).
In restricted spaces, this low sound emission at low speed is a real advantage for maintaining a quiet environment, which is essential when nearby surfaces can amplify sound. The maximum speed, on the other hand, increases airflow to 187 m³/h, useful for managing peaks of heat or humidity, but may generate slight noise discomfort.
It is therefore advisable to use the minimum speed for quiet operation and to switch to maximum speed only when more intense ventilation is needed. Management is done manually, requiring active monitoring to optimize comfort and performance.
What is the performance and energy consumption difference between the two speeds of the TT 100 mm extractor and how to choose the most suitable speed for my growing space?
The VANGUARD HYDROPONICS TT 100 mm Extractor offers two speeds to adjust the ventilation according to your needs:
- Low speed: airflow of 145 m³/h with a consumption of about 21 W, ideal for small to medium spaces (e.g. 60x60x160 cm) where one seeks to limit consumption while ensuring good ventilation.
- High speed: maximum airflow of 187 m³/h with higher consumption, recommended during high heat, significant humidity or during peaks requiring faster air renewal.
The transition between the two speeds is done simply via a manual switch, allowing you to adjust the ventilation without disturbing your plants. Generally, start at low speed and increase power if you notice excessive heat or humidity buildup.
Are the motors of the TT 100 mm VANGUARD HYDROPONICS extractor guaranteed against defects and mechanical failures for a realistic minimum duration like 2 years, and how is after-sales service managed if I encounter a problem after a few months of intensive use?
The motor of the VANGUARD HYDROPONICS TT 100 mm extractor is designed for intensive use with high-quality materials, ensuring robustness and reliable performance. However, no specific information indicates a manufacturer warranty of 2 years covering defects or mechanical failures.
Regarding after-sales service, it is generally provided by the retailer or manufacturer through exchange or repair, but for this model, the terms are not clearly detailed. Therefore, we recommend consulting your point of sale to confirm the exact warranty and service conditions.
