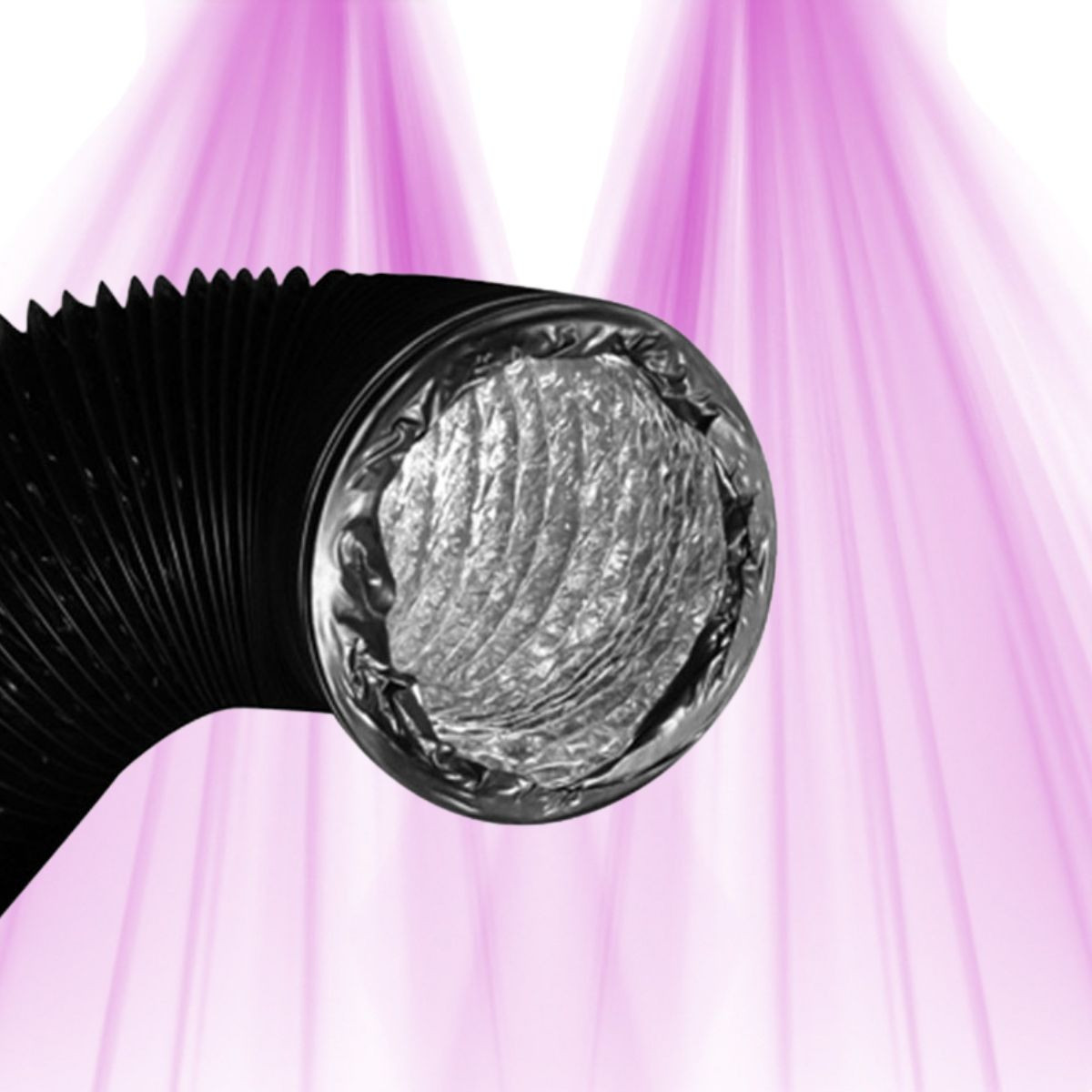

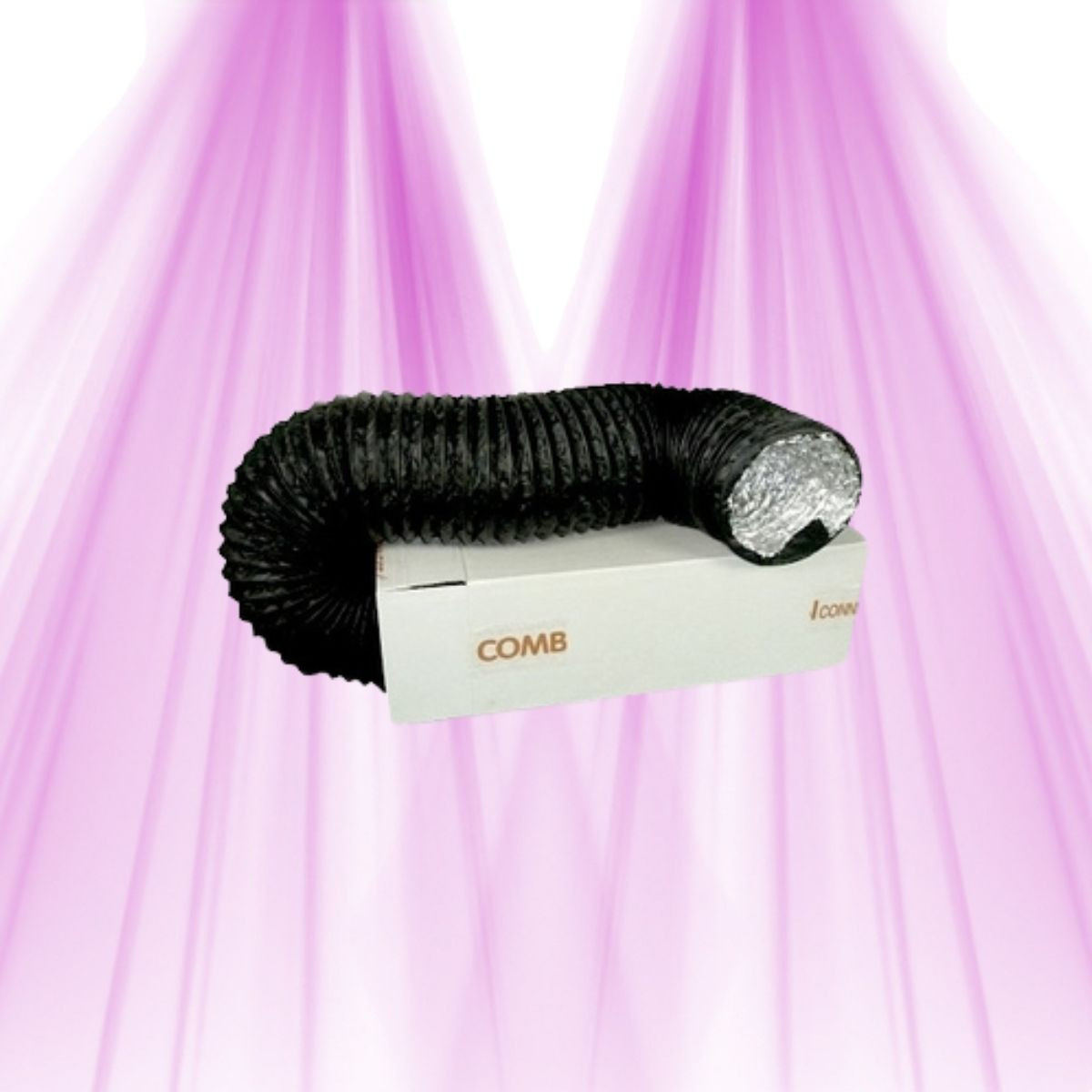

Gaine Combiconnect 315 mm – 10 m pour ventilation horticole haute capacité
Gaine Combiconnect 315 mm – 10 m pour ventilation horticole haute capacité
Features detailed
| Material | Aluminium, polyester, PVC |
|---|---|
| Compatibility | extracteurs Iso-Max, Can-Fan Max-Fan et tout appareil de 315 mm, filtres à charbon et conduits rigides du même diamètre |
| Mylar density | aluminium + polyester sur spirale acier, extérieur PVC |
| Diameter (mm) | 315 |
| Flow rate (m³/h) | 3000 |
| Length (m) | 10 |
| Temperature resistance (°C) | 140 |
| Dimensions (mm) | 315 mm x 10 m |
| Pressure loss | 250 Pa sur 10 m |
Reviews customers
Soyez le premier à donner votre avis !
Partagez votre expérience avec ce produit.
Your questions
Hello, I would like to know if this Combiconnect duct 315 mm – 10 m offers good sound insulation or if it is recommended to add a specific insulator to limit noise without compromising airflow?
Is the Combiconnect 315 mm – 10 m duct flexible enough to easily adapt to the complex configurations of a grow room while maintaining optimal sealing to prevent air leaks?
Is this Combiconnect 315 mm duct compatible with an Iso Max 315 extractor and does it guarantee no air leaks even with tight angles or bends?
It is designed with an inner layer of laminated aluminum and an outer layer of PVC reinforced with a steel wire framework, which ensures excellent robustness and flexibility. This design allows for good airtightness even with bends or angles, significantly limiting air losses.
However, there is no absolute guarantee of total absence of leaks in the case of very tight angles, especially if the installation is not carried out carefully. Proper fastening and avoiding significant creases remain essential for maintaining optimal performance.
In summary, this duct is a reliable and suitable solution to accompany your Iso Max 315 extractor, offering both strength and flexibility for effective ventilation.
What is the resistance to pressure and vibrations of this Combiconnect 315 mm duct in a high capacity ventilation system with an Iso Max 315 extractor?
Does the Combiconnect 315 mm duct really stand the test of time in intensive growing conditions with high humidity and continuous heat?
The Combiconnect 315 mm duct is designed to be robust and flexible, making it ideal for high-capacity horticultural ventilation. Its aluminum + PVC laminate structure reinforced by a steel wire frame provides good sealing and notable resistance to continuous humidity and heat.
Under intensive growing conditions, it generally holds up very well over time, provided the installation is careful, without folds or sharp angles, to avoid any weakening or leakage. It is an excellent option for a demanding growing environment where reliability is paramount.
Does the Combiconnect duct 315mm 10m support a vertical installation without the risk of creasing that could reduce airflow?
Its resistance to twisting and deformation ensures good stability, but careful installation remains essential for preserving optimal airflow.
What is the average pressure loss with Combiconnect 315 mm duct over 10 m in horticultural air extraction configuration?
What is the average pressure loss over 10m with the Combiconnect 315mm duct and the impact on the ISO-Max 3000 m3h fan efficiency?
In practice, this pressure loss is negligible for an ISO-Max 3000 m³/h fan, whose performance remains almost intact even with much higher losses. The Combiconnect 315 mm duct is therefore perfectly suited for high-capacity installations, without any significant impact on fan efficiency.
Can I easily shorten this Combiconnect sheath 315 mm without losing the waterproofness and robustness of the system?
The Combiconnect sheath 315 mm – 10 m can be shortened, but to maintain the waterproofness and robustness of the system, it is essential to use a sharp cutting tool to obtain a clean and straight cut. Then, it is advisable to add suitable connectors or specific seals to ensure perfect waterproofness after the modification.
This proven method on similar diameters ensures that your ventilation system remains efficient and reliable despite the shortening.
Compatible with standard 315 mm extractors, does the combiconnect duct support tight bend constraints without loss of flow?
Its multi-layer construction, reinforced by a steel frame, gives it high flexibility and high bending capability, allowing it to be easily installed even in spaces with tight bends. This robustness limits crushing and pinching, thus avoiding any significant loss of air flow.
In summary, it withstands tight bend constraints without compromising ventilation performance.
Compatibility with 315mm extractors: what is the average pressure loss over 10m of Combiconnect duct during extraction at maximum flow (3000m3/h)?
The Combiconnect 315 mm duct, with a real internal diameter of about 254 mm, is well-suited for a 315 mm extractor flowing up to 3,000 m³/h. Over 10 m, the average pressure loss is low, at around 250 Pa, which remains perfectly compatible with the extractor’s performance.
To maintain this efficiency, it is important to install the duct without bends or tight elbows, in order to minimize additional air losses. Thus, your ventilation system will operate optimally, with powerful flow and stable pressure.
Does the Combiconnect 315 mm - 10 m conduit maintain optimal watertightness even after several cuts and bends in a complex indoor installation?
The Combiconnect 315 mm – 10 m conduit is designed with a robust structure combining laminated aluminum, reinforced PVC, and wire frame, providing excellent watertightness and flexibility. It thus maintains very good watertightness even after several cuts and bends, provided that the installation is carried out carefully, avoiding overly tight bends and ensuring proper fastening.
Therefore, in a complex indoor installation, it remains efficient and durable, allowing for effective ventilation of your horticultural LED growing spaces.
Does the Combiconnect 315 mm duct really last over time in real cultivation conditions with temperature and humidity variations?
The Combiconnect 315 mm – 10 m duct is designed to last in a horticultural environment with frequent temperature and humidity variations. Its construction from aluminum/polyester with a spiral of encapsulated steel wire and an external PVC layer ensures excellent robustness and flexibility.
It withstands temperatures from -20°C to 60°C, which is well within the conditions encountered in indoor cultivation. Its resistance to vibrations and mechanical wear, reinforced by its structure, guarantees longevity even under intensive use.
To maximize its durability, ensure an installation without pronounced bends or sharp angles to avoid any weakening or air leakage. User feedback confirms its long-term reliability, making this duct a solid choice for high-capacity horticultural ventilation.
What is the best method to secure this 315 mm Combiconnect duct, ensuring minimal air leakage while allowing easy disassembly for ventilation maintenance?
