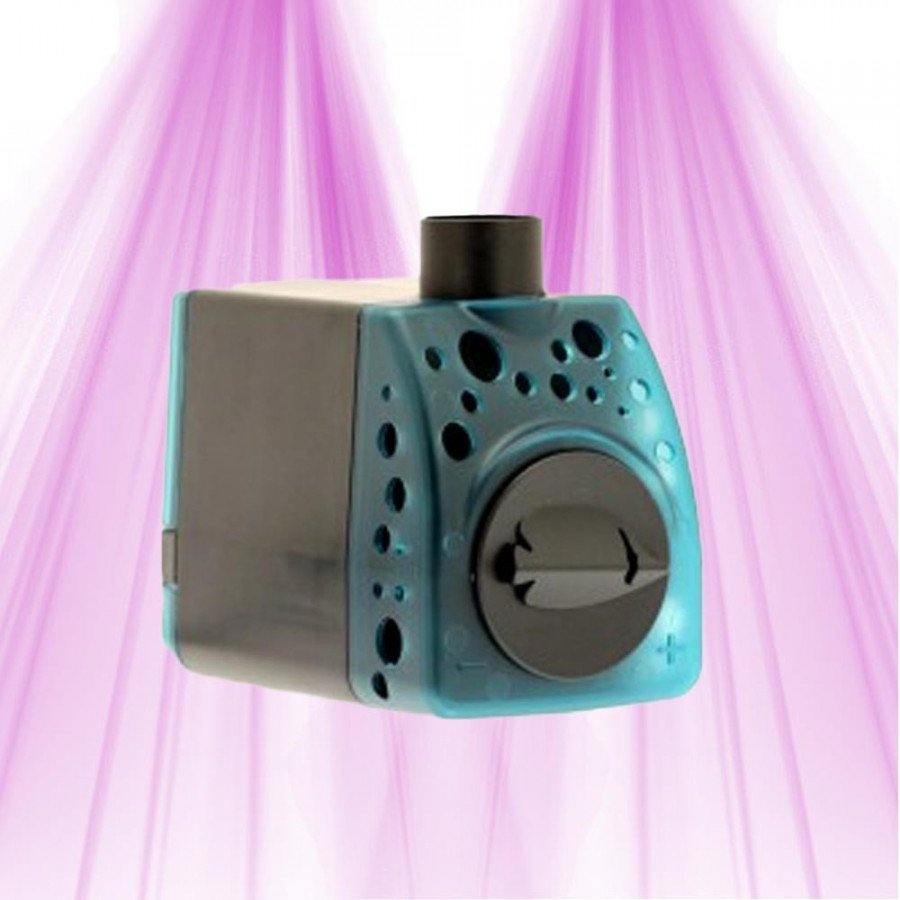

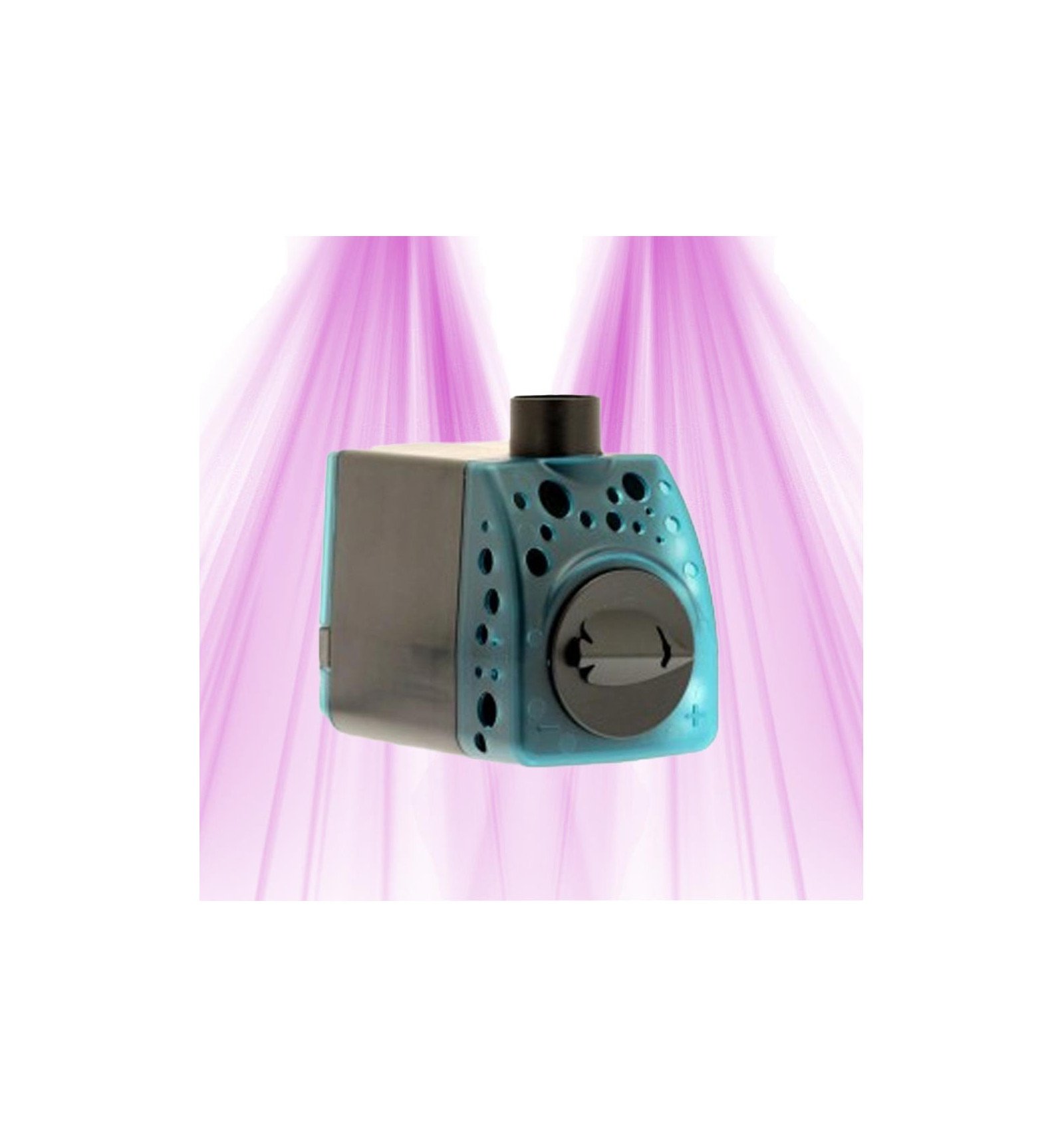

NEWJET 3500 water pump
NEWJET 3500 water pump
New Jet 3500 submersible water pump is widely used for indoor crops in hydro-aero systems.
Product presentation
This multi-use water pump can be installed in or out of water. It can be used in fresh water or sea water.
Technical characteristics :
Flow adjustment: Yes
Power: 70W
Length: 140mm
Width: 88mm
Height: 127mm
Outlet diameter: 23 mm
Flow rate: 850 to 3500 l/h
Maximum height: 2.55 m
Features detailed
| Puissance consommée (W) | 70 |
|---|---|
| Compatibilité | eau douce et eau de mer |
| Dimensions (mm) | L 140 x l 88 x H 127 |
| Diamètre de sortie (mm) | 23 |
| Débit max (L/h) | 3500 |
| Hauteur de refoulement max (m) | 2.55 |
| Submersible | Oui |
Reviews customers
Soyez le premier à donner votre avis !
Partagez votre expérience avec ce produit.
Your questions
Is the NEWJET 3500 water pump compatible with an indoor organic crop irrigation system year-round?
Is this NEWJET 3500 pump suitable for continuous operation in a humid environment and near hydroponic crops, without risk of overheating or flow loss when set to minimum?
Is a maximum height of 2.55 m sufficient for micro-culture with vertical tank circulation?
Real electric consumption with a power of 70W for a continuous flow of 3500 l/h over 24h, actual efficiency and electric cost with the current EDF rate?
The NEWJET 3500 pump with a power of 70 W consumes approximately 1.68 kWh if it runs continuously 24/7. With an average EDF rate of 0.18 €/kWh, this represents an electric cost of about 0.30 € per day.
Regarding efficiency, this pump is designed to be economical and quiet, providing good performance in its use. Its flow rate of 3500 liters per hour is maintained with controlled consumption, reflecting a good balance between performance and energy consumption.
What is the precise electrical consumption for an optimal flow rate of 3500 l/h with the Newjet 3500 70W pump?
For a small tank of 80x80, can this pump operate continuously without overheating and with a sufficient adjustable flow rate for a compact settling system?
The NEWJET 3500 pump is perfectly suitable for a 80x80 cm tank and a compact settling system. It is designed to operate continuously without overheating thanks to its internal protection, ensuring reliable long-term use.
Its flow rate is adjustable between 850 and 3500 liters per hour via an integrated dial, which allows precise adjustment of the water flow according to your system's needs. With a power of 70 watts, it offers an excellent compromise between performance and energy consumption.
Furthermore, its submersible or external use design provides great installation flexibility. In summary, the NEWJET 3500 is robust, efficient, and perfectly suited for compact settling in a small tank.
What is the precise electrical consumption when operating at a maximum flow rate of 3500 l/h?
The NEWJET 3500 water pump consumes approximately 70 W when operating at its maximum flow rate of 3500 l/h. This value is the most frequently referenced and corresponds to real-world use under full load conditions. Some sources indicate a lower consumption, around 55 W, but the power of 70 W remains the best estimate for optimal operation.
In continuous operation at maximum flow rate, this represents an electric consumption of approximately 1.68 kWh per day.
Is it possible to precisely adjust the flow rate of the NEWJET 3500 pump via an external interface to automate irrigation based on the exact needs of indoor cultivation?
The NEWJET 3500 water pump allows for manual adjustment of its flow rate, varying between 850 and 3500 liters per hour, providing good flexibility according to your needs. However, it does not have an external interface or electronic system to precisely control or automate this flow rate via remote control.
For fine automation and electronic control, one would need to consider adding a compatible variator or a pump specifically designed to be controlled via an automation system or an application.
What integrated flow regulation system is in place and how have you automated it to adjust the flow according to the needs of the crop?
The NEWJET 3500 pump features a manual flow regulation system via a knob located at the front, allowing flow adjustment between 850 and 3500 L/h.
To automate this adjustment according to the needs of the crop, it is imperative to use an external solution. For example, a servo motor or a motorized valve can be used, controlled by a PLC or a microcontroller (Arduino, Raspberry Pi). These systems then mechanically control the knob or modulate the flow at the pump's output based on data collected from crop sensors.
In summary, the integrated regulation is manual but the pump is compatible with common automation installations in hydroponics.
What method do you recommend for adjusting the flow rate of the NEWJET 3500 pump to optimize the watering cycle without exceeding the maximum height?
To adjust the flow rate of the NEWJET 3500 pump and ensure optimal watering without exceeding the maximum pressure height (2.55 meters), it is recommended to use the dial located at the front of the pump. This dial adjusts the flow rate between 850 and 3500 liters per hour, allowing you to precisely tailor the water flow to your needs.
Be sure to assess the consumption of your system and not exceed the maximum pressure height to avoid any risk of overload. Also, ensure good ventilation of the pump to prevent overheating and enjoy reliable and durable operation.
Possible integration with home automation systems for remote control of the pump?
What is the precise flow curve based on the head for the NEWJET 3500 pump at 70W to optimize its output in l/h per watt?
The NEWJET 3500 water pump operates with a power close to 55 W (not 70 W). Its flow rate is adjustable from 850 to 3500 liters per hour, with a maximum head of 2.55 meters.
The flow naturally decreases as the height increases: at 0 meters, it reaches nearly 3500 l/h, while at 2.55 m, it drops to around 850 l/h. The consumption remains stable, so the output in l/h per watt is maximized at low height.
To optimize this output, it is advisable to precisely adjust the flow via the knob according to the actual height needed, without exceeding 2.55 m, and to minimize this height to maintain a high flow without overconsuming.
This curve follows the standard principle of centrifugal pumps, even if an exact numerical curve is not available. In summary, adjusting height and flow allows for maximizing the pump's energy efficiency.
Compatible with home automation to adjust flow and monitor electricity consumption in real time?
The NEWJET 3500 water pump does not have native compatibility with home automation systems to adjust its flow or monitor electricity consumption in real time. The flow setting is done manually via a knob, between 850 and 3500 L/h.
It is possible to integrate home automation control by adding external modules, but this requires DIY skills as it is not directly planned or supported. Similarly, the pump does not have built-in sensors to monitor its electricity consumption in real time.
For more advanced control, you may consider specific solutions designed for home automation or energy management.
Is it possible to precisely adjust the flow rate of this pump between 850 and 3500 l/h to optimize different cultivation configurations in parallel?
NEWJET 3500 water pump: adjustable from 850 to 3500 l/h, can it provide a stable flow for a small micro-culture in a compact aeroponic system?
What is the best method to adjust the flow rate of this NEWJET 3500 pump to optimize crop change without disrupting the existing water system?
To optimally adjust the flow rate of the NEWJET 3500 water pump, start by using the knob at the front, which allows you to adjust the flow rate between 850 and 3500 liters per hour. Be sure to evaluate your water system's consumption to not exceed the maximum discharge height of 2.55 meters, which ensures stable pressure.
Then adjust the flow rate based on the specific needs of your crop. For instance, an average flow rate is generally preferable in hydroponics to avoid saturating the roots. Monitor the water circulation after adjustment and tweak the knob if necessary to maintain balanced operation without disrupting the existing ecosystem.
Finally, ensure the pump is well-ventilated to avoid overheating, a crucial point to guarantee its longevity and the stability of your system.
What is the hydraulic efficiency of the NEWJET 3500 pump in g/W at a maximum flow rate of 3500 l/h and a maximum height of 2.55 m?
The hydraulic efficiency of the NEWJET 3500 pump depends on the discharge height. At its maximum flow rate of 3500 l/h (with a height close to 0 m), its efficiency is about 63.6 liters per hour per watt (l/h/W) with a consumption of 55 W.
However, at the maximum height of 2.55 m, the flow drops to about 850 l/h, which decreases the efficiency to about 15.5 l/h/W, still with a stable power consumption of 55 W.
This variation is normal for a centrifugal pump, where the increase in height reduces the effective flow.
What is the actual power consumption of the NEWJET 3500 pump at a maximum flow rate of 3500 l/h in compact micro-cultivation?
What interface or protocol do you use to integrate the NEWJET 3500 pump into an existing automation system?
The NEWJET 3500 pump does not have any electronic interface or native protocol for direct integration into an automation system. Its flow regulation, ranging from 850 to 3500 L/h, is carried out only via a manual rotary knob.
To integrate it into an automated installation, it is therefore necessary to use an external mechanical control, such as a servo motor or an actuator controlled by a PLC (Programmable Logic Controller) or microcontroller (Arduino, Raspberry Pi), capable of manually moving the potentiometer. This approach allows adjusting the flow rate according to the needs detected by your sensors.
In summary: no native electronic control, but possible adaptation via a mechanical system controlled by your automation setup to automate flow management.
What is the optimal flow rate in l/h at 70 W for continuous use and what is the annual electricity consumption based on this flow rate?
In terms of electricity consumption, the power remains stable around 70 W regardless of the set flow rate, as the pump does not seem to have a speed controller. Thus, in continuous operation 24/7 and 365 days a year, the annual consumption is approximately 613 kWh.
In summary, adjust the flow rate between 850 and 3500 l/h according to the discharge height for efficient operation, while accounting for a stable annual electricity consumption of around 613 kWh.
Can the flow rate of the NEWJET 3500 pump be finely adjusted to adapt the water circulation according to the size of the crops in parallel?
Does this NEWJET 3500 pump really hold its specs in intensive and corrosive use like in seawater without losing flow rate or reliability in the long term?
The NEWJET 3500 water pump is perfectly designed for intensive use, particularly in seawater. Its motor with internal thermal protection prevents overheating and allows for reliable continuous operation over the long term. It offers an adjustable flow rate from 850 to 3500 L/h with a discharge head of up to 2.55 m, without notable loss of performance if conditions are respected.
Made from corrosion-resistant materials and featuring an IP68 sealing, it is ideal for corrosive environments like marine aquariums or saltwater-based hydroponic systems. Its controlled energy consumption and automatic restart enhance its durability, while maintenance remains minimal.
In summary, the NEWJET 3500 does maintain its specifications well in intensive and seawater use, ensuring stable flow and excellent lasting reliability.
Does this pump support continuous use for intensive irrigation automation?
The NEWJET 3500 water pump is perfectly designed for continuous use thanks to its thermal protection with automatic restart, ensuring safety in case of overheating. Its manually adjustable flow rate between 850 and 3500 liters/hour allows for stable intensive irrigation.
However, it does not have integrated electronic control for direct automation. To manage the flow automatically in an irrigation system, it is necessary to add an external device (such as a motorized valve) to modulate the pump according to your needs.
This robustness and adaptability make it an excellent choice, provided you plan for this addition for complete automation.
What is the electricity consumption in kWh for continuous operation at maximum flow rate?
The NEWJET 3500 water pump consumes approximately 70 watts during continuous operation at its maximum flow rate of 3500 liters per hour. This corresponds to a consumption of about 1.68 kWh per day (24/7 operation).
This estimate is based on the maximum rated power; consumption may vary slightly if you adjust the flow via the built-in dial.
What are the tips for adjusting the flow rate of the NEWJET 3500 pump to ensure optimal feeding during the growth and flowering phases?
The NEWJET 3500 water pump offers precise manual flow adjustment through a knob, allowing you to adjust the flow between 850 and 3500 L/h according to needs.
For optimal feeding, it is recommended to:
- Minimize the delivery height (max 2.55 m) to maintain a good flow rate and better energy efficiency.
- Adapt the flow to the growth phase: a moderate flow is sufficient for growth, while a higher flow is preferable during flowering to ensure increased intake of nutrients and oxygen.
- Perform regular maintenance by cleaning the water inlet and rotor to avoid obstructions that can reduce flow rate.
- Use threaded connections and rotary system to secure the installation and facilitate adjustments.
These tips ensure effective and stable feeding, tailored to each stage of your indoor cultivation.
What is the actual electrical consumption in kWh for continuous operation of 24 hours of this NEWJET 3500 pump with a flow rate of 3500 l/h and a delivery height of 2.5 m?
At a maximum height of 2.5 meters, the actual flow will be reduced, but the consumption remains stable at 70 W, as the motor operates at constant power.
