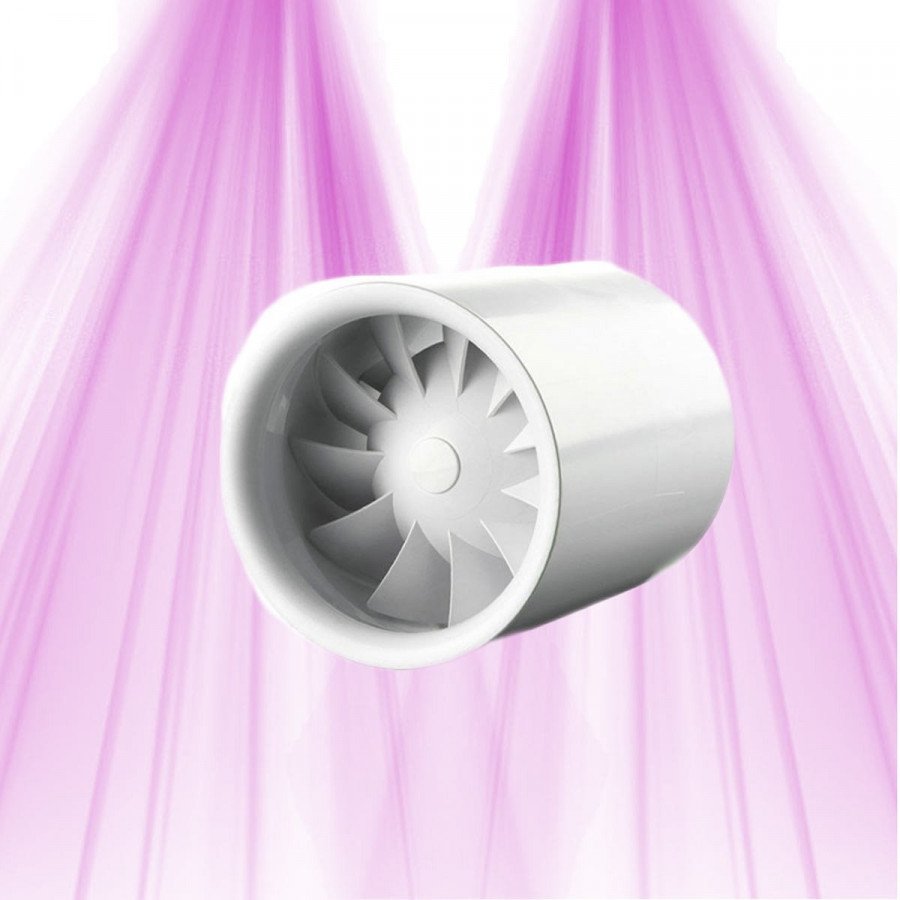

Winflex QuietLINE Ø 150 mm – silent extractor fan 335 m³/h
Discover the QuietLINE WINFLEX Ø150mm silent air extractor with an air flow of 335m3/h.
This extractor will perfectly renew the air in your growing space, while remaining silent ( around 39db ).
(Delivered without power cable) Diameter: 150 mm
Product presentation
The WINFLEX Quietline 150mm extractor has an air flow of 335m3/h . It is ideal for renewing the air in a growing space efficiently and silently. Indeed, this extractor is equipped with a motor mounted with anti-vibration rubber connectors, thus ensuring low fan noise.
The housing and turbine are made of high quality and durable white plastic . To reduce noise pollution, the extractor also uses an exhaust valve equipped with air flow straighteners.
Characteristics :
- Inlet and outlet diameter: Ø 150 mm
- Size: 150 x 182mm
- Air flow: 335 m 3 /h
- Power: 22W
- Sound level at 3 m: 39dB
- Weight: 1.30 kg
Product delivered unwired
Features detailed
| Speed management | No |
|---|---|
| Type of extractor | 1 Speed |
| Dimensions | 150mmx182mm |
| Power consumption (W) | 22 |
| Weight (kg) | 1.8kg |
| Compatibility | Gaines de 152mm |
| Diameter (mm) | 150 mm |
| Flow rate (m³/h) | 335 m3/h |
| Optimized for carbon filter | Non |
| Controllable | Non |
| Noise level (dB) | 39 |
| Dimensions (mm) | 150x182mm |
| Protection | IP X4 |
Reviews customers
Soyez le premier à donner votre avis !
Partagez votre expérience avec ce produit.
Your questions
Simple connection? The product is delivered without wiring, are specific skills or a professional needed for the electrical installation of this air extractor?
The QuietLINE Silent-Luftabsauger Ø150mm - 335m3/h - WINFLEX extractor is delivered without a power cable. Its connection therefore requires electrical knowledge to follow the provided diagram and ensure safety. We strongly recommend contacting an electrician or qualified person for the electrical installation to avoid any risk.
Is it possible to integrate this WINFLEX Quietline extractor with a home automation system to control its speed and monitor its operation remotely?
The QuietLINE Silent air extractor Ø150mm - 335m3/h - WINFLEX is not specifically designed for home automation integration, and no specific information indicates native compatibility with remote control or speed variation systems via home automation.
However, it is often possible to adapt this type of extractor to a home automation system by adding a universal control module that would allow managing the speed and monitoring its operation. This process requires first checking the electrical compatibility of the motor and ensuring that the chosen module is compatible with the home automation system used.
For smooth control via home automation, you may also consider fans or extractors specifically designed with a compatible interface. We offer models equipped with integrated electronic variators, which are easier to manage in a connected environment.
Is the QuietLINE Winflex 150mm 335m³/h really silent under heavy load?
The QuietLINE Silent Extractor Fan Ø150mm - 335m³/h - WINFLEX is designed to be very quiet, even under heavy loads, thanks to its built-in anti-vibration system that limits resonance and motor noise. Its optimized motor reduces aerodynamic noise, making it an excellent choice for installations where discretion is important.
It is normal for the noise level to increase slightly with power, as with all high-performance extractors, but it remains lower than traditional models. To maximize its quietness, be sure to properly use the anti-vibration mounts and install the duct optimally.
What solution do you recommend to automate the speed of this QuietLINE extractor based on temperature and humidity in an indoor crop?
The QuietLINE WINFLEX Ø150mm extractor has a fixed speed and does not have integrated speed management. To automate its operation according to temperature and humidity, the most precise solution is to use a compatible single-phase motor frequency inverter, controlled by a controller connected to ambient probes. This system allows continuous adjustment of the extractor's speed according to the defined thresholds.
This installation requires electrical expertise, as the device is delivered without cable or control system, so it is strongly recommended to hire an electrician.
As a simpler alternative, a on/off controller (hygrostat or thermostat) can operate the extractor by turning it on or off according to thresholds, providing basic but reliable automation. Otherwise, considering a 2-speed extractor already equipped for simplified regulation may be relevant.
What is the actual yield g/Watt of this extractor at 22W in a standard growing space, and how does its noise level of 39dB at 3m impact the series configuration with other fans?
Actual yield: this Winflex Ø150mm extractor offers a yield of approximately 15.2 m³/h per watt, with a maximum flow rate of 335 m³/h for a consumption of 22W. It’s a very good balance between energy efficiency and ventilation, ideal for a standard growing space.
Noise level: at only 39 dB at 3 meters, it is particularly quiet. In series configuration, the noise does not simply add up but increases logarithmically. Thanks to its anti-vibration design and quality materials, this extractor significantly limits noise disturbances even when coupled with other fans, which is perfect for maintaining a quiet environment.
Is a sound level of 39dB really compatible with a noise-sensitive growing room like in an apartment?
The QuietLINE Silent air extractor Ø150mm - 335m³/h has a sound level of 39 dB, which is moderately quiet for an extractor of this capacity.
In an apartment or a noise-sensitive growing room, this level is generally acceptable, but it can be perceived especially during complete silence or at night. If you want to ensure a particularly quiet atmosphere, quieter models (<35 dB) or the addition of soundproofing ducts and isolation boxes would greatly improve acoustic comfort.
In summary, 39 dB is compatible with indoor growing, but for optimal silence, soundproofing protections or a quieter extractor should be prioritized.
What is the yield in m3/h per real watt measured under standard conditions for this silent extractor Ø150 mm?
The QuietLINE Silent Air Extractor Ø150 mm shows a flow rate of 335 m³/h for a power consumption of 4.5 real watts. The yield measured under standard conditions is therefore approximately 74.4 m³/h per watt. This ratio demonstrates excellent energy efficiency, ideal for effective and discreet ventilation in indoor cultivation.
Compatible with frequency converter to adjust flow of 335 m3/h according to crop size?
The QuietLINE Silent Air Extractor Ø150mm - 335m³/h - WINFLEX is not natively compatible with a frequency converter to precisely adjust its flow according to crop size. However, it can be adapted by checking the electrical compatibility of the motor and using an appropriate universal converter.
For finer and automatic flow control based on your installation, it is often preferable to choose extractors designed with integrated home automation interfaces, allowing for smooth and efficient speed management.
What is the best positioning of this Ø150mm extractor to optimize air renewal without increasing noise levels in a 1m2 growing space?
To optimize air renewal with the QuietLINE Silent air extractor Ø150mm - 335m3/h - WINFLEX in a 1m² growing space while keeping noise levels low, it is advisable to position it near the ceiling or against a wall. This limits unwanted air intakes and maximizes the flow.
Use flexible ducts installed without excessive bends to avoid increasing noise and pressure loss. Also, make sure to properly mount the anti-vibration dampers to reduce mechanical noises.
If possible, a speed control module can be added to adjust the flow according to needs, which further helps to decrease noise during periods of low air renewal demand.
What are the necessary accessories or materials to connect and power this WINFLEX Quietline 150mm extractor, considering it is delivered without a cable?
To connect and power the WINFLEX QuietLINE Ø150mm (335 m³/h) extractor delivered without a cable, it is necessary to provide several accessories. You will need a suitable power supply cable and a compatible socket or a direct connection to the network, made by a professional. For air passage, 150 mm ventilation ducts (pipes, clamps, sleeves) are essential to ensure efficient assembly.
The extractor operates at a single speed, so a simple switch is sufficient if you wish to control its operation. Also consider using the provided anti-vibration connectors to limit noise and prefer installation in a protected location, as the device has an IPX4 protection rating.
Electrical installation should be entrusted to a qualified electrician, always in accordance with safety standards.
What is the most effective way to automate the speed management of this extractor to optimize air renewal without increasing noise in my culture?
To effectively automate the speed management of your QuietLINE Ø150mm - 335m³/h - WINFLEX extractor while limiting noise, the ideal solution is to use a compatible frequency inverter with its motor. This technology adjusts the fan speed according to actual needs (temperature, humidity), optimizing air renewal without running at full power constantly, which significantly reduces noise disturbances.
To go further, you can add an electronic control module or a simple home automation system, allowing precise modulation and remote management. Finally, pairing it with a soundproof duct or silencer further improves the acoustic comfort of your installation by limiting mechanical and aerodynamic noises.
This electronic and mechanical combination is the best approach for effective, silent ventilation that is perfectly suited for indoor cultivation.
Is the WINFLEX QuietLINE 150mm extractor easy to install in an indoor box? Is the actual noise level discreet for discreet cultivation? Do I need to buy an additional cable for the connection?
Can this model be easily integrated into an electronic management system to adjust the flow rate according to the temperature or humidity in a parallel culture?
The QuietLINE Silent Air Extractor Ø150mm - 335m3/h - WINFLEX operates at a single speed and does not have a built-in electronic interface to modulate its flow rate automatically based on temperature or humidity.
However, it is sometimes possible to add an external universal control module to adjust the speed, provided there is electrical compatibility and the installation is carried out by a professional. This solution requires technical skills and a precise check of the equipment.
For a smooth and simplified electronic management of the flow rate according to the growing conditions, we recommend an extractor equipped with an integrated speed controller instead.
How do you integrate this silent extractor into an automated air renewal management system to optimize growth without increasing ambient noise?
To integrate the QuietLINE Ø150mm - 335m3/h - WINFLEX extractor into an automated air renewal management system while controlling noise, it is advisable to use a universal control module to adjust its speed, ensuring the motor's electrical compatibility. By combining this control with environmental sensors (temperature, humidity, CO2), you activate the extractor only when necessary, thereby limiting noise and energy consumption.
The QuietLINE's anti-noise design, with its anti-vibration motor and turbulence reduction system, already provides an excellent basis for silent operation. Finally, careful installation with additional dampers and sound insulation for ductwork will help preserve this quietness, ensuring an optimal environment for plant growth.
Is the connection easy for a beginner since the extractor is delivered unconnected, especially with an anti-vibration motor?
The QuietLINE Silent Dust Extractor Ø150mm - 335m³/h - WINFLEX is delivered without a cable, which requires some electrical knowledge for the connection. Its anti-vibration motor does not add additional complexity, as it is an integrated mechanical component. The operation is simple with a single speed, so a basic switch is sufficient for control.
For a beginner, the connection can present a challenge due to the lack of wiring provided and the electrical standards to be followed. Therefore, we recommend consulting a qualified electrician if you have no experience in this area. This ensures a safe and optimal installation.
What is the best method to integrate the WINFLEX Quietline Ø150mm extractor into an existing ventilation system while minimizing noise disturbances in an indoor culture?
To integrate the WINFLEX QuietLINE Ø150mm extractor into your ventilation system while limiting noise disturbances, it is essential to utilize its built-in rubber anti-vibration connectors, which significantly reduce motor and resonance noises.
Make sure to install the extractor in line with optimized ducts, and minimize elbows to avoid noisy turbulence. Secure the extractor on soft anti-vibration supports to mechanically isolate the frame and prevent the transmission of vibrations to the supporting structure.
Use the 3-speed adjustment function to tailor the airflow to your needs, which reduces noise during low operation. Finally, if you want optimal control, a universal module can be added to manage the speed via a home automation system, ensuring a perfect balance between efficiency and sound discretion.
This attention to the mechanical, aerodynamic, and control aspects allows you to fully enjoy this high-performance extractor while maintaining a calm environment in your growing space.
