Question 1

Is this cultivation system compatible with fast-growing plants to optimize my first indoor harvest quickly?

Accepted Answer

The complete G18 system is designed to provide a controlled, well-ventilated environment, optimized with its horticultural LED lights, which offers a very favorable basis for cultivating fast-growing plants. Its shelf structure maximizes vertical space, ideal for boosting a first indoor harvest quickly. However, the final efficiency will also depend on the precise management of parameters such as watering, nutrition, and climate. It adapts very well to the needs of quick crops, but to make the most of it, be sure to adjust your settings according to the specific requirements of your plants.

Question 2

What is the total electrical consumption (LED + ventilation + lifting) of the G18 system in normal operation and what is the effective light power per m² on the trays of the main rack?

Accepted Answer

The G18 system indeed integrates horticultural LED lighting, ventilation, and a lifting mechanism, but the precise data on total electrical consumption (LED + ventilation + lifting) in normal operation is not publicly disclosed.Similarly, the effective light power per m² on the trays of the main rack is not specified in the available information.For a tailored estimate for your project, we advise you to contact us directly so our passionate team can provide you with accurate and personalized technical details.

Question 3

What is the total power absorbed by the system in full operation (lighting, ventilation, and lifting) to evaluate the impact on overall electricity consumption?

Accepted Answer

The total power absorbed by the system Complete mount system on shelves with ventilation and LED garden lamps – G18 in full operation is approximately 500 watts. This includes about 300 W for LED lighting (10 lamps at 30 W each), 100 W for ventilation, and 100 W for the lifting motor. This estimate may vary depending on the exact models of the components and their frequency of use. Keep in mind that horticultural LEDs are very efficient, which helps to limit overall electricity consumption.

Question 4

How is the synchronization between the electric lift system and the LED lighting managed to optimize growth without manual intervention?

Accepted Answer

The G18 Smart Grow Rack System features an intuitive control panel that automatically manages the synchronization between the electric lift system and the LED lighting. With this centralized system, you can precisely adjust the height of the LED lights between 570 mm and 1220 mm, optimizing light exposure based on the plants' needs for uniform growth. The multi-rack control hub also allows you to simultaneously control the light intensity and the height of the shelves, facilitating real-time management without requiring frequent manual interventions. This automated design ensures smooth management, helping to maximize the performance of your crops while simplifying the process.

Question 5

What are the criteria for adjusting the height of LED lamps according to the different growth phases of plants in the G18 Smart Grow Rack system?

Accepted Answer

To adjust the height of the LED lamps in the G18 Smart Grow Rack system, one must consider the key growth phases: Germination: position the lamps high enough to avoid burning young seedlings while providing adequate light. Vegetative growth: slightly bring the lamps closer for optimal lighting that promotes leaf development, making sure not to generate too much heat. Flowering: increase the distance to limit direct light intensity and avoid plant stress. The system offers an electrical adjustment between 570 mm and 1220 mm, ideal for precisely adjusting the height of the LEDs at each stage. This intelligent adjustment allows you to optimize the brightness and health of your plants throughout the cycle.

Question 6

How do you ensure thermal management within the G18 Smart Grow Rack System considering the combined power of the LEDs and ventilation to limit heat without compromising yield?

Accepted Answer

The G18 Smart Grow Rack System ensures optimal thermal management through integrated ventilation designed to effectively remove the heat generated by the LEDs while maintaining a balanced microclimate in temperature and humidity. The height of the LED fixtures is electrically adjustable from 570mm to 1220mm, allowing for modulation of light intensity and minimizing heat according to the specific needs of the plants. Lastly, a centralized control hub facilitates real-time management of light and ventilation on each level, ensuring a stable and high-performing environment for healthy and productive crops.

Question 7

What is the total electricity consumption (LED + ventilation + lifting) in kWh per day for this G18 system covering 1.5m², and what yield in grams per kWh can be expected with this PPE of 2.66 umol/J?

Accepted Answer

For the G18 system covering 1.5 m², the total electricity consumption, including LEDs, ventilation, and lifting, is estimated to be around 2.6 kWh per day. This estimate is based on an average power of about 90 W for LED lighting (with a PPE of 2.66 µmol/J), 15 W for ventilation, and 7.5 W for the lifting system, operating 24 hours.

Question 8

How do you manage ventilation to avoid hotspots while maintaining optimal humidity in the G18 Smart Grow Rack system?

Accepted Answer

The G18 Smart Grow Rack system manages ventilation through an advanced system that ensures constant air circulation, thus avoiding hotspots and ensuring even distribution of heat and humidity. This optimized ventilation helps to maintain a stable humidity, essential for preserving plant health and maximizing their growth. Additionally, centralized control via a multi-rack hub facilitates real-time adjustment of ventilation and lighting parameters, ensuring a microclimate perfectly suited to your crops.

Question 9

What useful growing area do we actually gain with the rolling design of the G18 compared to a fixed rack of the same dimensions?

Accepted Answer

The rolling system of the G18 allows for a significant gain in useful growing area compared to a fixed rack of the same dimensions. By replacing fixed aisles, which generally occupy between 30% and 40% of the space, with a single mobile aisle, this system optimizes the use of floor space. Specifically, this translates into a real gain of 50 to 80% additional growing area. For example, on 100 m², a fixed rack provides approximately 60-70 m² of useful area, whereas a rolling system like the G18 can extend this area to 85-95 m², depending on the configuration. This increased efficiency makes it easier to grow a larger number of plants without increasing the total space occupied.

Question 10

What is the precise distribution of PPFD in µmol/m2/s at each level of the G18 rack under maximum conditions of 820W per bay, and can the 0-10V dimming be synchronized with the ventilation to optimize g/W gain?

Accepted Answer

For the G18 rack operating under maximum conditions at 820W per bay, there is no publicly available precise data on the exact distribution of PPFD (µmol/m²/s) at each level. The system allocates about 300W for horticultural LED lights per bay, but the specific light distribution by level remains unprovided. Regarding the synchronization of 0-10V dimming with ventilation, the integrated control panel allows for managing lighting and lifting, but there is no information indicating the possibility of synchronizing dimming with ventilation to optimize g/W yield. This may require a customized technical setup. For precise control and optimal rendering, we recommend manually balancing lighting and ventilation according to your cultivation goals. Feel free to contact us for tailored advice for your installation.

Question 11

What are the tips for managing ventilation and lighting when growing multiple varieties with different needs on the same G18 Smart Grow Rack System to ensure an optimal microclimate for each type of plant?

Accepted Answer

To manage multiple varieties with different needs on the G18 Smart Grow Rack System, it is essential to fully utilize its flexible settings. Adjust the built-in ventilation according to the humidity and temperature preferences of each group of plants, thanks to the adaptable system. For lighting, play with the height of the LED lamps (between 570mm and 1220mm) and use the centralized control to modulate the light intensity specific to each variety.Also, consider physically separating the plants into distinct zones on the shelves to apply targeted lighting and ventilation settings. The intuitive control panel offers you simplified management to create these optimal microclimates. Finally, regular maintenance of the system ensures optimal operation for each type of crop.

Question 12

What is the average annual energy consumption of the complete G18 system in continuous operation with adjusted LED lighting and ventilation?

Accepted Answer

The complete G18 system consumes on average 2.6 kWh per day, including LED lighting (90 W), ventilation (15 W), and the lifting mechanism (7.5 W) operating 24/7. Over a year, this corresponds to approximately 949 kWh of energy consumption, calculated based on 365 days. This estimate allows you to precisely anticipate the energy impact of your indoor cultivation with this high-performance system.

Question 13

Does the ventilation system provide independent control for each rack to create differentiated microclimates for two simultaneous crops in this G18 Smart Grow Rack System?

Accepted Answer

The G18 Smart Grow Rack System integrates an efficient and quiet ventilation designed to maintain a stable and homogeneous microclimate within each column. However, according to the available information, this ventilation does not offer independent management for each rack, meaning it is not possible to create differentiated microclimates for two simultaneous crops within the same system.The system relies on centralized control, mainly for LED lighting and lifting, and does not allow for autonomous ventilation adjustment by rack. For specific needs of varied microclimates, a complementary system or a separate installation could be considered.

Question 14

Is the ventilation system quiet enough for use in a house or apartment without disrupting daily life?

Accepted Answer

The ventilation system integrated into the Complete growing system on shelves with ventilation and LED horticultural lamps - G18 is designed for indoor use, but the exact noise level is not specified. Generally, quality horticultural ventilation systems aim to limit noise so as not to disturb in a house or apartment. However, acoustic comfort also depends on the installation and environment. If silence is a top priority, it may be worthwhile to consider specially silent extractors available on our site, suitable for demanding indoor crops.

Question 15

What is the maximum annual production capacity of this G18 system under optimal conditions and with what type of plant?

Accepted Answer

The complete G18 shelf growing system is ideal for maximizing cultivable area due to its mobile shelves, offering a gain of 50 to 80% of usable surface compared to a traditional fixed rack. For instance, in a space of 100 square meters on the ground, it enables achieving approximately 85 to 95 square meters of exploitable growing surface. Regarding the annual production capacity, this system is particularly efficient for leafy vegetables such as lettuce or spinach, short-cycle plants suitable for indoor cultivation under LED lights. Under optimal conditions (light, ventilation, temperature, CO2), it can be estimated to yield about 800 heads per square meter per year. Thus, according to the total cultivated area with G18, this represents a very high annual production, potentially several tens of thousands of heads. In summary, the key to this production lies in the combination of an optimized area, efficient horticultural LED lighting, and integrated ventilation, particularly suitable for rapidly growing crops like leafy vegetables.

Question 16

How to optimize the LED 0-10V dimming setup for SCROG/LST on this G18 system to maximize PAR while avoiding light stress at different growth phases under 820W LED?

Accepted Answer

To optimize the 0-10V LED dimming of the G18 system in SCROG/LST cultivation under 820W LED, it is essential to gradually adjust the light intensity according to each phase: Germination/vegetative phase: start around 30-40% power (246-328 W) with the lamp placed high (1100-1220 mm) to avoid light stress on young plants. Vegetative growth phase: increase to 50-70% (410-574 W) by lowering the lamp slightly (900-1100 mm) for balanced growth. Flowering: gradually raise to 70-100% (574-820 W) and bring the LEDs closer to 570-900 mm depending on progress to maximize PAR and stimulate production, with precise control through fine-tuning in 0-10V. In parallel, adjust the integrated ventilation of the system according to the intensity and density of the SCROG canopy to avoid thermal stress related to high light. The independent adjustment on each shelf also allows creating differentiated light zones, ideal for optimized SCROG/LST. This combined management—progressive dimming, adjustable height, and controlled ventilation—ensures powerful lighting without overstimulation for healthy plants and maximum yield.

Question 17

What is the average yield per m² with this system and what type of crop is recommended to optimize space at a height of 3.05m?

Accepted Answer

Average yield per m²: There is no precise publicly available data for this G18 system, but its main advantage is a usable surface gain of 50 to 80% thanks to its rolling shelf system, allowing for a significant increase in exploitable growing area compared to fixed racks. Space optimization at 3.05m height: To fully take advantage of this height, it is ideal to grow short-cycle, compact plants suitable for vertical cultivation, such as leafy vegetables (lettuces, spinach), herbs, and certain flowers in hydroponics. Several levels (3 to 4 tiers) can be arranged, thus maximizing the yield in height without encroaching on the ground area. This system is perfect for intensive, homogeneous, and well-ventilated cultivation, making the best use of height and the mobility of the shelves.

Question 18

What are the main criteria for adjusting the electric lifting system and the LED lighting according to different growth stages of plants in this G18 rack?

Accepted Answer

To adjust the electric lifting system and the LED lighting of the G18 rack according to the growth phases, it is primarily necessary to: Modify the height of the shelves to adapt the distance of the LEDs to the plants, thereby avoiding light stress during germination and optimizing light during growth and flowering. Organize the plants into distinct zones on the shelves to specifically adjust height and intensity according to each stage. Adjust the light intensity via the control panel, lower during germination, higher during growth and flowering, thanks to the built-in 0-10V dimming. Ensure proper ventilation in addition to guarantee a balanced and healthy environment at each phase. These adjustments allow for optimizing light penetration, creating suitable microclimates, and ensuring harmonious development of your plants in the G18 rack.

Question 19

What is the total electrical consumption of the system in continuous operation including LED lighting, fans, and the electric lifting system?

Accepted Answer

The complete G18 shelf cultivation system consumes about 2.6 kWh per day in continuous operation, including LED lighting (90 W), ventilation (15 W), and the electric lifting system (7.5 W). This moderate power allows for managing a growing area of approximately 1.5 m² with an estimated annual consumption of 949 kWh. It's an optimal balance between energy performance and efficiency for quality indoor cultivation.

Question 20

What are the practical tips for adjusting the height of LED lights and ventilation to optimize growth and flowering in this G18 Smart Grow Rack system?

Accepted Answer

To optimize growth and flowering with the G18 Smart Grow Rack system, here are some practical tips: Adjustment of LED light height: Use the electric lift system between 570 mm and 1220 mm depending on the growth phase. For seedlings and the vegetative phase, place the lights higher, around 1000-1200 mm, to avoid light stress. In the flowering phase, gradually bring them closer to 570-800 mm to increase light intensity and promote flowering. The centralized management allows you to quickly adjust height and light intensity in real-time, ensuring accurate and tailored lighting. Ventilation management: Turn on the ventilation to expel the heat generated by the LEDs and maintain a stable climate. Adjust ventilation according to plant density and ambient conditions to encourage constant airflow. In the flowering phase, more dynamic ventilation helps dissipate heat and limit stagnant humidity. The centralized control synchronizes ventilation and lighting for an optimal microclimate. In summary: PhaseHeight of LED lightsVentilation Seedlings1000–1200 mmModerate to avoid thermal stress Vegetative growth800–1000 mmRegular for air circulation Flowering570–800 mmMore active to dissipate heat This fine adjustment, made simple by the electronic features of the G18, optimizes plant health and yields, combining comfort for you with high performance in indoor farming.

Ventilation	centralisée ajustable
Puissance consommée (W)	300 W
Compatibilité	cultures intérieures urbaines et plusieurs variétés
Contenu du kit	Main Rack, Auxiliary Rack, LED lighting, Electric Lifting System, Ventilation system
Bruit	réduit
Nombre de LEDs	10
Niveau (débutant/confirmé/pro)	pro
Hauteur LED	570-1220 mm

Product successfully added to your shopping cart

There are 0 items in your cart. There is 1 item in your cart.

Complete growing system on shelves with ventilation and LED horticultural lamps - G18

Présentation du produit

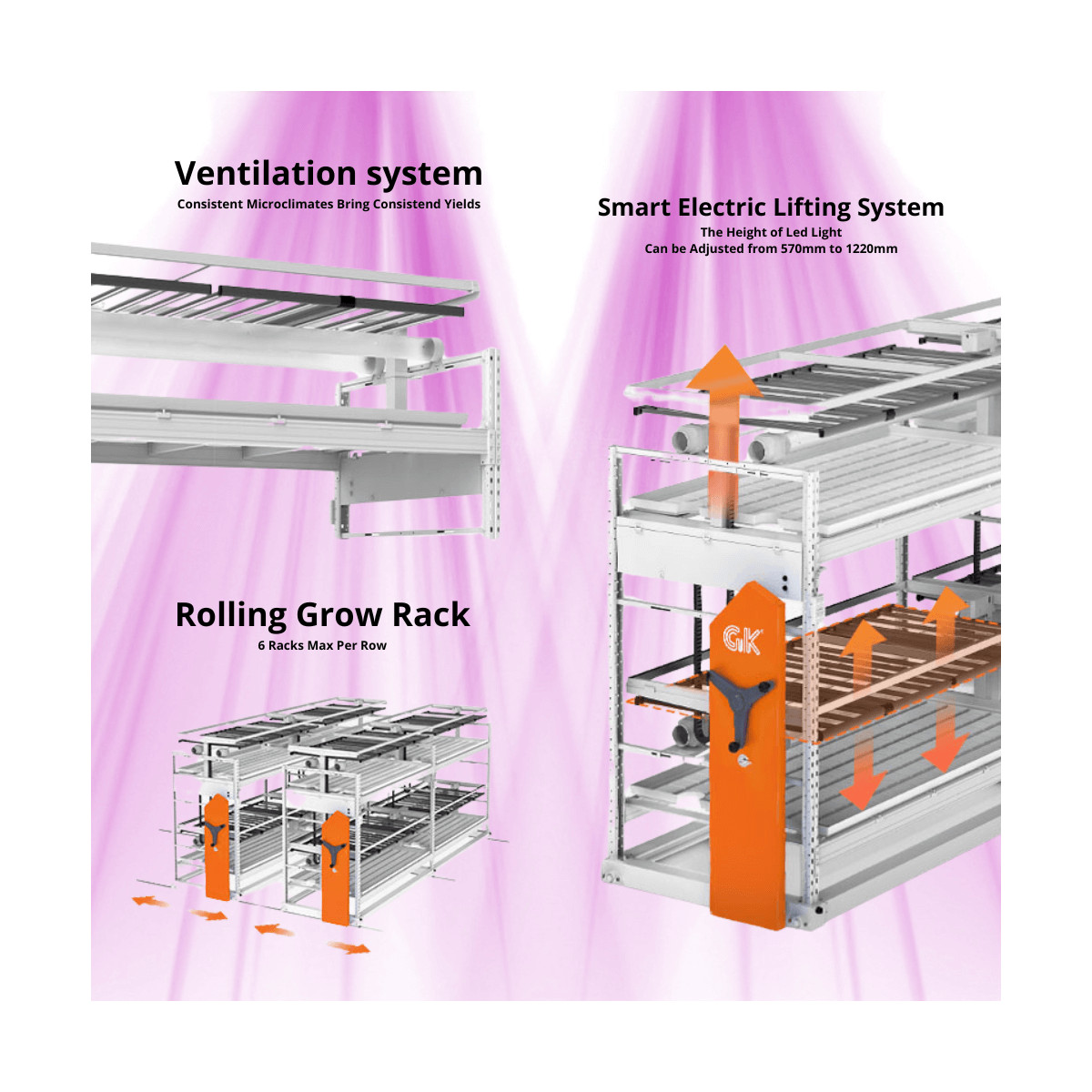

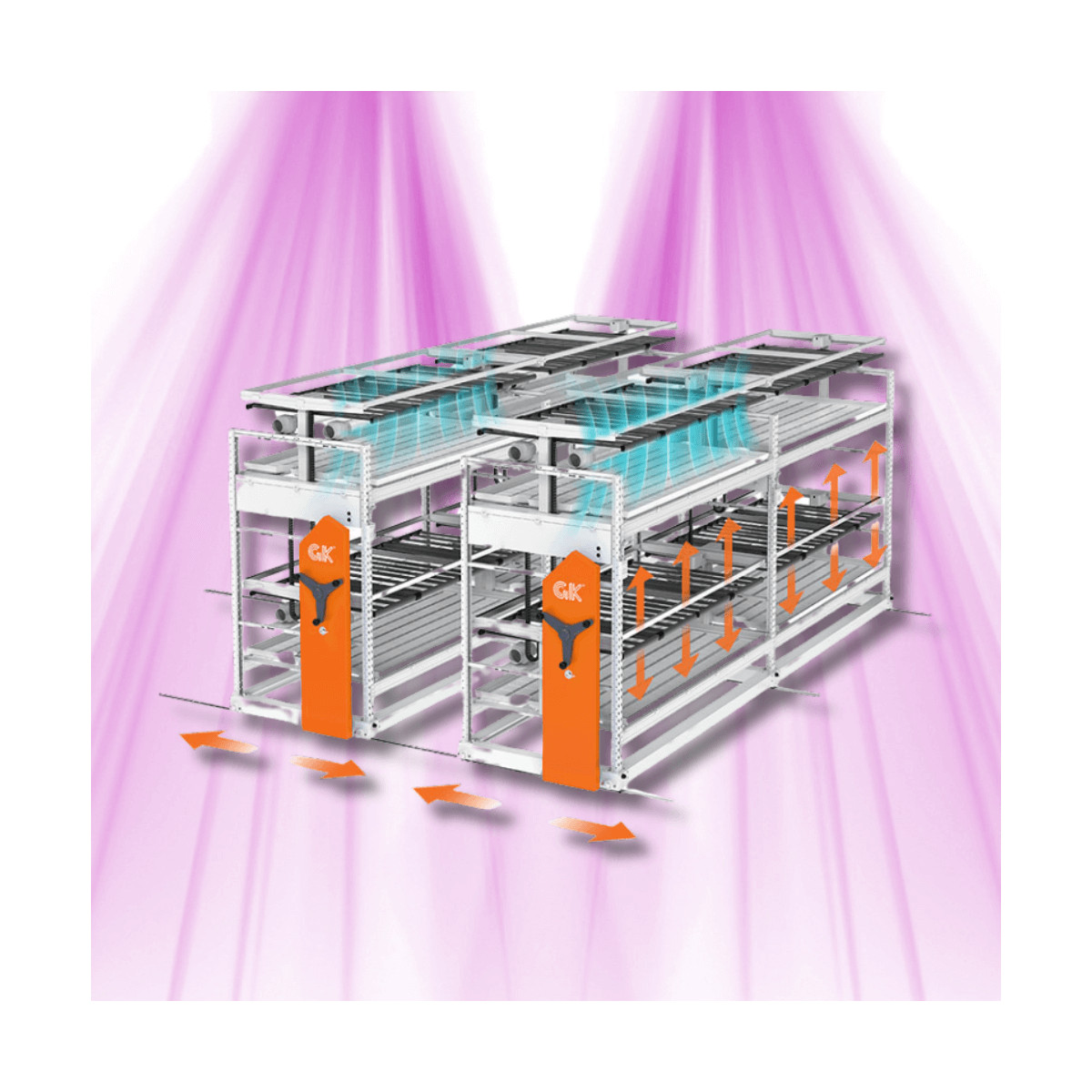

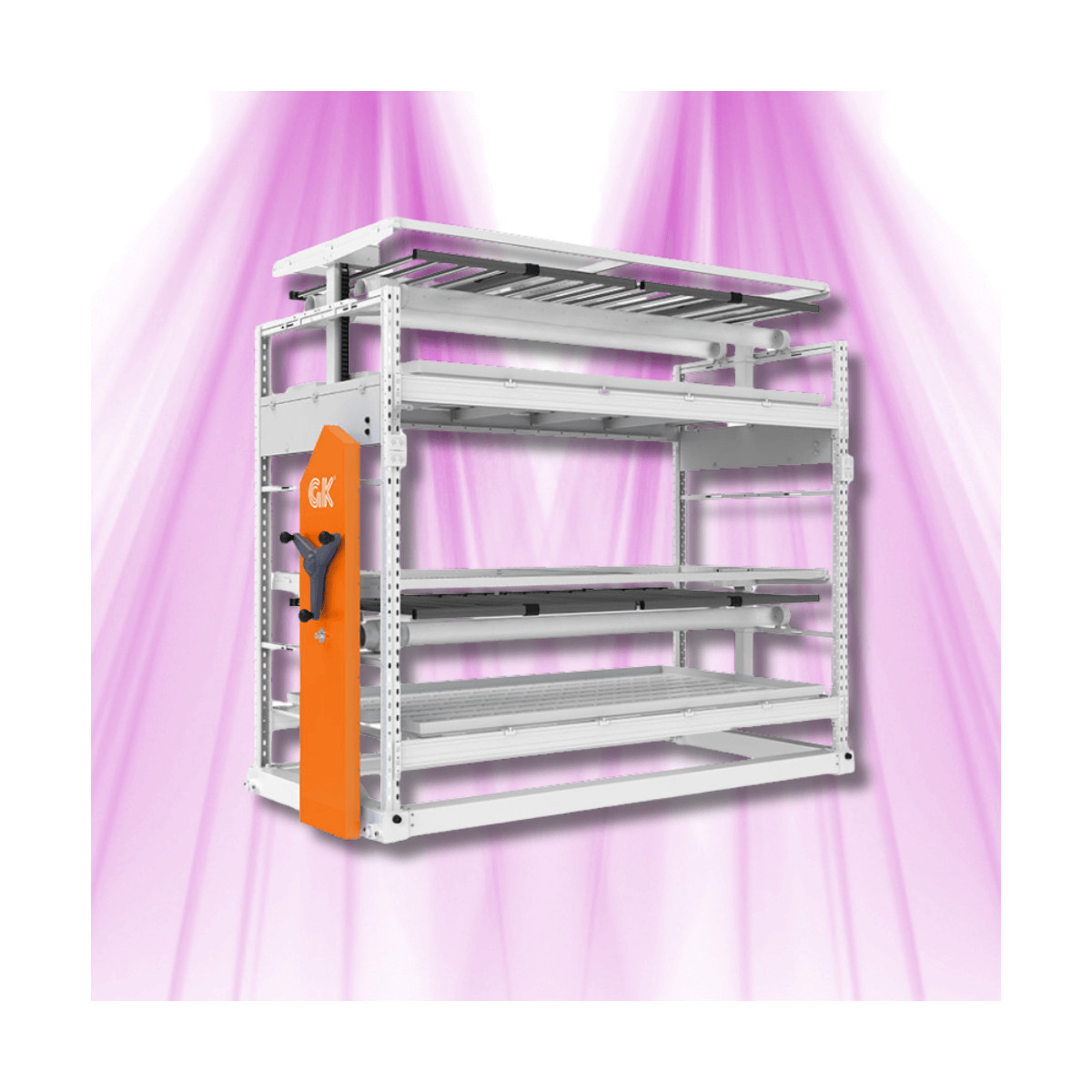

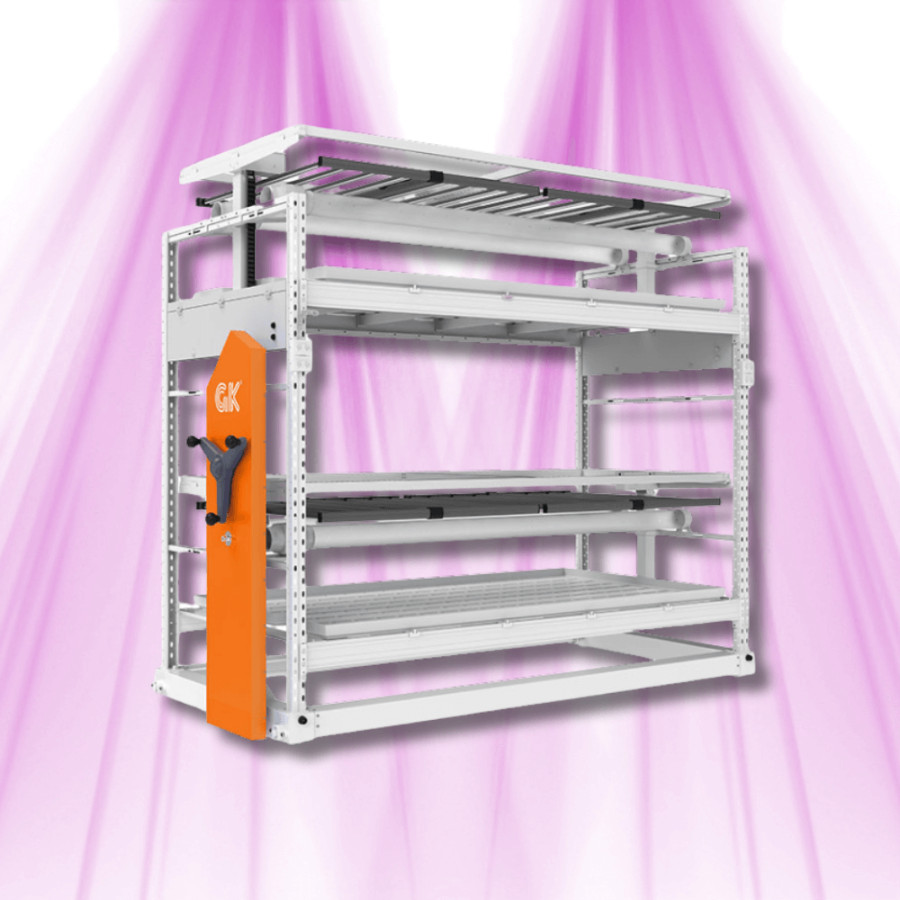

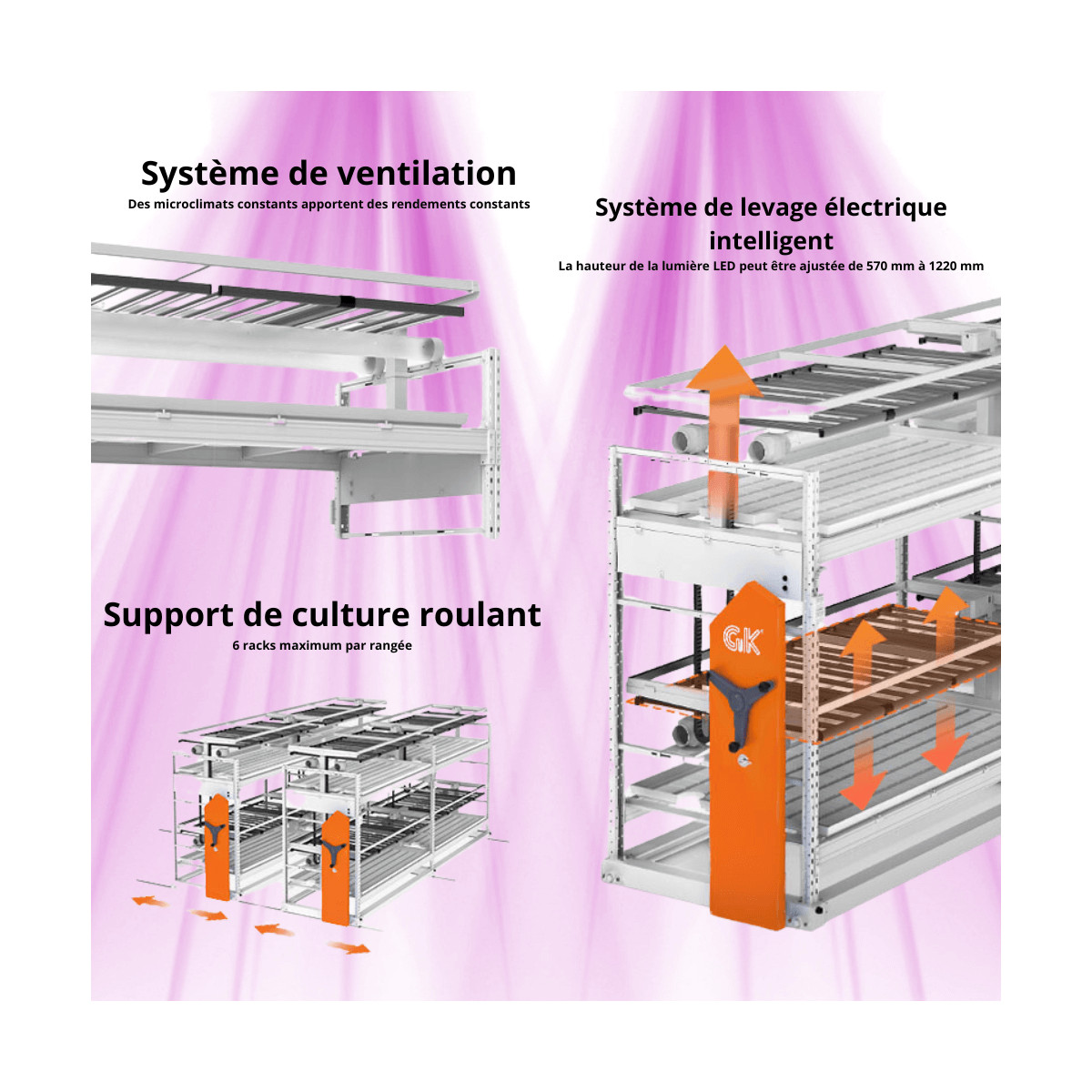

Discover the G18 Smart Grow Rack System

General description :

Key Benefits :

Technical characteristics :

Dimensions and Weight :

Superior LED lighting :

Electric Lifting System :

Ventilation system :

Use and Maintenance :

Caractéristiques détaillées

Comments All reviews

Summary

Your questions about this product

Exchange under 14 days

Free delivery from 100€*

Delivery in Europe

Payment secured

Facilities of payment

Best prices guaranteed

Guarantee GrowLED

GrowLED Sponsorship

Phase	Height of LED lights	Ventilation
Seedlings	1000–1200 mm	Moderate to avoid thermal stress
Vegetative growth	800–1000 mm	Regular for air circulation
Flowering	570–800 mm	More active to dissipate heat
