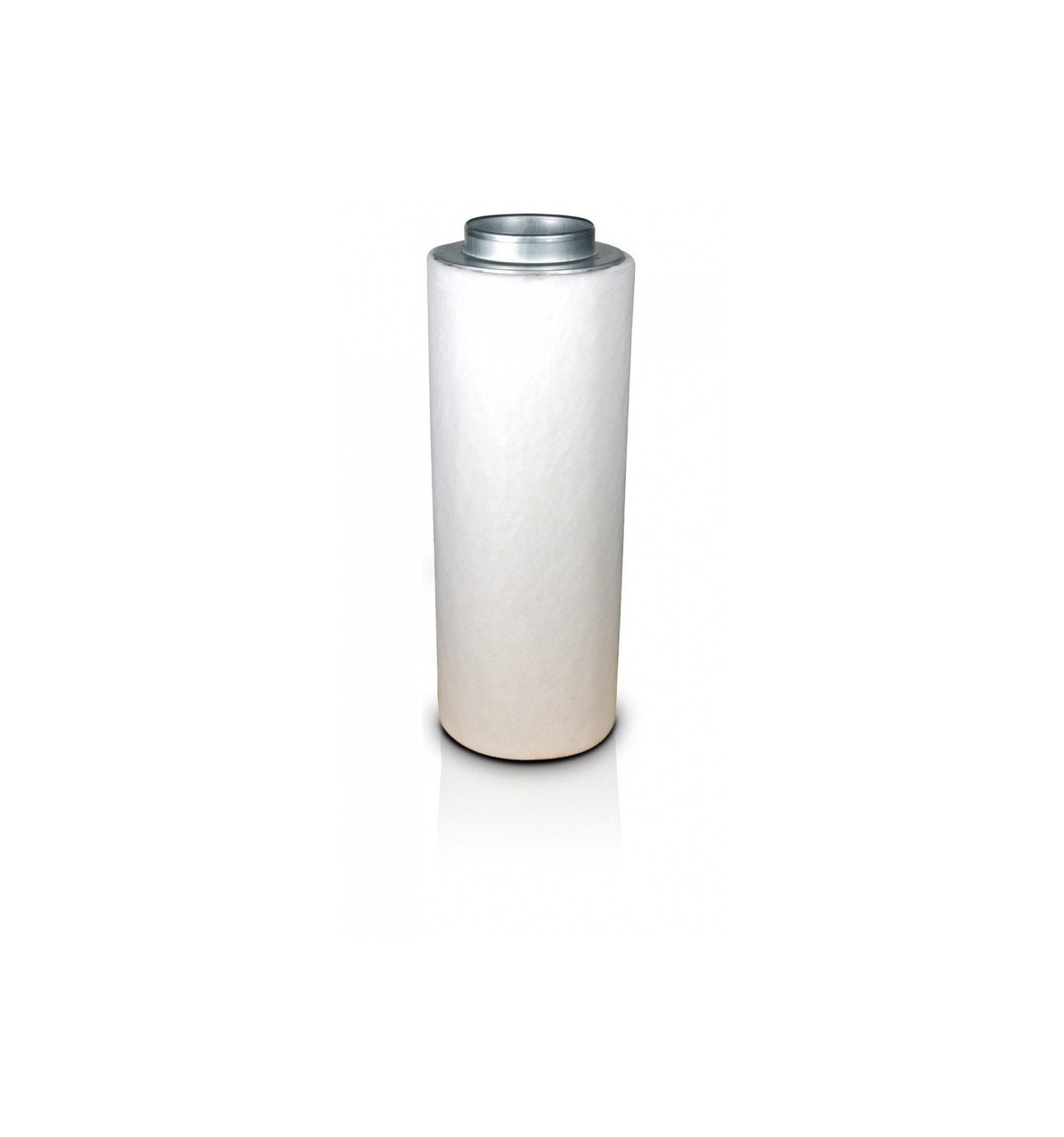

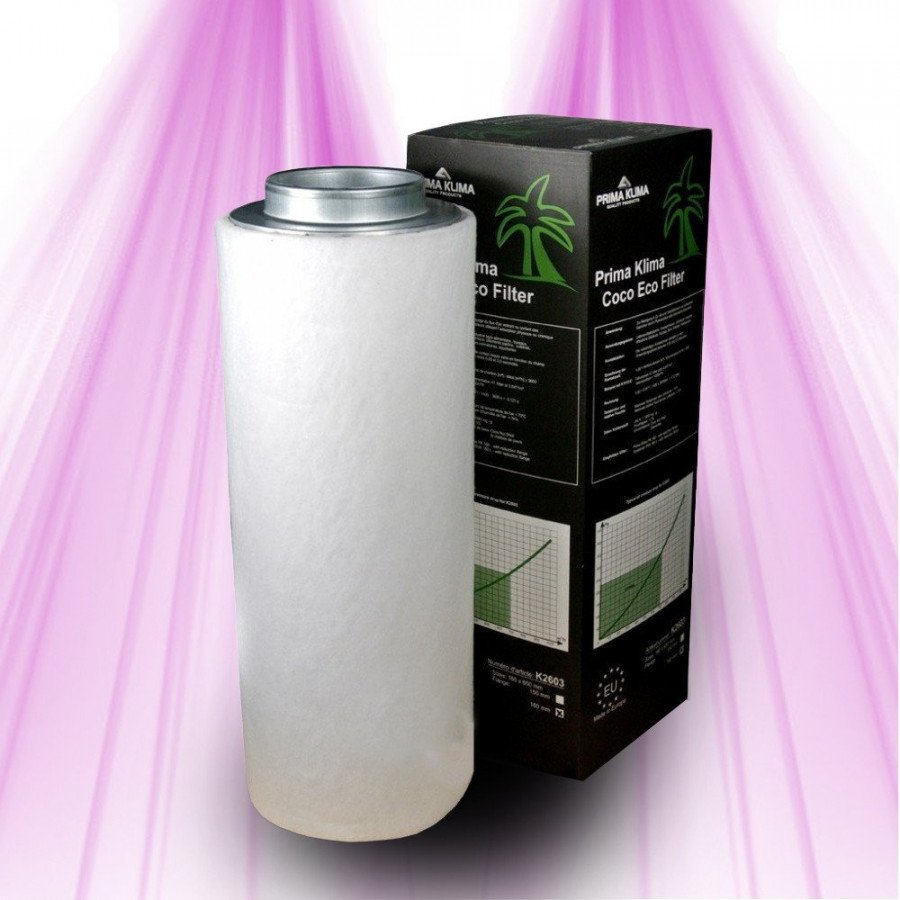

Prima Klima Carbon Filter Ø150/160mm – L65cm – 900m³/h
Expand
The Prima Klima Ø160/150mm 65cm carbon filter has a maximum air flow of 900m3/h. It will remove annoying odors from your crop without any problem!
Prima Klima Carbon Filter Ø150/160mm – L65cm – 900m³/h
Our team will reply within 24 business hours.
Ref:
Warning: Last items in stock!
Availability date:
The Prima Klima carbon filter with a diameter of 160/150mm and a maximum of 900m3/h is capable of neutralizing odors in your growing space by 99%!
Simply place it in your growing space, connect it to your extractor using a suitable sheath and that's it!
900m3/h
65cm high
Outlet diameter: 160/150mm
| Marque | Prima Klima |
| Compatibilité | Extracteurs Prima Klima 160mm (PK160-TC, PK150EC-TC), contrôleurs thermo-régulés GSE |
| Diamètre (mm) | 160 mm |
| Débit (m³/h) | 900 m3/h |
| Dimensions (mm) | Ø160/150mm - L650mm |
| Longueur (cm) | 65 |
| Perte de charge | 15-30 Pa à 600m³/h |
Monté sans prise de tête, ça filtre l'air nickel. Pas de surprise niveau bruit, ça reste discret. Pas trop encombrant, je recommande.
Ce filtre élimine parfaitement les odeurs, tout en restant silencieux. Facile à installer et robuste, il semble fiable sur le long terme.
Excellent rapport qualité-prix
Excellent rapport qualité-prix. Fonctionne comme prévu. Très content de mon achat.
Très bon rapport
Très bon rapport qualité-prix. Efficace et durable. Livraison correcte. Content.
Super produit, très
Super produit, très efficace. Livraison en bon état. Je recommande vivement.
The Prima Klima charcoal filter Ø160/150mm is optimized for a flow rate up to 900m³/h, but using it with an extractor around 700m³/h remains effective without notable flow loss if the system is properly installed. Regarding the activated charcoal’s lifespan, it usually ranges between 6 and 12 months depending on the usage intensity and the quality of the air being drawn. It is important to regularly monitor the performance to consider replacing it at the right time.
Between a standard 160 mm extractor and the Prima Klima Ø160/150 mm model compatible up to 900 m³/h, the difference in airflow is significant. The standard model offers about 680 m³/h, while the Prima Klima 160/150 mm goes up to 890-900 m³/h. This represents a gain of about 210 to 220 m³/h, or nearly 30% more airflow.
This increase in power is valuable for installations with charcoal filters or long ducts, where the pressure drop requires a boosted airflow to maintain good ventilation.
To optimize the performance of the Prima Klima charcoal filter Ø160/150mm (900 m³/h) in a growing space of approximately 1 m², it is recommended to use an extractor with a flow rate of 700 to 800 m³/h. This avoids overloading the filter and maintains good dynamic pressure, which is essential for effective filtration.
An excellent choice is the Prima Klima PK 160 TC extractor, capable of providing 800 m³/h with a diameter of 160 mm. This model includes a temperature controller, which also allows better management of the growth temperature, and is suitable for soundproof ducts to limit noise.
Finally, do not forget that a rigorous installation is essential: use well-sealed fittings, suitable ducts, and limit tight bends to avoid pressure losses and ensure a constant flow. This way, your system will work perfectly to renew the air while effectively filtering odors.
The Prima Klima Ø160/150mm activated carbon filter is made of high-quality activated carbon, often derived from coconut fibers, ensuring long-lasting and eco-friendly efficiency.
For continuous indoor use, one can generally expect an average lifespan of 6 to 12 months, varying according to the intensity of the airflow and the concentration of odors to be treated. This filter thus offers reliable protection for several growing cycles before replacement.
The Prima Klima charcoal filter Ø160/150mm is designed for a maximum flow rate of 900 m³/h. Coupled with a 1000 m³/h extractor, it will work, but this may generate pressure losses and reduce filtration efficiency. To optimize your setup, it is better to match the filter to the extractor's flow rate.
If you want to stick with a powerful extractor, consider a filter with a higher flow rate like the Prima Klima Ø250mm, which can better handle this flow rate without significant loss.
To preserve the odor efficiency of your Prima Klima carbon filter Ø160/150mm (900 m³/h max), it is ideal to pair it with an extractor that has a flow rate of around 700 m³/h. This prevents filter saturation while maintaining optimal airflow.
For example, the Prima Klima PK160-A with its 680 m³/h fits this recommendation very well, ensuring effective filtration without performance loss.
For the Prima Klima carbon filter Ø160/150mm (L65cm, max. 900 m³/h), it is ideal to use an extractor with a flow rate close to or slightly above 900 m³/h to ensure optimal airflow without compromising the filter's efficiency.
For example, an extractor like the Prima Klima WHSP A Ø150/160mm 1000 m³/h provides a fixed flow rate of 1000 m³/h, which allows for effortlessly reaching the recommended maximum flow rate without overloading the filter. This type of extractor ensures optimal filtration, better longevity of the activated carbon, as well as quiet and energy-efficient operation.
Make sure to also respect the diameters Ø150/160 mm to avoid unnecessary pressure loss and optimize the overall performance of your ventilation system.
It is therefore advisable to provide a fan capable of compensating for this loss, targeting a power slightly above the desired flow rate to ensure good air renewal despite the resistance of the filter.
The Prima Klima charcoal filter Ø160/150mm - L65cm offers very effective odor neutralization, reaching up to 99% under optimal conditions and with a new filter. Its design with premium activated coconut charcoal ensures excellent absorption capacity, even at a high flow rate of up to 900m³/h.
However, with intensive and continuous use, it is normal for efficiency to gradually decrease. The charcoal depletes over time, reducing neutralization, although it remains high due to the quality of the filter. To ensure optimal performance, it is recommended to regularly monitor the condition of the filter and replace it as soon as odor filtration decreases.
For a growing space of 1.5m x 1.5m, the optimal flow rate for the Prima Klima charcoal filter Ø160/150mm is approximately 700m³/h. This value allows maximizing the filter's efficiency while avoiding excessive pressure on the system, which minimizes electricity consumption. Using an extractor close to this flow rate guarantees effective filtration and healthy air circulation, perfectly suited to your space.
For the Prima Klima filter Ø160/150mm - L65cm - Max 900m³/h, at an air flow of 600 m³/h, the pressure drop is estimated to be between 15 and 30 Pascals. This value corresponds to approximately 30-50% of the loss measured at its maximum flow rate, as the pressure drop varies primarily with the square of the flow rate.
In a compact space and with careful installation, this low loss ensures good air flow maintenance without excessive clutter, guaranteeing efficient and quiet operation for your indoor crops.
The Prima Klima Ø160/150mm - L65cm carbon filter is designed to operate optimally with an air flow of up to 900 m³/h. This efficiency is ensured by its internal structure, which contains a significant amount of granulated activated carbon, providing maximum odor absorption.
To maintain this performance, it is essential to pair the filter with a suitable extractor, ideally close to this flow rate, so that air circulates sufficiently through the carbon without creating excessive pressure that would limit efficiency. A careful installation with appropriate ducting prevents air leaks and pressure drops.
Finally, regular maintenance of the filter is crucial: the activated carbon should be replaced every 6 to 12 months depending on usage intensity, to maintain filtration close to 99% and a healthy environment in your growing space.
To ensure maximum efficiency and preserve the lifespan of your Prima Klima carbon filter Ø160/150mm – L65cm – Max. 900 m³/h, it is recommended to operate it at an airflow rate between 700 and 720 m³/h. This range avoids the premature saturation of the activated carbon while ensuring good odor filtration.
A fan delivering around 680 m³/h, like the Prima Klima PK160-A, is ideal for this use. Avoid operating close to the maximum airflow rate of 900 m³/h continuously, as this may reduce the efficiency and lifespan of the filter.
For the Prima Klima charcoal filter Ø160/150mm - L65cm, the pressure loss at 900 m³/h is estimated to be between 34 and 68 Pascals. This estimate is based on a measured loss of 15 to 30 Pa at 600 m³/h, with the loss approximately evolving with the square of the flow rate.
To properly size your extractor without compromising efficiency, it is advisable to choose a model that can maintain this flow while compensating for this pressure loss. Keep in mind that the filter is optimal around 700 m³/h, where the loss is lower and filtration is more effective.
In summary, an extractor capable of handling around 900 m³/h with a pressure drop of up to 70 Pa will ensure smooth air circulation and effective filtration.
The Prima Klima charcoal filter Ø160/150mm - L65cm is perfectly compatible with an extractor of 800 m³/h. It actually supports a maximum airflow of 900 m³/h, allowing your extractor to operate without overloading the filter, thus ensuring optimal efficiency.
The connection with a diameter of 160 mm is suitable, and this duo is ideal for a cultivation box of 120x120x200 cm, ensuring good air renewal and effective management of odors and temperature.
For the Prima Klima carbon filter Ø160/150mm – L65cm used intensively, the average lifespan of the activated carbon is generally between 6 to 12 months. This duration varies depending on the intensity of airflow, frequency of use, and concentration of odors.
To maintain optimal efficiency against odors without reducing airflow, it is essential that the filter is paired with an appropriate extractor capable of handling up to 900 m³/h, and that it is properly installed to limit pressure losses. Replacing the activated carbon within this range ensures filtration close to 99% and good maintenance of airflow.
The Prima Klima Ø160/150mm filter generates a pressure drop of about 15 to 30 Pascals at a flow rate of 600 m³/h, its optimal operating point. At 900 m³/h, close to its maximum capacity, this drop will be higher, which could reduce its efficiency.
For a 1000 m³/h extractor in SCROG within a limited space, this filter may be a bit tight, as the difference in flow rate could lead to saturation and a noticeable loss of efficiency. We recommend using an extractor around 700 m³/h with this filter, or a larger filter, such as a Prima Klima Ø250mm, which is better suited for high flow rates and to limit pressure drops.
Finding the right balance between flow rate and filtration capacity is essential for good air circulation and optimal control of your SCROG environment.
To ensure an optimal flow without pressure loss with the charcoal filter Prima Klima Ø160/150mm - L65cm (maximum flow 900 m³/h), it is recommended to choose an extractor with a flow close to or slightly lower than that of the filter, ideally around 700 m³/h. This helps avoid premature saturation of the filter and maintain its efficiency while ensuring effective air renewal.
The diameter of the ducts should be adapted to 150 or 160 mm depending on the configuration; this limits pressure losses over distance. For example, an extractor like the Prima Klima WHSP Ø150/160mm (890 m³/h) is compatible in diameter but it is preferable to stay slightly below the maximum flow of the filter.
In summary, an extractor at around 700 m³/h with an appropriate diameter is the best compromise for a sustainable and efficient installation without pressure loss.
The Prima Klima Ø160/150mm charcoal filter does not consume electricity as it is a passive filter. The consumption depends on the air extractor used. For a growing space of 1.5 x 1.5 m, a flow rate of about 700 m³/h is recommended for optimal performance.
A compatible extractor, such as the Prima Klima PK160-L, consumes about 110 W per hour at this flow rate, ensuring effective filtration while managing electrical consumption.
In summary, your filter + extractor system for this space will consume about 110 W/h under optimal operation.
To optimize the flow rate with the Prima Klima Ø160/150mm carbon filter (max 900 m³/h) in a 1.20m x 1.20m box, it is ideal to choose an extractor with a flow rate close to or slightly above 900 m³/h. This avoids pressure losses and ensures effective filtration.
An extractor around 900 m³/h is perfect for maximizing performance. However, a model with a flow rate of about 700 m³/h, like the Prima Klima PK160-A, can also work well by providing a good balance between ventilation and filtration.
Make sure the extractor is compatible with a diameter of 160 mm for hassle-free installation. This setup will ensure excellent air circulation and optimal filtration for your growing space.
