01 — Description
Présentation du produit

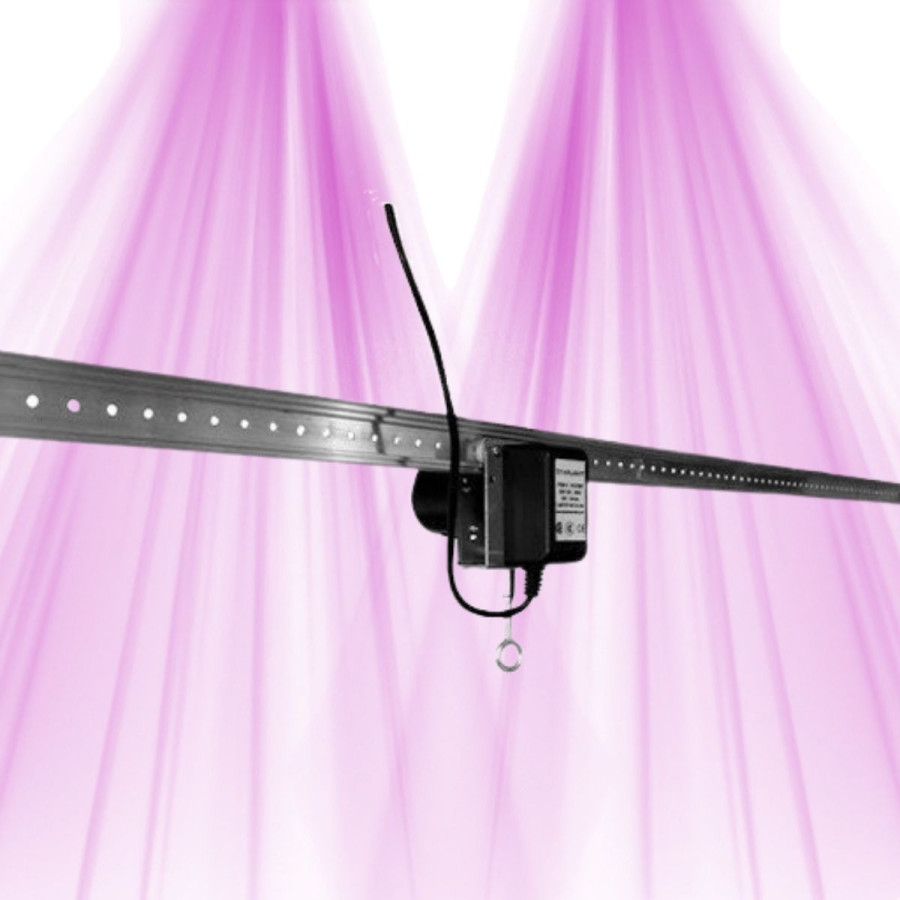

Discover the 220cm Advanced Star Rail V4.8 system. This allows you to continuously move your LED horticultural lighting above the top of the plants. It will thus illuminate your culture in a homogeneous and broader manner.
This model is totally intelligent, as it moves, the lighting angle changes and allows the plants to receive more light (even for the leaves hidden behind branches).
This movement of light saves energy , you will not need to use more lamps and waste space and money.
The Star Rail V4.8 system uses automatic control which guarantees uniform and efficient light distribution for your plants.
You won't need sprockets or chains. The wheels are reinforced, which allows it to be more durable over time, and to support more weight ( this one can support around 15 kg ). It uses a transistor control system with printed circuit. You can also adjust its shutdown from 2 to 120 seconds.
Advanced Star Rail uses an incorporated clutch drive with slip control.
The kit is composed of:
- 2 metal rails of 1.1m
- 1 motor
- 1 220V power cord
No auxiliary trolley or additional wheels provided to extend it to more than 2.20 meters
Consumption of 12 watts
04 — Questions about this product
Product questions
Your questions about this product
- Is this Advanced Star Rail V4.8 system really reliable in the long term? I need to know if the motor and reinforced wheels can last at least 2 years without failure, especially with a load close to 15 kg. Is the clutch system with anti-slip really effective in preventing premature wear?
This Advanced Star Rail V4.8 system is designed with robust components such as a suitable motor and reinforced wheels, which suggests it can hold up in the long term, even with a load close to 15 kg, provided it is used and maintained properly. The clutch system with anti-slip is intended to limit wear by avoiding excessive slippage, which is often effective in extending the lifespan of the parts. Naturally, reliability over 2 years without failure will also depend on the usage conditions. Therefore, regular maintenance is recommended to ensure the best possible longevity.
- Hello, is the Advanced Star Rail V4.8 system compatible with all LED horticultural lamps, including those I use to extend my tomato season in winter?
The Advanced Star Rail V4.8 - 2.20 meters system is compatible with most LED horticultural lamps as long as their weight does not exceed 15 kg, which is generally the case for lamps used in indoor tomato cultivation. It will ensure automatic movement and better light diffusion over your crop, ideal for extending your season. Just be mindful of your lamp's weight and you can fully enjoy it.
- What is the maximum weight of the luminaire that this system can support without risking the durability of the rail over 220 cm?
The Advanced Star Rail - Light Rail V4.8 - 2.20 meters system can support a maximum weight of about 15 kg without risking alteration of the rail's durability. This limit takes into account the reinforced wheels and the overall robustness of the rail, ensuring reliable holding over its length of 220 cm. It is therefore advised not to exceed this weight to preserve the longevity and performance of the system.
- How long is the warranty on the motor of the Advanced Star Rail V4.8 system and what is its average durability in intensive horticultural use?
Regarding the motor of the Advanced Star Rail - Light Rail V4.8 - 2.20 meters, no specific information is available regarding the warranty duration or average durability in intensive horticultural use.
In general, for this type of equipment, motor warranties often range from 1 to 3 years. The durability will mainly depend on the operating conditions and maintenance, ranging from several thousand to several tens of thousands of hours of operation.
To ensure a long life for your system in intensive cultivation, it is recommended to strictly adhere to the usage and maintenance conditions.
- How can I extend the system beyond 2.20m since there are no additional carts or wheels?
The Advanced Star Rail - Light Rail V4.8 - 2.20 meters is designed to operate at a fixed length of 2.20 m with its two rails and integrated carts. It is not originally intended to be extended, as it does not include the additional carts or wheels necessary for the proper functioning of the motorized rail beyond this length.
To go beyond 2.20 m, it is advisable to check if a compatible extension kit for the V4.8 version exists, including suitable rails and carts. Without these elements, manually extending the rail may compromise the stability and smoothness of the movement.
An earlier version, the V4.7, offers an extension kit with carts, which shows that modular solutions exist, but it is essential to ensure their compatibility with the V4.8.
In summary, without an official extension kit that includes all necessary accessories, it is preferable to stick to the standard length of 2.20 m to ensure the reliability of the system.
- Compatibility with home automation systems like Zigbee or WiFi for automation and remote monitoring possible?
The Advanced Star Rail - Light Rail V4.8 - 2.20 Meter does not have native compatibility with Zigbee or WiFi home automation systems. Its technical features highlight robustness, motorization, and load capacity, but there are no integrated automation or remote monitoring functions.
For home automation management, it is possible to integrate this rail into a system via external solutions, such as a smart plug or a compatible Zigbee/WiFi relay, allowing you to control the rail's power remotely.
- What is the durability of reinforced wheels and their wear resistance in a humid growing environment?
The reinforced wheels of the Advanced Star Rail - Light Rail V4.8 - 2.20 meters have been specially designed to offer excellent durability and increased resistance to mechanical wear, particularly under loads of up to 15 kg. Their clutch transmission system with anti-skid control also limits excessive wear due to sometimes significant effort.
However, the documentation does not detail their specific behavior in humid environments. It is therefore advisable to carry out regular maintenance to preserve the wheels in growing environments where humidity is high, in order to ensure optimal longevity of the assembly.
- How is the synchronization between the movement of the rail and the light dose managed to avoid plant stress during stop phases?
The Advanced Star Rail - Light Rail V4.8 - 2.20 Meter uses an automatic control system that ensures even and efficient light distribution through the motorized movement of the rail. This allows for homogeneous illumination of a large area, thereby limiting plant stress related to uneven exposure.
Regarding the specific management of stress during stop phases, there is no precise information on a dedicated synchronization between rail movement and light dose variation. The light is designed to remain continuous and homogeneous, but to optimize stop management, it is recommended to maintain a regular lighting cycle and avoid abrupt transitions. External control may also be considered to precisely adjust these phases.
- Is it possible to use this Advanced Star Rail V4.8 system with horticultural lights weighing more than 15 kg, or should a supplementary support be considered to avoid any risk of breakage?
The Advanced Star Rail - Light Rail V4.8 - 2.20 meters is designed to support a certain load, but for horticultural lights exceeding 15 kg, it is wise to consider an additional support. This will help distribute the weight and prevent any risk of breakage or deformation of the rail. Also, ensure the system is properly secured to guarantee optimal stability.
- How long can the engine operate continuously without the risk of overheating or excessive wear?
The engine of the Advanced Star Rail - Light Rail V4.8 - 2.20 meters is designed with robust and reinforced components, ensuring durable use. However, the exact duration of continuous operation without the risk of overheating or excessive wear is not specifically indicated.
To maintain the performance and longevity of the engine, it is essential to follow the usage and maintenance guidelines, including performing regular maintenance and avoiding overloads or excessive prolonged use.
- How to adjust the movement cadence of the Star Rail V4.8 to optimize lighting according to the growth and flowering phases without consuming more energy?
The Advanced Star Rail V4.8 moves your lighting over 2.20 meters with a 12 W motor featuring a controlled clutch, ensuring stable consumption. To optimize light according to phases:
- Growth phase: prefer a slower speed for uniform and stable light, promoting good vegetative development.
- Flowering phase: slightly increase the cadence to prevent localized overheating and ensure effective light distribution.
The motor consumes the same power regardless of speed; thus, adjusting the cadence allows you to adapt the light without overconsumption. To facilitate these adjustments, you can use an external timer or WiFi relay, as the system does not offer native automation.
Finally, regularly maintaining the Star Rail (lubrication, clutch control) prevents any overconsumption due to premature wear.
- What is the compatibility of the Advanced Star Rail V4.8 system with horticultural lighting over 15 kg or with installations longer than 2.2 meters?
The Advanced Star Rail - Light Rail V4.8 - 2.20 meters does not have specific information confirming its ability to support horticultural lighting exceeding 15 kg or to extend beyond 2.20 meters without adaptations.
As a general rule, a rail of this type imposes a weight limit to ensure optimal fixing and rigidity. For weights over 15 kg, it is important to check the maximum capacity of the supports and fixings. Similarly, for installations longer than 2.20 meters, it is often necessary to use additional sections or supports to ensure good stability and reliable power supply.
Without precise technical data, we recommend considering these constraints to avoid any mechanical or electrical risks. For a solution suited to heavier or longer needs, do not hesitate to explore modular or reinforced systems in our catalog.
- What is the best stop setting between 2 and 120 seconds to optimize light uniformity on a growing surface of 1.20x1.20m with this Advanced Star Rail V4.8 of 2.20m?
To optimize light uniformity on a surface of 1.20 x 1.20 m with the Advanced Star Rail V4.8 - 2.20 Meter, it is advisable to adopt a moderate stop cycle, neither too short nor too long. A stop setting around 10 to 30 seconds, combined with a regular movement of the rail, will promote an even light distribution without shadow or glare zones.
The use of external control (timer or WiFi relay) allows precise adjustments of these stop times and thus balances the brightness on the surface. Avoid stops that are too long, close to 120 seconds, which can create noticeable variations, and prefer a smooth cycle to ensure this uniformity.
Finally, regular maintenance of the mechanism ensures stable movement, essential to maintain this optimal light continuity.
- What is the accuracy of the minimum and maximum speed of movement and its impact on the homogenization of light above the canopy at 2.20 meters?
Advanced Star Rail - Light Rail V4.8 offers smooth movement over 2.20 meters thanks to a 12 W motor with controlled clutch. Although the documentation does not provide exact values for minimum or maximum speed, the cadence is fully adjustable without overconsumption.
This variable setting allows for movement adaptation to different growth phases, promoting optimal light homogenization above the canopy. It is advisable to maintain regular cycles and avoid abrupt transitions to ensure continuous light diffusion over the cultivated surface.
To further improve control, integrating an external system (timer or WiFi relay) can synchronize movement with light management. Finally, regular maintenance of the rail is essential to preserve quality and consistency of movement, and thus of lighting.
- Can this Advanced Star Rail V4 8 system be integrated with a voice assistant to manage movement parameters and lighting remotely?
The Advanced Star Rail - Light Rail V4.8 - 2.20 meters does not have public documentation indicating direct compatibility with voice assistants to manage movement and lighting. However, if this system offers a standard digital or home automation control interface (API, IP protocol, mobile application or compatible hub), it would technically be possible to integrate it with a voice solution like Alexa or Google Assistant.
In the absence of an open interface or a specific home automation protocol, this integration remains challenging. For smooth voice control, the system must be able to communicate with a connected ecosystem capable of remotely controlling its motorization and lighting functions.
If you are looking for LED lighting with simple control, several horticultural LED panels offer management via application and sometimes home automation integration for advanced control, which could be complementary to your project.
- Is it possible to add a cart or additional wheels to extend the Advanced Star Rail V4.8 system beyond 220 cm without losing the clutch drive function and anti-slip feature?
The Advanced Star Rail V4.8 - 2.20 meters system is specifically designed to operate with its 12 W motor and clutch controlled over this precise length. There is no validated possibility to add a cart or additional wheels to extend the rail beyond 2.20 meters without compromising the integrated clutch and anti-slip functions.
Modifying the system by adding unplanned elements risks disturbing its mechanical balance, which could lead to premature wear or loss of essential functions. For longer configurations, it is better to opt for a system designed for this purpose, ensuring performance and durability.
- Is it possible to install two Advanced Star Rail V4.8 systems in parallel for different crops without risk of electrical or mechanical interference between them?
It is entirely feasible to install two
Advanced Star Rail V4.8 systems in parallel for different crops, as long as each rail is properly secured while respecting the necessary spacing to avoid any mechanical interference or vibrations between them.
From an electrical standpoint, it is important to ensure that each system has an independent power supply, or they are designed to operate in parallel without creating disturbances. Without specific documentation, it is better to err on the side of caution regarding the risk of overload or interference.
In summary, by adhering to a rigorous mechanical installation and ensuring appropriate power supply, there should be no significant issues. However, this type of configuration should be validated on a case-by-case basis according to your electrical and mechanical installations.
- What is the optimal frequency of movement (in seconds) to maximize light yield and PPFD distribution over 220 cm with this Star Rail V4.8, while staying below 12 watts of consumption?
To maximize light yield and ensure a uniform distribution of PPFD over 220 cm with the
Advanced Star Rail - Light Rail V4.8, the optimal frequency of movement is about a full cycle every
30 seconds. This cadence allows for regular and continuous movement that perfectly balances light exposure along the entire length of the rail while keeping the consumption stable under 12 watts of the motor.
Using a timer or a WiFi relay to control this rhythm ensures optimal efficiency and consistent light distribution without overconsumption. This is a real asset for quality indoor growing under LED lighting.
- Does the engine and the drive system have a real guarantee against mechanical or electrical failures after at least 12 months of intensive use in horticultural conditions?
The Advanced Star Rail - Light Rail V4.8 - 2.20 meters features a robust, quiet, and precise motorized system designed for demanding horticultural use thanks to its recent electromagnetic system. However, no official information specifies a formal guarantee specifically covering mechanical or electrical failures beyond 12 months of intensive use.
In general, the warranty duration for this type of equipment varies between 1 and 3 years, but it strongly depends on strict adherence to the recommended usage and maintenance conditions. To ensure the longevity and validity of the warranty, regular maintenance and compliant usage are essential.
If you are looking for a drive system with a specific warranty, feel free to contact us for personalized advice tailored to your cultivation project.
- What difference in light distribution and yield can I really expect with the Star Rail V4.8 compared to a fixed lighting of the same power?
The Advanced Star Rail - Light Rail V4.8 - 2.20 meters significantly improves light distribution compared to a fixed lighting of the same power due to its continuous movement over 2.20 m. This movement prevents the concentration of light in a single area, thus reducing shadowy zones and promoting even diffusion across the entire canopy.
This dynamic also modifies the angle of illumination, allowing for better penetration into leaves and branches, which increases photosynthetic efficiency. Result: more uniform growth and higher yield without needing to increase the power or number of lamps.
Furthermore, this programmable motorized system optimizes your electricity consumption, as it enhances the light received by plants without over-consuming (12W motor without lamp), thus providing better energy efficiency.
- What is the precision on the speed and regularity of continuous movement for homogeneous lighting with the Advanced Star Rail V4 8 220cm system?
The Advanced Star Rail - Light Rail V4.8 - 2.20 meters system features motorized movement with automatic control ensuring a steady speed and an even light distribution over the entire surface. This regularity limits variations and stress related to uneven light for your plants.
However, there are no specific technical data on the exact synchronization between the rail speed and the light dose delivered. To optimize lighting, it is advisable to maintain a stable cycle and, if necessary, to add external control to better manage stops and ensure perfect consistency.
In summary, the system offers a reliable precision for continuous movement, promoting very homogeneous lighting without significant fluctuations during operation.
- Does the Advanced Star Rail V4.8 with heavy LEDs over 10 kg on 2.20 m allow for smooth movement without the risk of premature wear?
The Advanced Star Rail - Light Rail V4.8 - 2.20 meters is designed for moderate loads. For heavy LEDs over 10 kg at this length, it is important to check the maximum capacity of the rail and its supports, as exceeding 10-15 kg without reinforcement can lead to less smooth movement and premature wear.
For optimal operation, it is recommended to add additional supports or reinforcements, and to set up movement with moderate stop times (between 10 and 30 seconds). This limits mechanical stress and extends the lifespan of the system.
In summary, with heavy installations on 2.20 m, caution advises reinforcing the structure or considering a suitable system to ensure smooth and durable movement.
- Is integration possible with a voice assistant to automatically manage speed and stops? Is temperature and humidity monitoring compatible to adjust the movement cycle according to plant needs? Can we automate the synchronization of lighting with growth phases via an existing home automation system?
The Advanced Star Rail - Light Rail V4.8 - 2.20 meters does not have native integration with voice assistants or home automation to automatically manage speed, stops, or lighting synchronization.
However, it is possible to add a smart plug or a WiFi/Zigbee relay to control the power of the rail and the lighting, provided that the cycles are manually configured according to the growth phases.
Regarding temperature and humidity monitoring, this rail is not compatible with sensors to automatically adjust its operation. However, regular maintenance is recommended, especially to preserve the wheels in a humid environment.
For more refined and automated management, you may consider integrating complementary home automation tools tailored to the specific needs of your cultivation.
