01 — Description
Présentation du produit

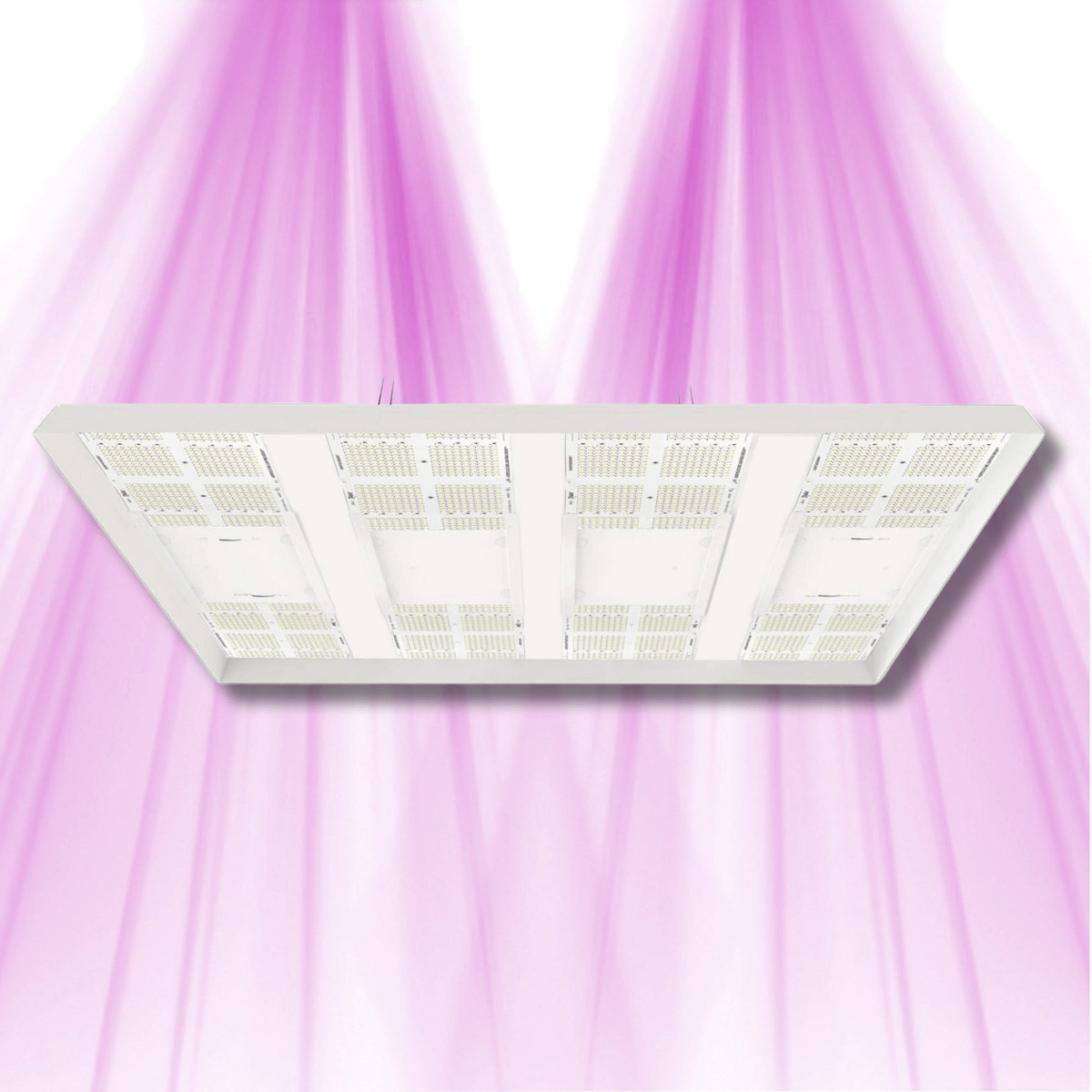

HLG Scorpion® Ultima Diablo™
Maximize your yields with the ultimate lighting
The HLG Scorpion® Ultima Diablo™ is designed for demanding growers who are looking for maximum light intensity and efficiency. With its 8 Quantum Boards® Diablo panels, it provides uniform coverage and optimal light penetration, ideal for grow tents, grow tables, shelves and vertical racks.
Its white light spectrum enriched with deep red guarantees vigorous growth and abundant flowering, while ensuring optimal energy efficiency.
Main features
- High PPF: 4178 µmol/s for exceptional light output
- Ultimate efficacy: 2.86 µmol/J
- Dual-Zone Dimming system for precise control of light intensity
- Integrated reflectors improve photon distribution at all levels of the plant canopy
- Fits 120x120cm and 150x150cm grow tents

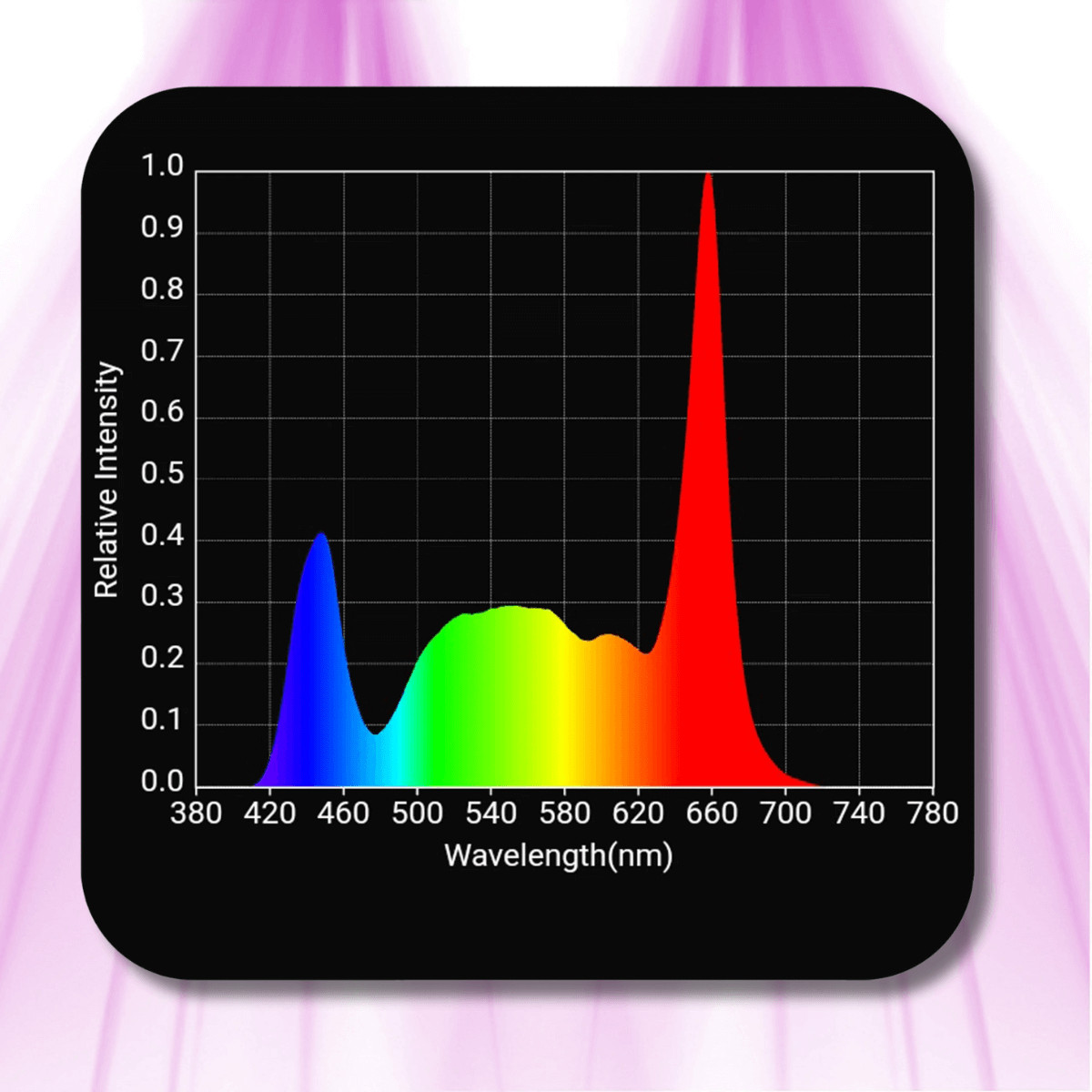

- Ideal spectrum for horticultural cultivation: Red:Green:Blue ratio of 37:42:21
- Passive cooling ensuring efficient heat dissipation
- 5 year warranty for complete peace of mind
- Compatible with GrowFlux (Access Point required for wireless control)
Technical specifications
| Characteristic | Value |
|---|
| Power | 0-1500W |
| Input voltage | 120-277V AC (50-60Hz) |
| Luminous efficiency | 2.86 µmol/J |
| Total PPF | 4178 µmol/s |
| Dimensions | 99 cm x 91 cm x 9.5 cm |
| Weight | 15.5 kg |
| Recommended suspension height | 50-75%: 38-60 cm (flowering) / 76-91 cm (growth)
100%: 76-91 cm (flowering) / 91-122 cm (growth) |
| Max. ambient temperature. | 40°C |
| Cooling | Passive (no fan) |
| Certifications | ANSI/CAN/UL 8800, UL 1598, CSA C22.2 #250 |
Caution: At maximum intensity in a 150x150 cm tent or less, the Scorpion Ultima can damage plants due to excess light. Remember to adjust the intensity carefully.
Why Choose the HLG Scorpion® Ultima Diablo™
- Ideal for professional growers looking for a high-end solution

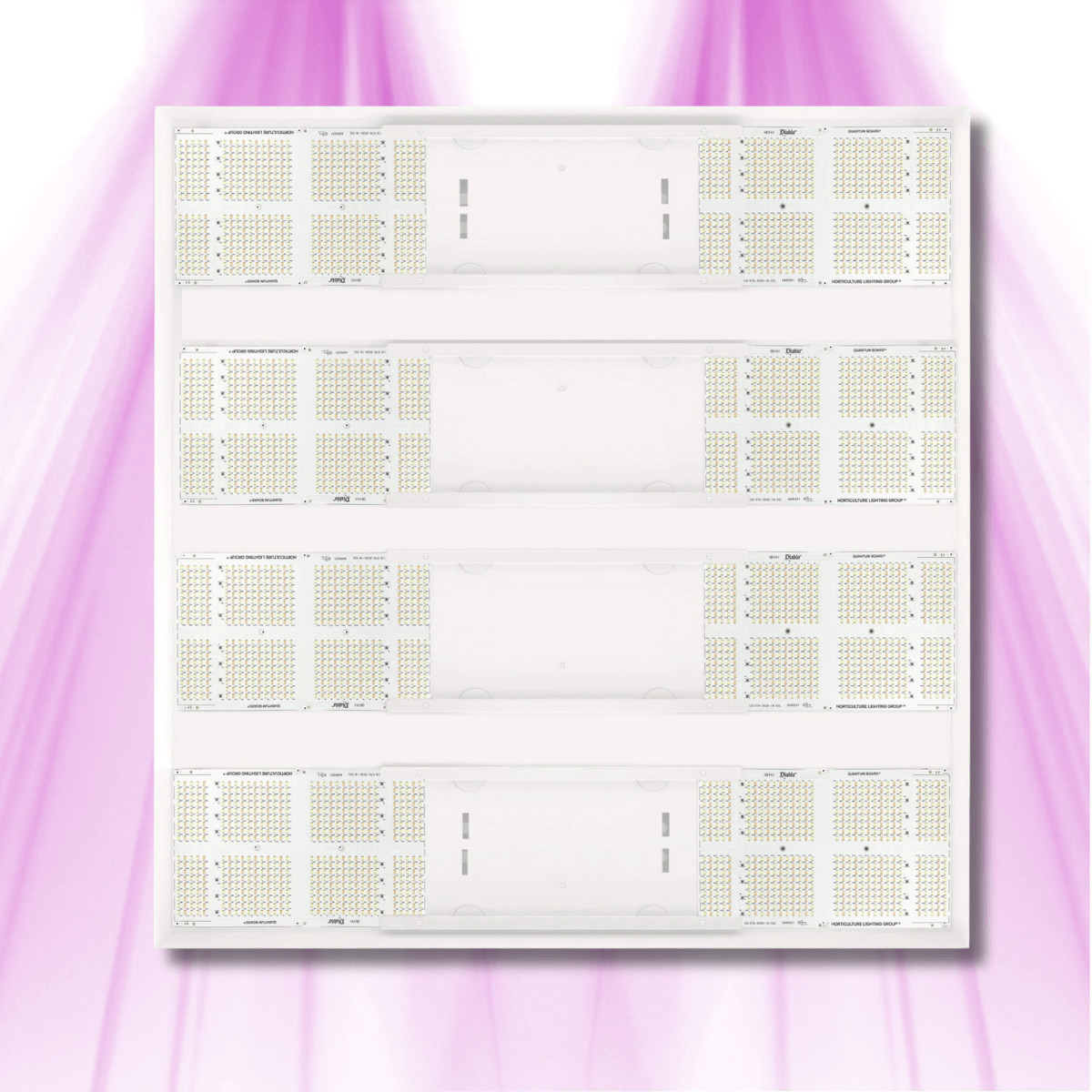

- Superior light quality thanks to Diablo Quantum Boards®
- Controlled temperature for growing without overheating
- Easy installation with compact design and included hangers
- Optimized for growth and flowering with a tailored spectrum
Installation and use
The HLG Scorpion Ultima Diablo is designed to be hung with chains or hooks. For optimal installation:
- Check the strength of the mounting bracket (capable of supporting at least 15.5 kg).
- Keep a space of at least 38 cm between the panel and the plant to avoid burns.
- Maintain room temperature between 25°C and 29°C for optimal performance.
- Use with GrowFlux: Add an Access Point for easy wireless control.
FAQ – Frequently Asked Questions
What is the best distance between the lamp and my plants?
- Growing: 91-122 cm with 25-50% power
- In bloom: 76-91 cm with 50-100% power
Is the Scorpion Ultima Diablo suitable for beginners?
- Yes, but it is very powerful. A dimmer is recommended to avoid excessive light stress on young plants.
Does this model get very hot?
- No, thanks to its passive cooling system, the heat is well dissipated.
Can I use it in a space smaller than 120x120 cm?
- This is not recommended at 100% intensity. If you have a small space, lower the power to avoid overloading your plants.
Learn more about LED horticultural lighting
Guide: How to choose the best LED lighting for growing on 60x60cm? 【9】
Grow Light Comparison: Calitek Quantum Bears 340W vs Lumatek ATS 300W Pro 【9】
Which LED horticultural lamp should you choose for your 120x120 cm growing area? 【9】
Order now
Enjoy the HLG Scorpion® Ultima Diablo™ experience, professional-grade lighting to maximize your harvests.
Buy on GrowLED
04 — Questions sur ce produit
Product questions
Your questions about this product
- Can the HLG Scorpion Ultima X Diablo lamp be adjusted in terms of light intensity to simulate day-night cycles for plants? And what difference would that make in terms of energy consumption?
The HLG Scorpion Ultima X Diablo lamp you mentioned does indeed have a light intensity adjustment feature. This 'Dual-Zone Dimming' system gives you precise control over the lighting, which is ideal for simulating natural day-night cycles for your plants. Moreover, the wireless GrowFlux control option makes programming these cycles easier. In terms of energy saving, this dimming system is a real asset. At full power, the lamp consumes 1500 Watts. But with the settings, you can adjust this consumption, down to zero in 'night' phase. This is a great way to decrease your consumption while respecting the needs of your crops. I remain at your disposal for any additional information!
- Does the double zone dimming function allow automating the adjustment of light intensity according to the growth phase via an app or a home automation system?
The double zone dimming function of the HLG Scorpion Ultima X Diablo lamp mainly allows manual adjustment of the light power distribution between two zones, which is ideal for dense cultivation. However, there is no built-in automation for adjusting light intensity according to the growth phase via an app or a home automation system without additional accessories. For this, a specific wireless management access point would be required, which is not included as standard. Thus, it remains a control to be handled directly.
- Does the HLG Scorpion Ultima Diablo X lamp feature advanced passive cooling without a fan? Does this really guarantee completely silent operation even at full power, or is there a risk that the lamp may overheat and affect its longevity or performance?
The HLG Scorpion Ultima X Diablo - Reflector Series lamp uses advanced passive cooling, ensuring completely silent operation even at full power thanks to the absence of a fan. This system efficiently dissipates heat through an optimized structure, preventing any noise.However, the lamp can generate a lot of heat at full power, especially in a confined or poorly ventilated space. To preserve longevity and performance, it is important to ensure good ventilation in the grow area to avoid local overheating that could stress the electronic components and the plants.In summary, this passive cooling combines silence and reliability but requires a well-ventilated environment to fully benefit from its qualities.
- Is the HLG Scorpion Ultima X Diablo suitable for a 120x120 box without overheating or light stress?
The HLG Scorpion Ultima X Diablo is perfectly powerful for a 120x120 cm box thanks to its 8 Diablo Quantum boards and high photon efficiency. However, to avoid overheating or light stress, it is essential to ensure proper ventilation in the tent and adjust the distance between the lamp and the plants. Also, take advantage of the dual-zone dimmable feature to modulate the intensity according to your crops' needs, ensuring optimal light without excess.
- Is the HLG Scorpion Ultima X Diablo too powerful for an 80x80 surface with sufficient dimming to avoid stressing the plants?
The HLG Scorpion Ultima X Diablo is indeed a very powerful lamp, designed more for growing areas ranging from 120x120 cm to 150x150 cm. On an 80x80 cm surface, its intensity at full power (1500W) will be too high, which can cause significant light stress for your plants.
However, the double zone dimming system significantly reduces light intensity. If you correctly adjust this dimmer, you can adapt the power to avoid stress and ensure good growth, provided you closely monitor the first signs of burns or discoloration.
For a peaceful grow in 80x80 cm, also consider maintaining a good distance between the lamp and the canopy to manage heat and direct light.
If the adjustment seems delicate or if the lighting remains too intense, a less powerful lamp specifically designed for this area would be more suitable.
- Is it possible to operate two HLG Scorpion Ultima Diablo X in parallel on the same electrical circuit without overloading the circuit breaker, and what type of timer is recommended for independent management of the two units' lighting cycles?
It is perfectly possible to operate two HLG Scorpion Ultima Diablo X in parallel on the same electrical circuit, provided that the total load is well calculated. Each lamp can reach 1500 W, so the circuit must be able to support about 3000 W without risk of overload. A circuit breaker of 20A to 30A on a dedicated circuit is recommended, in compliance with local electrical standards.
To independently manage the lighting cycles of the two units, an electric timer or a programmable timer capable of controlling each lamp separately is ideal. Digital or connected models (Bluetooth/Wi-Fi) offer maximum flexibility for precisely programming your lighting phases.
- Can I easily manage the light intensity with the dual zone dimming to adapt the lamp to different indoor growth phases?
Yes, the lamp HLG Scorpion Ultima Diablo X features a dual zone dimming that allows you to easily and precisely manage the light intensity. This feature is ideal for adjusting the lighting to the different growth phases, from vegetation to flowering, while optimizing energy consumption. You thus benefit from fine regulation to support the health and productivity of your plants.
- Is the beginner kit really scalable compatible with the HLG Scorpion Ultima Diablo X lamp for easy progression?
The HLG Scorpion Ultima Diablo X lamp is perfectly suited for a scalable beginner kit thanks to its high photon efficiency (3.07 µmol/J) and its balanced spectrum for all growth phases. Its dimmable function in two zones allows for easy light management according to needs, which is ideal for progressing without changing equipment.
To accompany this lamp in a scalable kit, we recommend pairing it with a grow tent of about 4' x 4' or 5' x 5', a high-performance ventilation system to ensure an optimal environment, and an adjustable stand to adjust the height of the lamp as your plants grow. For even more convenient control, you may consider a wireless dimming solution, such as the GrowFlux system.
- What is the best dimming setting to avoid plant stress in a 3 by 3 feet grow space with the HLG Scorpion Ultima Diablo X lamp?
For your 3x3 feet space with the HLG Scorpion Ultima X Diablo Lamp, it is recommended to use the Dual-Zone Dimming feature by adjusting the intensity according to the growth stage:
- Vegetation: set the dimming between 20 and 40% to limit stress on young plants.
- Flowering: gradually increase to 50-70% to promote good flower development.
Also, remember to maintain a distance of 60 to 90 cm between the lamp and the canopy to avoid overheating and photo-inhibition. Using a PPFD monitor can also help fine-tune the light intensity based on your plants.
This dynamic and personalized setting reduces stress while optimizing growth in your growing space.
- What is the ideal hanging height to optimize growth and flowering with the HLG Scorpion Ultima Diablo X in a 4 by 4 foot growing space?
To optimize vegetative growth with the HLG Scorpion Ultima Diablo X in a 4x4 foot space, it is recommended to hang the light between 30" and 48" (approximately 76 cm to 122 cm) above the plants. For flowering, the ideal height is between 15" and 36" (approximately 38 cm to 91 cm).
This powerful light (1500 W, 4614.74 PPF) is very effective but can be too intense if placed too low, risking stress on the plants in a small space. Adjusting the height according to the growth phase will provide optimal light without risks.
- Does the double zone dimming allow for precise management to avoid light stress in a cultivation space smaller than 150x150cm?
The HLG Scorpion Ultima X Diablo - Reflector Series indeed has a double zone dimming system that allows for precise management of light intensity across different parts of the cultivation area.
In a space smaller than 150x150 cm, this feature is a real asset to avoid light stress, as it allows for power adjustments and prevents localized over-lighting. However, it remains essential to also adjust the height of the lamp to prevent the intensity from being too strong against the foliage.
In summary, double zone dimming provides finer control of the light spectrum in restricted spaces, but success depends on a good combination of intensity and lamp positioning to offer optimal lighting and protect your plants.
- What is the optimal height for hanging to avoid light stress at full power over a 4-foot by 4-foot surface with the HLG Scorpion Ultima X Diablo?
For the HLG Scorpion Ultima X Diablo over a 4-foot by 4-foot surface, the optimal hanging height varies depending on the phase:
- Vegetative phase: between 30" and 48" (76 to 122 cm) above the plants.
- Flowering phase: between 15" and 36" (38 to 91 cm) above the plants.
To avoid light stress at full power, it is recommended to maintain a distance of 60 to 90 cm between the lamp and the canopy. Using the Dual-Zone Dimming feature can help adjust the light intensity according to growth needs.
- What is the PPFD distribution at 20 cm in flowering with dimming at 50 versus 100 percent for a 4x4 ft space?
The HLG Scorpion Ultima X Diablo - Reflector Series delivers a total PPF of 4614.74 µmol/s at 100% power with dual zone dimming. For a 4x4 ft space, at 20 cm in the flowering phase, it can be estimated that at 100% dimming, the PPFD in the center probably exceeds 1500 µmol/m²/s. At 50%, this PPFD is reduced by about half, around 750 µmol/m²/s, with a more even distribution thanks to the built-in reflectors.
Note that 20 cm is a height lower than the usual recommendations (38-91 cm) for flowering, which intensifies the light concentration in the center and decreases towards the edges. To obtain an accurate measurement according to your settings, using a quantum meter directly on site remains essential.
- What is the best practice for adjusting the dual zone dimming to limit plant stress while maximizing light penetration in a 4-foot by 4-foot tent?
To properly adjust the dual zone dimming of the
HLG Scorpion Ultima X Diablo - Reflector Series in a 4' x 4' tent, start by setting moderate power on both zones to limit stress, especially during the growth phase or early flowering. Then, gradually increase the intensity in the central or lower zone that benefits the most from light penetration, where the canopy is densest.
Utilize the built-in reflectors to even out the light and maintain good penetration without exceeding the necessary power, which avoids thermal or photonic stress. For optimal monitoring, regularly measure the PPFD and aim for around 900-1000 µmol/m²/s during flowering by finely distributing the light between the two zones.
This fine management with dual dimming will allow you to provide your plants with effective, deep, and well-distributed light, maximizing quality and yield while preserving their health.
- What is the precise electrical consumption for a surface of 1.5 m by 1.5 m in full growth with dimming at 70 percent and luminous efficiency obtained in umol per watt?
For a growing area of 1.5 m x 1.5 m with the lamp HLG Scorpion Ultima X Diablo set to 70% of its power, the electrical consumption is approximately 1050 watts (70% of 1500 W). The luminous efficiency, or photonic efficiency, remains stable at around 3.07 µmol/joule, meaning each watt consumed produces about 3.07 micromoles of photons useful for photosynthesis.
- Does the dual zone dimming operate completely independently and reliably over the long term without risk of failure or power loss?
The dual zone dimming system of the HLG Scorpion Ultima X Diablo operates completely independently and reliably thanks to its two distinct drivers. It allows for precise adjustment of light intensity across two zones, optimizing coverage and light penetration.
Its passive cooled design ensures excellent long-term stability, minimizing the risks of failure or power loss. The 5-year warranty also attests to its durability. To maintain this reliability, it is essential to follow best installation practices, including ensuring adequate ventilation and maintaining the recommended distances between the lamp and the plants.
In summary, you can count on robust and durable operation of the dual zone dimming, provided that you follow the usage guidelines carefully.
- Optimal light intensity with the dual-zone dimming function for a 4x4 SCROG under this HLG Scorpion Ultima Diablo X lamp, what is the best range without stress for the plants?
For a 4x4 SCROG under the HLG Scorpion Ultima X Diablo Reflector Series lamp, the optimal intensity via the dual-zone dimming function is between 60 and 70 % power during the vegetative phase, for healthy growth without stress.
In flowering, it is advisable to increase the lighting to between 70 and 85 %, monitoring the plants' reactions to avoid any signs of photoinhibition or burning.
This range ensures uniform and powerful light suitable for SCROG while maintaining plant health. Don't forget to ensure good ventilation to avoid thermal stress under this high-intensity system.
- what is the best strategy to manage the double zone dimming of the HLG Scorpion Ultima Diablo X to optimize growth and flowering in a 5x5 grow space without stressing the plants
To optimize growth and flowering with the HLG Scorpion Ultima X Diablo in a 5x5 space, it is essential to finely manage the double zone dimming to avoid any light stress.The ideal strategy starts with a positioning of 40-60 cm in height for effective light penetration without burning, thanks to the integrated reflectors.During growth, activate only the first zone at 50-60% intensity for gentle lighting suitable for young plants.In flowering, gradually increase the power on the first zone and activate the second zone, adjusting both according to the plants' reaction. This maximizes light without shock.It is important to regularly monitor the leaves for any signs of stress (burns, curling) and adjust height and intensity accordingly.Finally, ensure to minimize intense overlap of zones to guarantee an even distribution of light across the entire surface, avoiding harmful hot spots.This progressive and precise management of the double zone dimming allows to fully exploit the quality of the spectrum and the coverage of the lamp, ensuring a healthy and productive grow in your 5x5 space.
- What is the ideal protocol for running two crops in parallel with the HLG Scorpion Ultima X Diablo lamp while considering the double zone dimming to optimize growth and flowering phases?
To manage two crops in parallel with the HLG Scorpion Ultima X Diablo lamp and make the best use of the double zone dimming, here is the recommended protocol:
1. Growth phase: position the lamp between 40 and 60 cm. Start with a power setting of around 50-60% on each zone for vigorous growth without stress. The double zone dimming allows you to precisely adjust the light according to the specific needs of each crop.
2. Flowering phase: gradually increase the intensity via the dimmer to ensure optimal light, slightly move the lamp closer while monitoring the plants' tolerance to avoid burns or photo-inhibition.
3. Independent management: use a separate timer for each lamp to adapt the light cycles individually. Ensure that the timer and installation can handle the power of each panel.
Thanks to the optimized spectrum of the Scorpion Ultima and its energy efficiency (approximately 3.07 µmol/J), this protocol maximizes the quality and yield of your indoor crops.
