01 — Description
Présentation du produit

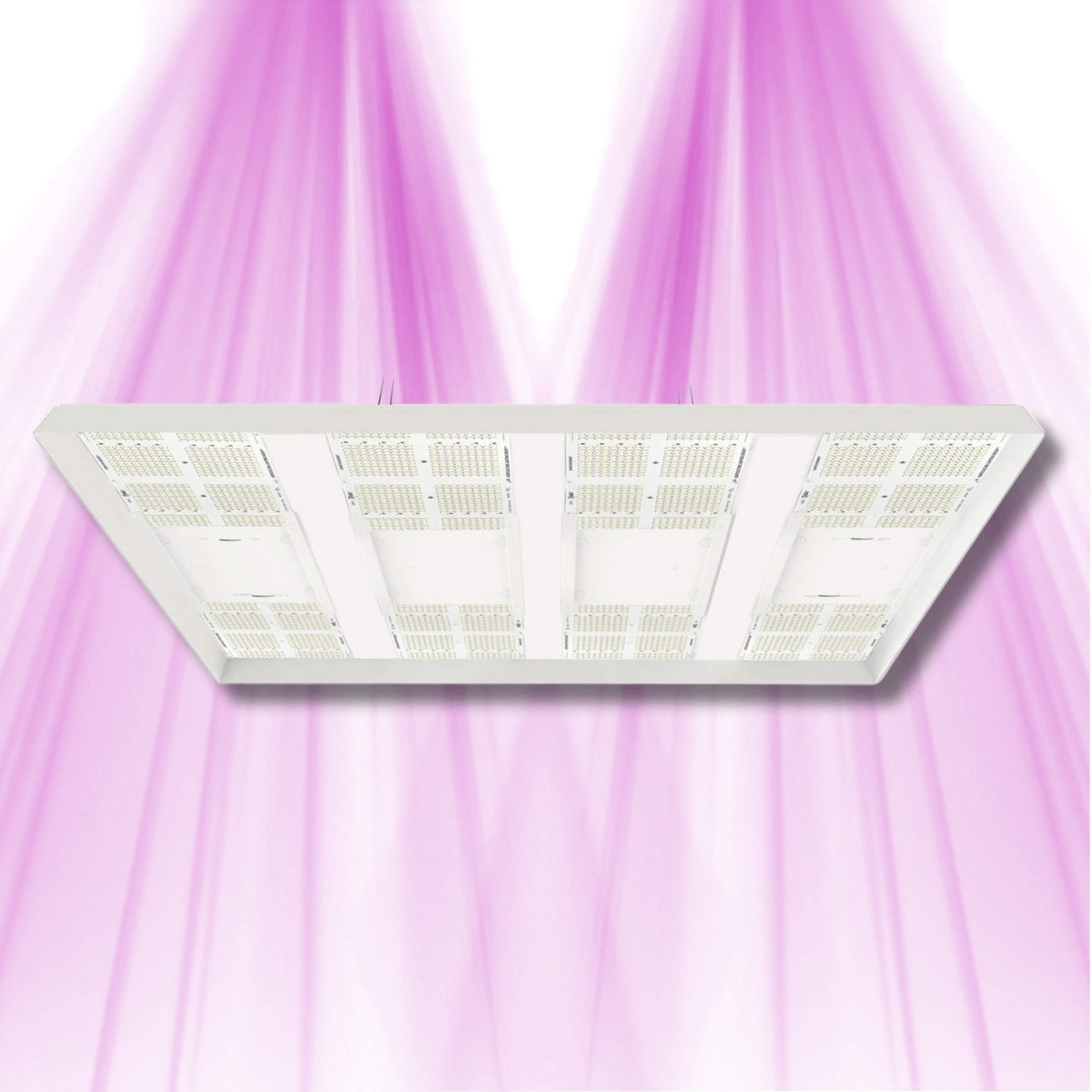

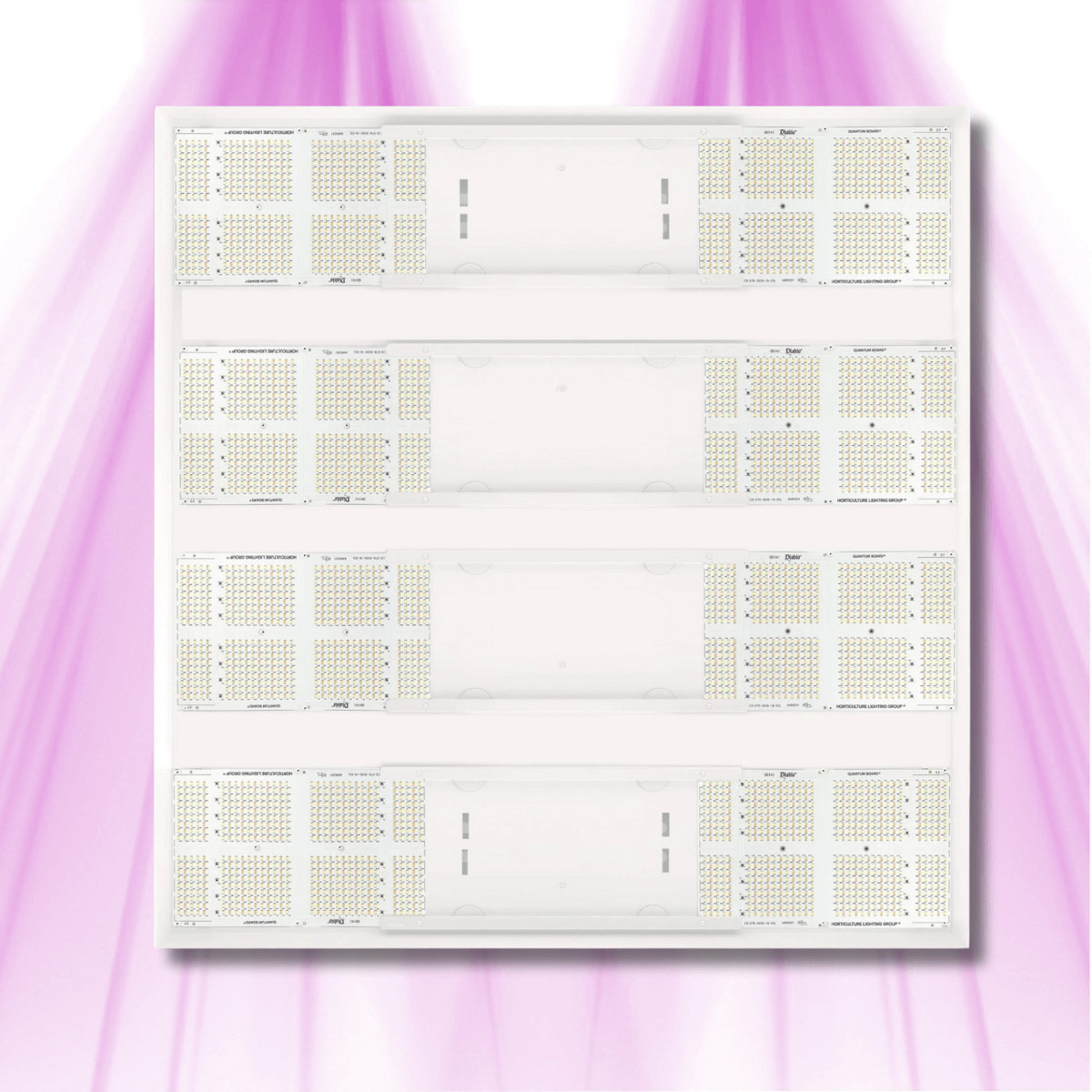

HLG Scorpion® Ultima Diablo™
Maximize your yields with the ultimate lighting
The HLG Scorpion® Ultima Diablo™ is designed for demanding growers who are looking for maximum light intensity and efficiency. With its 8 Quantum Boards® Diablo panels, it provides uniform coverage and optimal light penetration, ideal for grow tents, grow tables, shelves and vertical racks.
Its white light spectrum enriched with deep red guarantees vigorous growth and abundant flowering, while ensuring optimal energy efficiency.
Main features
- High PPF: 4178 µmol/s for exceptional light output
- Ultimate efficacy: 2.86 µmol/J
- Dual-Zone Dimming system for precise control of light intensity
- Integrated reflectors improve photon distribution at all levels of the plant canopy
- Fits 120x120cm and 150x150cm grow tents

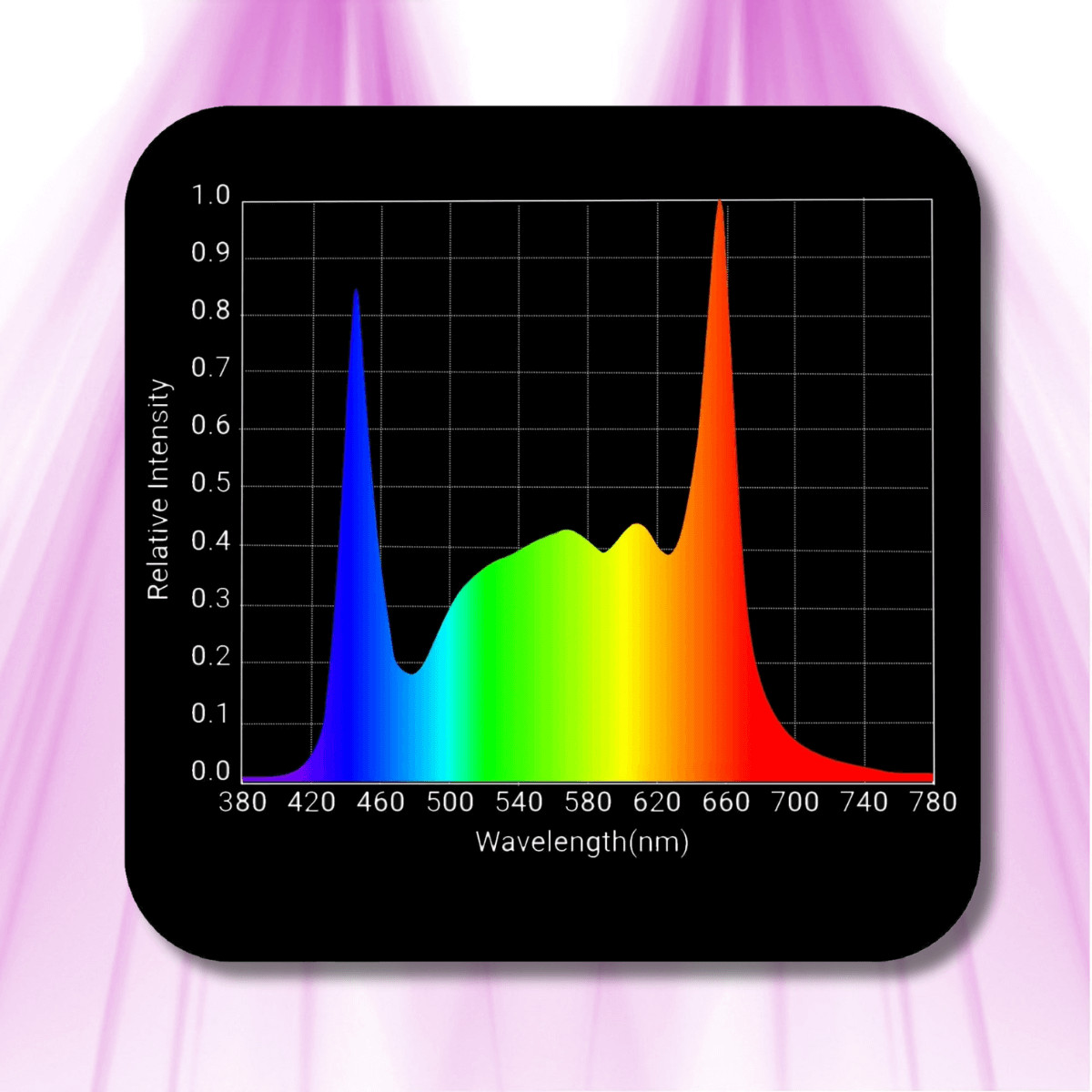

- Ideal spectrum for horticultural cultivation: Red:Green:Blue ratio of 37:42:21
- Passive cooling ensuring efficient heat dissipation
- 5 year warranty for complete peace of mind
- Compatible with GrowFlux (Access Point required for wireless control)
Technical specifications
| Characteristic | Value |
|---|
| Power | 0-1500W |
| Input voltage | 120-277V AC (50-60Hz) |
| Luminous efficiency | 2.86 µmol/J |
| Total PPF | 4178 µmol/s |
| Dimensions | 99 cm x 91 cm x 9.5 cm |
| Weight | 15.5 kg |
| Recommended suspension height | 50-75%: 38-60 cm (flowering) / 76-91 cm (growth)
100%: 76-91 cm (flowering) / 91-122 cm (growth) |
| Max. ambient temperature. | 40°C |
| Cooling | Passive (no fan) |
| Certifications | ANSI/CAN/UL 8800, UL 1598, CSA C22.2 #250 |
Caution: At maximum intensity in a 150x150 cm tent or less, the Scorpion Ultima can damage plants due to excess light. Remember to adjust the intensity carefully.
Why Choose the HLG Scorpion® Ultima Diablo™
- Ideal for professional growers looking for a high-end solution
- Superior light quality thanks to Diablo Quantum Boards®
- Controlled temperature for growing without overheating
- Easy installation with compact design and included hangers
- Optimized for growth and flowering with a tailored spectrum
Installation and use
The HLG Scorpion Ultima Diablo is designed to be hung with chains or hooks. For optimal installation:
- Check the strength of the mounting bracket (capable of supporting at least 15.5 kg).
- Keep a space of at least 38 cm between the panel and the plant to avoid burns.
- Maintain room temperature between 25°C and 29°C for optimal performance.
- Use with GrowFlux: Add an Access Point for easy wireless control.
FAQ – Frequently Asked Questions
What is the best distance between the lamp and my plants?
- Growing: 91-122 cm with 25-50% power
- In bloom: 76-91 cm with 50-100% power
Is the Scorpion Ultima Diablo suitable for beginners?
- Yes, but it is very powerful. A dimmer is recommended to avoid excessive light stress on young plants.
Does this model get very hot?
- No, thanks to its passive cooling system, the heat is well dissipated.
Can I use it in a space smaller than 120x120 cm?
- This is not recommended at 100% intensity. If you have a small space, lower the power to avoid overloading your plants.
Learn more about LED horticultural lighting
Guide: How to choose the best LED lighting for growing on 60x60cm? 【9】
Grow Light Comparison: Calitek Quantum Bears 340W vs Lumatek ATS 300W Pro 【9】
Which LED horticultural lamp should you choose for your 120x120 cm growing area? 【9】
Order now
Enjoy the HLG Scorpion® Ultima Diablo™ experience, professional-grade lighting to maximize your harvests.
Buy on GrowLED
04 — Questions sur ce produit
Product questions
Your questions about this product
- Hello, does the Dual-Zone Dimming dimmer allow separate adjustment of the 8 Quantum Board panels or is it a global setting for the entire HLG Scorpion Ultima Diablo lamp?
The Dual-Zone Dimming dimmer on the HLG Scorpion Ultima Diablo lamp allows differentiated control between two distinct zones of the lamp, but it does not allow individual separate adjustment of the 8 Quantum Board panels. Therefore, it is a global setting by zone, not for each panel individually.
-
- HLG Scorpion Ultima Diablo guaranteed for 5 years, passive cooling OK, but in hydro culture, what real effects have you observed in terms of heat management and impact on spectrum quality compared to a CMH or classic LED?
HLG Scorpion Diablo Ultima Lamp – Reflector Series integrates a very effective passive cooling system, which limits the heat released in the growing space, a major asset in hydroponics where the temperature of the nutrient solution must remain stable.Compared to a CMH, this lamp generates less heat and eliminates the need for additional fans, simplifying thermal management. The spectrum offered is a white enriched with deep red (37:42:21 for Red:Green:Blue), ideal for promoting vigorous growth and abundant flowering, providing an excellent balance between photosynthetic efficiency and light quality.Compared to a classic LED, the Ultima Diablo delivers a more targeted spectrum and better light efficiency, without the overheating often observed with older technologies. Its design suited for hydro cultures improves thermal stability while optimizing plant development.
- How to precisely set the DualZone Dimming system to optimize the differentiated management of growth and flowering with the HLG Scorpion Ultima Diablo lamp?
To precisely adjust the DualZone Dimming system of the HLG Scorpion Ultima Diablo, you need to independently modulate the two LED zones to adapt the light according to the growth phase:
During growth, decrease the intensity of the Deep Red zone to favor a whiter, more balanced light for optimal vegetative growth. Adjust the second zone for a softer brightness, avoiding stress on young leaves.
During flowering, increase the power of the Deep Red zone to stimulate flower production while modulating the second zone to maintain intense but even lighting, thereby maximizing yield and energy efficiency.
For precise control, consider using a GrowFlux system (sold separately), which allows for wireless dimming and customized settings according to your cycles.
Finally, always start with low intensities and gradually adjust, ideally measuring PPFD to ensure well-distributed light that suits your space.
- What is the approximate lifespan of the LEDs on the HLG Scorpion Ultima Diablo lamp before significant lumen drop?
The HLG Scorpion Ultima Diablo lamp uses high-quality LEDs mounted on passive Quantum Boards®, designed to last. Their lifespan before a significant reduction in lumens (approximately 20-30% loss) is generally between 30,000 and 50,000 hours, which translates to several years of intensive lighting. This longevity is also backed by a 5-year manufacturer warranty, ensuring stability and reliability.
- What light power management strategy do you recommend for coexisting two HLG Scorpion Ultima Diablo lamps in parallel in a 150x150 cm tent without risking overheating or stressing the plants?
To associate two HLG Scorpion Ultima Diablo lamps in a 150x150 cm tent without risking overheating or stress, here is the ideal strategy:
- Dim the lamps using their Dual-Zone Dimming system to adjust the intensity based on the plants' needs and reduce overall power.
- Hang them at a minimum of 76-91 cm above the plants to limit direct light intensity while ensuring uniform coverage.
- Limit the power to about 60-70% per lamp, which avoids excessive PPF too concentrated over 2.25 m² and maintains plant health.
- Monitor the temperature of the tent to keep it below 40°C, combining effective ventilation to dissipate heat.
- Position them to minimize the intense overlap of illuminated areas, thereby optimizing light distribution.
This fine management ensures a powerful yet controlled light environment, ideal for healthy growth in your compact space.
- What is the actual noise reduction with the passive cooling system compared to an active cooling model, and does it affect the ventilation loss in the grow tent?
The
HLG Scorpion Ultima Diablo features passive cooling that completely eliminates the noise from fans found in active cooling models. This provides very quiet operation, ideal for a peaceful environment. However, this system generates more heat at full power, especially in confined spaces.
To prevent overheating, it is essential to ensure proper ventilation in your grow tent. This does not create additional air loss but rather an increased need for effective air circulation to preserve both the lamp and your plants. Good air extraction remains essential with this type of system.
- What is the best method to manage the light intensity of the HLG Scorpion Ultima Diablo when running two crops in a 150x150 cm tent in parallel without risking plant stress?
To manage the light intensity of the HLG Scorpion Ultima Diablo in a 150x150 cm tent with two crops running in parallel, the best method is to use the built-in Dual-Zone Dimming feature. This function allows independent adjustment of intensity in each zone, thus limiting plant stress.
Additionally, you can adjust the distance between the plants and the lamp by modifying the height of the panel or by placing the crops on supports at different levels. Shades or screens can also be used to filter light on certain more sensitive areas.
Be careful not to exceed the recommended intensities, as too much power in a confined space can quickly cause plant stress.
- What is the ideal procedure to adjust the dual zone dimmer to optimize growth and flowering without risking overheating or light stress using the HLG Scorpion Diablo lamp in a 150x150 cm tent?
To optimize growth and flowering with the
HLG Scorpion Diablo Ultima lamp in a 150×150 cm tent, start by hanging the lamp
60–90 cm above the young plants, then move it closer to
45–60 cm during the flowering phase. Set the Dual Zone dimmer to
50–70% during growth to avoid light stress, and increase it to
70–90% during flowering, never reaching 100% in this space.
Use the Dual Zone function to adjust the light according to the foliage density, promoting uniform distribution and good light penetration. Ensure effective ventilation with an extractor and an oscillating fan to limit overheating. Regularly monitor the health of the plants (leaves, coloration) and the temperature to adjust the height or intensity if signs of stress appear.
- Can the dual-zone dimmer be used to precisely adjust the light intensity in a 120x120 tent without risking burning the flowering plants?
Yes, the dual-zone dimmer of the HLG Scorpion Ultima Diablo - Reflector Series allows for precise adjustment of light intensity in a 120x120 cm tent, without the risk of burning flowering plants. This Dual-Zone Dimming system offers fine control to adapt the light power according to the needs of the plants.
To avoid any stress or burning, it is also sufficient to respect the recommended distances: between 38 and 60 cm for an intensity of 50 to 75%, and at least 76 cm at 100% power. With these precautions, the light will be ideal for healthy and effective flowering.
- What is the best power and height configuration to limit heating and light stress risks without sacrificing growth in a 120x120 cm tent with this lamp?
For a 120x120 cm tent, the HLG Scorpion Ultima Diablo - Reflector Series is optimized by combining power and suspension height to protect your plants from light stress while promoting their growth.
Power: during the vegetative phase, set the dimming between 50 and 70% to avoid excessive light and limit heat. During flowering, gradually increase up to 85%, which remains an excellent compromise between intensity and thermal management.
Height: suspend the lamp between 40 and 60 cm above the canopy. Start closer to 60 cm to limit stress and heating, then lower if necessary, observing the condition of your plants.
Ventilation: ensure good air circulation in the tent to maintain the temperature below 28-30°C, an essential condition to avoid thermal stress.
This precise setting, combined with the natural diffusion of the integrated reflectors, ensures powerful and uniform lighting while managing temperature.
- What is the best method for adjusting the dual dimmer (Dual-Zone Dimming) on the HLG Scorpion Ultima Diablo to optimize growth and flowering in a 150x150 cm tent without risking plant stress due to excessive light intensity?
To optimize growth and flowering with the HLG Scorpion Ultima Diablo in a 150x150 cm tent, you need to use the dual dimmer to manage the two groups of Quantum Boards separately.
During vegetative growth, set the first group around 50-70% to provide sufficient light without stress, while the second group can be at a lower intensity to ensure good light coverage.
During flowering, gradually increase both zones to 80-100%, ensuring an optimal PPFD between 600 and 900 µmol/m²/s at the canopy level, without causing burns. The integrated reflectors diffuse light evenly, helping to avoid hot spots.
Regular observation of the plants is essential: if you notice signs of stress (burned or discolored leaves), decrease the intensity. For precise adjustment, a lux meter or PPFD measurement device is a valuable ally.
This method fully utilizes Dual-Zone Dimming for tailored lighting, suited to the specific needs of each growth phase.
- How to optimize the installation and the dual zone dimmer setup to avoid light stress with this Scorpion Ultima Diablo in a 150x150 cm tent?
To optimize the installation of the HLG Scorpion Ultima Diablo - Reflector Series in a 150 x 150 cm tent and avoid light stress, start by positioning it at a height of 40 to 60 cm at the beginning. These adjustments ensure effective penetration without burning the plants, thanks to integrated reflectors that evenly diffuse the light.
The dual zone dimmer allows you to independently manage two light zones. To limit stress, start with about 50-60% power on one zone during the initial growth. Then, gradually increase the intensity in the first zone during the vegetative phase, and finally activate and raise the power of both zones during flowering. Always monitor the condition of the leaves to adjust the height or reduce power if necessary.
This fine management, combined with dual zone technology, ensures you have suitable and adaptable lighting, maximizing the health of your plants and your yield without the risk of photosynthetic stress.
- What dimming regime do you recommend to optimize yield without risking photoinhibition with the HLG Scorpion Ultima Diablo in a 120x120 cm tent?
To optimize the yield of the HLG Scorpion Ultima Diablo in a 120x120 cm tent, it is essential not to use the lamp at full power to avoid photoinhibition. With the dual-zone dimming system, you can precisely adjust the light intensity based on the growth phases.
We recommend setting around 60-70% of the maximum power during the vegetative phase, and then increasing to 70-85% during flowering, carefully observing the plants' reactions (whitened leaves, stress, slowed growth). This modulation allows you to fully benefit from the specialized spectrum and the optimized light distribution by the integrated reflectors while preserving crop health.
In summary:
- Do not exceed a too high intensity in a 120x120 cm space.
- Use dual-zone dimming to fine-tune intensity.
- Start at 60-70% during growth and 70-85% during flowering while adjusting according to your plants.
This approach ensures an excellent compromise between light power and protection against photosynthetic stress.
- On a small surface of 80x80cm, does the dimmer provide sufficient control to avoid burning the plants at startup, or should a silent extractor be considered as a complement?
For a surface of 80x80 cm, the integrated Dual-Zone dimmer in the HLG Scorpion Ultima Diablo - Reflector Series allows for precise adjustment of light intensity, thus preventing the burning of plants from startup by modulating power according to growth phases.
However, despite this effective light control, it is still advisable to add a silent extractor to manage temperature effectively and renew the air in a reduced space. This prevents any thermal stress or overheating risk, ensuring an optimal environment for your plants.
- How does the dual zone dimming system integrate with the GrowFlux interface for precise remote control of light intensity on each Quantum Board Diablo panel?
The Dual Zone Dimming system of the HLG Scorpion Ultima Diablo divides the lamp into two distinct light zones, each controlled via an independent driver. This setup allows for precise and independent adjustment of light intensity on each part of the Quantum Board Diablo.
With the GrowFlux interface, you can control these two zones remotely via a dedicated app, providing perfectly tailored wireless control for your growing needs. However, to benefit from this feature, you must connect the lamp to a GrowFlux Access Point (sold separately), which serves as a gateway between the lamp and your network.
This technology thus allows you to optimize light distribution according to different growth stages or the configuration of your space, while improving energy efficiency and yield quality.
- Can the HLG Scorpion Ultima Diablo be integrated with a home automation system via GrowFlux to automate light intensity control and optimize indoor cultivation in real-time?
The HLG Scorpion Ultima Diablo features Dual-Zone Dimming technology, providing precise control of light intensity through two independent drivers. It is perfectly compatible with the GrowFlux home automation platform. However, to automate real-time control via GrowFlux, you will need to add a GrowFlux Access Point (sold separately), which ensures wireless connectivity.
This integration will allow you to automatically adjust the light intensity according to the needs of your indoor cultivation, thereby optimizing light penetration and distribution for optimal growth.
- With such a rich spectrum in deep red and a PPF of 4178 umol/s, what is the optimal setting of the Dual Zone dimmer to maximize growth under SCROG in LED while avoiding the risk of light stress in a 120x120 tent?
For the HLG Scorpion Ultima Diablo lamp in a 120x120 cm tent under SCROG, the Dual Zone dimmer setting must be tailored to the growth phases to avoid light stress while optimizing growth. During vegetation, an intensity between 40% and 60% provides sufficient light without excess. In flowering, it is advisable to increase to 70%-85% to fully benefit from the rich deep red spectrum and high PPF, maximizing production. The ability to adjust each zone separately allows for precise light distribution where it is needed, which is a real advantage for homogenizing illumination under SCROG and minimizing hot spots. The integrated reflectors also optimize diffusion, allowing power moderation without compromising the quality of the received light.
- What is the average power consumption in watts per month in intensive operation for this HLG Scorpion Ultima Diablo lamp?
The HLG Scorpion Diablo Ultima Lamp - Reflector Series has a maximum power of 1500 W. In intensive operation, with a usage time of about 18 hours per day, the monthly power consumption reaches about 810 kWh.
In practice, to preserve your plants, it is often recommended to operate at 70-85% of this power, which brings the monthly consumption between 570 and 690 kWh, still based on 18h/day.
This lamp remains efficient while offering flexibility of use according to the desired cultivation intensity.
