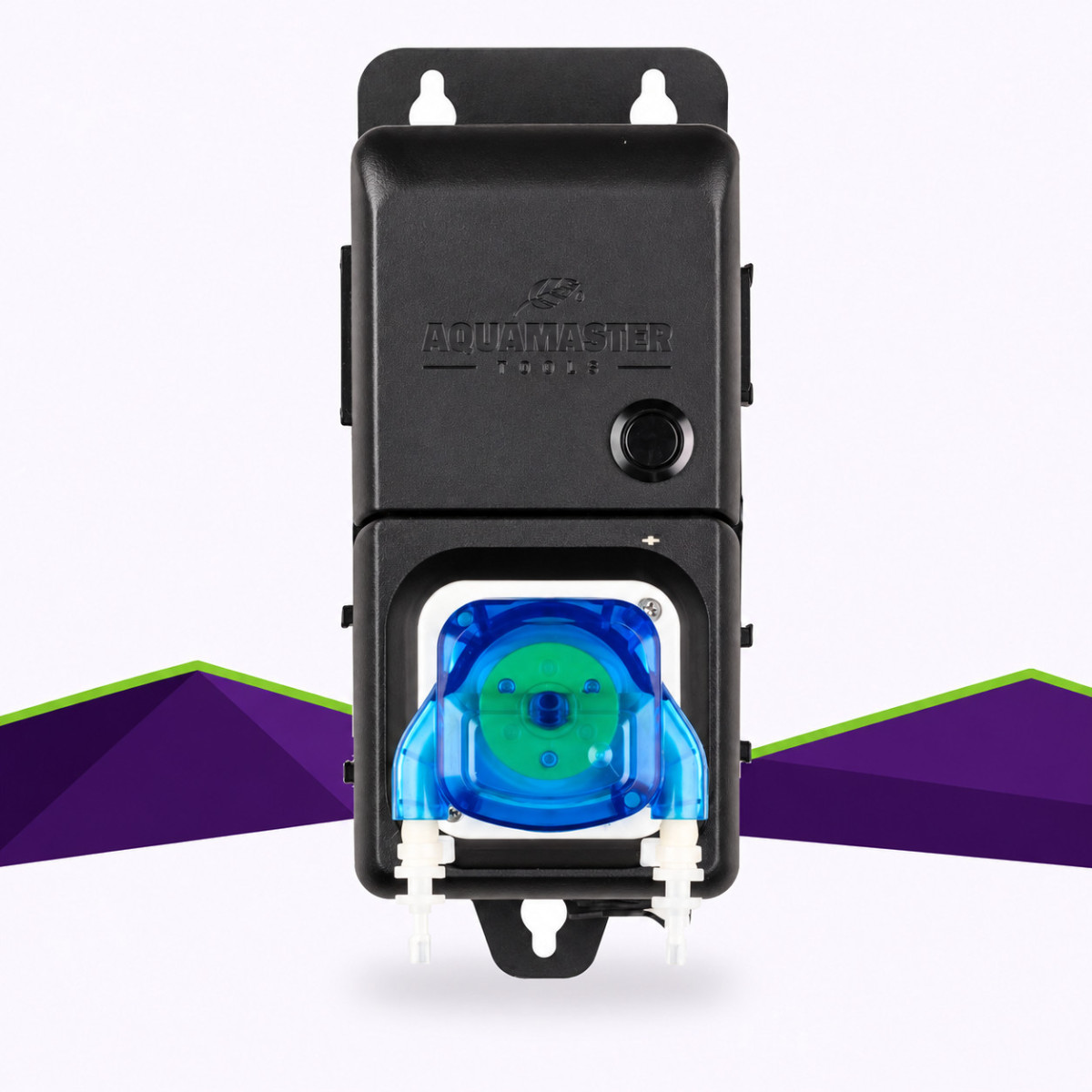

C10 Aqua Master Tools — 1 dosing pump for pH or nutrients
The Aqua Master Tools C10 is a dosing unit with 1 peristaltic pump for a pH adjuster or a nutrient.
Peristaltic pumps: 1
Use: pH or one nutrient
Indicative flow rate per pump: 1.5 ml/s, depending on liquid and temperature
Connection: UTP to compatible controller
Operating temperature: 5 to 50 °C
Priming: Manual button for each pump
Configuring your dosing setup
The C10 connects to the controller's pH output to adjust in one selected direction (pH− or pH+), or to the EC output to dose a single nutrient. It can also extend a C30 to provide four nutrient channels.
What's included
The module, 1 length of 3 m tubing, a 150 cm UTP cable and a mains adapter are included.
Configuration limits
The controller supports a maximum of one pH pump and five nutrient pumps. C20 and C30 modules are not intended for pH adjustment. For this standalone unit, the controller and liquids to be dosed must be purchased separately.
Commissioning
Install the tubing as instructed, prime each channel and check the actual volume delivered with your liquids. Flow rate depends, among other factors, on viscosity and temperature. Check the peristaltic tubing regularly for wear.
C10 Aqua Master Tools — 1 dosing pump… 237,90 €
