Cli-mate Climate Station Mini – timer and climate, 3 or 7 A

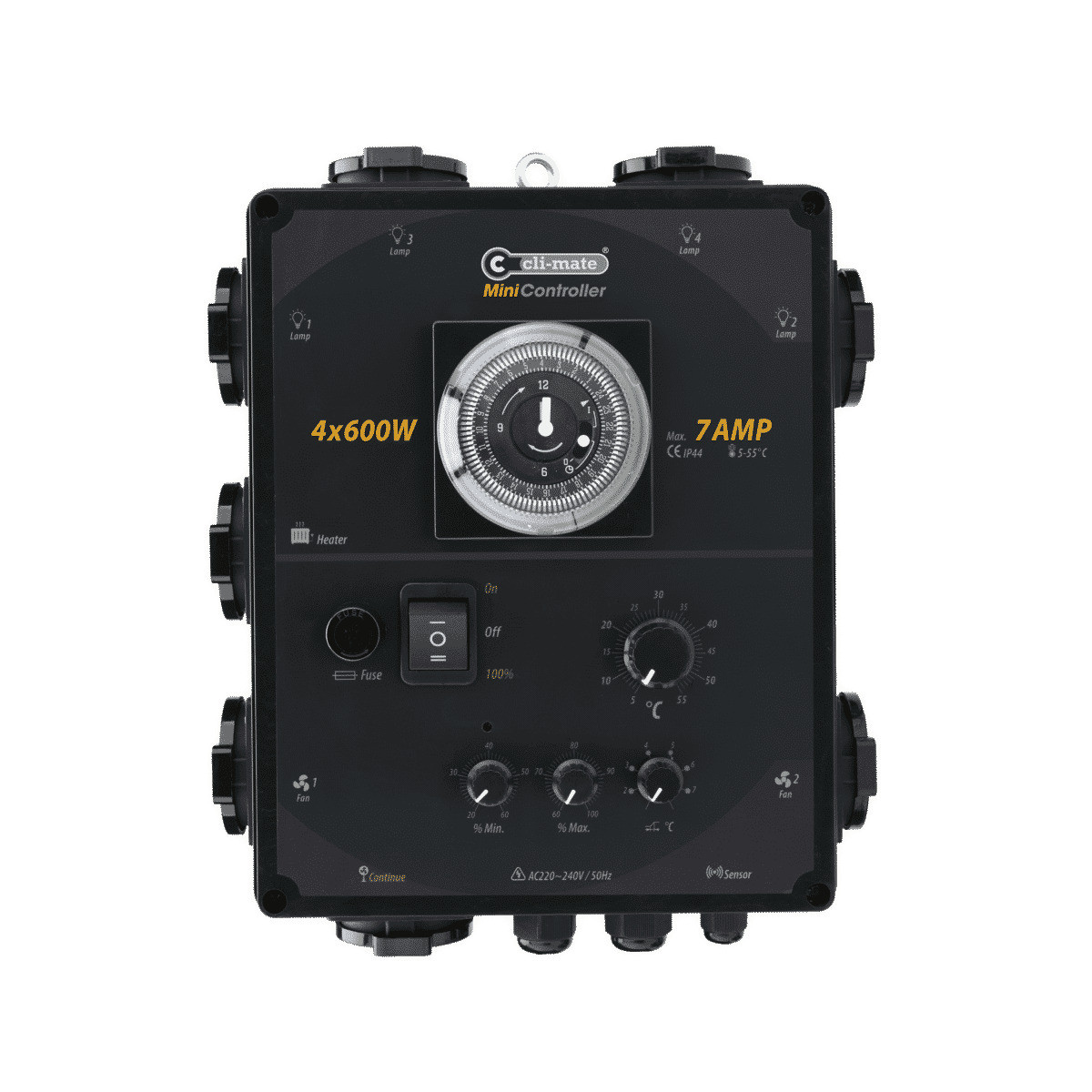

Cli-mate Mini-Controller
Two in one: lighting and heating timer + hysteresis climate control • 3 or 7 A

The Mini-Controller brings two devices together: a timer that switches lamps and heating on and off, and a hysteresis climate controller that adjusts incoming and outgoing airflow to hold the growing temperature.

One socket less, one cable run less: the timer you would have bought separately is already there, and it is synchronised with the climate regulation.

Timer and climate in the same unit

Keeping the timer separate from the climate controller means more sockets and cables, and leaves each device unaware of the other. By combining them, the Mini-Controller lets you align the lighting cycle and air regulation on a single logic — which matters, since it is lamp switch-on that triggers the temperature rise.

A heating or cooling output up to 3,500 W

Beyond the lamps, the timer drives an extra output intended for a heater or air conditioner, with a stated capacity of 3,500 W. That is enough to run a serious air-treatment appliance without adding an external contactor.

A direct-current input

The unit also has a direct-current input, intended for instance for a clip fan. Internal air movement — the kind that homogenises air between plants — is therefore handled by the same unit as extraction.

Two versions, two lighting capacities

The 3 A version drives up to 2 × 600 W of lighting, the 7 A version up to 4 × 600 W. The choice therefore rests on two criteria at once: installed lighting power and the draw of the connected fans.

Technical specifications

• Device type : two-in-one controller: timer + climate
• Climate control : hysteresis, intake and exhaust flow control
• Timer : lighting and heating
• Lighting capacity : 2 × 600 W (3 A) or 4 × 600 W (7 A)
• Heating or cooling output : up to 3,500 W
• Extra input : direct current (clip fan, for instance)
• Current ratings offered : 3 A or 7 A (depending on version)
• Weight : 2.4 to 2.6 kg depending on version

In the same range

• Cli-mate Climate Station Mini Humi – timer and humidity, 3 or 7 A
• Cli-mate Climate Station Total – lighting and full climate, 7 A
• Cli-mate Dual-Flow Controller Twin – negative pressure, 8 or 24 A

GrowLED tip :
Use the built-in timer to offset lamp switch-on from full-speed ventilation by a few minutes: the room has time to warm before extraction kicks in, which avoids removing heat you have only just produced.

Joseph – Directeur de GrowLED
