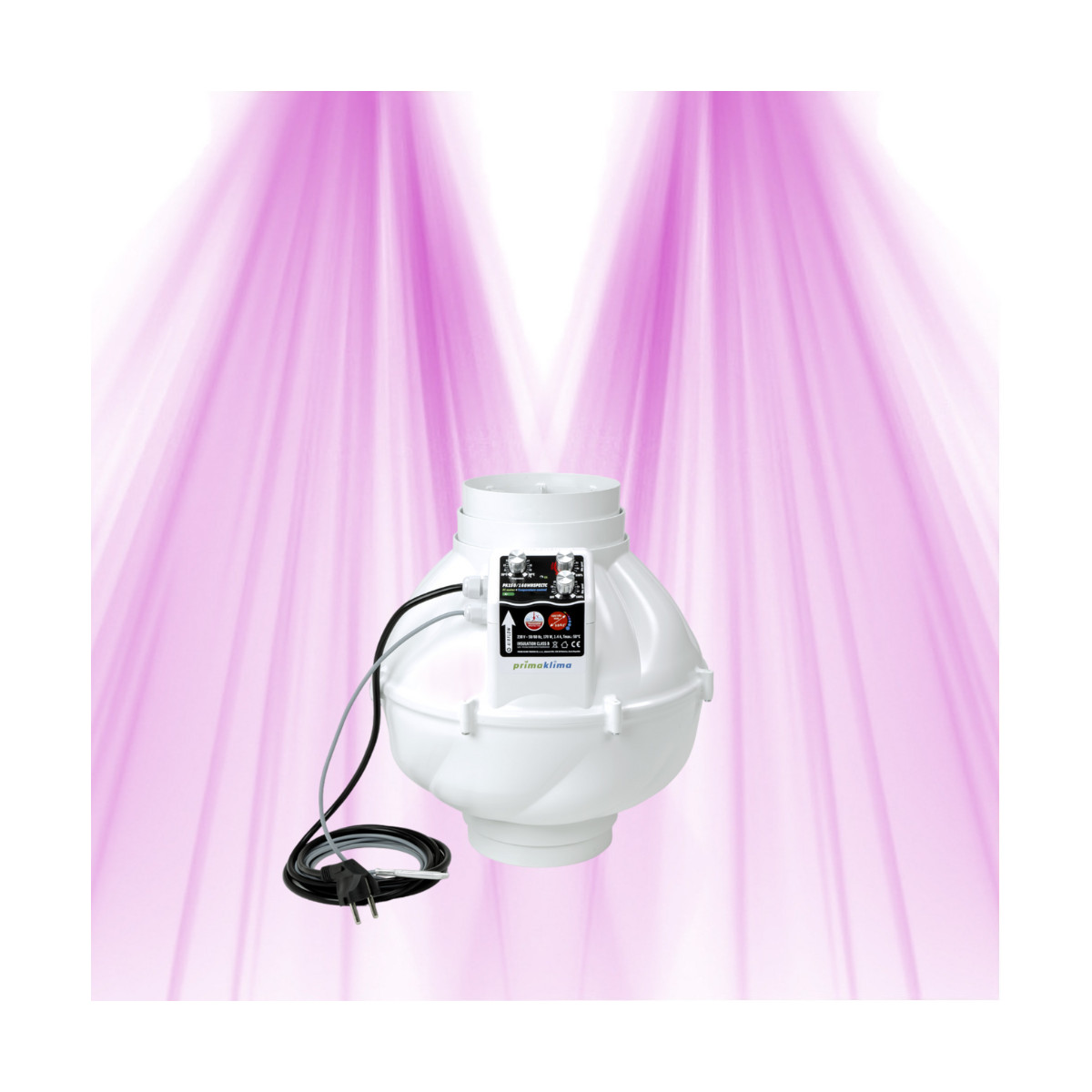

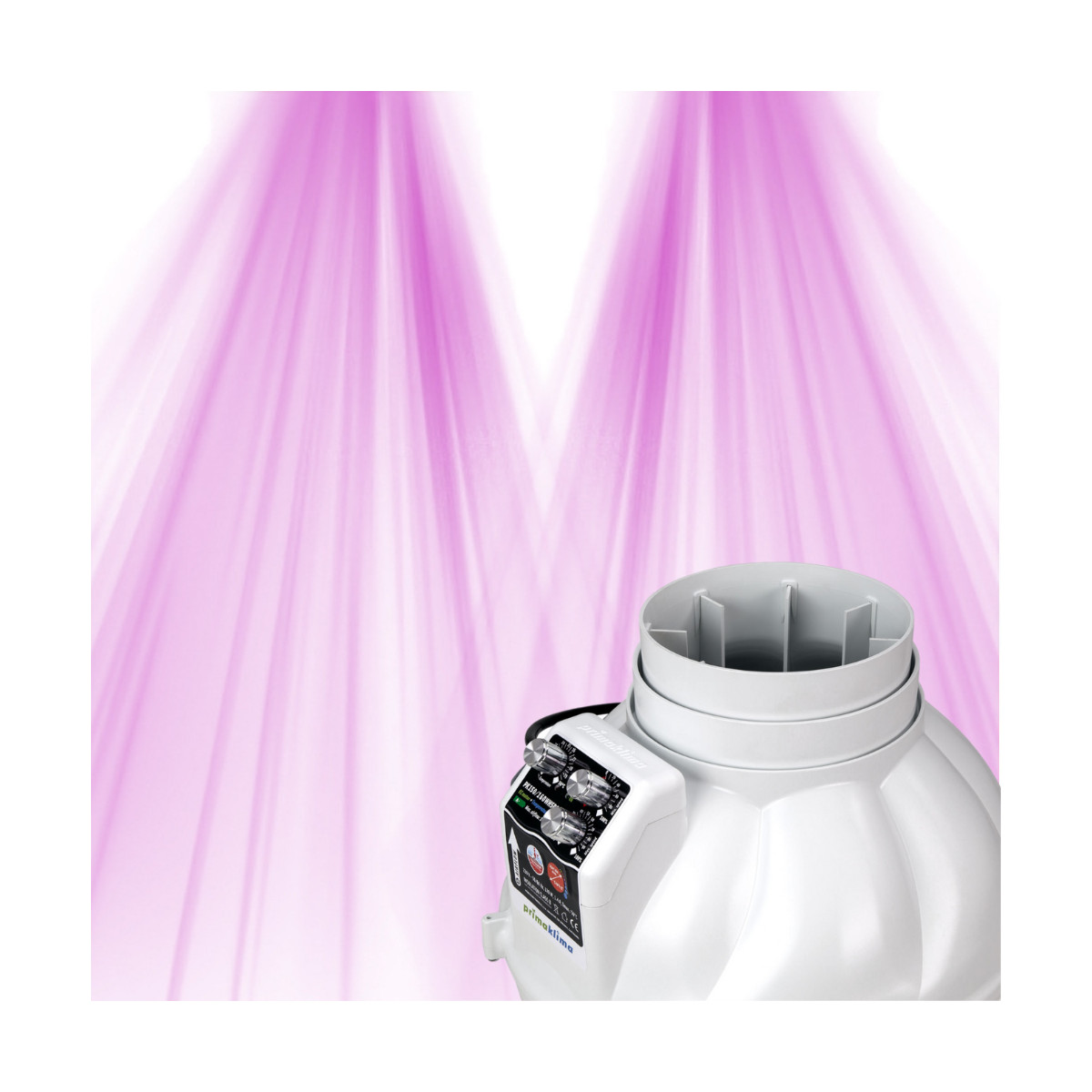

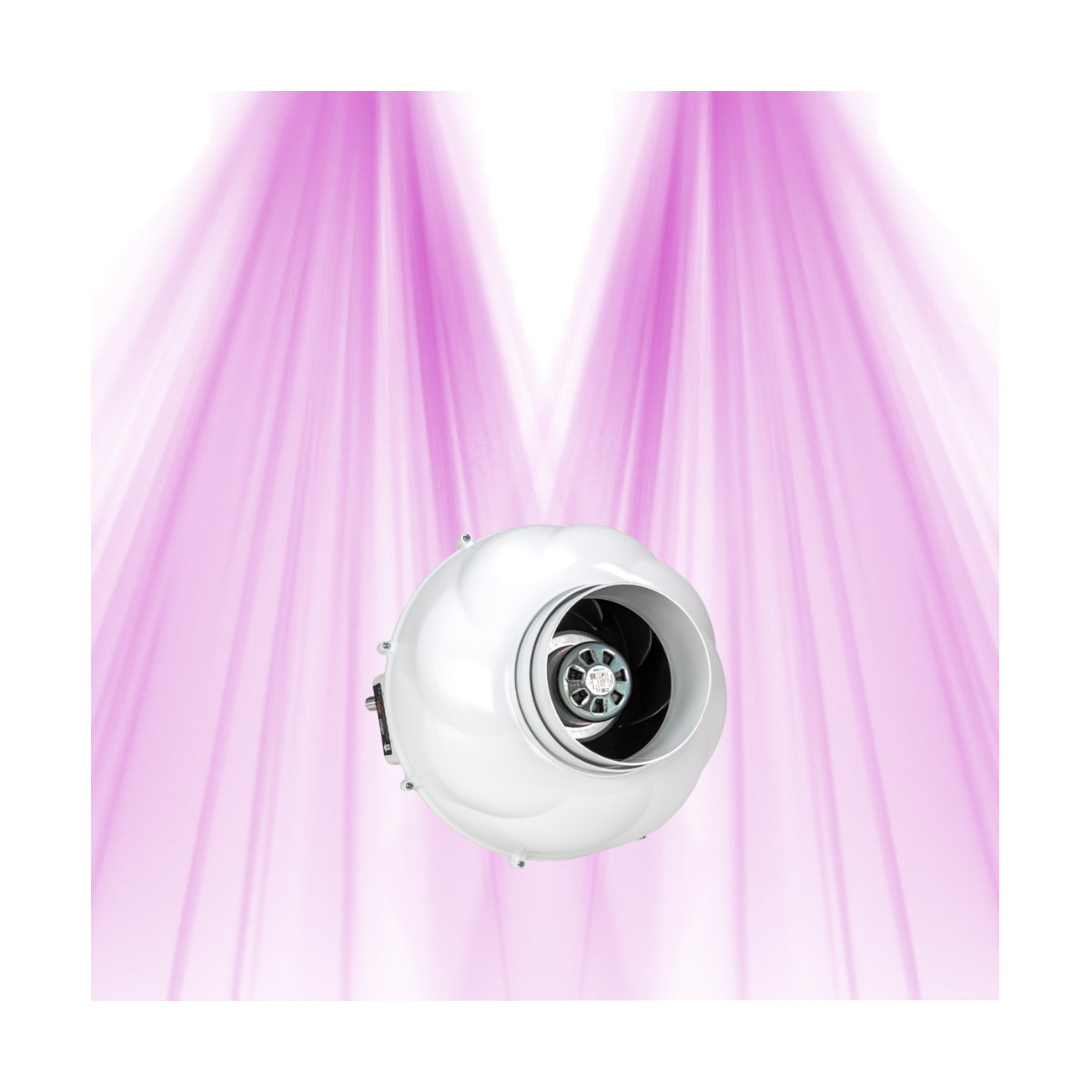

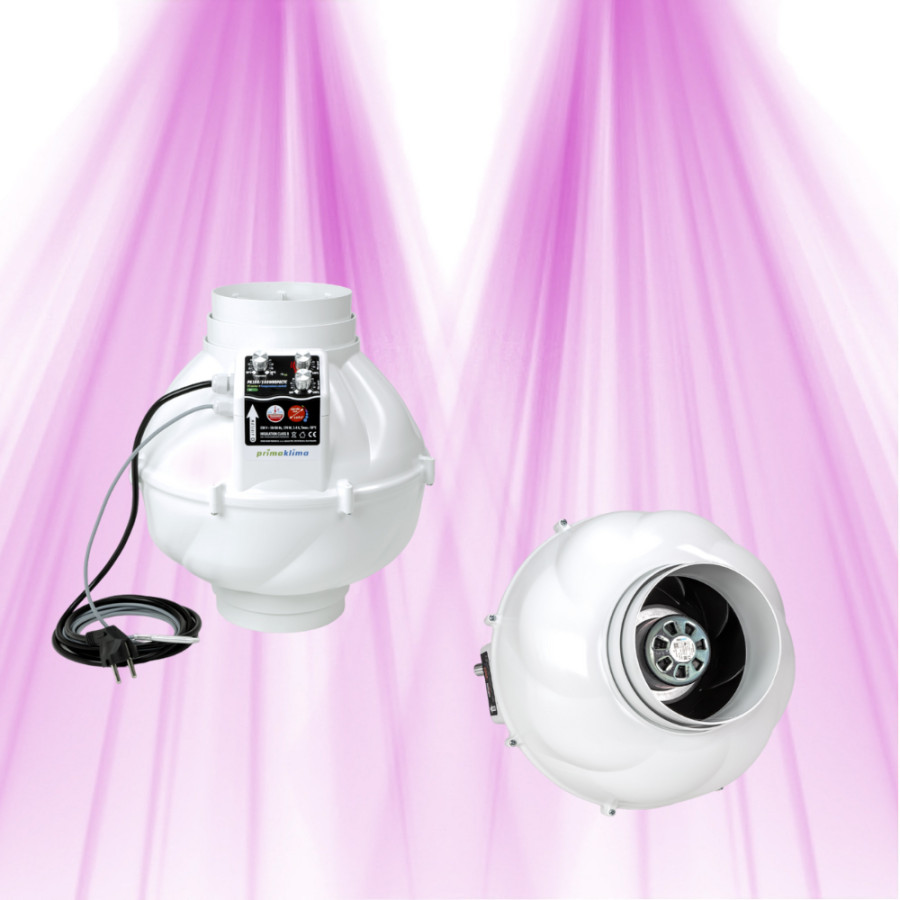

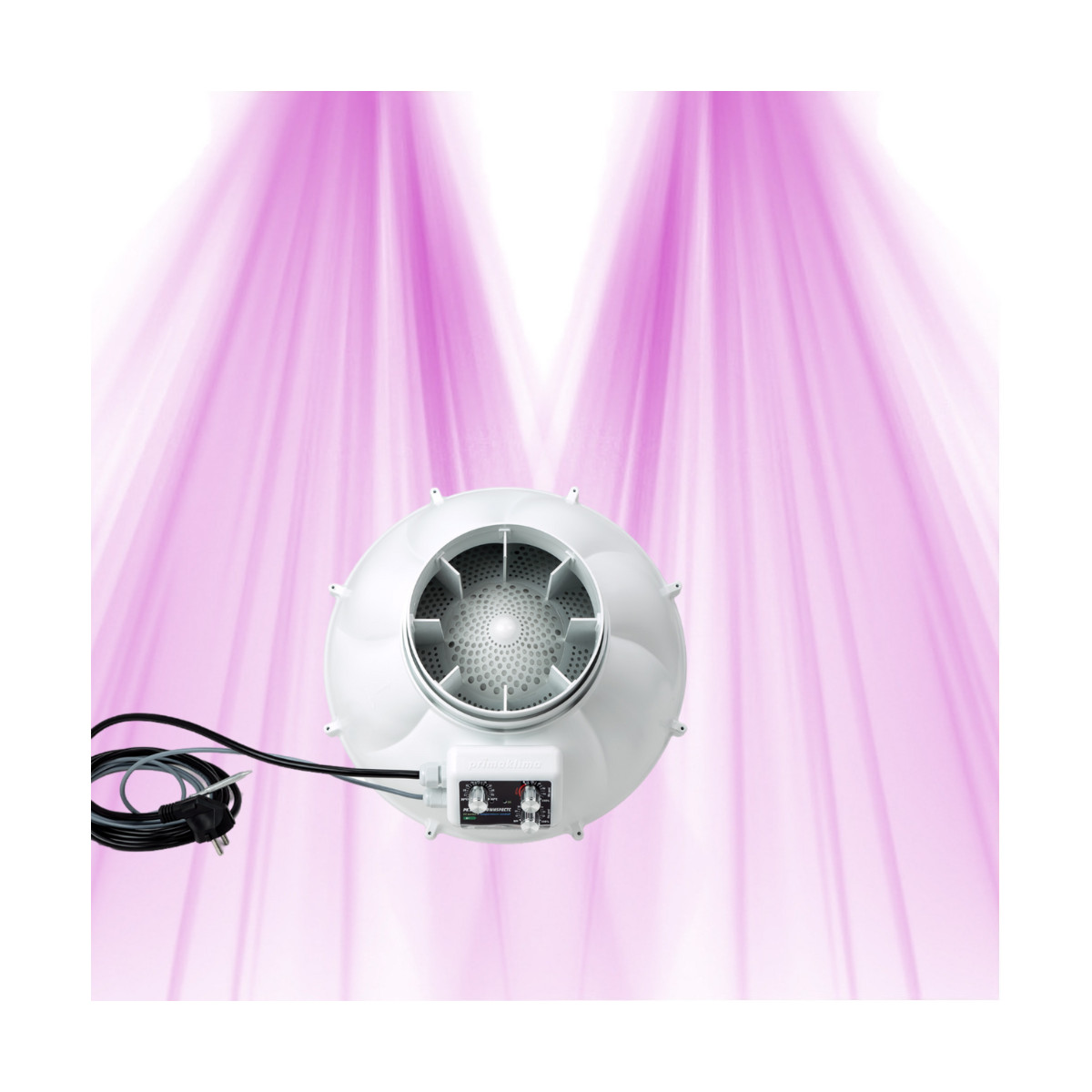

Prima Klima PK160-WHSP: the quietest and most efficient professional air extractor
The Prima Klima PK160-WHSP is a high quality air extractor designed to be efficient and discreet. Featuring an EC motor and temperature control, it belongs to the Whisperblower range. This unique design makes the extractor 2.5 times quieter than other models in its category while offering 35% more air flow and 15% greater pressure resistance.
Product Content
- 1 Prima Klima PK160-WHSP air extractor
- 1 remote temperature probe
Key Features of Prima Klima PK160-WHSP
- Dual 150/160mm diameter to fit 150mm and 160mm ducts
- Maximum air flow of 1400 m³/h
- 170 W power
- Weight of 3.85 kg
- 230 V 50/60 Hz input
- Remote temperature probe
- Adjustable speed and temperature
- Maximum operating temperature of 50°C
- Thermoswitch protection
- German EBM-Papst engine
- Made in Germany
Robust and soundproof
The PK160-WHSP is designed to be sturdy and soundproof. Its nylon polyamide shell offers excellent soundproofing of nearly 4 dB, as well as increased resistance to heat and shock. In addition, the new blade geometry and the long-lasting, maintenance-free ball bearings guarantee particularly quiet operation.
Smart design
The PK160-WHSP has an intelligent design that reduces vibration and reduces power requirements by 15%. Its optimized aerodynamic shape also optimizes airflow to create more pressure with the same energy consumption. The shell, color and material designed for maximum light reflection without loss for plants, is particularly suitable for horticultural uses.
Questions answers
Can the speed of the PK160-WHSP extractor be adjusted?
Yes, the PK160-WHSP is equipped with an adjustable speed system that allows you to modulate the air flow according to needs.
Is the PK160-WHSP extractor compatible with 150mm and 160mm ducts?
Yes, the PK160-WHSP is equipped with a diameter of 150/160 mm which allows it to adapt to 150 mm and 160 mm ducts. This versatility is particularly practical for adapting to different ventilation configurations.
How powerful is the PK160-WHSP extractor?
The PK160-WHSP extractor has a power of 170 W, which makes it particularly efficient and capable of treating a maximum air flow of 1400 m³/h.
Is the PK160-WHSP extractor easy to maintain?
Yes, the PK160-WHSP is designed to be easy to maintain with its long-life, maintenance-free ball bearings. Simply clean the intake grille regularly and ensure that the ducts are not blocked to ensure optimal operation.
Is the PK160-WHSP extractor guaranteed?
Yes, the PK160-WHSP is guaranteed. The terms of this guarantee are specified in the document which accompanies the product. It is recommended that you keep this document and refer to it if necessary.
04 — Questions sur ce produit
Product questions
Your questions about this product
- How is the maximum air flow of 1400 m³/h for the Prima Klima PK160-WHSP calculated?
The maximum air flow rate of 1400 m³/h for the Prima Klima PK160-WHSP extractor is a value provided by the manufacturer, based on its own laboratory tests. Unfortunately, the precise methodology of these tests is not described in the information we have. However, it can be said that this figure is influenced by several features of the fan such as the power of its EC ebm-papst motor, the size of its flanges and other technical aspects. I invite you to discover more technical details about this product in our catalog.
- Is extraction adapted to spaces smaller than 1m² possible without excessive noise?
The Prima Klima WHSP ECTC extractor, equipped with an ultra-quiet EC motor and digital temperature control, is perfectly suited for spaces smaller than 1 m². Its high capacity of 1400 m³/h can be precisely adjusted to ensure effective extraction while minimizing noise. This provides you with efficient and discreet ventilation, even in small volumes where acoustic comfort is important.
- Does the remote temperature sensor allow for precise regulation to prevent overheating while minimizing electrical consumption?
The Prima Klima WHSP ECTC extractor is designed to work with a digital temperature controller, which allows for precise temperature regulation of your growing space. Although the documentation does not explicitly state the presence of an integrated remote temperature sensor, this type of system is perfectly suited to prevent overheating by automatically adjusting ventilation.
This intelligent regulation not only optimizes environmental conditions but also helps to minimize electrical consumption by modulating the extractor speed according to the real temperature needs. Thus, you benefit from an effective balance between performance and energy savings.
- Does the temperature controller automatically adjust the extractor speed based on the sensor, or does it need to be adjusted manually?
The temperature controller of the Prima Klima WHSP ECTC extractor - Ø150/160mm is equipped with a sensor that allows the speed of the extractor to be regulated. However, it is not clearly stated that this regulation is performed automatically based on the sensor. It is likely that a manual adjustment is necessary to adapt the speed according to the measured temperature.
- Can multiple Prima Klima PK160-WHSP extractors be connected in parallel to increase airflow without the risk of overheating or decreased performance?
It is entirely possible to connect multiple Prima Klima PK160-WHSP extractors in parallel to increase the extraction rate without fearing overheating or decreased performance, provided that each unit is properly powered and the room's ventilation is adequate. Models equipped with an integrated temperature controller, such as the PK160-WHSP EC-TC, automatically adjust their operation according to the ambient temperature, optimizing the overall safety and efficiency of the system.
- How is the remote temperature probe adjusted to automate extraction according to ambient temperature?
To automate extraction according to ambient temperature using the remote probe of the Extracteur Prima Klima WHSP ECTC, start by connecting the probe to the controller via the RJ45 connector. Press and hold the controller button for more than 2 seconds to enter the settings menu.
Select Temperature Setting to set the threshold temperature at which the fan will switch to maximum speed, then confirm. Next, set the minimum and maximum speeds in the Min. Speed and Max. Speed menus, before saving the settings by selecting Quit.
The probe, ideally placed at plant height and away from direct heat or moisture sources, will allow the fan to automatically adjust its speed according to the measured ambient temperature, thus ensuring optimal and quiet ventilation.
- How does the movable temperature probe connect to automate the start according to the thermal threshold?
The movable temperature probe of the Prima Klima WHSP ECTC Ø150/160mm connects via an integrated connector designed for this type of accessory. Position the probe where the temperature to be controlled is most representative, sheltered from direct drafts. Once connected, you need to set the controller to the desired thermal threshold for the extractor to start automatically as soon as that temperature is reached.
In summary, simply connect the probe to the dedicated port of the extractor, place the probe wisely, and then adjust the threshold on the integrated controller. This ensures precise and autonomous management of ventilation according to the heat in your growing space.
- Is it possible to integrate the Prima Klima PK160 WHSP temperature controller into a home automation system to automate the flow management according to the indoor temperature of the indoor cultivation?
The Prima Klima WHSP ECTC Ø150/160mm integrates an internal temperature controller that automatically adjusts the speed of the extractor according to the temperature. However, this controller operates in a closed circuit and is not designed for direct interaction with a home automation system.
No standardized interface (such as a 0-10V output or Modbus protocol) is indicated to control this extractor from a home automation central. To automate precise flow management based on temperature via home automation, a complementary device or an extraction system with an integrated compatible home automation command would be needed.
If you are looking for a solution suitable for a home automation installation, we can advise you on alternatives with controllable controls that offer more flexibility.
- What is the precision of the remote temperature probe, and is it possible to adjust the triggering threshold for optimal climate management in a room with several varieties?
The remote temperature probe of the Prima Klima WHSP ECTC offers very precise regulation, even though the exact precision is not specified. The digital controller mainly allows for fine adjustments of the triggering thresholds, so you can set the exact temperature at which the extractor starts or slows down.
This flexibility ensures optimal climate management, even in a room hosting several varieties with different thermal needs. This way, you can perfectly manage ventilation and maintain stable and suitable conditions for all your plants.
- How does the temperature controller of the Prima Klima PK160-WHSP behave in situations of rapid temperature changes in an LED grow box?
The temperature controller integrated into the Prima Klima PK160-WHSP automatically adjusts the speed of the extractor in real-time, allowing it to respond quickly to rapid temperature changes in an LED grow box. This intelligent regulation optimizes thermal stability by increasing the extraction rate during heat peaks and reducing it as soon as the temperature returns to normal. Thus, it prevents overheating or sudden cooling while limiting energy consumption.
Thanks to this precision and the robustness of its components, the system guarantees a stable and healthy environment for the plants, even in the face of rapid fluctuations often encountered with LED lighting.
- Does the remote temperature probe allow for automatic adjustment of the extractor's speed according to the ambient temperature, or do you need to manually adjust the speed and temperature?
The Prima Klima WHSP ECTC extractor integrates a digital temperature controller with a remote probe that automatically adjusts the extractor's speed based on the ambient temperature. Therefore, you do not need to manually adjust the speed or temperature: the extractor modulates its power to maintain an optimal temperature, reduce noise, and save energy. This is a real advantage for efficiently managing your growing space without continuous intervention.
- Full compatibility with voice assistants for remote control of the temperature and speed controller?
The Prima Klima WHSP ECTC-Absaugung allows for precise control of the temperature and speed via its digital controller ECTC-1M connected via RJ-45. However, it does not have native compatibility with voice assistants like Alexa or Google Assistant for direct voice control.
For voice remote control, it is necessary to add a third-party home automation solution capable of interfacing with this system, which involves additional installation and configuration. Thus, voice control is not integrated but can be set up via external gateways.
- Does the German ecmotor motor ebm-papst support continuous heavy usage without overheating or performance loss over several years?
The German EC motor ebm-papst integrated into the Prima Klima WHSP ECTC extractor is known for its robustness and durability, even under continuous heavy use. Its fine control of speed and temperature through an integrated controller helps avoid overheating and optimizes long-term performance. This system ensures excellent longevity without significant power loss, even after several years of use.
- compatible with which range of temperature and humidity sensors for home automation integration via Zigbee or Z-Wave protocol
The Extracteur Prima Klima WHSP ECTC uses a digital controller ECTC-1M-Digital that works with a dedicated temperature probe. This system is not natively compatible with temperature or humidity sensors operating via Zigbee or Z-Wave home automation protocols.
To integrate this extractor into a Zigbee or Z-Wave home automation installation, an intermediate device capable of reading the sensors and then controlling the controller or extractor via a suitable interface will be required.
In summary, the solution involves an external gateway or controller, as the extractor does not communicate directly with these home automation protocols.
- What is the interest of a remote temperature probe on the Prima Klima PK160-WHSP extractor and how does it influence ventilation management in an indoor cultivation?
The main interest of the remote temperature probe on the Prima Klima PK160-WHSP extractor lies in its ability to accurately measure the actual temperature in the heart of the crop rather than in close proximity to the extractor.
This precise measurement allows the controller to automatically adjust the ventilation speed, increasing airflow in the event of a temperature rise and reducing speed when the temperature is stable.
This automatic regulation offers several essential benefits: it prevents overheating, ensures a stable and optimal climate for plant growth, while generating energy savings through adapted and non-permanent operation. In summary, the probe significantly improves ventilation management to maintain an ideal environment and protect your indoor crops.
- What is the power curve in relation to speed on the Prima Klima PK160-WHSP and what is its efficiency in m3 per hour per watt consumed?
The Prima Klima PK160-WHSP is equipped with an EC motor with electronic temperature and speed control, allowing for smooth modulation of power and airflow. Its maximum power is 170 W for a maximum airflow of 1400 m³/h. Consumption therefore corresponds to the set speed, although the exact speed/power curve is not publicly detailed.
In terms of efficiency, it offers about 8.24 m³/h per watt consumed at full power, which is very efficient for an extractor in this range.
- Can we program a time slot for automatic start and stop via the temperature controller provided with the PK160 WHSP ECTC extractor?
The built-in temperature controller of the Prima Klima WHSP ECTC automatically adjusts the extractor's speed according to the measured temperature, but does not allow programming a time slot for starting or stopping. It only operates in automatic mode based on temperature, without any scheduling options.
To control the extractor according to a precise schedule, an external programmable system is necessary as this function is not supported by the supplied controller.
- Does the remote temperature probe allow precise control to avoid overheating in a hydroponic system?
The remote temperature probe associated with the Prima Klima WHSP ECTC - Ø150/160mm controller allows for precise temperature control in a hydroponic system. This system automatically adjusts the air extraction speed based on measurements, thus preventing overheating and ensuring a stable microclimate for your plants.
Thanks to this intelligent regulation, ventilation is modulated in real-time, which is essential for preserving the health of crops without generating unnecessary noise disturbances.
- Does the integrated temperature regulation work reliably continuously without triggering unexpected interruptions even during prolonged full power operation?
The integrated digital temperature controller (ECTC 1M) of the Prima Klima WHSP ECTC extraction – Ø150/160 mm – 1400 m³/h ensures precise and autonomous modulation of the extractor's speed according to thermal variations.
This automatic management operates in a stable and reliable continuous manner, even at full power, without triggering unexpected interruptions. Thanks to its remote probe and dedicated design, it offers fine regulation suitable for prolonged use, ensuring quiet and efficient ventilation operation in your growing space.
- What is the heat limit and actual lifespan of the EBM-Papst motor in continuous use at 50 degrees in a compact growing space?
The EBM-Papst motor of the Prima Klima WHSP ECTC (Ø150/160mm) is designed to withstand an air temperature of up to 50°C in continuous use, which is the recommended limit for a compact growing space.
Its actual lifespan is not specified in exact hours, but thanks to its brushless technology and advanced thermal management, combined with the built-in automatic thermal protection in the extractor, the motor benefits from reliable longevity, even in continuous operation. The ECTC temperature controller ensures optimal regulation to avoid thermal overload, which further extends this usage period.
By adhering to the 50°C limit and maintaining adequate ventilation, the motor thus provides stable and durable performance, perfectly suited to the demanding conditions of a compact indoor cultivation.
