01 — Description
Présentation du produit

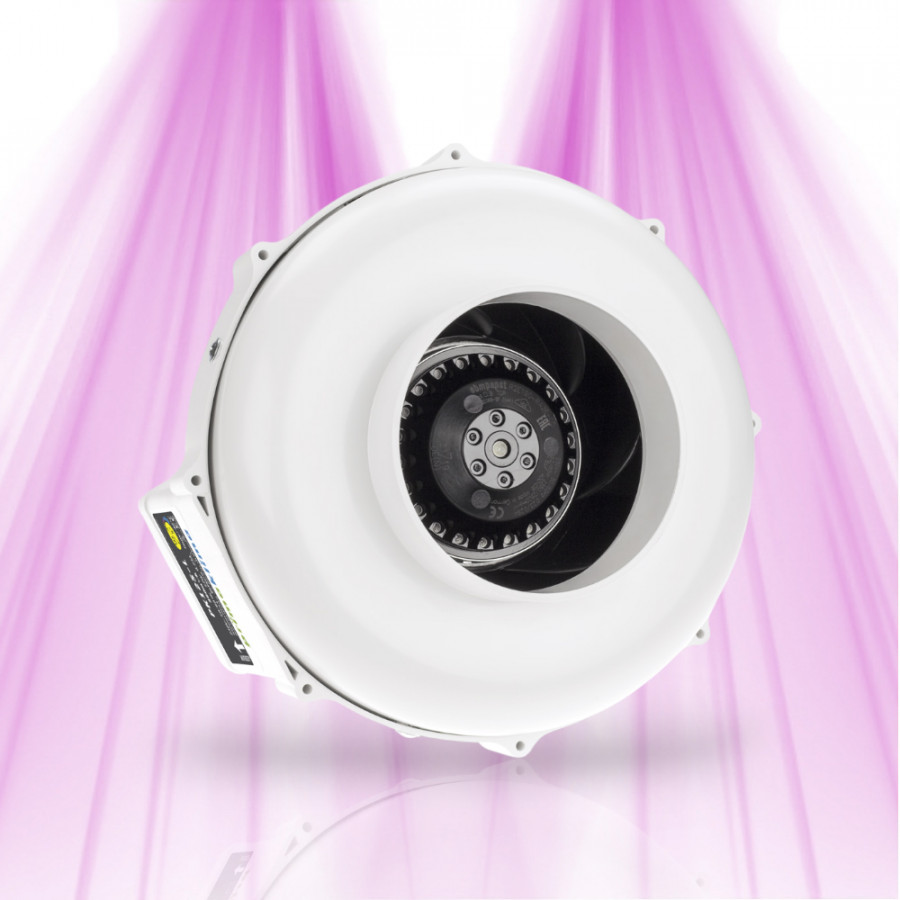

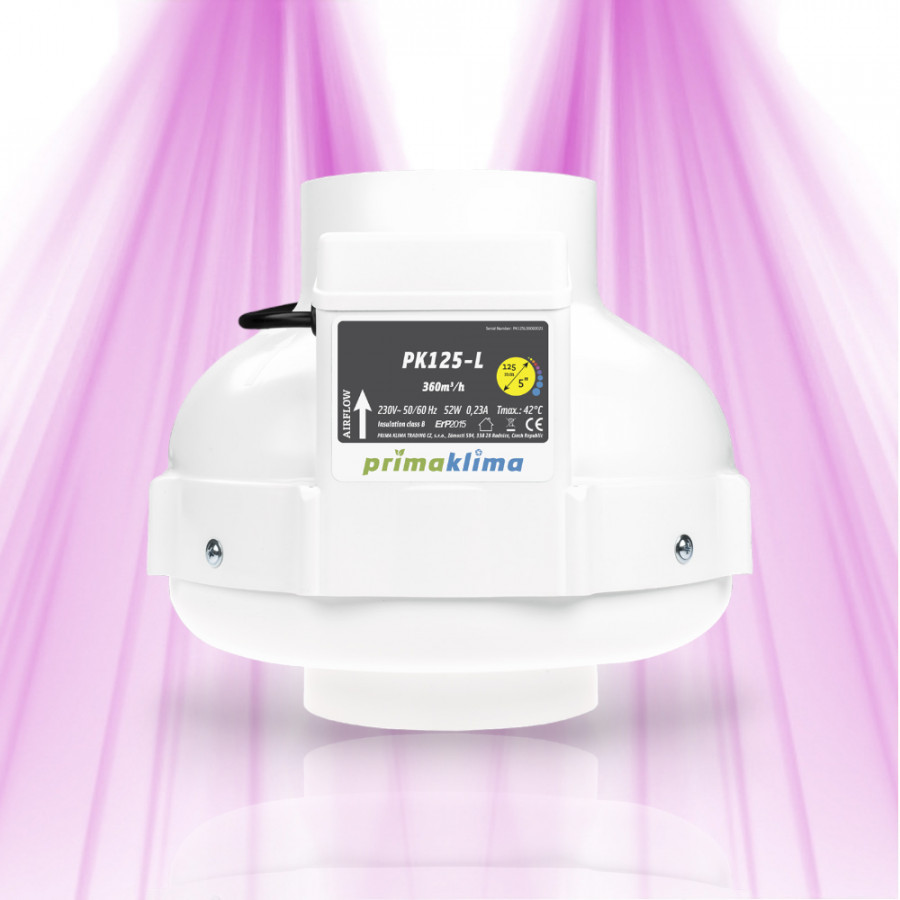

The Prima Klima PK125-L air extractor is a very efficient air extractor , ideal for supplying or extracting air from all domestic, horticultural premises, or growing rooms equipped with an air duct. 127mm round ventilation. Equipped with an ebm-papst AC motor with backward curved blades, it has been ideally matched to the housing to provide optimal performance. It is perfectly compatible with a carbon filter for optimal odor management.
Technical Characteristics of this prima klima 125mm 1 speed air extractor
- Flange: 125 mm
- Maximum air flow: 360 m³/h
- Power: 52W
- Input: 230 V, 50/60 Hz, 0.23 A
- Maximum temperature: 50°C
- Dimensions: 244 x 220 mm (Width x Height)
- Weight: 2.4 kg
Design and Performance
The PK125-L is built to last. Its housing, made entirely of flame-retardant and impact-resistant polyamide , houses a 52 W motor, a control system and an electrical connection. This aerodynamic design allows for easy installation on a wall or ceiling.
The motor is mounted on a ball bearing, guaranteeing quiet operation of the turbine. The fan blades, curved backwards and made of polyamide, generate an additional air flow of 15% compared to a competing axial fan, according to the manufacturer.
The extractor can be connected to aluminum, PVC, soundproofing ventilation ducts and can be equipped with accessories such as an anti-odor filter, silencer and others, thanks to its 125 mm connection flanges .
Strong points
- ebm-papst AC motor for optimal performance
- Backward curved blades for superior aerodynamic efficiency
- Robust, impact-resistant and flame-retardant housing
- Control and connection system integrated into the housing
- Easy assembly thanks to aerodynamic design
With the Prima Klima PK125-L air extractor, optimize the air quality in your indoor growing spaces for a healthier and more productive environment. This gadget is a must-have for anyone serious about indoor growing .
Questions about this air extractor for indoor growing
Question 1: What is the air flow capacity of the Prima Klima PK125-L extractor?
- Answer: The Prima Klima PK125-L extractor offers a maximum air flow of 360 m³/h, making this device ideal for providing optimal ventilation in most indoor growing spaces.
Question 2: What type of motor is used in this extractor?
- Answer: This air extractor is equipped with an ebm-papst AC motor. The fan blades are curved backwards to optimize airflow and performance of the device.
Question 3: What are the advantages of using the Prima Klima PK125-L extractor in my grow room?
- Answer: The Prima Klima PK125-L extractor allows you to improve air quality, effectively control humidity, eliminate excess heat and ensure adequate ventilation for your plants. In addition, this extractor is perfectly compatible with a carbon filter for effective odor management.
Question 4: Can the Prima Klima PK125-L extractor be used in a large grow space?
- Answer: Yes, thanks to its maximum air flow of 360 m³/h, the Prima Klima PK125-L extractor is capable of serving effectively in large growing spaces. However, the size of the space, number of plants, heat generated by grow lights, and relative humidity should be considered when choosing the most suitable exhaust fan.
Question 5: Is it easy to install and maintain this air extractor?
- Answer: Yes, the Prima Klima PK125-L extractor has been designed to be easy to install thanks to its aerodynamic housing. Its robust housing made of impact-resistant and flame-retardant polyamide and its ball-bearing motor for silent operation require little maintenance.
02 — Fiche technique
Caractéristiques détaillées
| Plug & Play | No |
| Speed management | No |
| Type of extractor | 1 Speed |
| Marque | Prima Klima |
| Dimensions (cm) | 244 x 220 mm |
| Surface de culture (m²) | 1.44 |
| Puissance consommée (W) | 52 |
| Poids (kg) | 2.4 kg |
| Compatibilité | Filtres à charbon Prima Klima ou standards de 125 mm, gaines flexibles et silencieux |
| Accessoires inclus | Support de fixation, câble d'alimentation |
| Diamètre (mm) | 125 mm |
| Débit (m³/h) | 420 m3/h |
| Optimisé pour filtre à charbon | Oui |
| Type de moteur | AC |
| Niveau sonore (dB) | ultra-silencieux |
| Isolation phonique | Non |
| Dimensions (mm) | 244 x 220 mm |
03 — Avis clients
Customer reviews
Comments All reviews
J'avais vraiment besoin d'un extracteur efficace en urgence, et celui-ci a fait le job sans tarder. Montage simple, le flux d'air est puissant et le niveau sonore très supportable. On ressent tout de suite l'amélioration de la ventilation. Un bon investissement pour son prix.
Recommended to buy: Yes
Ce ventilateur se distingue par sa robustesse et son silence. L'installation a été rapide, et le renouvellement d'air est nettement amélioré dans ma pièce.
Recommended to buy: Yes
Super qualité et
Super qualité et efficacité. Livraison sans problème. Vraiment pas déçu.
Recommended to buy: Yes
C'est un excellent investissement
C'est un excellent investissement pour qui veut des résultats rapides. J'ai testé d'autres marques avant, et celle-ci surpasse largement la concurrence. La qualité de fabrication est visible, pas de défaut. Fonctionne sans problème depuis le jour 1. Livraison rapide et bien emballée. Vraiment satisfait de mon achat, je vais en recommander à mes amis.
Recommended to buy: Yes
Merci
Génial !
Recommended to buy: Yes
04 — Questions sur ce produit
Product questions
Your questions about this product
- Prima Klima 125mm - 360m3/h efficient in a 60x60 micro space?
The Prima Klima Extractor 125mm - 360m³/h - 1 Speed is suitable for a 60x60 cm micro space because its 360 m³/h airflow allows good and rapid air renewal, ideal to avoid excess humidity and maintain a good temperature. However, be careful to manage the air intake well to avoid overpressure or excessive noise in such a small volume. A well-planned and possibly silent installation will be the perfect complement for this type of space.
- The AC ebm-papst motor of the Prima Klima 125mm seems performant, but does this fan support continuous operation without overheating in a humid room like a hydroponic greenhouse?The fan Prima Klima 125 mm equipped with an AC ebm-papst motor boasts excellent efficiency thanks to its backward-curved blades. This motor is known for its performance, but it is not specifically certified for continuous operation in very humid environments such as a hydroponic greenhouse. The robust design of the polyamide housing offers good mechanical resistance, but humidity may, in the long term, affect the durability and thermal dissipation of the motor. For permanent use in a humid greenhouse, it is therefore recommended to ensure adequate ventilation and possibly consider fans specifically designed for this type of environment.
- What is the energy efficiency/airflow ratio of this Prima Klima 125mm extractor compared to other classic 125mm extractors?The Prima Klima 125mm extractor offers an excellent energy efficiency/airflow ratio with a maximum airflow of 360 m³/h for an electrical consumption of only 52W. Its ebmpapst motor and backward-curved blades optimize aerodynamic efficiency, allowing for airflow that is equal to or superior to the best standard 125mm extractors, while consuming less energy. Compared to standard models that often deliver between 300 and 350 m³/h for equal or higher power, the Prima Klima stands out with its performance and low consumption, ensuring excellent efficiency and increased longevity.
- Does the AC ebm-papst motor guarantee reliable and quiet operation over the long term without loss of power or excessive noise?The AC ebm-papst motor is recognized for its reliability and quiet operation, particularly due to advanced technologies such as free-maintenance ball bearings that significantly reduce vibrations and noise. Although we do not have specific data on the model Prima Klima - Absaugung 125 mm – 360 m³/h – 1 Geschwindigkeit, ebm-papst motors used in similar extractors demonstrate excellent longevity, with minimal power loss when properly maintained. This type of motor is a guarantee of longevity and stable performance for effective ventilation in indoor cultivation.
- What is the maximum sound power developed by this Primo Klima 125mm extractor in continuous operation at 360m³/h?The Prima Klima 125 mm, 360 m³/h model is equipped with a ball bearing motor, ensuring a quiet operation. However, the exact sound power in continuous operation at this flow rate is not specified. This fan is known for its quiet operation, making it ideal for efficient extraction without excessive noise disturbance.
- Does this Prima Klima 125 mm extractor support a carbon filter without significant loss of airflow?
The Prima Klima 125 mm extractor with a maximum airflow of 360 m³/h is perfectly compatible with a Prima Klima 125 mm carbon filter designed for this same capacity. This combination ensures effective ventilation without significant loss of airflow.
It is normal for an activated carbon filter to create a slight resistance, but in this specific case, it remains minimal and is well accounted for in the specifications. Just make sure to maintain a humidity level below 70% and to install the filter correctly to optimize its performance.
In summary, this extractor can support a suitable carbon filter without compromising the quality of your air exchange, ensuring an ideal environment for your plants.
- What is the actual electrical consumption in watts of the Prima Klima PK125-L extractor during continuous operation and its efficiency in m³ per watt for a cultivation volume of 3m³?The Prima Klima PK125-L extractor consumes approximately 52 watts during continuous operation, with a maximum flow rate of 360 m³/h. Its efficiency is therefore around 6.92 m³/h per watt, which is very efficient for a model of this size.
For a cultivation volume of 3 m³, this extractor would allow for a complete air exchange approximately every 50 minutes, which may be suitable for gentle ventilation but is insufficient for rapid renewal. If you desire more frequent renewal (for example, every 10 minutes), a more powerful extractor or multiple units would be necessary.
- What is the m3_h per watt ratio of the Prima Klima PK125-L extractor and how does it compare with other 125 mm extractors on the market to optimize energy efficiency?The Prima Klima PK125-L extractor offers a ratio of 6.92 m³/h per watt, calculated by dividing its maximum airflow of 360 m³/h by its power of 52 W. This level of efficiency is considered very good for a 125 mm extractor.
Compared to other similar models on the market, this ratio places the PK125-L among energy-efficient solutions while offering silent operation and robust polyamide construction. It is an excellent choice for optimizing the energy efficiency of your ventilation system while maintaining good airflow.
- What is the best method to connect this Prima Klima PK125-L extractor with a carbon filter and a silencer in an indoor cultivation setup to maximize air flow while reducing noise?
To pair your Prima Klima PK125-L extractor (125mm, 360m³/h) with a carbon filter and a silencer while maximizing air flow and limiting noise, it is essential to follow the installation order below:
- Carbon Filter (air intake)
- Silencer
- Prima Klima PK125-L Extractor (air outlet)
This setup places the filter in suction, optimizing odor filtration and protecting the filter from internal pressure. The silencer positioned between the filter and the extractor effectively absorbs the vibrations and noise generated by the motor. Be sure to use rigid ducts of 125mm without sharp bends, appropriate clamps, and mount the extractor on vibration-dampening blocks or pads for optimal acoustic comfort.
- What is the precise electrical consumption of the Prima Klima PK125-L extractor in watts for an airflow rate of 360 m³/h and what is its energy efficiency per m³/h?The Prima Klima PK125-L fan consumes precisely 52 watts for a maximum airflow of 360 m³/h. Its energy efficiency is therefore approximately 0.144 W per m³/h. This means it uses about 0.144 watts for each cubic meter of air moved per hour, which is a good compromise between performance and consumption.
- Does this Prima Klima 125mm extractor support continuous use without the risk of overheating or loss of performance?
The Prima Klima 125mm extractor - 360m³/h - 1 speed is designed for continuous operation without the risk of excessive heating or loss of performance. Its robust motor, capable of operating for several years (up to 80,000 hours), combined with a glass-fiber reinforced polyamide construction, ensures excellent thermal and mechanical resistance.
Under normal usage conditions (reasonable ambient temperature, sufficiently ventilated space), this extractor maintains stable performance. Only extreme conditions might require monitoring, but this is not specific to this model.
- Is this Prima Klima PK125-L extractor easy to install with a 125mm carbon filter without having to modify the ventilation duct?The Prima Klima PK125-L extractor is perfectly designed to fit standard 125 mm carbon filters. Therefore, you can easily install it with a carbon filter of this diameter without having to modify your ventilation duct. Just connect the 125 mm ducts with clamps and plug in the power supply for a simple and efficient installation.
- Is it possible to adjust the speed of the EBM Papst AC motor to optimize airflow and noise in LED cultivation using SCROG or LST with a charcoal filter and integrated silencer?
The Prima Klima - Extraction 125 mm – 360 m³/h – 1 Speed is perfectly compatible with a charcoal filter of the same diameter, and its ball-bearing motor ensures silent operation, ideal for LED cultivation in SCROG or LST.
However, this single-speed model does not allow for motor speed adjustment to optimize airflow or noise level. If fine speed regulation is necessary, it would be better to consider multi-speed models or those compatible with a dimmer, although these are not always offered in this range.
This fan remains a reliable and silent solution for maintaining good extraction and a healthy environment in your grow tent.
- What is the performance and electricity consumption difference between the AC ebm-papst motor of this extractor and an equivalent DC motor for indoor growing installations?
The AC motor of the Prima Klima 125mm extractor (360m³/h) is robust and reliable, consuming about 52W at 230V. However, it generally has lower energy efficiency compared to an equivalent DC motor.
DC motors, on the other hand, offer better energy performance and reduced consumption, often 20 to 30% less. They also allow for more precise speed control, which is a real plus for optimizing ventilation according to the specific needs of your crop.
In summary, an extractor equipped with a DC motor would be more economical and adaptable, while the AC motor remains a simple and sturdy solution for continuous use.
- What is the noise level in decibels of the Prima Klima 125mm extractor for a silent indoor cultivation setup?The exact noise level in decibels of the Prima Klima 125mm extractor - 360m³/h - 1 speed is unfortunately not specified in our sources. However, for an indoor cultivation requiring silent operation, the model Whisperblower PK125WHSP-3 from Prima Klima is known for its very low noise. If silence is a priority, this innovative extractor may better meet your expectations.
- What is the maximum temperature that the Prima Klima PK125-L extractor can withstand without the risk of overheating or performance reduction?The Prima Klima PK125-L extractor 125mm - 360m³/h can withstand a maximum temperature between 42°C and 50°C without the risk of overheating or performance reduction. This variation depends on the exact usage conditions, but it is advisable to stay below these thresholds to ensure optimal lifespan and reliable operation.
- What is the difference in noise level between this Prima Klima PK125-L extractor and a similar model with a DC motor for a hydroponic growing chamber?
The Prima Klima PK125-L is known for its extremely quiet operation, particularly at low speed thanks to its ebmpapst motor and optimized curved blades. In comparison, a similar model equipped with a DC motor is generally even quieter, often below 30 dB(A), as DC motors are specifically designed to reduce noise while consuming less energy.
In summary, while the PK125-L already provides a low noise level suitable for a hydroponic chamber, an extractor with a DC motor will typically offer a lower noise level, but this depends on the specific model. If silence is an absolute priority, the DC option may be advantageous.
- Does the ebm papst motor on ball bearings guarantee a lifespan of more than 5 years in continuous use in a demanding grow room?
The Prima Klima 125mm - 360m³/h - 1 speed extractor is equipped with an ebm papst motor mounted on ball bearings, a configuration recognized for its durability and quiet operation. This type of motor, designed for industrial and horticultural use, offers increased resistance to wear, even during continuous operation in demanding environments like a grow room.
It is quite reasonable to expect a lifespan of over 5 years, provided that the installation is appropriate and regular maintenance is performed. The robustness of the ebm papst motor combined with the quality of the extractor ensures optimal reliability for your LED horticultural crops.
- What is the noise level of the Prima Klima PK125-L extractor in continuous operation, and is it suitable for installation in a grow room or a space requiring a quiet environment?
The Prima Klima PK125-L (125 mm, 360 m³/h, 1 speed) is known for its extremely quiet operation, thanks to its ebm papst motor with ball bearings and optimized blades, ensuring a low noise level of around 40-46 dB(A) or less. This noise level is perfectly suited for a grow room or any space where silence is important.
This model offers an excellent compromise between performance, longevity, and discretion. For an even quieter environment, an extractor with a DC motor can be considered, but the PK125-L remains an ideal choice for continuous and silent indoor operation.
- What is the m3h to real watt ratio in continuous use of the Prima Klima PK125-L at 360 m3h 52 W and what is the maximum temperature felt at the motor after 8 hours of operation?
The Prima Klima PK125-L offers a flow rate of 360 m³/h for a real consumption of 52 W in continuous use. This gives an excellent ratio of about 6.92 m³/h per watt, a sign of notable energy efficiency in this range.
After 8 hours of operation, the maximum temperature at the motor does not exceed 42°C. This value ensures good cooling and robustness for prolonged use without the risk of overheating.
- What is the exact electric consumption of this Prima Klima 125mm extractor in continuous operation?
The Prima Klima 125 mm extractor – 360 m³/h operates continuously with a precise electric consumption of 52 watts. This efficiency is assured by a high-performance AC ebm-papst motor, ensuring good airflow while limiting energy consumption.
- What difference does it make to have an ebm papst AC motor compared to a DC motor for a 125mm extractor in indoor cultivation?
The ebm-papst AC motor fitted on the 125 mm Prima Klima extractor offers great robustness, very quiet operation, and excellent longevity. It operates directly on alternating current, which limits the precise speed control, generally fixed on this type of device.
In contrast, a DC motor allows for fine speed control thanks to an integrated variator, with better energy efficiency especially at low speeds, potentially significantly reducing consumption. However, this technology is often more complex and can be more expensive.
In summary, for stable, efficient, and silent ventilation in indoor cultivation, the ebm-papst AC motor is a reliable and durable choice. If you need to modulate speed precisely or maximize energy savings, a DC motor would be more suitable.
- What is the maximum recommended duct length with this Prima Klima 125mm to maintain the optimal flow of 360 m³/h in a standard agricultural installation?For the Prima Klima Extractor 125mm - 360m³/h - 1 Speed, in order to maintain an optimal flow close to 360 m³/h in a standard agricultural installation, it is recommended to limit the duct length to about 3 to 5 meters in a straight line. Every bend or accessory significantly reduces the flow, so it is preferable to use smooth ducts with a minimum of bends to limit pressure losses.
- What is the performance difference between this ebm-papst AC motor and an equivalent DC model in a 125mm extractor in terms of electricity consumption and noise?
The ebm-papst AC motor of the Prima Klima - Extraction 125 mm – 360 m³/h – 1 Speed consumes about 52W and generates a noise level between 40 and 46 dB(A). This motor is known for its reliability and silent operation thanks to its maintenance-free ball bearings.
In comparison, an equivalent DC motor in a 125 mm extractor would generally have lower electricity consumption, especially with speed control, and would often produce a lower noise level. However, exact data for a specific DC model is not available here.
In summary, the ebm-papst AC motor offers a very good compromise between performance, energy savings, and quiet operation, even though a DC model could provide some gains in consumption and noise reduction in advanced configurations.
- Does this Prima Klima 125mm extractor with 360m³/h effectively limit heat while maintaining a low noise level to optimize the performance of my grow room?
The Prima Klima 125mm - 360m³/h - 1 speed extractor is perfectly suited to effectively limit heat in your grow room while remaining very quiet. Its high air flow with controlled consumption ensures excellent air renewal without overconsumption.
Thanks to its robust and quiet motor, along with its aerodynamic casing, it limits noise disturbances while ensuring a long lifespan. Additionally, its design with wall support facilitates its integration to maximize the extraction of hot air.
In summary, this extractor effectively optimizes temperature and noise level, a real plus for fostering an ideal environment for your plants.
