01 — Description
Présentation du produit

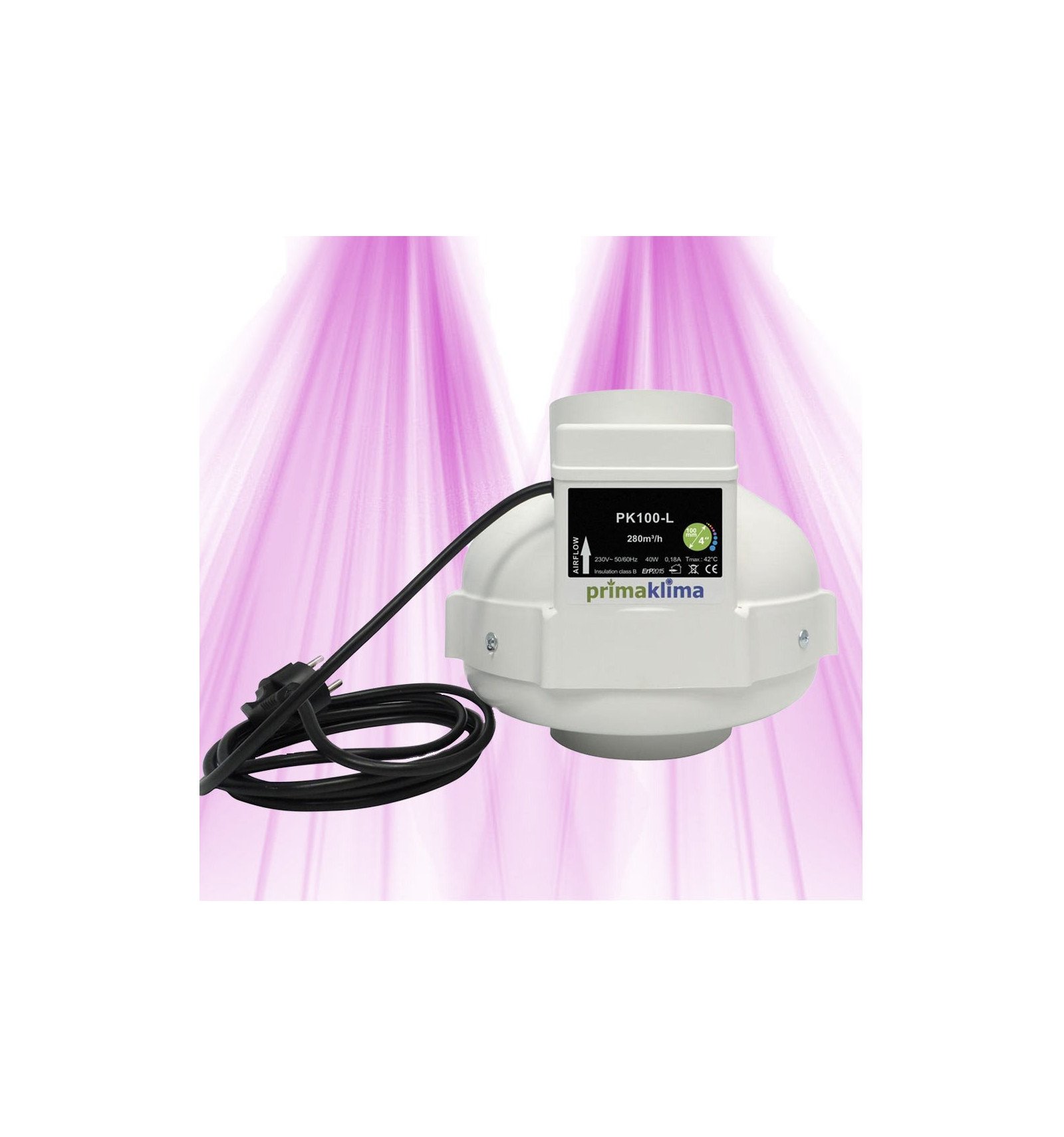

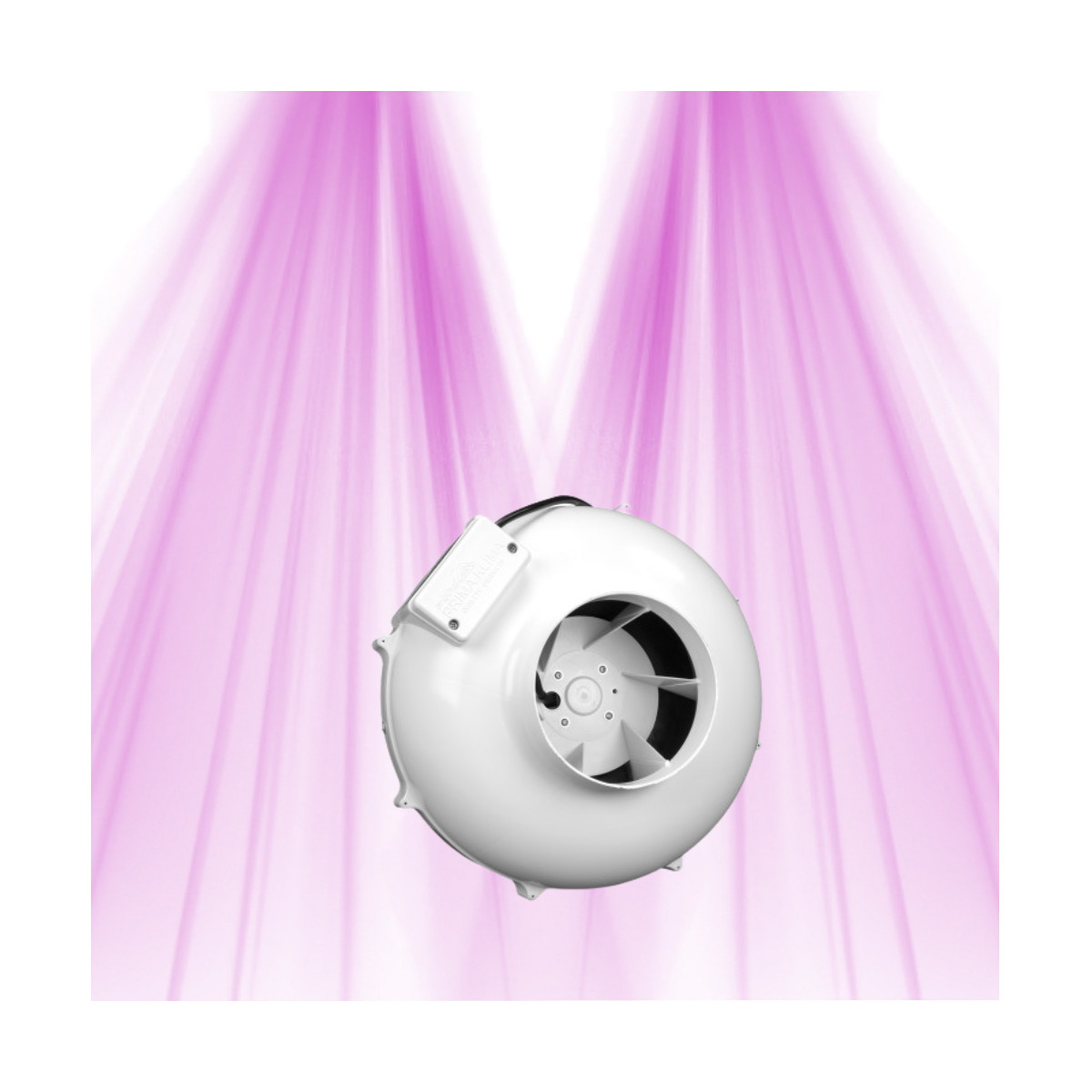

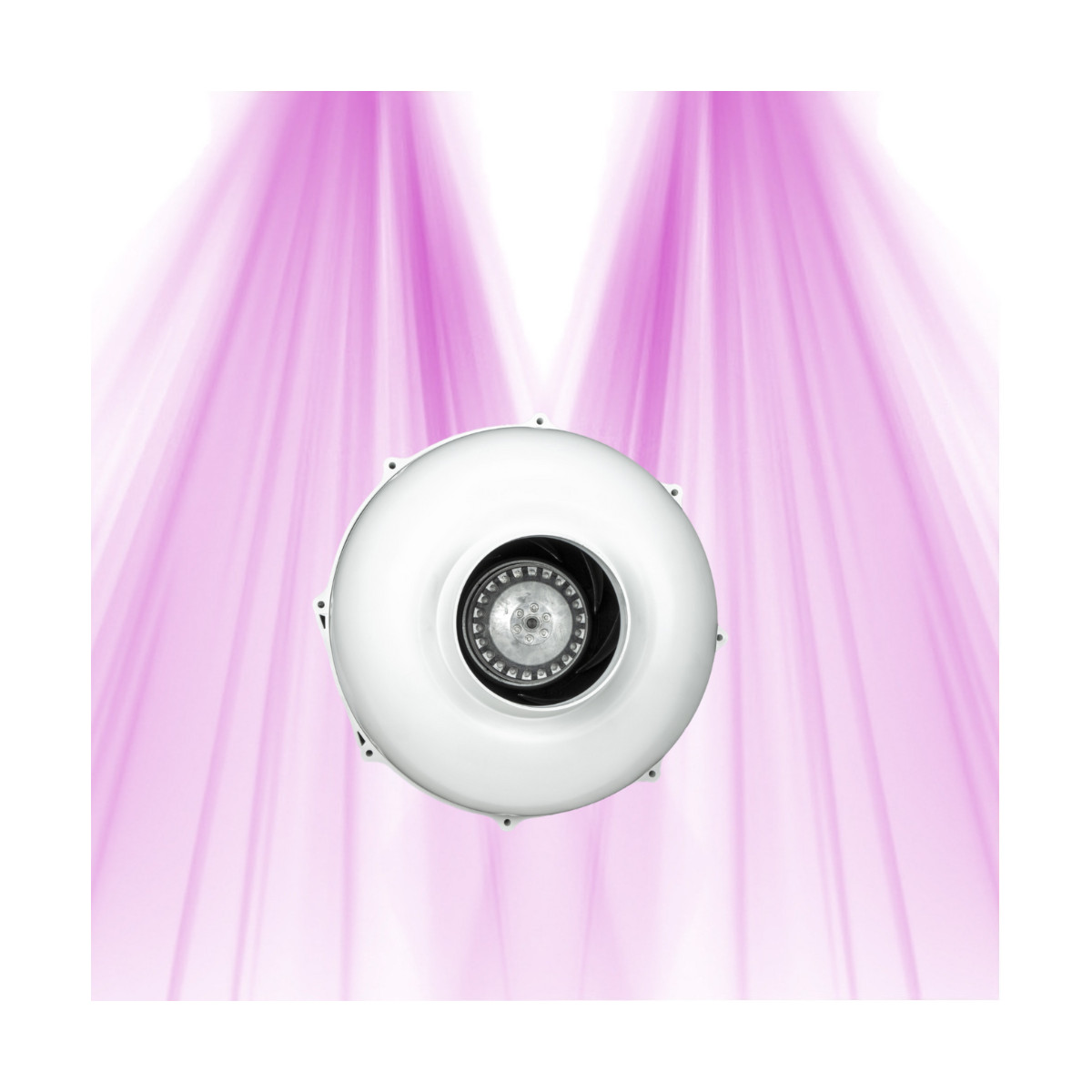

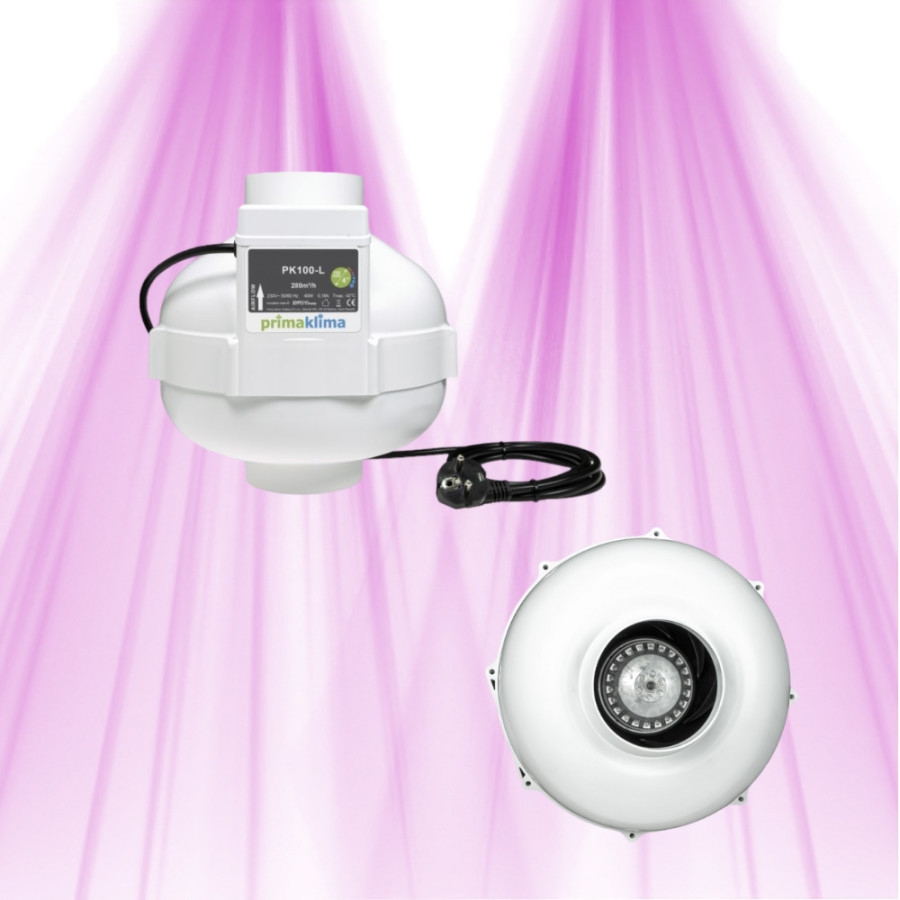

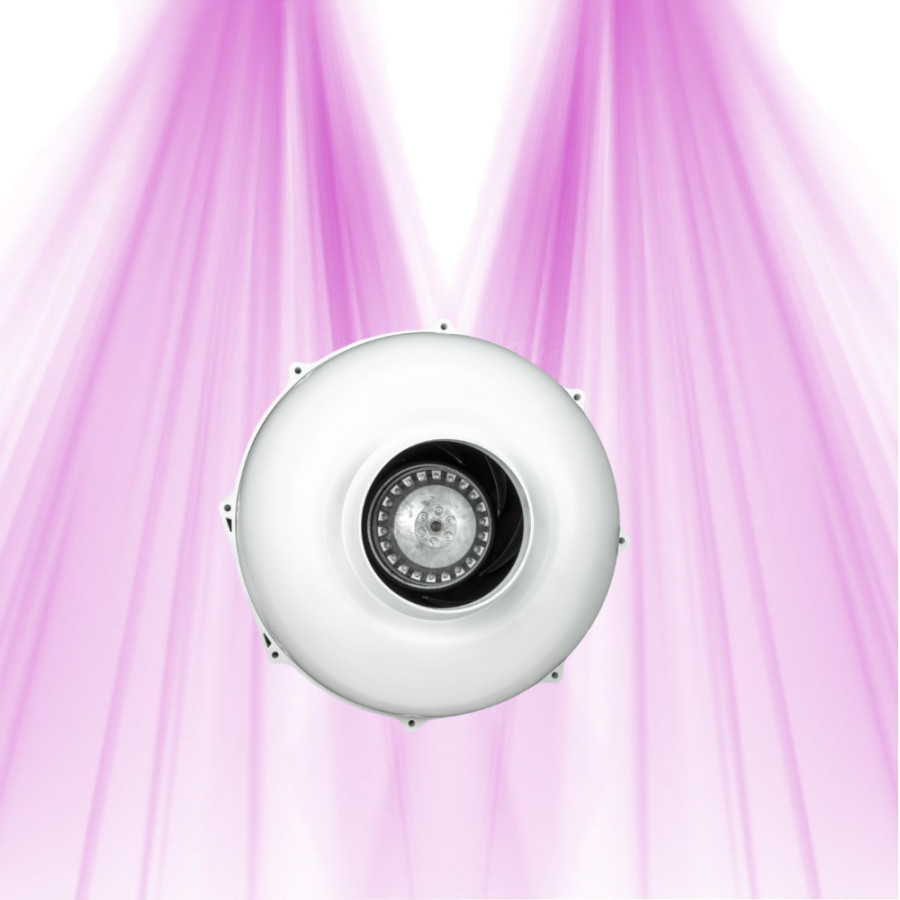

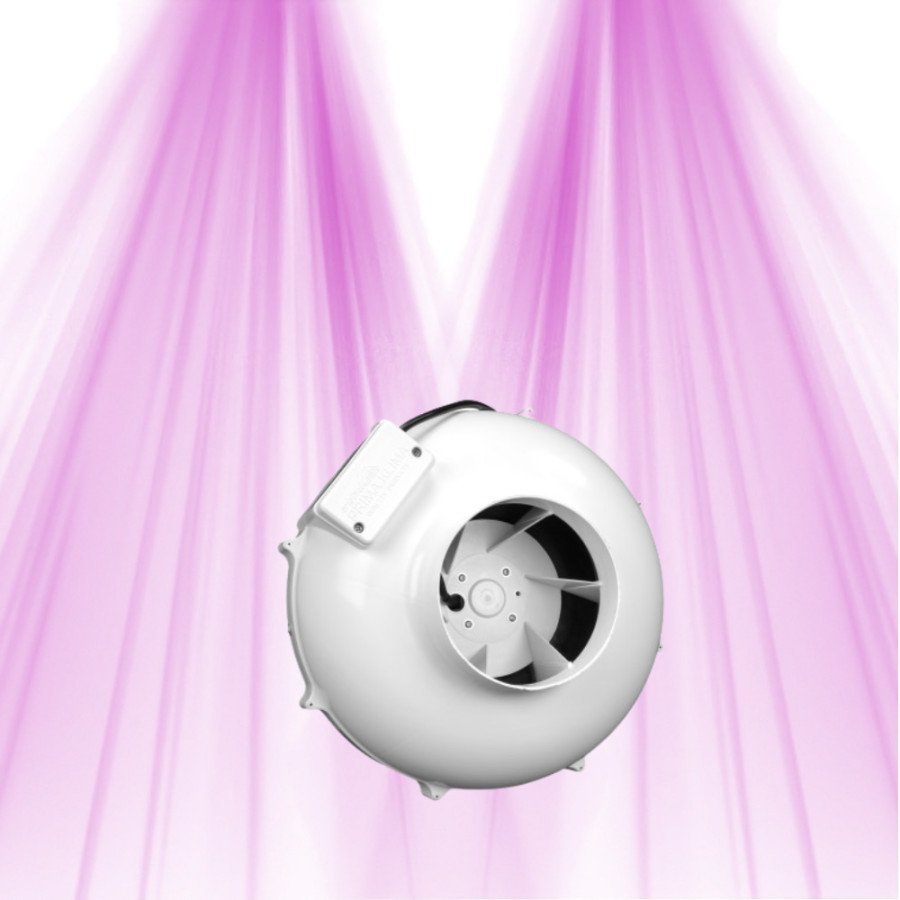

Why choose the Primaklima PK100-L air extractor?
Looking for a reliable and efficient solution for air extraction in your indoor growing space? The Primaklima PK100-L air extractor is the ideal choice for maintaining an optimal environment for your plants. Featuring an ebm-papst AC motor and backward-curved blades, this extractor offers remarkable efficiency while being perfectly suited to its impact-resistant and flame-retardant polyamide housing.
Technical characteristics of the Primaklima PK100-L air extractor
- ebm-papst AC motor
- Backward curved blades for greater efficiency
- Optimized aerodynamic shape
- Impact resistant and durable housing
- Connection and control system integrated into the housing
Advantages of the Primaklima PK100-L air extractor
The PK100-L extractor offers much more than just performance. Its sturdy construction, combined with durable, maintenance-free ball bearings, ensures smooth and quiet operation. Weighing only 3 kg and equipped with compact dimensions, it fits easily into any indoor growing space, offering a maximum air flow of 280 m³/h with a consumption of only 40 W.
Questions about the Primaklima PK100-L air extractor
What is the maximum air capacity this extractor can handle? The Primaklima PK100-L extractor can manage up to 280 m³/h, ideal for ensuring efficient air renewal in an indoor growing space.
What materials are used for its manufacture? The housing of this extractor is made from impact-resistant and flame-retardant polyamide, ensuring long-term durability.
Is it easy to install? With its compact dimensions of 29.4 × 26.3 × 26.3 cm and its weight of 3 kg, the installation of this extractor is quick and easy.
What is the power consumption of this extractor? The extractor consumes only 40 W, providing high performance while being energy efficient.
Is this model suitable for different electrical environments? Yes, the extractor is available in a 115V version and offers alternative connection cables, providing flexibility of use.
For additional tips on managing odors and optimizing your ventilation system when growing indoors, see our article on how to manage odors when growing indoors .
Add the Primaklima PK100-L air extractor to your indoor growing system today for effective air regulation and an optimal environment for your plants.
04 — Questions sur ce produit
Product questions
Your questions about this product
- Is it possible to connect this Primaklima PK100-L extractor in series with a carbon filter without significant airflow loss in a 1m² grow space?
Hello,
Yes, it is completely possible to connect the Prima Klima PK100-L extractor (280 m³/h, 100 mm) in series with a carbon filter in a grow space of about 1m².
Just keep in mind that a carbon filter will add resistance to the air, which can slightly reduce airflow. To minimize this loss, choose a filter suitable for the airflow of your extractor (around 280 m³/h) and ensure that the ducting and connections are well optimized.
In short, with a good connection and a well-sized filter, the impact on airflow will be limited and your ventilation will remain effective for a space of this size.
- Hello, I would like to know if the Prima Klima PK100-L extractor, with its flow rate of 280 m3 per hour, is suitable for a growing room of about 1.5 m3 for my orchids, and if it is possible to program its operation continuously or in time slots to make my plants bloom all year round?
The Prima Klima PK100-L extractor, with its flow rate of 280 m³/h, is well suited for a growing room of about 1.5 m³ such as that for your orchids; it will allow an efficient air renewal without risk of excess. To program its operation continuously or in time slots, it does not have this function built-in, but you can easily connect it to an external timer, which will give you precise climate control to make your plants bloom all year round.
- What difference in noise pollution is observed between this Prima Klima PK100-L extractor and a standard model with the same air flow rate in indoor cultivation with LED?
The Prima Klima PK100-L stands out due to its particularly low noise emissions, thanks to its optimized AC motor and rear-curved blades, designed to reduce noise during operation. Compared to a standard extractor with the same air flow rate, which often uses less effective motors in terms of quietness, the PK100-L offers a more discreet noise level, which is a real benefit for indoor cultivation under LED where acoustic comfort matters. The difference is noticeable, especially if noise is an important criterion for you.
- Is the Prima Klima PK100-L extractor with a diameter of 100mm powerful enough for a 1m² indoor growing space and easy to install without needing additional materials?
The Prima Klima PK100-L extractor, with a capacity of 280 m³/h and a power consumption of 40 W, is perfectly suitable for an indoor growing space of about 1m². It ensures rapid air renewal, essential for maintaining an optimal environment.
Regarding installation, it is very simple: the extractor comes with a mounting bracket that allows for easy installation on the wall or ceiling, without requiring additional materials.
In summary, this extractor is both efficient and easy to set up for your growing space.
- Is the Prima Klima PK100-L extractor sufficient for a 1m² box with 3 plants in growth?
The Prima Klima PK100-L extractor (100 mm diameter, 280 m³/h airflow) is completely suitable for a 1m² box with 3 plants in growth. The volume of air to be renewed in this space is approximately 1.8 m³, which requires an airflow rate between 108 and 216 m³/h for air renewal 1 to 2 times per minute. With its 280 m³/h, this extractor provides more than enough air supply.
However, it is important to keep in mind that adding a carbon filter or ducting with several bends may slightly reduce the airflow. Despite this, the power of the Prima Klima PK100-L remains sufficient to maintain good ventilation in this type of setup.
- What is the compatibility of this extractor with an automatic ventilation control system?
The Prima Klima extractor - Diam 100 mm - 280m³/h - 1 speed - 40W operates with a single-speed AC motor, with no built-in speed controller or electronic management. It can be controlled automatically via an external on/off system, for example using a thermostat or a relay that cuts off or activates its power supply.
However, it does not support continuous speed modulation or control by electronic signal (low voltage), as is possible with extractors equipped with EC motors or built-in controllers. For finer ventilation management, a model compatible with these technologies should be preferred.
- What performance difference in extraction do you notice between this PK100-L model and an extractor of the same diameter but with a DC motor in terms of flow rate and electrical consumption?
The Prima Klima PK100-L has an AC motor with a fixed flow rate of 280 m³/h and a consumption of 40 W. In comparison, an extractor of the same diameter equipped with a DC motor generally offers a similar, often adjustable flow rate, with reduced electrical consumption of 20 to 40%, typically between 25 W and 35 W.
This DC technology also allows for more precise speed regulation, quieter operation, and better longevity. In summary, the DC extractor is more economical and flexible, while the PK100-L remains robust and high-performing with a single speed.
- Does this model support control by speed controller to adjust the air flow according to the needs of the crop?
The Prima Klima extractor - Diam 100 mm - 280m³/h - 1 speed - 40W is equipped with a fixed-speed AC motor, which does not support the use of a conventional speed controller. Using such a controller risks damaging the motor or reducing its lifespan.
To adjust the air flow according to your needs, it is better to opt for an extractor with an EC motor, specially designed for safe electronic speed variation, like the model Prima Klima PK100-ECblue. This type of equipment offers precise, silent, and reliable control of the air flow.
- Does the fixed speed of the PK100-L extractor allow for adjusting the airflow intensity according to the needs of the crop, or is an external variator required?
The fixed speed of the Prima Klima PK100-L extractor does not allow for direct adjustment of the airflow intensity. This model operates at a single, fixed speed (280 m³/h at 40 W). To adjust the flow rate according to the needs of your crop, it is necessary to add an external variator.
If you want integrated and variable control, the PK 100 ECblue version with EC motor offers digital regulation of airflow, providing more precision.
- What is the maximum static pressure of this Prima Klima PK100-L extractor to ensure good performance in a 100mm carbon filter?
The exact maximum static pressure of the Prima Klima PK100-L extractor is not specified in the available sources. However, to ensure good performance in a 100 mm carbon filter, it is generally advised to keep the static pressure below 50 to 60 Pa. This allows the extractor to operate efficiently without significant airflow loss.
With a capacity of 280 m³/h and a power of 40 W, this model performs well for a standard filtration system, especially due to its backward-curved blades that optimize airflow.
If you're looking for an extractor suited for a specific carbon filter or a system with higher static pressure, feel free to consult us to find the most effective solution.
- Are the ball bearings really maintenance-free and guaranteed to last at least 3 years in continuous operation?
The ball bearings of the Prima Klima extractor - Diameter 100 mm - 280m3/h - 1 speed - 40W are indeed maintenance-free. They do not require lubrication or regular maintenance, ensuring smooth and durable operation.
Moreover, the durability is guaranteed by the quality of the Prima Klima motor. For some similar models, the manufacturer's warranty is 3 years in continuous operation, which attests to the robustness of the components, including the bearings. Thus, you can legitimately expect at least 3 years of worry-free maintenance.
- What is the maximum static pressure that this Prima Klima PK100-L extractor can achieve to ensure effective ventilation with activated carbon filters without any significant loss of flow?
The Prima Klima PK100-L extractor, with a maximum flow rate of 280 m³/h and a diameter of 100 mm, is designed to provide an estimated static pressure between 100 and 150 Pa. This range is generally sufficient to compensate for the pressure loss caused by a suitable activated carbon filter, without leading to any significant loss of flow.
This performance relies on its ebm-papst AC motor and rearward curved blades, optimized to maintain efficient air flow in extraction and filtration. Your ventilation will thus remain effective even with a filter installed.
For standard use with activated carbon filters, this model represents an excellent reliable and durable choice.
- What is the durability of the ball bearings used in the Primaklima PK100-L extractor and what maintenance is necessary to ensure optimal performance in an indoor cultivation?
The Prima Klima PK100-L extractor is equipped with
long-lasting, maintenance-free ball bearings, designed to operate without the need for regular lubrication. Their durability is estimated to be about
3 years of continuous operation, varying depending on conditions (humidity, dust, temperature).
No specific maintenance is required for these bearings, making them easy to use in indoor cultivation. To ensure optimal performance, it is sufficient to keep the environment clean and regularly check that the turbine is not obstructed by debris.
- Reliable Prima Klima PK100-L extractor 280 m3h for micro cultivation 60x60?
The Prima Klima PK100-L extractor, with a flow rate of 280 m³/h and a power of 40W, is perfectly suited for a micro-culture of 60x60 cm. Its ventilation capacity ensures effective air renewal, essential for controlling temperature and humidity in such a small space.
Reliable and durable thanks to its ebm-papst motor and robust housing, this model also offers silent operation, a real plus in a small environment. For your growing space, it is an excellent choice that combines performance and low energy consumption.
- What is the average durability of the ball bearings of this extractor when used continuously for a 3 month cultivation?
The ball bearings of the Prima Klima extractor (100 mm diameter, 280 m³/h) are designed for an average durability of about 3 years in continuous operation. They are long-lasting, maintenance-free types, which ensures optimal reliability. For an indoor cultivation of 3 months, this duration is more than sufficient, and you should not encounter any particular issues related to the bearings, even with continuous use.
- What is the maximum acoustic pressure of this extractor and advice to limit noise without reducing the air flow rate?
The documentation for Prima Klima 100 mm – 280 m³/h – 40W does not specify the exact acoustic pressure, but this model is known to be particularly quiet, thanks to its optimized AC motor and rear-curved blades that reduce noise during operation.
To limit noise without reducing air flow, here are some valuable tips:
- Acoustic ducts: they absorb vibrations and sounds while maintaining good air flow.
- Silencer: a noise reducer to be installed on the duct attenuates the sound at the outlet.
- Anti-vibration support: prevents the transmission of vibrations to the structure.
- Avoid tight bends to limit turbulence and noise.
- Regular maintenance: cleaning of blades and ducts to prevent noise nuisance.
With these optimizations, you will enjoy an excellent balance between extraction power and acoustic comfort.
- Is this Prima Klima PK100-L extractor quiet during continuous use in a medium-sized room, and are there tips to limit vibrations and noise without compromising ventilation?
The Prima Klima PK100-L extractor (100 mm diameter, 280 m³/h, 40W) is recognized for being relatively quiet during continuous operation, thanks to its optimized motor and rear-curved blades that limit noise. It is well suited for a medium-sized room without generating excessive noise nuisance.
To further reduce vibrations and noise without compromising ventilation, you can:
- Mount the extractor on vibration-damping supports (anti-vibration mounts or rubber) to absorb mechanical movements.
- Install a sound-absorbing duct between the extractor and the air outlet to reduce the noise of circulating air.
- Secure the extractor stably but not too tightly to avoid directly transmitting vibrations.
- Perform regular cleaning of the blades and motor to maintain optimal balance.
These combined methods ensure good acoustic comfort while ensuring effective and durable ventilation.
- For 280m3h in 100mm, is the noise level still acceptable in a small space?
The Prima Klima 100 mm – 280 m³/h – 40 W is designed to offer a good compromise between performance and discretion. Its optimized motor with ball bearings significantly limits noise, often perceived as a discreet whisper. In a small space, the noise level is generally acceptable.
To further enhance acoustic comfort, it is highly recommended to use a phonetic duct such as Phonic Trap and anti-vibration mounts. These elements can reduce noise by up to 50%, effectively dampening vibrations and air flow noise.
With these precautions, this extractor fits perfectly in a small volume without generating significant noise nuisance.
- What is the maximum length of duct with no significant loss of flow rate with this Prima Klima PK100-L extractor, diameter 100mm, 280m³/h, 40W?
The Prima Klima PK100-L extractor (100 mm, 280 m³/h, 40W) generally supports a straight duct length of
3 to 5 meters without significant flow loss. Beyond that, the presence of bends or carbon filters will lead to a gradual decrease in flow rate, as its fixed-speed AC motor does not compensate for these losses.
For longer ducts or complex installations, we recommend considering an EC motor extractor or a variable speed extractor that maintain optimal flow despite duct constraints.
- Is it possible to connect this Prima Klima PK100-L extractor to a speed controller to adjust the air flow according to the needs of the crop?
The Prima Klima PK100-L extractor is equipped with a single-speed AC motor designed to operate at 280 m³/h with a power of 40W. It is not designed or recommended to be connected to a conventional speed controller. Using a speed controller with this type of single-speed AC motor risks damaging the unit or causing unstable operation.
To be able to adjust the air flow according to your needs, it is preferable to opt for an extractor specifically designed for speed variation, generally a model with a DC motor or compatible with a speed controller.
- With a fixed flow rate of 280 m3/h, what length and diameter of duct can it support without significant pressure loss under LED in SCROG LST cultivation?
For the extractor
Prima Klima - Diameter 100 mm - 280 m³/h - 1 speed, it is recommended to use a rigid duct of 100 mm with a maximum length of about
3 meters to avoid significant pressure loss and ensure a constant flow rate. Beyond that, losses increase, especially if the duct has multiple tight bends.
In a SCROG or LST configuration under LED, ventilation must remain efficient and consistent. Using quality duct, minimizing bends, and avoiding overly restrictive reducers or filters helps optimize the performance of this model.
- What is the exact electrical consumption per m3/h for this Prima Klima extractor 280 m3/h 40 W?
The electrical consumption of the Prima Klima extractor with a diameter of 100 mm, output of 280 m³/h and power of 40 W is calculated by dividing the power by the air flow rate:
40 W ÷ 280 m³/h ≈ 0.143 W per m³/h.
In other words, this extractor consumes approximately 0.143 watts per cubic meter of air extracted per hour, which is very efficient for its category.
- Is the Prima Klima PK100 L air extractor powerful enough for a 1m² growing space with a 600W lamp in terms of air renewal and heat control?
The Prima Klima PK100-L air extractor, with an airflow of 280 m³/h and a power of 40 W, is perfectly suited for a 1 m² growing space under a 600 W lamp. It ensures sufficient air renewal (well beyond the recommended 108 to 216 m³/h) to effectively evacuate the heat generated and maintain a stable temperature. Its design optimizes silent and durable ventilation while remaining easy to install.
- Is the Prima Klima PK100-L extractor reliable in the long term, what is the actual noise level during continuous operation, and is there after-sales service in case of motor or bearing defects?
The Prima Klima PK100-L extractor (100 mm, 280 m³/h, 40W) is known for its long-term reliability, with ball bearings designed for approximately 3 years of continuous operation without maintenance. Its AC motor and rear-curved blades provide a relatively quiet operation, a good compromise between power and acoustic comfort.
Regarding the actual noise level, this model is specifically designed to limit noise disturbances, even with prolonged use, without generating excessive noise.
As for the after-sales service, Prima Klima has a good presence in European distribution, which suggests possible support in case of motor or bearing defects, but it is advisable to check warranty and after-sales service conditions with your seller.
- What is the maximum static pressure of this Prima Klima PK100-L extractor to optimize performance with carbon filters?
The maximum static pressure of the Prima Klima PK100-L fan (Ø 100 mm, 280 m³/h, 40 W) is generally around 150 Pa. This value allows optimizing performance with carbon filters, which introduce a significant pressure drop. To maintain good airflow despite the filter, this fan ideally operates at a reduced flow of around 180 m³/h, ensuring good extraction without compromising performance. These figures correspond to the standards of 100 mm inline fans in this range.
