01 — Description
Présentation du produit

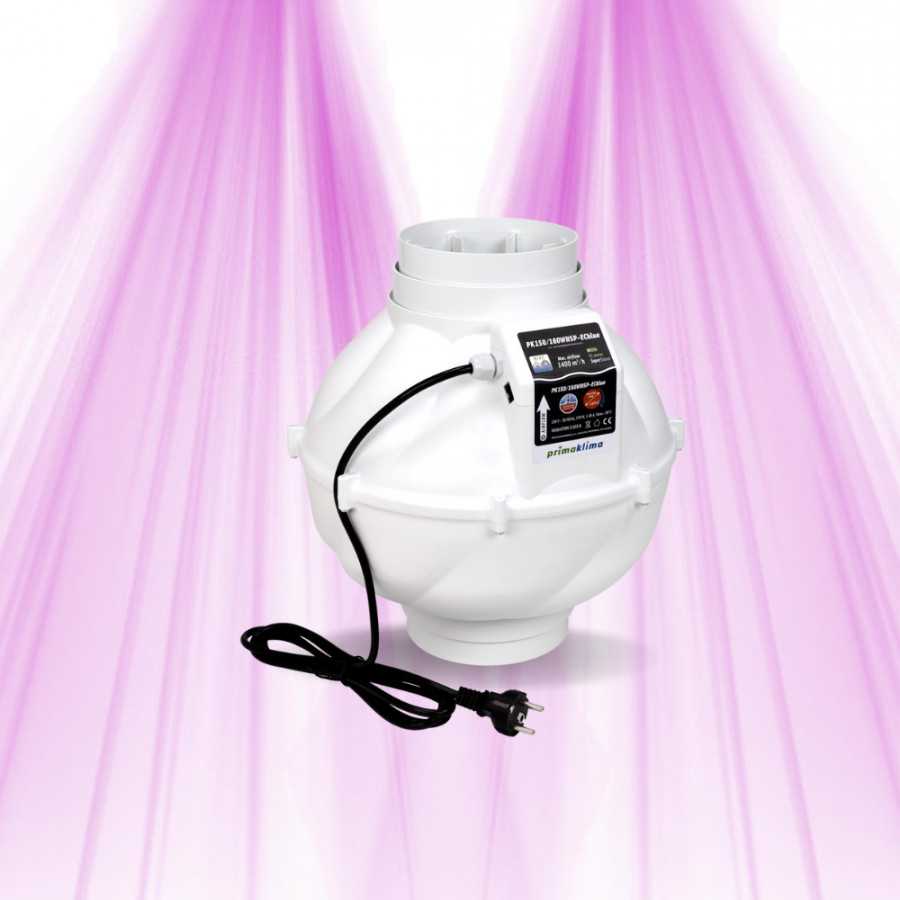

Technical characteristics of the Prima Klima WHSP EC BLUE extractor
- Diameter: 150/160 mm
- Air flow: 1400 m³/h
- Compatible with ECTC-1M-Digital temperature and humidity controller
- Silent
- In-line duct fan with ebmpapst EC motor.
- The RJEC connector can be used to connect the fan with the PK-EC digital fan controller, easily via a standard LAN cable.
- Powerful, quiet, energy efficient
- Optimized aerodynamic shape
- Impact-resistant and durable housing made of flame-retardant polyamide (nylon)
- Connection and control system integrated into the case
- Power: 170W
- AC Input: 230 V, 50/60 Hz, 1.4 A
- Tmax: 50°C
- Dimensions: 334 x 367 mm (LxH)
- Weight: 3.75 kg (gross weight 5.40 kg)
| Characteristic | Description |
|---|
| Outer envelope | Flame-retardant impact-resistant polyamide |
| Control and electrical connection box | Integrated into the aerodynamic casing, facilitates attachment to a wall or ceiling |
| Engine | 170W |
| Connection flanges | Allows connection to aluminum, PVC, soundproofing ventilation ducts and can be accessorized with an anti-odor filter, silencer and other equipment |
| Premium engine | ZIEHL-ABEGG |
| Turbine | Backward curved blades |
| Energy consumption | Weak |
| Sound emissions | Weak |
| Thermo-contact protection | Yes |
| Shape | Aerodynamically optimized |
| Housing | Shock resistant and durable |
| Speed | Controllable from 0 to 100% via the Prima Klima digital box (optional) |
| Engine growling noise | None |
| Power loss | None |
The Prima Klima WHSP EC Blue extractor is a premium quality ventilation device offering optimal performance with minimal energy consumption and reduced noise emissions.
Using the Prima Klima WHSP EC BLUE extractor
The Prima Klima WHSP EC BLUE air extractor is designed for use in hydroponic or plant crops in general. Its large air flow capacity of 1400 m³/h and its diameter of 150/160 mm make it an efficient device for extracting air from your growing space.
It is also compatible with the ECTC-1M-Digital temperature and humidity controller, allowing you to precisely adjust the temperature and humidity of your grow space. This can be particularly useful for achieving optimal results in hydroponic crops, where growing conditions must be precisely controlled.
Its new design optimizes air flow, which creates more pressure for the same energy consumption as conventional models, even producing less noise.
Finally, the Prima Klima WHSP EC BLUE extractor is designed to be quiet, which is an advantage when growing indoors or in confined spaces. You can therefore use this device without being disturbed by noise.
Conclusion
In summary, the Prima Klima WHSP EC BLUE air extractor is an efficient and quiet device designed for extracting air in hydroponics and plant crops in general. It can be used in conjunction with the ECTC-1M-Digital Temperature and Humidity Controller to precisely adjust your growing environment, which can help you achieve better results.
04 — Questions about this product
Product questions
Your questions about this product
- Hello, I would like to know if the Prima Klima WHSP EC BLUE extractor can operate continuously without risk of overheating, especially when the ambient temperature approaches the maximum announced 50°C, and if its integration with the ECTC-1M-Digital controller allows for effective automatic speed regulation based on defined temperature thresholds.
The Prima Klima WHSP EC BLUE - Ø150/160mm - 1400m³/h extractor is designed for continuous use up to 50°C, which is its maximum ambient temperature limit. It features thermal protection that automatically shuts off the motor in case of overheating, ensuring safety and optimal lifespan.
Furthermore, when paired with the ECTC-1M-Digital controller, it allows automatic speed regulation based on the temperature thresholds you set, providing efficient and appropriate management of thermal variations in your installation.
- Hello, I would like to know if this Prima Klima WHSP EC BLUE extractor is easy to install alone, especially for an amateur handyman like me? Thank you.
Hello, the installation of the Prima Klima WHSP EC BLUE extractor remains accessible for an amateur handyman, provided the instructions are carefully followed. You must be cautious about electrical safety (power cut before connection) and ensure a clean and stable assembly. The connection to the ECTC controller may require a little more attention, but nothing too technical. In summary, with a bit of care, it is perfectly feasible to do it alone.
- Technical question for product page extractor Prima Klima WHSP EC BLUE:What is the average efficiency g/Watt of this Prima Klima WHSP EC BLUE extractor at full flow and how does it perform in terms of static pressure when connected to a 5m PVC duct of 160mm?
The Prima Klima WHSP EC BLUE extractor displays an efficiency of about 8.24 m³/h per watt at full flow, with a maximum flow rate of 1400 m³/h for a power consumption of 170 W. This is very efficient for an extractor of this range.
Regarding the static pressure when used with a 5-meter PVC duct of 160 mm, although exact data is not published, its design with backward-curved blades allows it to maintain good static pressure and ensure effective airflow despite the resistance created by the duct.
This fan is therefore ideal for an installation requiring a balance between extraction power and low consumption, while remaining quiet.
- Can the speed of the Prima Klima WHSP EC BLUE extractor be automatically adjusted via the ECTC-1M-Digital controller based on the temperature and humidity measured in the cultivation?
The speed of the Prima Klima WHSP EC BLUE extractor can be automatically adjusted via the ECTC-1M-Digital controller based on the temperature. As soon as a defined temperature threshold is reached, the extractor switches to maximum speed and then returns to minimum speed when the temperature drops. However, automatic control based on humidity is not supported by this controller.
- Does the warranty really cover motor or digital controller failures after 1 year of intensive use in hydroponic cultivation?
The Prima Klima WHSP EC BLUE Ø150/160mm is a very robust extractor, designed for intensive use in hydroponic cultivation, with an estimated lifespan of 80,000 hours and thermal protection for the motor. Its EC motor is known for its reliability and efficiency. However, no source clearly states whether the warranty covers failures of the motor or the digital controller after one year of intensive use.
For a precise answer on this matter, it is recommended to consult the warranty conditions provided with the product or to contact the customer service directly of the point of sale. This will allow you to secure your investment and fully benefit from the support if needed.
- Full compatibility confirmed with voice assistants to automate flow management according to temperature and humidity detected by ECTC1MDigital?
The Prima Klima WHSP EC BLUE extractor is indeed compatible with the ECTC-1M-Digital controller to manage temperature and humidity in your growing space.
However, there is no explicit confirmation of full compatibility with voice assistants (Alexa, Google Assistant) allowing for automated flow based on data collected by the ECTC-1M-Digital.
This setup remains interesting for precise traditional control, but if you are looking for full voice integration, you will need to consider additional home automation solutions that could interface with this system.
- What is the difference in power consumption and noise level observed between the Prima Klima WHSP EC Blue 170W extractor and a standard 150mm 150W model without an EC motor for indoor growing?
The Prima Klima WHSP EC BLUE extractor at 170W, while slightly more powerful than the standard 150W model, benefits from a very efficient EC motor. This means it often consumes less energy for an equivalent airflow, optimizing your electricity consumption.
In terms of noise, this fan is significantly quieter due to its aerodynamic design and EC motor, which reduces vibrations and unwanted noise. In contrast, a standard extractor with an AC motor generally produces more noise, due to greater vibrations.
In summary, you will gain in energy efficiency and sound comfort with the Prima Klima WHSP EC BLUE, ideal for a more efficient and discreet indoor growing experience.
- Does the connection to the ECTC 1M digital controller allow for automatic speed adjustment based on temperature and humidity in a compact 60x60cm growing space?
Connecting the
Prima Klima WHSP EC BLUE Extraction – Ø150/160 mm – 1400 m³/h to the
ECTC 1M Digital controller allows for automatic fan speed adjustment based on the temperature in your 60x60 cm growing space. This controller includes an auto mode that modulates ventilation according to set temperatures, with minimum and maximum speed settings, facilitating precise and efficient management.
However, this system does not take humidity into account for automatic speed adjustment. For humidity-based regulation, an additional solution would need to be considered.
This setup is therefore particularly suitable for controlling heat and ensuring good ventilation in a compact space, by adjusting speed according to the detected temperature.
- Is the Prima Klima WHSP EC BLUE extractor compatible with the ECTC-1M Digital controller for 60x60 micro cultivation, possible and precise?
Yes, the Prima Klima WHSP EC BLUE extractor - Ø150/160mm - 1400m³/h is perfectly compatible with the ECTC-1M-Digital controller. This controller supports several models of Prima Klima WHSP EC BLUE, allowing precise adjustment of the ventilation, which is essential for a 60x60 micro cultivation. You will be able to manage speed and temperature with great precision to optimize the indoor climate of your growing space.
- What is the precise electrical consumption in minimum mode with the ECTC-1M-Digital controller to optimize performance while limiting heating?
The
Prima Klima WHSP EC BLUE extractor with ECTC-1M-Digital controller can consume up to 170W at full power for a maximum flow of 1400m³/h. In minimum mode, the exact consumption is not officially specified, but it is significantly reduced thanks to the electronic management of the EC motor, which automatically adjusts the speed according to the temperature.
This setting allows for optimizing performance while limiting heating, providing effective ventilation with controlled electrical consumption. For a precise estimate, the minimum consumption is generally well below the maximum power, but it will depend on the actual needs of your space and the configuration of the controller.
- Does compatibility with the ECTC 1M Digital controller allow for automatic adjustment of the flow rate according to the temperature and humidity detected in a grow room of less than 10m2?
The fan Prima Klima WHSP EC BLUE Ø150/160 mm is indeed compatible with the ECTC-1M-Digital controller. The latter allows for precise automatic adjustment of the flow rate based on the temperature detected in your grow room, with customizable thresholds to perfectly fit a space of less than 10 m².
However, this automatic control does not explicitly extend to the management of the detected humidity. If combined temperature + humidity regulation is essential, you will need to consider a complementary device.
In summary, this combination offers you efficient and reliable automatic control based on temperature, ideal for optimizing the ventilation of your horticultural LED grow. It's a real plus for managing growth conditions effortlessly.
- Compatible with which range of home automation assemblies for total remote control via API or standard protocol?
The Prima Klima WHSP EC BLUE extractor is designed to be controlled with the ECTC-1M-Digital controller, which accurately manages the temperature and humidity of your growing space. This dedicated system optimizes the operation of the extractor according to these parameters.
However, it is not natively compatible with consumer home automation ranges using standard protocols like Zigbee, Z-Wave, or MQTT, nor with voice assistants. For remote control via API or these protocols, it is necessary to integrate a home automation gateway or a controller capable of interfacing the ECTC-1M-Digital controller with your home automation system.
In summary, this extractor offers effective specialized control but requires additional equipment to integrate into a complete home management system.
- Does the Ziehl Abegg motor ensure long-term performance without loss of power or humming noise even under continuous use and in a humid environment such as hydroponic cultivation?
The Ziehl-Abegg motor integrated in the Prima Klima WHSP EC BLUE extractor is specially designed to ensure optimal reliability over time, without loss of power or humming noise. Its ECblue technology allows for silent operation, even under continuous use.
This motorization is perfectly suited for humid environments, such as those encountered in hydroponic cultivation, thanks to its robustness and resistance to moisture, vibrations, and temperature variations. Its quality is certified by strict standards that guarantee durability and consistent performance.
- What is the actual electrical consumption in kWh when operating 24h a day for one month of the Prima Klima WHSP EC Blue 170W extractor at a maximum flow rate of 1400 m3/h while maintaining maximum efficiency and low noise level?
The Prima Klima WHSP EC BLUE fan with a maximum power of 170 W operates at an airflow of 1400 m³/h. When running continuously 24 hours a day for one month (30 days), its approximate electrical consumption is 122 kWh.
This calculation is based on the use at full constant power (0.17 kW × 24 h × 30 days). However, thanks to its highly efficient EC motor and ECTC digital controller, it is possible to adjust the speed according to the needs, which allows for excellent efficiency while reducing actual electrical consumption and maintaining a very low noise level.
This combination makes the Prima Klima WHSP EC BLUE a high-performing and economical extractor, ideal for effective and discreet ventilation.
- What is the difference in noise level between the Prima Klima WHSP EC Blue extractor and a classic extractor with the same airflow in a growing space?
The Prima Klima WHSP EC BLUE (Ø150/160mm, 1400 m³/h) is clearly distinguished by its noise level, thanks to its EC motor and optimized design. It generates approximately 2.5 times less noise than a classic AC motor extractor with the same airflow, with an estimated noise level of less than 50 dB(A) in a closed space of about 1 m³.
In practice, this represents a noise reduction of approximately 50% or more, offering a more discreet operation and a quieter growing environment, without compromising on airflow or energy performance.
- What is the maximum pressure loss supported by the Prima Klima WHSP EC BLUE extractor at a maximum flow rate of 1400 m³/h, and how does this impact the selection of the ventilation duct in a growing area of 1.2x1.2m?
Prima Klima WHSP EC BLUE Extractor - Ø150/160mm - 1400m³/h offers a maximum flow rate of 1400 m³/h with the capability to handle high static pressure thanks to its efficient EC motor and aerodynamic design. However, the exact maximum pressure loss at this flow rate is not specifically indicated.
For a growing area of 1.2 x 1.2 m, this flow rate is more than sufficient to ensure effective air renewal. It is crucial to choose a suitable duct with a diameter of 150/160 mm, limiting its length and the number of bends to reduce pressure losses. A rigid or semi-rigid duct is recommended to minimize friction and turbulence.
In summary, although the precise value of the maximum pressure loss is not published, the Prima Klima WHSP range is designed to handle significant resistance. Ensure to optimize the extraction circuit to maintain maximum flow, guarantee optimal ventilation, and sustain a healthy environment in the cultivation.
- What is the exact sound level in decibels of the Prima Klima WHSP EC Blue extractor at full power in order to compare it with other models for a silent indoor installation?
The exact sound level in decibels of the Prima Klima WHSP EC BLUE - Ø150/160mm - 1400m³/h extractor at full power is not precisely specified, but it generates approximately 2.5 times less noise than a conventional AC motor extractor of the same flow rate. It is estimated to produce sound below 50 dB(A) in a closed space of about 1 m³, making it a particularly quiet model, ideal for an indoor installation where sound comfort is essential.
- How does the connection between the Prima Klima WHSP EC BLUE and the ECTC-1M-Digital controller work to automatically manage air flow according to temperature and humidity?
The connection between the Prima Klima WHSP EC BLUE extractor and the ECTC-1M-Digital controller is made simply via a standard RJ45 cable, each device having a dedicated socket. This link allows the controller to automatically manage the speed of the extractor based on the ambient temperature.
The control is mainly based on temperature: you can set the minimum and maximum speed as well as the trigger thresholds to optimize ventilation according to your needs in a cultivation space of up to 10 m². However, the automatic management of humidity is not natively integrated into this system and requires additional equipment.
This configuration offers precise, efficient, and silent control of ventilation, ideal for maintaining a stable and conducive environment for your crops.
