The Mist Maker 9 Head Ultrasonic Mister is perfect for adding lots of humidity to all plants, green walls and throughout your grow space!
Mist Maker Ultrasonic Fogger - 9 Heads
Our team will reply within 24 business hours.
Ref:
Warning: Last items in stock!
Availability date:
The Mist Maker 9-head Ultrasonic Mist is perfect for providing excellent humidity levels in your grow room.
It works with a ceramic cell that shakes at 3 times the speed of sound to produce mist in your box!
Using advice :
For a longer lifespan, we advise you to use demineralized water or rainwater. We also recommend using a buoy to obtain optimal efficiency as well as an anti-splash.
| Marque | Mist Maker |
| Type | Ultrasonique |
| Puissance consommée (W) | 270-310 |
| Compatibilité | Gaines, filtres, programmateurs, hygrostats, régulateurs de brume, ventilateurs d'extraction |
| Tension (V) | 230-240 |
| Dosage recommandé | 2500 ml/h en cycles ON/OFF de 15 min marche/15 min arrêt pour 1 m³ |
| Hauteur (cm) | 3.5 |
| Débit d'humidification (ml/h) | 1100-2500 |
| Hygrostat intégré | Non |
| Réservoir amovible | Non |
| Nombre de cellules | 9 |
| Type d'appareil | Brumisateur ultrasonique |
| Diamètre (cm) | 12 |
| Bruit | Faible |
Je craignais que ce brumisateur ne soit pas aussi performant, mais il prouve le contraire. Le montage s'est fait sans souci et il fonctionne silencieusement. La finesse de la brume est un vrai plus. Attention simplement à l'entretien régulier pour éviter l'accumulation de dépôts. Un achat que je considère comme très rentable, je recommande.
Très bon produit
Très bon produit. Fonctionne bien, livraison rapide. Vraiment satisfait de mon achat.
Super produit, très
Super produit, très efficace. Livraison en bon état. Je recommande vivement.
Excellent produit. Fonctionne
Excellent produit. Fonctionne mieux que prévu. Livraison impeccable. Content.
C'est un excellent investissement
C'est un excellent investissement pour qui veut des résultats rapides. J'ai testé d'autres marques avant, et celle-ci surpasse largement la concurrence. La qualité de fabrication est visible, pas de défaut. Fonctionne sans problème depuis le jour 1. Livraison rapide et bien emballée. Vraiment satisfait de mon achat, je vais en recommander à mes amis.
The Mist Maker Ultrasonic Humidifier - 9 Heads offers a fine and stable mist, perfectly suitable for maintaining good humidity levels in SCROG/LST setups under LED lighting. This gentle humidification helps to preserve the vigor of the plants without overly wetting them.
Regarding the impact on the structure of the stems during repeated handling, the ultrasonic mist itself does not weaken the stems. However, excessive or poorly managed humidity can foster the development of mold or bacteria, which could weaken the plants. To avoid this, we recommend using demineralized water and ensuring that the environment is not saturated with humidity.
In summary, with proper management, this humidifier is an excellent ally for a stable environment without compromising the strength of your stems.
The Mist Maker Ultrasonic Fogger - 9 Heads consumes around 270 to 310 watts depending on the voltage (for example, 120 VAC x 2.57 A = about 308 W). Its humidification yield is about 2500 ml/h, which allows for optimizing humidity over an area of about 6 m² (8' x 8'). This mist maker is perfect for maintaining a consistent humid atmosphere in your modular growing spaces.
The Mist Maker Ultrasonic Fogger - 9 Heads does not have native integration with humidity sensors nor internal automation.
However, its operation on standard electrical power makes it fully compatible with relays or home automation controllers. Thus, it is entirely possible to connect it to an external system equipped with humidity sensors (electronic hygrometers) to control its operation in real-time based on your defined thresholds.
This approach requires external technical configuration (Arduino board, Raspberry Pi, or home automation controller) but allows for precise and optimized management of humidity in your growing space.
For optimal efficiency, also consider using demineralized water and a float system.
The Ultrasonic Mist Maker - 9 Heads is designed to operate with a float ensuring a constant water level, which facilitates prolonged use. However, there is no specific information regarding its maximum duration of continuous operation without the risk of overheating.
To preserve the lifespan of the device and limit any risks, it is advisable to use the mist maker in cycles, for example 15 minutes of operation followed by 15 minutes of rest. This mode of use helps to avoid overheating and optimize its performance.
The Mist Maker 9 Head ultrasonic humidifier typically provides a mist output that ranges from 900 ml/h to 5000 ml/h. When used indoors, a realistic output is around 1000 to 2500 ml/h, which corresponds to a substantial diffusion of fine water into the air.
In a 1 m³ grow room, this output allows for a significant increase in humidity: for example, 1 liter of water diffused per hour can raise the relative humidity by several dozen points, depending on the temperature and the initial state of the air. Thus, with a flow rate of 1000 to 2500 ml/h, it is possible to maintain an optimal humidity level around 70-80%, which is very favorable for many plants in the growth or flowering phase.
It is essential to manage ventilation properly to avoid excess humidity, which could lead to disease risks. The Mist Maker 9 head therefore offers an effective and flexible solution to control humidity in compact spaces thanks to its fine mist production.
The ultrasonic mist maker - 9 Heads consumes an average of 290 watts and produces a mist volume of about 2500 ml/h, which corresponds to 2500 g/h since 1 ml of water equals 1 gram.
Its energy efficiency is calculated as follows:
2500 g/h ÷ 290 W ≈ 8.62 g/h/W
This means this model produces about 8.6 grams of mist per hour for each watt consumed, an interesting performance for maintaining stable humidity in indoor cultivation.

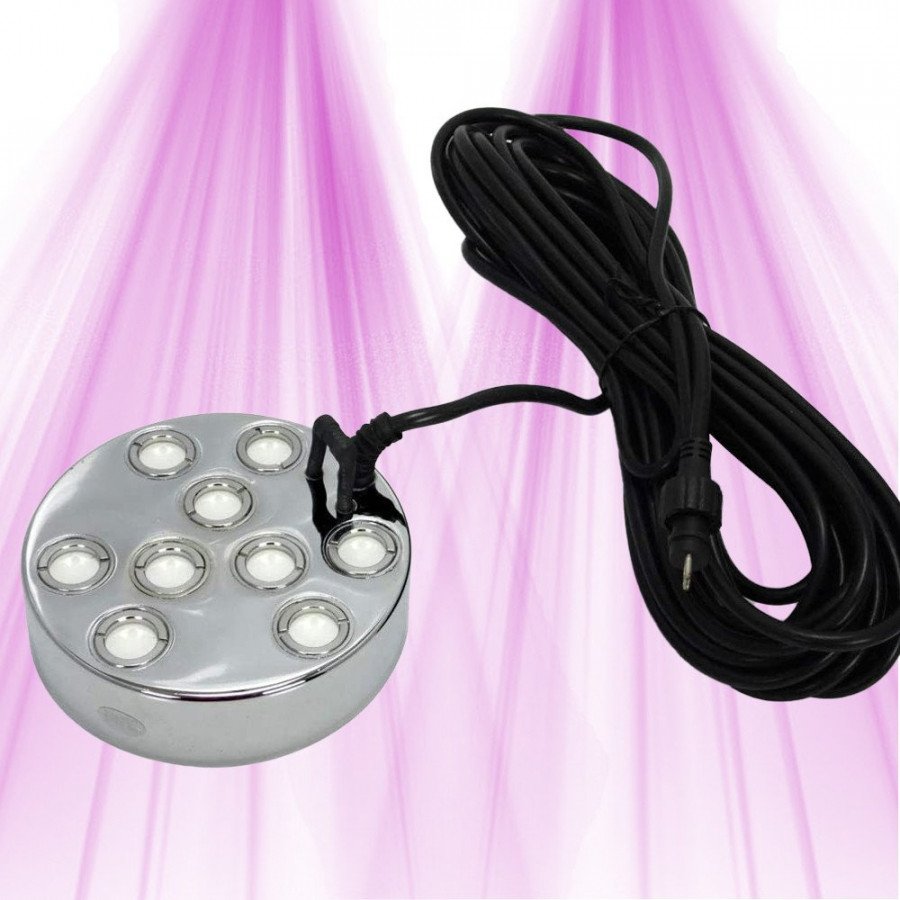

The Mist Maker Ultrasonic Fogger - 9 Heads uses nine 20 mm ceramic discs, known for their durability and ability to produce fine and stable fog. These heads ensure uniform humidification over an area of 6 to 8 m², thanks in particular to the float that maintains the optimal water depth, essential for consistent misting.
To ensure stable fog production over several months, it is essential to use demineralized water or rainwater. This choice significantly limits lime deposits and prevents clogging. The glazed coating of the discs also reduces the accumulation of residues, facilitating maintenance and extending performance.
In summary, this system is perfectly suited for continuous use in a growth chamber, without any notable loss of performance, provided that these good maintenance practices and water quality are respected.
To ensure a constant production of mist with your ultrasonic Mist Maker 9 head and avoid lime deposits, here are some essential tips:
By following these steps, you will avoid limescale, extend the life of your misting system, and ensure effective and lasting mist diffusion.
In practice, this increase in humidity depends on the indoor temperature, air renewal (extraction, leaks), and the mode of use (recommended cycles of 15 min ON / 15 min OFF to avoid overheating). Control via humidity sensors is advised for optimal management and to avoid saturation.
This model is ideal for those seeking precise and powerful humidity control in a compact space.
The Mist Maker Ultrasonic Fogger - 9 Heads produces a steam output of approximately 2.5 liters per hour thanks to its nine ceramic discs. This flow is perfectly suited to humidify a growing chamber of about 1 m³.
To ensure uniform humidity in this space, it is essential to properly position the heads of the fogger to disperse the mist evenly, to use a small fan to circulate the air and avoid dry or overly humid zones, and to pair it with an external humidity sensor to automatically control the device. Alternatively, following a regular operating cycle (e.g., 15 minutes ON / 15 minutes OFF) helps to stabilize humidity levels while avoiding overheating.
Finally, maintaining a constant water level with a floating ring ensures continuous and optimal fog production.
The Mist Maker Ultrasonic Fogger - 9 Heads does not have a built-in mist intensity adjustment. However, it is entirely possible to modulate the mist by controlling it via an external system (relay, PLC, home automation) that allows you to manage its operation in cycles, thus indirectly adjusting the mist output according to your needs.
Its integration into an indoor grow box is quite simple: it works submerged in at least 7.5 cm of water (ideally with a floating ring), plugs into a standard power supply, and its compact design facilitates installation even in a restricted space. For better longevity, it is advisable to use demineralized water.
In summary, this mist maker is easy to integrate and control via external solutions, offering good flexibility to maintain an optimal humidity level in your indoor grow.
To integrate the Mist Maker Ultraschall-Nebelgerät – 9 Köpfe into a humidity automation system, it is necessary to couple a digital hygrometric sensor, a programmable controller (Arduino, Raspberry Pi, etc.), and a suitable electrical relay for the mist maker's power (approximately 300 W). The sensor measures humidity in real-time, the controller compares this data to a target range (for example, 50-70%), and activates or cuts the power to the Mist Maker via the relay to adjust the mist production.
To ensure safety and longevity, it is essential to use demineralized water, manage the water level with a float to avoid dry operation, and provide for an automatic cut-off in case of a too low level. This autonomous system allows for precise and reliable control of humidification, ideal for maintaining an optimal and stable environment.
In SCROG configuration under LED lighting, this controlled humidity is essential: it maintains an optimal environment without excessively wetting the leaves or weakening the stems. This reduces the risk of mold and supports the vigor of the plants, whose development is often slowed down by the drier air from LEDs.
To preserve the device, it is recommended to use demineralized or rainwater, which ensures continuous and effective humidification, promoting the overall health of the crop.
