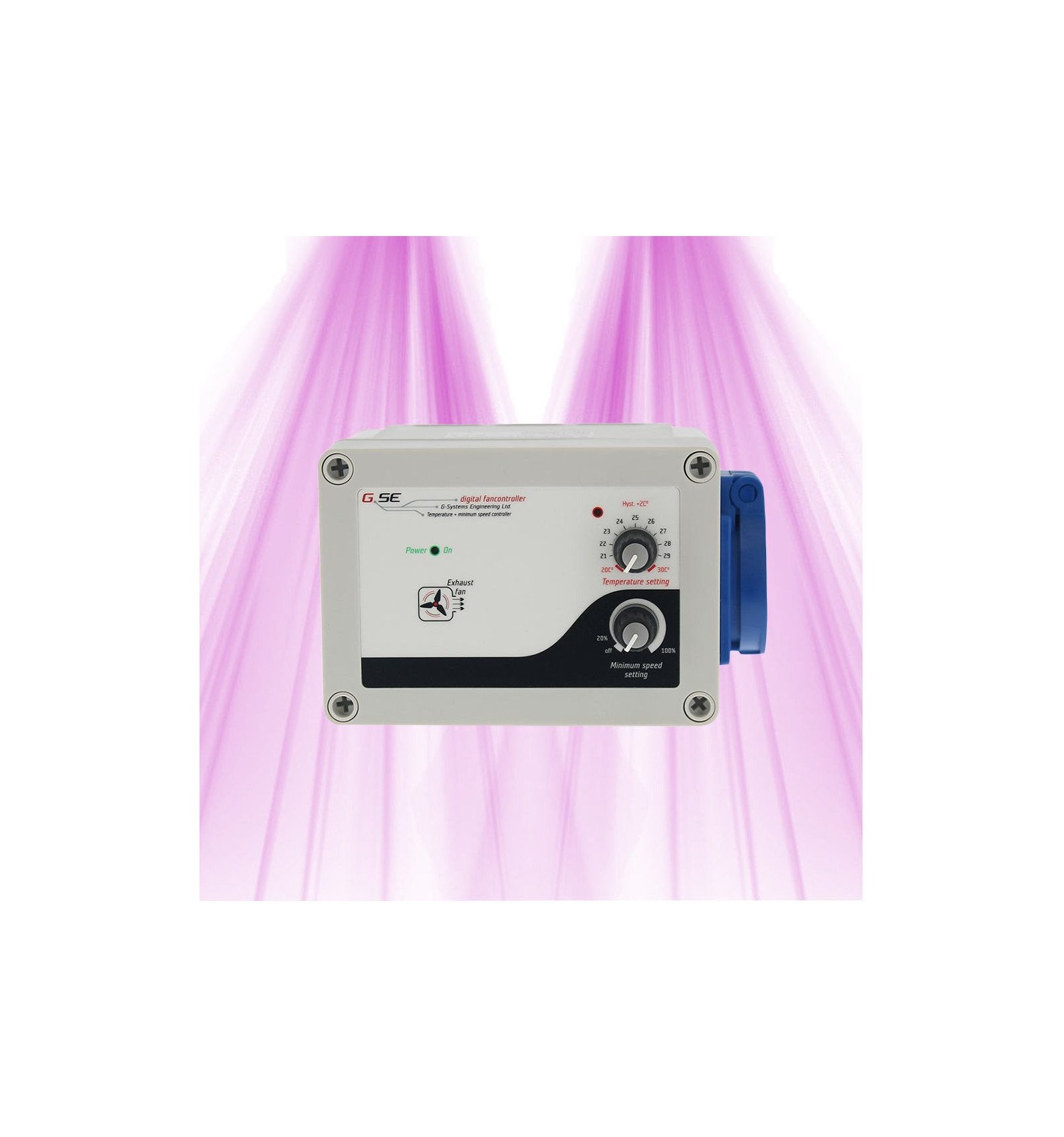

Enlarge Digital temperature and minimum speed controller - GSE
The digital controller will adjust the temperature of your grow space. It maintains the desired temperature constant and allows you to regulate the power of your extraction.
Digital temperature and minimum speed controller - GSE
Our team will reply within 24 business hours.
Ref:
Quote · Lighting study · Administrative Payment Order
Step 3 · Ventilation & climat · 10 min, gratuit
Simple to use, easily adjustable using the two buttons to adjust the desired temperature in your growing space. The temperature regulator is reliable, robust and IP54 waterproof (water projection coming from below the product).
Sold with a 4m probe
| Waterproof | IP54 |
|---|---|
| Plug & Play | No |
| Speed management | arrêt/20-100% |
| Marque | GSE |
| Type | Thermostat |
| Puissance consommée (W) | 200W |
| Tension (V) | 230V/50Hz |
| Isolation phonique | Non |
| Dimensions (mm) | 130x92x105 mm |
| Plage de température (°C) | 20-30°C |
| Avec sonde externe | Oui |
| Courant (A) | 1A |
| Hystérésis | 2°C |
Pas mal du tout ce contrôleur, il stabilise bien la vitesse du ventilo sans surconsommer. La sonde déportée est vraiment pratique, j’ai pu la placer là où je voulais sans galérer. Le câble est solide et long, nickel pour mon installation. Le prix est correct, aucun regret à ce niveau. Le boîtier est compact, donc pas encombrant. L’utilisation est simple même pour un amateur comme moi. Bonne surprise.
Reçu en bon état et bien protégé. Fonctionne parfaitement. Très satisfait du service.
Très efficace.
Franchement, c'est du bon produit. Livraison rapide et bien emballé. Très content.
Plus précis que celui que j'avais avant. Ce modèle ajuste super bien la vitesse du ventilo selon la température, ça évite de gaspiller de l'énergie. Le câble de la sonde est vraiment pratique pour placer où je veux. Dommage que l'emballage était un peu léger, mais le produit marche très bien, donc je mets 5/5.
Très satisfait.
Aucun avis ne correspond à ce filtre.
It is entirely possible to use two digital temperature and minimum speed controllers GSE with independent timers to manage two distinct ventilation cycles on two separate boxes. Each controller will operate autonomously by regulating the temperature via its remote probe, without interfering with the other, provided that the parameters are configured separately.
To avoid any conflict, make sure to properly configure each system independently and use compatible timers, so that each ventilation cycle is perfectly synchronized with its own control without mixing commands.
The Minimum Fan Speed and Temperature Controller - GSE allows you to set a temperature threshold from which the minimum fan speed is adjusted. Thus, it optimizes ventilation by adapting the fan speed according to the temperature measured by its 4-meter probe, which helps to limit excessive electrical consumption.
However, it does not seem possible to program multiple distinct thresholds for minimum speed based on different temperature ranges. The setting is made on a single threshold that triggers this adaptation.
This function already offers efficient and economical management of ventilation according to the detected temperature, ideal for maintaining an optimal environment without energy waste.
The Digital temperature and minimum speed controller - GSE manages the minimum fan speed by ensuring a constant airflow, even when the temperature drops. With the help of two potentiometers, you can precisely set the trigger temperature and minimum speed, thus avoiding complete stoppage of the fan and abrupt changes in airflow.
In a large greenhouse with multiple zones, it is possible to install several controllers, each with its own sensor and settings. This allows for independent and optimal management of ventilation based on local temperatures, ensuring appropriate and stable air circulation in all areas.
The GSE digital temperature and minimum speed controller does indeed allow for setting a minimum ventilation speed, which helps to prevent the complete stop of the fan when the temperature drops below a certain threshold. Thanks to its precise sensor and regulation capability, it adjusts the extraction power to maintain a constant temperature, thus ensuring continuous ventilation suited to the needs of your crop.
Yes, the Digital Temperature and Minimum Speed Controller – GSE allows you to easily adjust the minimum fan speed. This way, you can prevent it from completely stopping during a rapid temperature drop by setting the minimum speed between 20 and 100% of the maximum power. This ensures quiet operation while maintaining a constant airflow to stabilize the climate of your growing space.
The Digital temperature and minimum speed controller - GSE does not allow for managing multiple fans with independent settings in parallel. Each controller is designed to drive one or two linked fans (for example, an extractor and an intake fan), but not multiple independent fans. Therefore, to manage two distinct growing spaces with independent settings, one GSE controller will be required per space.
The GSE – G-Systems digital temperature and minimum speed controller is a standalone device with no native connectivity (Wi-Fi, Bluetooth, or other) allowing for direct integration into a home automation system or remote monitoring.
It manages the temperature and speed of the fans via a remote probe, but does not relay the data nor allow for full automation accessible remotely. To integrate this controller into a home automation system with temperature/humidity tracking and remote control of fans or lighting, it is necessary to add external equipment (such as a home automation controller or a compatible gateway) capable of controlling the relays and managing the sensors.
In summary: this controller does not natively support home automation or remote monitoring; an additional home automation solution is essential for this.
The average power consumption of the controller GSE-HUMID-THER-V-MIN during continuous operation is not specified in the available information. This type of controller is generally designed to be very energy efficient, but without precise data, it is difficult to estimate its exact consumption.
If you are looking for precise control with a model whose technical specifications are well documented, feel free to consult other controllers from our catalog. I remain at your disposal to recommend a product suitable for your needs.
To avoid strong air currents in your greenhouse with the Digital Temperature and Minimum Speed Controller - GSE, you need to set an appropriate minimum speed on the fan. The principle is to maintain a gentle and constant airflow, low enough not to stress the plants while ensuring effective ventilation.
In practice, start by setting the minimum fan speed to a low value, then observe the effect on the air in the greenhouse. You can adjust this speed based on the temperature and humidity readings from the integrated or external sensors. Don’t hesitate to reduce the speed if the currents are too strong, especially during cooler periods or for delicate plants.
Using this controller allows you to finely control the speed according to the conditions, thus ensuring an optimal environment without harsh air shocks. The ideal is a constant but gentle ventilation, which promotes the health and growth of your plants.
To precisely set the minimum fan speed using the Digital temperature and minimum speed controller - GSE and thus avoid thermal shock in a large greenhouse, first position the temperature sensor in a representative location of the greenhouse using the supplied 4-meter cable. Then, set a temperature threshold at which the minimum speed should activate, preventing sudden cooling of the plants.
Finally, adjust the minimum fan speed using the rotary knobs to ensure a constant airflow during rapid temperature changes. This continuous ventilation protects your plants while limiting electricity consumption. For a large greenhouse with varied zones, using several independent GSE controllers further optimizes ventilation management.
The Digital temperature and minimum speed controller - GSE is designed exclusively for fans powered by 230 V alternating current, which is the standard mains voltage in Europe. It is not compatible with 12 V direct current fans. This controller manages speed and temperature through a regulation suitable for 220-230 V AC motors, making it ideal for traditional mains-powered fans, but not for 12 V low voltage systems.
To set the minimum speed of the fan with the GSE digital controller in a micro space, you need to adjust the dedicated potentiometer to ensure a constant airflow, typically between 20% and 100%, to provide continuous ventilation without excessive cooling.
Set the setpoint temperature according to the desired climate (between 15 and 35 °C) and use hysteresis (a differential of 1 to 5 °C) to prevent the fan from turning on and off too frequently, which can cause temperature fluctuations.
Finally, place the temperature probe in a representative area of the micro space for accurate control. This combined setting ensures a stable temperature without excessive variations related to the fan cycles.
The GSE digital controller is designed to operate with high precision (±0.5 °C for temperature and ±4.5% for humidity) even in humid environments like greenhouses. Its waterproof IP44 enclosure effectively protects the components from water infiltration or condensation, ensuring remarkable stability and reliability over several months of continuous use.
Thanks to its adjustable hysteresis system, it limits wear related to frequent on-off cycles, which extends the equipment's lifespan. User feedback confirms stable operation without notable degradation in accuracy or performance over time, even in humid conditions.
In summary, this controller is a robust and reliable solution for sustainably managing temperature and humidity.
The GSE digital controller offers RJ45 connectivity and controls temperature and ventilation via 0-10V or PWM outputs. However, no precise documentation indicates native compatibility with home automation systems like Jeedom or Home Assistant. Without a clear communication protocol or public API, direct integration for monitoring and remote adjustment remains complex and would require specific development.
For a simple, reliable solution designed for home automation, it is better to choose a controller with a compatible network interface and an open API, thus facilitating control via these platforms.
The minimum GSE digital temperature and speed controller (model FC10-205EU) is designed for a supply of 230 V AC and is only compatible with fans operating at 220-230 V. It is not suitable for 12 V fans.
For 12 V DC fans, there is another GSE model, the FC17, specially designed for this voltage.
Ventilation operates continuously, with a constant minimum speed that ensures stable management of ambient conditions. To integrate intermittent ventilation, it would be necessary to consider a specific controller or a dedicated external device, as the GSE is designed for continuous and proportional control.
