01 — Description
Présentation du produit

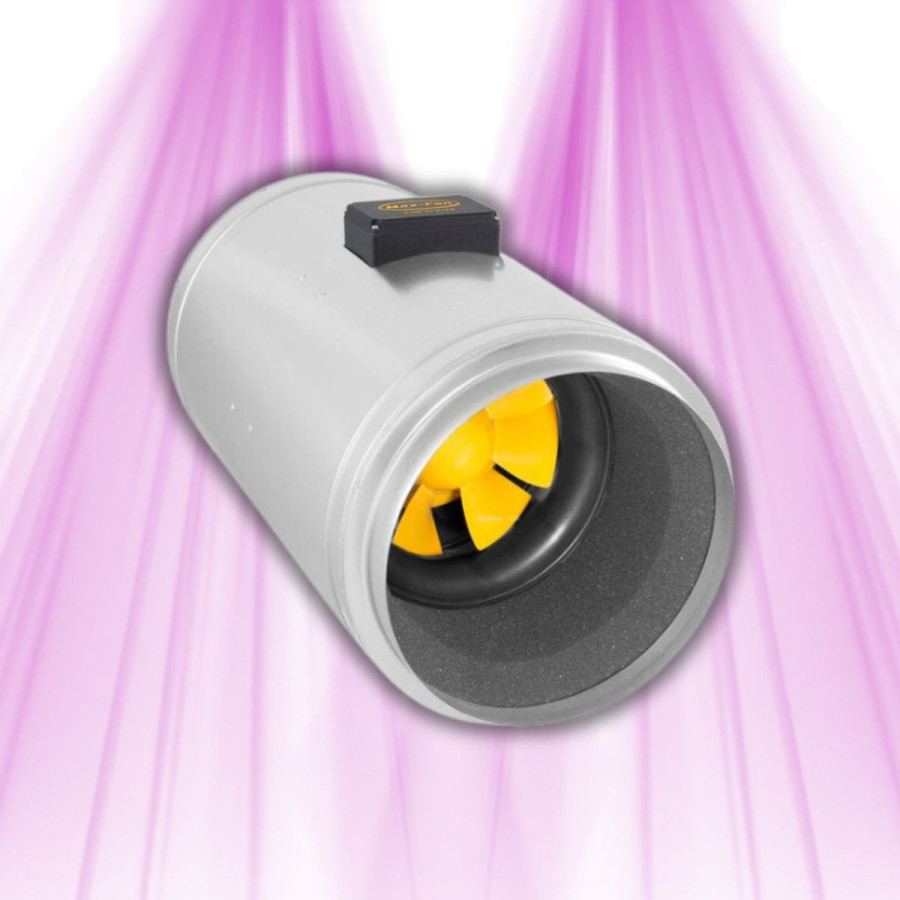

Presentation of Q-Max EC Extractors
The Q-Max EC series soundproof extractors represent the pinnacle of ventilation technology for growers. Designed with an integrated silencer, these extractors guarantee ultra-quiet operation while providing exceptional aerodynamic performance and reduced energy consumption.
Technical characteristics
Q-Max EC 150 extractor (716 m³/h) CAN-FAN
- Maximum flow : 716 m³/h
- Inlet diameter : 150 mm
- maximum rpm : 3632
- Consumption : 62 W
- Maximum sound level : 68 dB
Q-Max EC 200 extractor (1203 m³/h) CAN-FAN
- Maximum flow : 1203 m³/h
- Inlet diameter : 200 mm
- maximum rpm : 2901
- Consumption : 117 W
- Maximum sound level : 73 dB
Q-Max EC 250 extractor (2000 m³/h) CAN-FAN
- Maximum flow : 2000 m³/h
- Inlet diameter : 250 mm
- maximum rpm : 3815
- Consumption : 250 W
- Maximum sound level : 79 dB
Q-Max EC 315 extractor (2850 m³/h) CAN-FAN
- Maximum flow : 2850 m³/h
- Inlet diameter : 315 mm
- maximum rpm : 2543
- Consumption : 284 W
- Maximum sound level : 81 dB
Q-Max EC 355 extractor (3247 m³/h) CAN-FAN
- Maximum flow : 3247 m³/h
- Inlet diameter : 355 mm
- maximum rpm : 2027
- Consumption : 257 W
- Maximum sound level : 75 dB
Q-Max EC 355 extractor (4800 m³/h) CAN-FAN
- Maximum flow : 4800 m³/h
- Inlet diameter : 355 mm
- maximum rpm : 2970
- Consumption : 719 W
- Maximum sound level : 66 dB
Advantages of Q-Max EC Extractors
- Absolute silence : Thanks to the integrated silencer, enjoy discreet ventilation.
- Energy efficiency : EC motors consume less energy while providing high performance.
- Optimized airflow : The rotor and stator design ensures continuous airflow without turbulence.
- Automatic control : Compatible with the Can Fan EC LCD controller, automatically regulates temperature and speed.
- Robustness and durability : Durable, easy-to-maintain metal housing.
EC functionality: What does it mean?
EC (Electronic Commutation) extractors use DC motors with electronic commutation, offering several advantages over traditional AC motors:
- Increased energy efficiency : EC motors consume less energy.
- Precise control : Finer adjustment of fan speed.
- Durability : Less mechanical wear thanks to the absence of brushes.
Opinion from an Expert Grower
"Since I installed the Q-Max EC Extractor in my grow room, the silence has been impressive. The automatic temperature and speed regulation allows me to maintain perfect conditions without constant intervention." — Opinion from an expert grower
Questions answers
Q: How to install the Q-Max EC Extractor? A: Installation is simple. Attach the extractor to the duct and connect it to the Can Fan EC LCD controller for automatic regulation.
Q: What is an EC motor and why is it beneficial? A: An EC motor uses electronic switching to provide greater energy efficiency, precise control and greater durability.
Q: How is the built-in silencer beneficial? A: The acoustic foam-lined muffler absorbs noise, significantly reducing sound levels for a quieter environment.
Q: Is the Q-Max EC Extractor easy to maintain? A: Yes, thanks to its simple design and accessible components, maintenance is quick and easy.
Q: Can the speed of the extractor be adjusted manually? A: Yes, with the Can Fan EC LCD controller you can adjust the speed manually or let the system regulate automatically to the desired temperature.
Enjoy quiet and efficient ventilation with Q-Max EC extractors, perfect for maintaining an optimal growing environment.
04 — Questions sur ce produit
Product questions
Your questions about this product
- Is the Q-Max EC Extractor suitable for a small family greenhouse or is it mainly designed for large growing rooms?
The soundproofed Q-Max EC extractor is a high-end equipment mainly designed for large growing rooms where a large air extraction capacity is required. However, it can also be used for a small family greenhouse, provided you choose the correct model. There are several models of Q-Max EC with air flows ranging from 716 m³/h to 2850 m³/h. If you have a small family greenhouse, the 716 m³/h model may be appropriate, although usually, this capacity would be a bit oversized for family use. Realize that it is better to choose a device that matches your growing space as precisely as possible, as an underused device can consume unnecessary electricity and reduce the equipment's lifespan. If you are interested in a solution more suited to a family greenhouse, more compact extractor models with lower flow rates could be an excellent alternative as well. Be aware that our team at GrowLED.fr is always available to help you choose the equipment best suited to your needs. Do not hesitate to contact us for a personalized recommendation based on the size of your greenhouse and your specific needs.
- Is the indicated maximum noise level really perceived as silent in real usage conditions, especially for models with high airflow rates like the 355 4800 m3/h? I wonder if it is compatible with discreet home growing.
The Q-Max EC Soundproof Extractor model is designed to provide both effective and relatively quiet ventilation thanks to its soundproof casing and acoustic absorbing foam. For a high airflow rate like the 355 at 4800 m³/h, the noise level is generally around 65-68 dB, which is quite low compared to other extractors of this capacity.However, for truly discreet home growing, this noise can be noticeable depending on the insulation and layout of your room. Many users appreciate its quietness especially with speed control which allows adjustment according to needs, helping to reduce noise below the maximum.In summary, this model is a very good compromise between performance and quietness, but for total discretion, good sound insulation of the grow area is necessary.
- Is integration possible with voice assistant for remote control of the Can Fan EC LCD controller or is a third-party interface required to automate the temperature and speed regulation of the Q Max EC extractor?
The Q-Max EC Schallschutzabzug from Can-Fan is controlled via a dedicated Can Fan EC LCD controller, which autonomously manages speed and temperature. There is no direct native integration with voice assistants (Amazon Alexa, Google Assistant, Apple HomeKit).
For remote control or automation via voice command, a third-party home automation interface is required. This gateway or IoT system serves as a bridge between the Can Fan EC controller and your voice assistant, allowing you to adjust speed or settings from your scenarios or voice commands.
In summary, the Q-Max EC provides effective local regulation, but for voice remote control, a compatible module must be connected between the controller and your home automation system.
- Does the indicated noise level remain stable after several months of intensive use in real conditions, or does the silencer lose efficiency over time?
The noise level of the Silent Extractor Q-Max EC is designed to remain low due to its integrated silencer lined with acoustic foam. However, like any ventilation system, intensive use over several months can lead to a buildup of dust and wear, which may slightly increase the noise.
- Is the electrical consumption of the Q-Max EC extractor significantly lower than traditional AC models for a similar flow rate?
The Q-Max EC Soundproof Extractor features electronic commutation (EC) motor technology that greatly optimizes its energy efficiency compared to traditional AC motor models.
For instance, the Q-Max EC 150 model offers a maximum flow rate of 716 m³/h while consuming only between 62 and 66 watts, well below that of traditional AC extractors for a similar flow rate. This performance is due to an innovative motor and a 3D rotor-stator system that enhances aerodynamics and precise speed regulation, allowing the power to be tailored to actual needs.
In summary, the electrical consumption of the Q-Max EC is significantly lower than that of traditional AC extractors, thus providing quiet, efficient, and more economical ventilation in use.
- What is the average electrical power consumption of the extractor Q-Max EC 250 at its maximum flow rate of 2000 m³/h to optimize silence and energy efficiency?
For the extractor Q-Max EC 250 with a maximum flow rate of 2000 m³/h, the electrical power consumption is not precisely indicated by the manufacturer. However, thanks to EC motor technology and the 3D rotor, this extractor guarantees optimal energy efficiency and very quiet operation.
By comparing with similar models in the range, it is estimated that the electrical consumption is between 180 and 220 W at its maximum flow rate. This estimate takes into account the linear progression between model 160 and model 315, while considering the specific optimization of EC technology.
This choice ensures an excellent balance between silence, efficiency, and energy savings, perfect for effective ventilation in indoor cultivation.
- What is the difference in noise and consumption between the model 355 at 75dB 257W and the one at 66dB 719W? Can you clarify the trade-off between noise and energy performance?
To compare the two Q-Max EC extractor models you mentioned, it is important to correct one data point: the model showing 66 dB does not consume 719 W, but rather around 66 W.
Noise difference: 75 dB corresponds to a fairly high noise level, comparable to a loud conversation or a powerful vacuum cleaner, which can be bothersome indoors. At 66 dB, the noise is significantly more comfortable, akin to a washing machine operating normally.
Energy consumption: The model at 75 dB consumes approximately 257 W, which is considerable. The 66 dB model is very energy efficient with about 66 W, thanks to a high-performance EC motor.
In summary, the model at 66 dB and 66 W offers an excellent compromise between silence and energy efficiency while maintaining a high airflow rate. Choosing the model at 75 dB and 257 W would correspond more to a different power level or an extractor less optimized for acoustic comfort and energy savings.
- What is the precise electrical consumption in watts per m3h for each model of Q-Max EC extractor, and how does it compare to other silent extractors on the market in terms of g/watt?
The Q-Max EC extractors stand out for their very controlled electrical consumption in watts per m³/h, thanks to their electronic commutation (EC) motor. For example, the Q-Max EC 150 model displays about 0.0866 W/m³h (62 W for 716 m³/h), while the Q-Max EC 315 consumes around 0.1 W/m³h (284 W for 2850 m³/h). Compared to traditional silent extractors that often use standard AC motors and frequently exceed 0.1 W/m³h, the Q-Max EC offers much better energy efficiency. Their EC technology not only saves energy but also operates very quietly with excellent built-in acoustic insulation. In summary, the Q-Max EC range ranks among the most efficient fans in terms of consumption/air volume ratio, ensuring economical and discreet ventilation for any indoor growing space.
- What significant difference in electricity consumption and noise level is there between the Q Max EC 355 model with a flow rate of 3247 m³/h and the one with a flow rate of 4800 m³/h, given that they have the same inlet diameter and the same EC motor principle to optimize efficiency and limit noise disturbances?
The Q-Max EC models at 3247 m³/h and 4800 m³/h both use EC motor technology, ensuring high energy efficiency and a significant reduction in noise disturbances.
In electrical consumption, the 4800 m³/h model logically requires more energy as it moves a larger volume of air. One can estimate a consumption around 700 to 900 W for the 4800 m³/h, compared to about 500 to 650 W for the 3247 m³/h model.
For noise level, the difference is perceptible but moderate: the fan at 4800 m³/h will be about 3 to 5 dB(A) louder, going from 50 dB(A) to around 53-55 dB(A). This increase remains controlled due to the silent design and the EC motor.
In summary, the higher flow rate model consumes more electricity and emits a bit more noise, but the entire Q-Max EC series remains highly efficient in energy optimization and noise reduction.
- What size of Q-Max EC model do you recommend for a 120x120x200 cm grow room under 600W LED to ensure optimal air exchange while maintaining a minimal noise level?
For your 120x120x200 cm grow room under 600W LED, a Q-Max EC extractor with a flow rate between 1,000 and 2,000 m³/h is recommended. This flow rate ensures optimal air exchange, essential for managing the heat of your lamps while maintaining a healthy environment.
The Q-Max EC 250 model, offering up to 2,000 m³/h, is particularly suitable. Its efficient EC motor and built-in silencer ensure effective ventilation with a minimal noise level, ideal for discreet and controlled growing.
For precise adjustment according to your cultivation needs, an automatic controller such as the Can Fan EC LCD allows you to adjust the extractor's speed and optimize acoustic and thermal comfort.
- Is the Q-Max EC Soundproof Extractor compatible with the Can Fan EC LCD controller sold separately?
The Q-Max EC Soundproof Extractor is indeed compatible with the Can Fan EC LCD controller, which allows for precise management of extractor speeds based on temperature, humidity, and negative pressure.
This controller is sold separately, it is not included with the fan. It can control up to 10 EC extractors using the cables and splitters provided with the Q-Max EC, and offers easy and efficient adjustment for optimal and quiet ventilation.
- Does the actual power consumption of the Q Max EC extractors remain low even at full power to limit the ambient heat in a grow room?
The
Q-Max EC extractors consume very little electricity even at full power, which is a major advantage for limiting heat in your growing space. Thanks to their EC technology and 3D rotor-stator system, they combine excellent energy efficiency with low consumption. For example, the Q-Max EC 250 model, capable of an airflow of 2000 m³/h, consumes between
180 and 220 watts at its maximum load. This performance allows for stable temperature maintenance without overheating related to the equipment.
Moreover, their silent operation and speed control ensure efficient and discreet ventilation, ideal for demanding indoor crops.
- Does the EC motor ensure reliability and consistent performance over several years without the risk of breakdown or significant flow reduction?
The EC motor of the Q-Max EC Soundproof Extractor guarantees a reliable and stable performance over several years. Thanks to its electronic commutation technology, it offers precise speed management, optimized consumption, and superior durability compared to traditional motors. Its carefully designed structure to limit noise and facilitate maintenance prevents the risks of breakdown or significant flow reduction. With regular maintenance and appropriate speed control, this motor remains powerful, efficient, and quiet for a long time.
- What are the main differences between the Q-Max EC 355 models at 75 dB and 66 dB in terms of performance and consumption?
The main differences between the Q-Max EC 355 models at 75 dB and 66 dB primarily concern airflow rate, power consumption, and noise level.
Performance: The model at 75 dB offers a high maximum airflow rate of around 1330 m³/h, ideal for powerful needs, while the quieter model at 66 dB offers a more moderate airflow rate of 746 m³/h, sufficient for noise-sensitive environments.
Consumption: The 75 dB model consumes up to 186 W, whereas the 66 dB version is more economical at around 68 W, significantly reducing electricity costs.
Noise level: The 66 dB model benefits from an optimized design with enhanced acoustic insulation, ensuring discreet operation, unlike the noisier 75 dB model.
Both use a high-performance EC motor with precise speed control, offering energy efficiency and user comfort tailored to your priorities.
- What is the real feeling about the noise level in continuous operation with a Q-Max EC 355 of 4800 m3h compared to classic AC extractors?
The
Q-Max EC 355 of 4800 m³/h stands out for its very quiet and smooth operation, thanks to its EC technology and its optimized airflow without turbulence. In continuous use, its noise level is close to silence, offering a significantly superior acoustic comfort.
In contrast, classic AC extractors of the same diameter and flow generally produce a higher noise level, often around 39 dB(A) and above, with a more turbulent airflow that leads to a sharper and more perceivable sound continuously.
In summary, the Q-Max EC 355 provides quieter and more pleasant extraction, ideal for environments where sound discretion is a priority.
- Does the Q-Max EC 150 extractor suffice for a 1 m² box with a carbon filter or should I get a more powerful model?
The Q-Max EC 150 is perfectly suited for a box of about 1 m² with a carbon filter. Its extraction capacity of approximately 716 m³/h sufficiently compensates for the loss of flow due to the filter, thus ensuring optimal air renewal for your cultivation. Therefore, you do not need a more powerful model for this setup.
- What is the electrical consumption in watts per m3 per hour for the Q-Max EC 250 model, and how does its energy efficiency compare to other models in the range?
The Q-Max EC 250 has an airflow rate of 2000 m³/h with an estimated electrical consumption between 180 and 220 watts, which is about 0.10 to 0.11 W per m³/h. This ratio demonstrates excellent energy efficiency due to its modern EC technology.
Compared to other models in the range, this fan combines power and low consumption, outperforming traditional extractors that are more power-hungry (some consume over 250 W for a similar flow rate). For example, a quieter model at 66 dB consumes less but also at a lower flow rate. Thus, the Q-Max EC 250 represents a very good compromise between performance and energy saving, while offering quiet and reliable operation.
- What is the precise electrical consumption and real noise level of the Q-Max EC 355 4800 m³/h extractor in continuous operation to limit heat without losing efficiency?
The Q-Max EC 355/4800 m³/h consumes approximately 251 W (1.7 A) during nominal operation under 230 V, with a maximum current of 1.9 A at 40 °C. A higher power (up to 719 W) can occur depending on conditions, but thanks to speed control via a 0-10 V signal, it is possible to adjust the ventilation accurately to limit heat while optimizing consumption and performance.
The maximum noise level is 72 dB, but this noise is mitigated by its soundproof housing. In continuous regulated operation, the actual sound is usually lower, ensuring an ideal balance between efficiency and acoustic discretion.
- Will the Q-Max EC 150 extractor kit be sufficient for a 1m² box in terms of silent air flow energy?
For a 1 m² box, the Q-Max EC 150 extractor kit with an air flow rate of 716 m³/h is perfectly suitable, as it provides more than enough air renewal.
This model is designed to be soundproofed, with a maximum noise level of around 65 dB, which is reasonably discreet for this type of high-performance fan.
In terms of energy, its consumption of 66 watts remains efficient thanks to its EC technology, and the ability to adjust the speed via a controller allows for optimizing both the flow rate, noise, and consumption based on the actual needs of your installation.
In summary, this extractor kit is an excellent choice to combine performance, silence, and energy saving in a small cultivation area.
- Which Q-Max EC model offers the best compromise between maximum air flow and electrical consumption to limit heat in a 20m² growing room?
For a 20 m² growing room, the Q-Max EC 150 model offers an excellent compromise between air flow and electrical consumption. With a flow rate of 716 m³/h, it ensures efficient air renewal to limit heat while consuming only 62-66 W, which is very energy efficient.
Its electronically commutated EC motor guarantees quiet operation (approximately 65 dB) and precise speed regulation to adapt the ventilation exactly to the needs of your crop. This model thus combines performance, energy efficiency, and acoustic comfort, ideal for a room of this size.
- Will the Qmax EC 150 extractor be enough for a 1m³ growing room and is the Can Fan EC LCD controller included or sold separately?
For a room of 1 m³, the Q-Max EC 150 extractor with a maximum flow rate of 716 m³/h is more than sufficient to ensure rapid and effective air renewal, guaranteeing excellent growing quality.
On the other hand, the Can Fan EC LCD controller is not included with the extractor and must be purchased separately. This specific controller allows precise management of the extractor's speed, thus providing silent and optimized operation. It can also control up to 10 EC extractors simultaneously.
- What Q-Max EC model is best suited for a micro box 60x60 in terms of airflow and noise level?
For a micro box 60x60 cm, the Q-Max EC 150 is the most suitable model. With an air flow of 716 m³/h, it ensures effective air renewal, even when set to a reduced speed suitable for the limited volume, which helps to limit the noise level.
Its soundproof housing significantly reduces noise, often allowing operation below 65-72 dB at full power. Thanks to EC technology, it consumes approximately 66 watts and allows precise speed control to optimize silence and performance according to your needs.
- What difference in airflow and noise level should I prioritize between the 315 and 355 models for a growing area of approximately 4m2 with a ceiling height of 2.5m in order to optimize air renewal without disturbing the silence in the room?
For a growing area of approximately 4 m² with a ceiling height of 2.5 m, it is important to ensure effective air renewal without generating noise nuisance. The
Q-Max EC 315 model generally offers a flow rate suitable for this volume, while the
Q-Max EC 355 may provide a slightly higher flow that could oversize the room and potentially generate a bit more noise.
Both models benefit from EC technology and acoustic design that ensures silent operation, but to maintain calm in the room, prioritize a flow just sufficient to renew the air about 30 to 40 times per hour, which the 315 model achieves perfectly in this configuration.
In summary, the Q-Max EC 315 is often the best compromise to optimize the flow without compromising sound discretion in a space of this size.
- How does the Can Fan EC LCD controller optimize speed regulation based on temperature to maximize silence and energy efficiency?
The Can Fan EC LCD controller optimizes the speed of the Q-Max EC fan by precisely adjusting the rotation in 1% increments, eliminating any unwanted noise. Using a temperature sensor, it automatically adjusts the ventilation according to ambient heat, ensuring a perfect balance between silence and energy efficiency. This intelligent management reduces consumption while maintaining an optimal environment. Additionally, it can simultaneously control up to 10 fans for maximum performance in larger installations.
