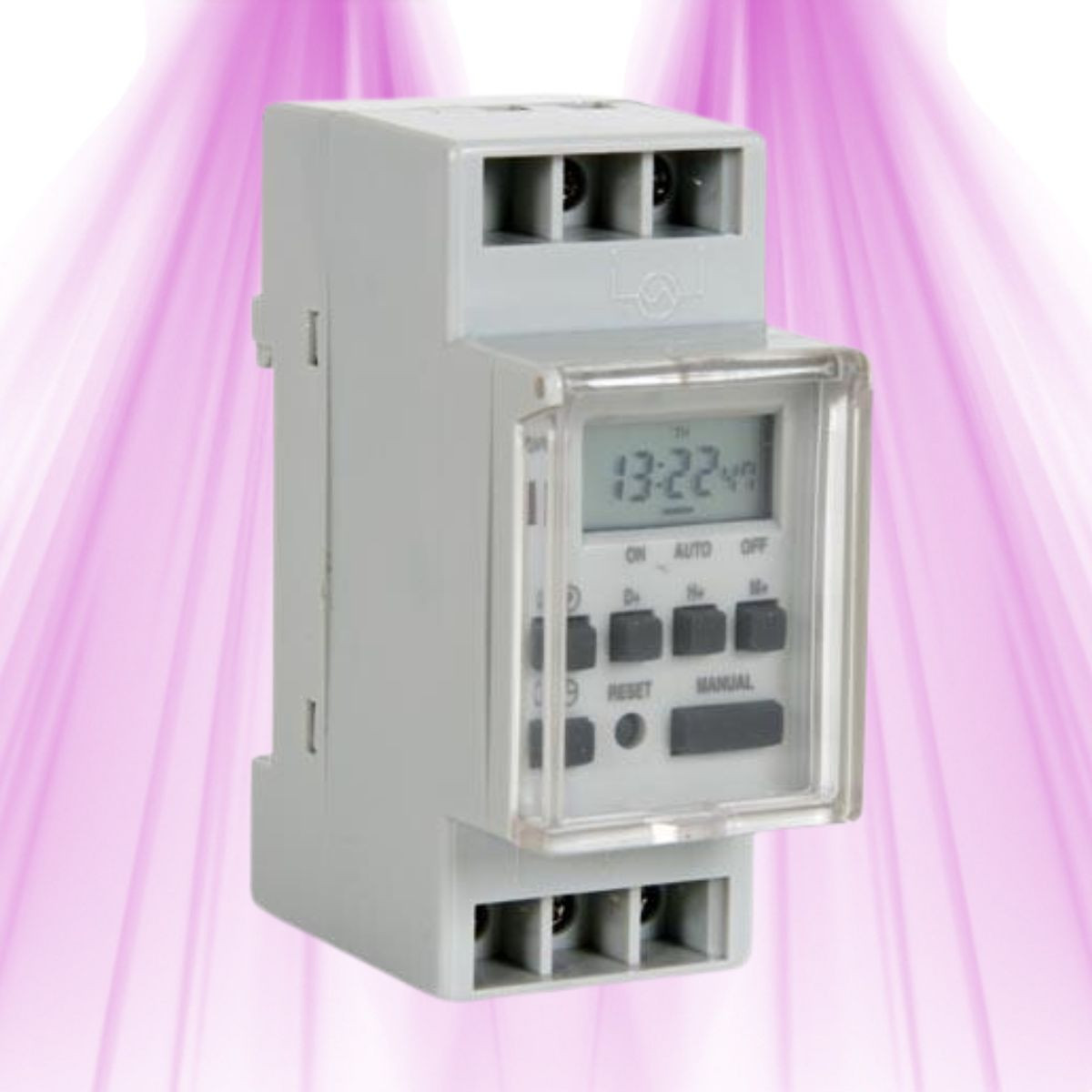

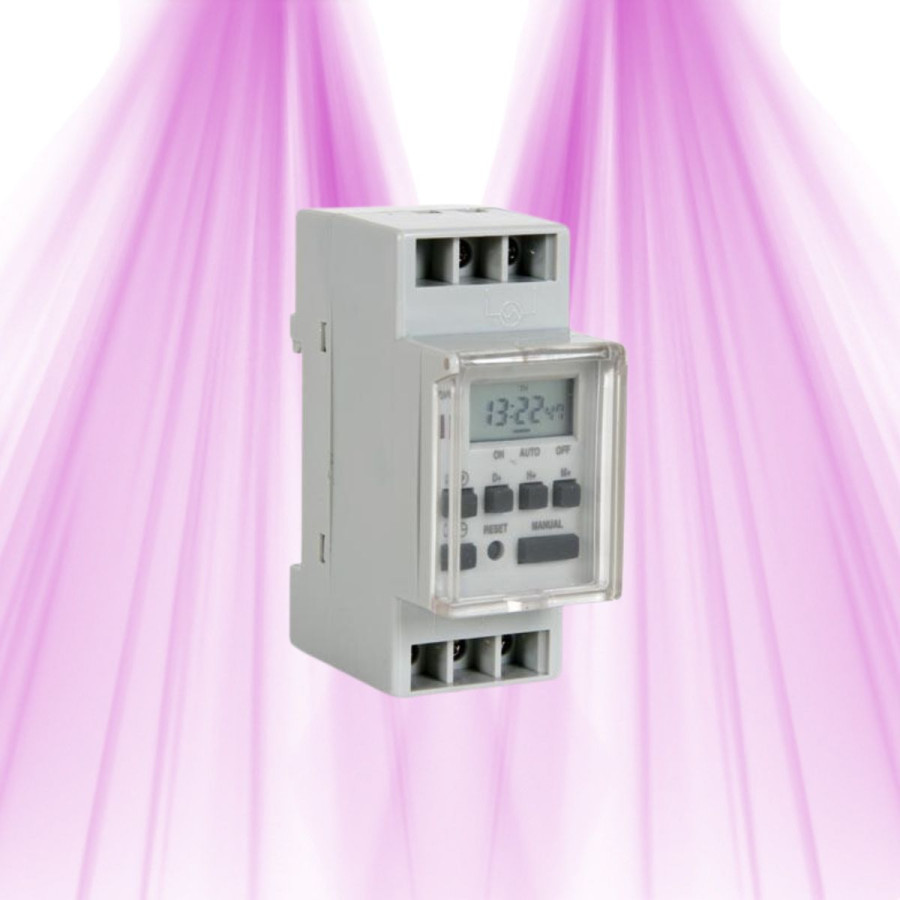

Weekly Digital Programmer - For mounting on Din RAIL - 8 Programs
This programmer is ideal for Din rail mounting. Thanks to its 8 adjustable programs, you can calmly control the lighting cycles of your plants.
Product presentation
This timer offers daily and weekly programming. You can therefore opt for 8 adjustable programs, each incorporating 15 different repetition options.
- 8 adjustable programs (15 repeat options)
- LCD display (hours, days of the week and status)
- 3 different functions: on - off - auto -
- DIN rail mounting or wall mounting made easy with the included bracket
- Power supply: 220-250 VAC 50 Hz - output: - resistive load: 16 A @ 230 VAC, max. 3680W
- Inductive load: 8 A @ 230 VAC (cos µ = 0.4)
- Consumption: 4.4 W
- Service temperature: -10°C to 40°C
Features detailed
| Type | Digital |
|---|---|
| Compatibility | Tableaux électriques standards, éclairages LED/HPS, ventilateurs, pompes d'arrosage, chauffages |
| Power supply | 220-250 VAC 50Hz |
| Estimated duration of action | Batterie de sauvegarde (NiMH ou lithium 1.2V) |
| Installation | Montage rail DIN |
| Number of programs | 8 |
| Max load (W) | 3680 |
| Min. program duration | 1 minute |
Reviews customers
Interface claire et montage sur rail DIN nickel, ça s'installe vite. La précision minute est top pour gérer mes cycles, franchement efficace sans prise de tête. Emballage solide, reçu sans souci, le prix est raisonnable vu la qualité. À recommander.
Excellent investissement. Ce produit
Excellent investissement. Ce produit fonctionne mieux que ce que j'espérais. Les résultats sont visibles rapidement et les performances sont impressionnantes. Livraison sans problème, bien protégé. Service client réactif et courtois. Je suis très satisfait et je le recommande à tous mes amis.
Franchement, je suis
Franchement, je suis bluffé par la qualité. Livraison rapide et bien emballé. Les plantes poussent vraiment mieux depuis que j'utilise ça. Vraiment pas déçu de mon achat.
Aucun avis ne correspond à ce filtre.
Your questions
Does this digital programmer support synchronization via DMX or another protocol to coordinate its programs with a luminous plant scenography installation in rhythm with music?
How much does this digital programmer consume in standby? This is important for eco-responsible use in automatic mode.
Can cycles be programmed with a resolution of less than 15 minutes on this digital timer to optimize the operation of sensitive loads in g/Watt?
Does this digital programmer for DIN rail guarantee long-term reliability, particularly regarding the retention of weekly schedules without loss or delay after several months of continuous use?
The Weekly Digital Programmer for DIN rail generally offers excellent long-term reliability. Thanks to its integrated backup power supply, it ensures the precise retention of programs even in case of a power outage, thus avoiding any loss or delay over months of continuous use. These devices, designed for professional use and permanent installation, guarantee optimal stability of programmed schedules under normal usage conditions.
Ok great this programmer for light management. Can you tell me if we can program hyper short cycles, like every 5 minutes, to optimize the lighting on my indoor crops? That would be great to maximize growth!
Hello, this digital programmer with 8 programs and multiple repetition options seems very complete. For a differentiated management of growth and flowering, is it possible to program distinct cycles on this model to automate different lighting and watering systems according to the plants' phase?
What is the minimum cycle precision that this digital timer can manage for horticultural applications requiring very fine control of lighting periods?
Does this digital programmer retain settings in case of power failure, or does everything need to be reprogrammed after each interruption?
The Weekly Digital Programmer is generally designed to retain settings even in case of power failure, thanks to a built-in backup battery. This avoids the need to reprogram everything after each interruption. However, as all models may vary, it is advisable to check the product manual for precise confirmation.
Compatible with low-power LED loads or only conventional resistive and inductive loads?
The Weekly Digital Programmer - For mounting on Din RAIL - 8 Programs is primarily designed for conventional resistive and inductive loads, such as standard resistors or motors. Its compatibility with low-power LED loads is not explicitly guaranteed, as these electronic loads may require specific or solid-state relays suited for their low consumption.
Therefore, to control low-power horticultural LED lighting, it is recommended to use this programmer with a compatible intermediate relay, to ensure reliable and safe operation.
What precision for weekly programming is offered with this DIN rail timer, especially for adjusting cycles in a compact micro culture?
The Weekly Digital Programmer – for Mounting on DIN Rail – 8 Programs offers high precision for weekly programming, ideal for compact micro-culturing. It allows you to configure up to 8 independent programs, each adjustable within specific time ranges with 15 different repetition options per program.
This flexibility allows you to finely adjust lighting or watering cycles, with a time resolution generally to the minute, although this point is not explicitly stated. Thus, you can set up cycles that repeat at specific days and times, or according to a custom pattern (multiple times a day, only on certain days, etc.), ensuring optimal control in a restricted space.
Can the timer be programmed to independently manage multiple watering phases in a typical week with different cycles each day?
Can this digital programmer be synchronized with other timers to simultaneously manage two different circuits on a DIN rail without losing precision in the timing of on and off schedules?
The Weekly Digital Programmer for DIN Rail Mounting with 8 Programs operates autonomously without the functionality of automatic synchronization with other timers. Each device has its own cycle and its accuracy depends on its internal clock, which may lead to slight drift if you use multiple programmers on different circuits.
For perfect synchronization of on and off schedules across two circuits, the most reliable solution is to use a single programmer controlling a contactor that will supply both circuits simultaneously. Otherwise, each programmer must be manually set to the same time ranges, accepting a possible drift over time.
This approach ensures the best precision for managing your indoor LED installations and fully enjoying your growing cycles.
Can this weekly digital timer be synchronized with an existing home automation system to manage two growing cycles in parallel?
This weekly digital timer, designed for DIN rail installation with 8 programs, does not appear to be equipped with communication features compatible with standard home automation systems (KNX, Z-Wave, Zigbee). Therefore, it cannot be synchronized directly with a home automation solution to manage two growing cycles in parallel.
For simultaneous and automated management of multiple cycles via home automation, it is advisable to opt for a smart controller or timer compatible with home automation protocols and possibly controllable remotely. If you wish, I can help you choose suitable equipment for advanced multi-cycle management.
What is the maximum precision of the programmer for simultaneous use with two different cultivation cycles in order to optimize lighting and standby periods?
The weekly digital timer for DIN rail, with its 8 programs, allows for the simultaneous management of up to two distinct cultivation cycles. Its maximum precision is generally accurate to the minute, which is perfectly suited to optimize lighting and standby periods in indoor horticulture.
This precision allows for fine control of light/rest alternations, promoting harmonious growth and optimal energy efficiency. For higher precision requirements (beyond the minute), it would be necessary to turn to more advanced timers, but in most classic horticultural cases, this precision is more than sufficient.
What is the actual energy efficiency of this digital timer in continuous use given its consumption of 4.4 W and how to optimize its programming to minimize overall electricity consumption over a week?
The weekly digital timer consumes a very low power in continuous use, normally between 0.4 W and 1 W. The mentioned consumption of 4.4 W seems to correspond to a brief active consumption (during switching) or the total associated load, as a simple timer usually does not exceed 1 W in constant operation.
Over a week, this consumption amounts to approximately 0.07 kWh, which is negligible. The real lever for saving energy is to optimize the programming of the controlled device:
- Use the 8 time slots to precisely align the activation periods with your actual needs, thus avoiding any unnecessary operation.
- Avoid overlapping time slots to prevent overloading consumption.
- Schedule the load only when necessary (for example, lighting in the absence of natural light).
- Take advantage of weekly repetition options to finely automate the turning on and off.
- If the time resolution allows, refine with short intervals for more precision.
In summary, the timer adds a marginal, almost negligible consumption, while its key role is to optimize the use of the connected equipment, which helps minimize overall electricity consumption over the week.
What is the minimum configurable cycle time on this weekly digital programmer for DIN rail mounting to optimize management in automatic mode without energy loss?
The Weekly Digital Programmer - For mounting on Din RAIL - 8 Programs allows for weekly programming with 8 adjustable time slots, but the minimum cycle time is not explicitly stated in its documentation.
In general, for this type of DIN rail-mounted programmers, the minimum configurable cycle is often around 1 minute, with some advanced models going down to 0.1 seconds. This offers excellent flexibility to optimize automatic management and minimize unnecessary energy consumption.
To make the most of this programmer, it is therefore recommended to use the finest configuration possible among its 8 programs and 15 repeat options, referring to the manual to validate the precise setting.
Does this programmer support an 8A inductive load like a pump or fan for continuous use without risk of overheating or rapid wear?
The weekly digital programmer for DIN rail with 8 programs, as you describe, is suitable for controlling resistive loads, but handling an inductive load like a pump or fan of 8A in continuous use requires caution.
Indeed, inductive loads generate voltage spikes and significant inrush currents during each switching operation, which can lead to rapid wear or even overheating of the contacts if the programmer is not specifically designed for it. Generally, a standard programmer can handle an inductive load lower than its rated resistive load, and in continuous use, this increases the risk.
Our passionate advice: to preserve your equipment and ensure a long lifespan, it is highly recommended to use a relay or contactor suitable for the 8A inductive load, controlled by this programmer. This relieves the contacts of the programmer and ensures optimal and safe operation.
If you would like a more precise opinion, please feel free to provide us with the exact reference of the programmer so we can examine its detailed technical characteristics.
Does this digital timer support a continuous inductive load of 8A in daily use without any issues, or does it trip the protections when used regularly?
The weekly digital timer for DIN rail perfectly supports a continuous inductive load of up to 8A at 230 V with a power factor of 0.4. This capability is well suited for daily use without the risk of tripping the protections or damaging the device.
This model is specifically designed for this type of inductive load, even integrating a backup battery to ensure optimal reliability. You can thus use it confidently with an 8A inductive load, without fearing unexpected trips. It is truly an excellent choice for precise and reliable management of your equipment.
Is integration possible with voice assistants like Alexa or Google Home for remote control?
The Weekly Digital Timer - For DIN Rail Mounting - 8 Programs is a classic model operating autonomously, without WiFi or Bluetooth connectivity. Therefore, it does not allow direct integration with voice assistants like Alexa or Google Home for remote control.
To benefit from voice control, it is necessary to choose a timer or a connected socket specifically compatible with these systems. These devices, often referred to as "smart" or "WiFi", allow remote management via application and voice assistant.
Can independent programs be configured for each day of the week to optimize the management of two crops in parallel on this DIN rail programmer?
Yes, the Weekly Digital Programmer for DIN Rail allows you to configure up to 8 independent programs, each customizable with specific time ranges and repetition options that precisely target the days of the week. This means you can perfectly organize different programs for each day or group days according to your needs, which is ideal for simultaneously managing two crops with distinct cycles.
This flexibility ensures precise and tailored control of your lighting or other equipment, thus optimizing your indoor crops.
Can this DIN rail timer be integrated into an existing home automation system to automate irrigation and lighting based on weekly schedules?
The 8-program weekly digital timer for DIN rail operates autonomously and cannot be directly integrated into a home automation system. It does not support common home automation protocols (KNX, Z-Wave, Zigbee) or communication with other devices.
To automate both irrigation and lighting through a home automation system, it is advisable to use a home automation-compatible timer or controller. Otherwise, with this timer, you can control a single contactor to centralize the power supply, but without synchronized or connected management.
Can we easily configure different time slots for each day of the week to optimize ventilation without disturbing the neighbors with noise?
The Weekly Digital Timer - For installation on DIN Rail - 8 Programs does indeed allow you to configure different time slots for each day of the week. With its 8 adjustable programs, you can precisely tailor the ventilation to the specific needs of each day, thereby avoiding generating noise during sensitive hours for the neighborhood.
The LCD display makes this programming easy down to the minute, offering great flexibility to optimize the operation of fans and limit noise disturbances while maintaining effective ventilation.
Reliable digital DIN rail timer for managing micro-culture lighting on weekly cycles?
The Weekly Digital Timer for DIN rail mounting - 8 Programs is entirely reliable for managing lighting in micro-culture with weekly cycles. It retains its settings even after a power outage and offers precise programming with up to 8 weekly programs and 15 repetition options.
It is perfectly suited for driving conventional resistive loads, including horticultural LED lighting up to 8A at 230V. However, if you wish to control inductive loads such as fans or pumps, we recommend using a relay or contactor as an interface to protect the timer contacts and ensure optimal lifespan.
By adhering to these points, this timer is a stable and efficient tool for automating your lighting cycles in micro-culture.
Is the precision of the weekly digital timer sufficient to perfectly synchronize watering in hydroponics on short cycles?
The weekly digital timer for DIN rail mounting - 8 programs offers precision to the minute, which is perfectly suited for most short hydroponic watering cycles, generally lasting several minutes. This precision allows for reliable synchronization, avoiding overwatering or drought with well-defined time slots.
However, for very short cycles of only a few seconds, this precision may not be sufficient. In this case, a more specialized control system, capable of handling intervals shorter than a minute, would be necessary.
For the majority of hydroponic applications with cycles of a few minutes, this timer is a solid and efficient choice.
What are the practical advantages of DIN rail mounting for a differentiated growth/flowering management system with this weekly digital timer?
DIN rail mounting offers numerous advantages for a system dedicated to differentiated growth/flowering management with this weekly digital timer. It optimizes space in your electrical panel, facilitating the integration of multiple devices in a compact area. This organization also improves accessibility and maintenance of the timers.
Moreover, the modular system allows for valuable flexibility: you can easily add or replace components as your needs evolve. The mounting security is enhanced by DIN rail standards, while thermal dissipation is optimized to ensure the reliability of the timer over the long term.
Finally, the ability to program up to 8 weekly cycles with one-minute precision allows for precise control of growth and flowering phases, effectively automating lighting and other equipment. This mounting is therefore ideal for a technical, reliable, and scalable management of your indoor cultivation.
What is the actual consumption in standby and operation of this DIN rail programmer with 8 programs versus its overall efficiency on 3680W max load?
The Digital Weekly Programmer for DIN Rail with 8 programs supports a maximum load of 3500 W (approximately 16A at 230V). Its own consumption, in standby and operation, remains very low: generally from a few milliwatts to a few watts at most. This consumption is negligible compared to the power managed, which means that its overall efficiency is nearly that of the load itself (here 3680 W), with minimal energy loss due to the electronics.
In summary, this programmer effectively optimizes the management of your equipment without a significant impact on total electrical consumption.
What is the maximum precision level of the PROG-RAIL-DIN-TEMP weekly timer to ensure accurate activation under sensitive LED cycles in a SCROG or LST system?
The PROG-RAIL-DIN-TEMP digital weekly timer offers a maximum precision of about 1 minute for its time slots, which is more than sufficient to effectively manage LED lighting cycles in a SCROG or LST system. This granularity allows for stable and regular activation of sensitive LEDs throughout the week.
To ensure precise activation and compatibility with electronic horticultural LEDs, it is recommended to use this timer with a suitable intermediate relay, as the product is primarily designed for conventional resistive or inductive loads.
If you need even finer precision (in seconds), a more specialized controller would be necessary, but in most cases, this minute-level precision is optimal for indoor horticultural lighting.
