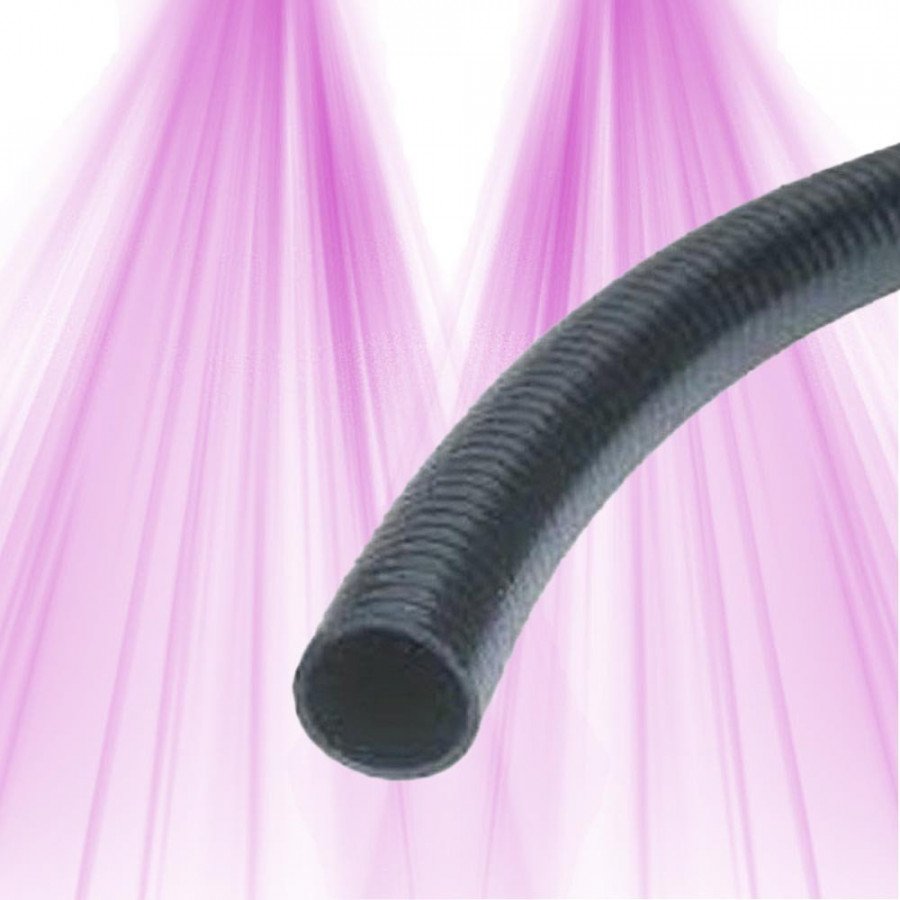

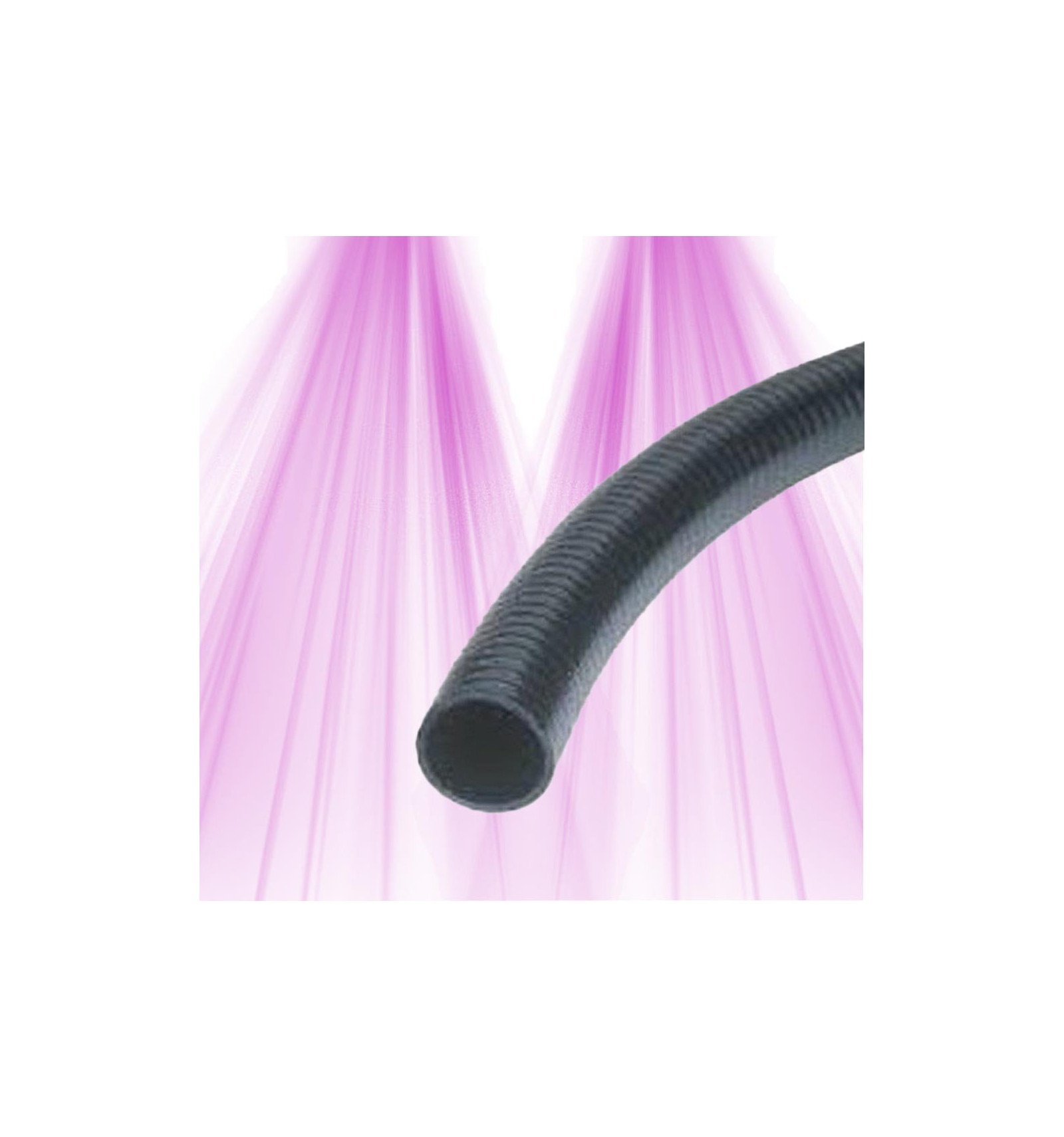

SEMI-RIGID PE PIPE 16MM - 50M
SEMI-RIGID PE PIPE 16MM - 50M
Roll of 16mm PE pipe for irrigation of your hydroponic, aeroponic or soil and coconut fiber systems.
Features detailed
| Type | Hose |
|---|---|
| Material | polyéthylène semi-rigide |
| Compatibility | raccords à compression PE 16mm, pompes d'irrigation, systèmes hydroponiques |
| Diameter (mm) | 16 |
| Length (m) | 50 |
| Max flow rate (L/h) | 300 |
| Maximum pressure | 4 bars |
Reviews customers
Soyez le premier à donner votre avis !
Partagez votre expérience avec ce produit.
Your questions
What is the resistance of the 16mm semi-rigid PE pipe? Can it withstand extreme weather conditions without cracking or losing efficiency?
What is the maximum flow rate in liters per hour supported by this semi-rigid PE pipe of 16mm over a length of 50m without significant pressure loss?
For a 16 mm outer diameter semi-rigid PE pipe (estimated inner diameter between 10 and 12 mm) and a length of 50 m, the recommended maximum flow rate without significant pressure loss is around 300 liters per hour. A range between 200 and 500 L/h can be considered depending on the actual size of the inner diameter and the nature of the fluid being transported.
For an inner diameter close to 12 mm, a flow rate of 300 to 400 L/h is comfortable, while for a smaller diameter (around 10 mm), it is advisable to stay below 300 L/h to avoid excessive pressure drop.
Does this semi-rigid PE 16mm pipe withstand pressure well in a hydroponic system without risk of leaks or deformation over long periods?
The semi-rigid PE 16mm pipe withstands a pressure of up to 4 bars, making it perfectly suitable for a classic hydroponic system. Its polyethylene composition makes it resistant and durable, limiting the risks of leaks or deformation over long periods, provided it is installed correctly and used under normal conditions.
The durability will also depend on the quality of the installation and adherence to usage recommendations, particularly concerning temperature and pressure. This pipe is a solid choice for reliable and sustainable irrigation in your indoor crops.
Does this 16mm semi-rigid PE pipe really last over time without cracking or becoming rigid due to the sun?
The 16 mm semi-rigid PE pipe is designed to be flexible and durable, but it is not specifically treated for UV protection. With prolonged exposure to the sun, it can indeed become stiffer and more prone to cracking. For optimal durability, it is best used indoors or in partially shaded areas. For intensive outdoor use, a pipe with UV protection would be more suitable.
What is the maximum flow rate in L/min supported by this 16mm semi-rigid PE pipe over a length of 50m without significant pressure loss?
What is the maximum flow rate supported by this semi-rigid 16mm PE pipe over 50m without significant pressure loss?
It is therefore advisable to stay within this range to ensure smooth circulation and avoid overloading the system.
What is the maximum pressure this 16mm PE pipe can withstand and is it compatible with standard agricultural automation fittings?
The HALBSTARRES PE-ROHR 16MM - 50M polyethylene pipe generally withstands a maximum pressure between 2.5 and 7 bars, depending on its thickness and the specific quality of the material, which is common for this diameter in agricultural irrigation.
Regarding compatibility, this 16mm pipe is perfectly suited for standard agricultural automation fittings, especially those used for drip irrigation systems and other irrigation installations, as this diameter is a common standard.
However, to ensure optimal installation, it is recommended to check the precise technical data sheet of the product.
What type of fittings are compatible with this 16mm semi-rigid PE pipe for a quick and watertight installation?
For your 16 mm semi-rigid PE pipe, compression fittings are the most suitable for a quick and watertight installation. These fittings work by means of a clamping ring and an O-ring that compress the pipe without requiring complicated tools, thus ensuring good sealing.
You will find joints, elbows, tees, caps, and even ball valves designed for this diameter, making assembly and maintenance much easier. For optimal installation, do not hesitate to lubricate the end of the pipe before insertion and tighten with an appropriate wrench.
These fittings are perfectly suitable for pressures up to 4 bars, in line with the resistance of your semi-rigid PE pipe.
What is the maximum pressure that this semi-rigid 16mm PE pipe can support for a compact greenhouse micro-culture?
Does this semi-rigid PE pipe 16mm support sufficient pressure for a hydroponic system?
Is this semi-rigid 16mm PE pipe easy to bend without breaking for a beginner in indoor irrigation installation?
The 16mm semi-rigid PE pipe is designed to be flexible while remaining robust, making it accessible even for a beginner in indoor irrigation. It can be bent without immediate risk of breakage, provided that tight or sudden bends are avoided.
To facilitate handling, it is advisable to handle it gently, avoid sharp angles, and warm it slightly if necessary, especially in cold weather. Paired with easy-to-use compression fittings, it ensures a reliable and quick installation.
In summary: this pipe is quite easy to bend without breaking, with a bit of caution to ensure its longevity.
How to ensure optimal pressure in a 16mm semi-rigid PE pipe over a length of 50m for efficient differentiated management of growth/flowering irrigation?
Also, make sure to install it rigorously, without bends or crushes, to preserve the pipe's durability. Lastly, for differentiated management of growth/flowering, use flow or pressure regulators to precisely adjust irrigation according to the specific needs of each phase, thus optimizing the efficiency and uniformity of your irrigation.
What is the actual flexibility of this semi-rigid PE pipe 16mm over 50m for a home installation without the risk of marked bends?
The semi-rigid PE pipe 16 mm – 50 m has moderate flexibility, ideal for home installation. Its relative rigidity allows for the formation of wide bends without the risk of marked kinks or breaks, thus optimizing flow and durability.
To ensure this performance, it is advisable to maintain a bending radius of at least 6 to 10 times the outer diameter (approximately 10 to 16 cm) to avoid sharp bends. This pipe can withstand pressure up to 4 bars, making it perfectly suitable for a standard domestic installation for irrigation or water supply.
In summary, it offers a good compromise between flexibility and rigidity for gentle bends, with no major risk of deformation.
