01 — Description
Présentation du produit

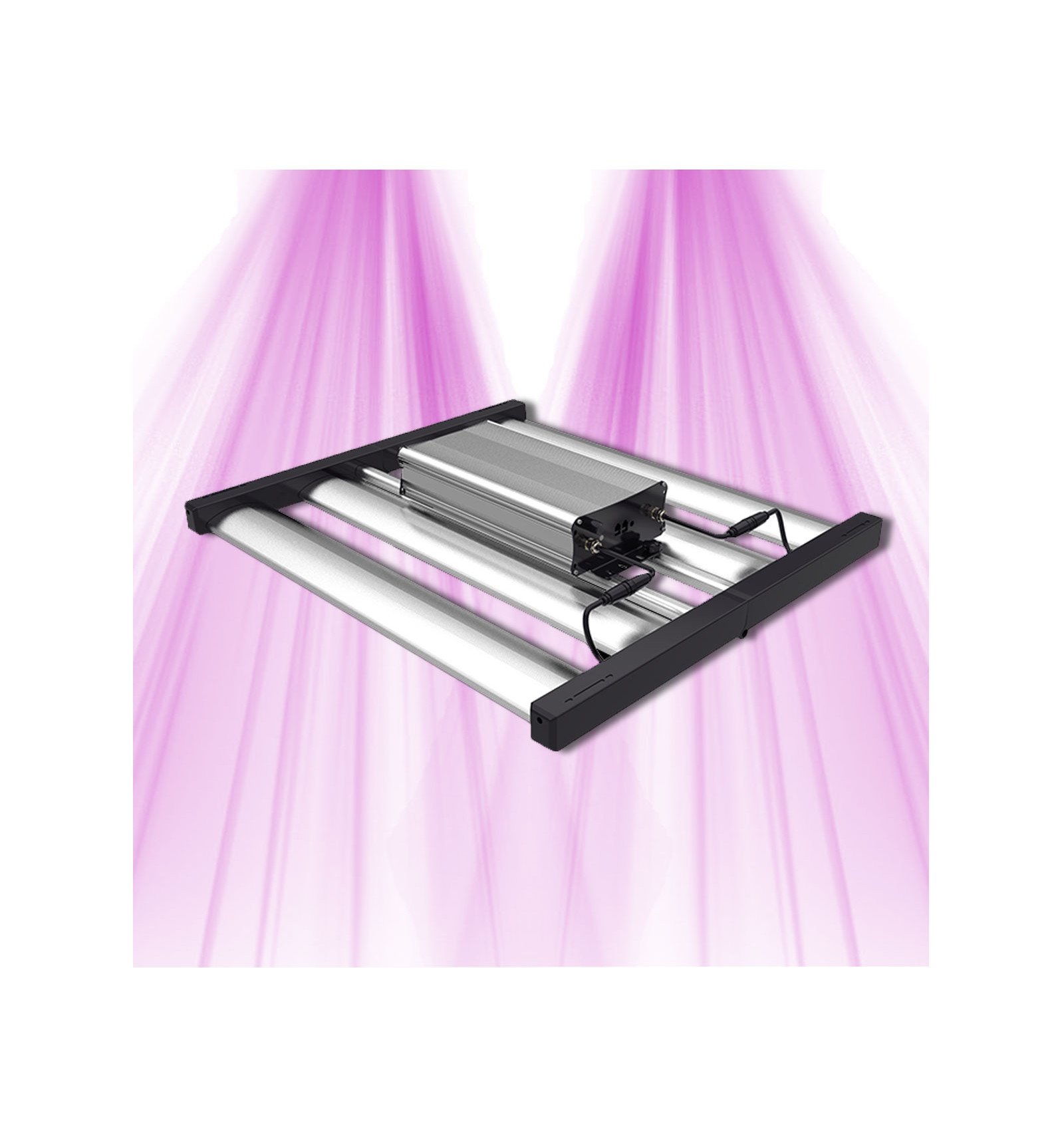

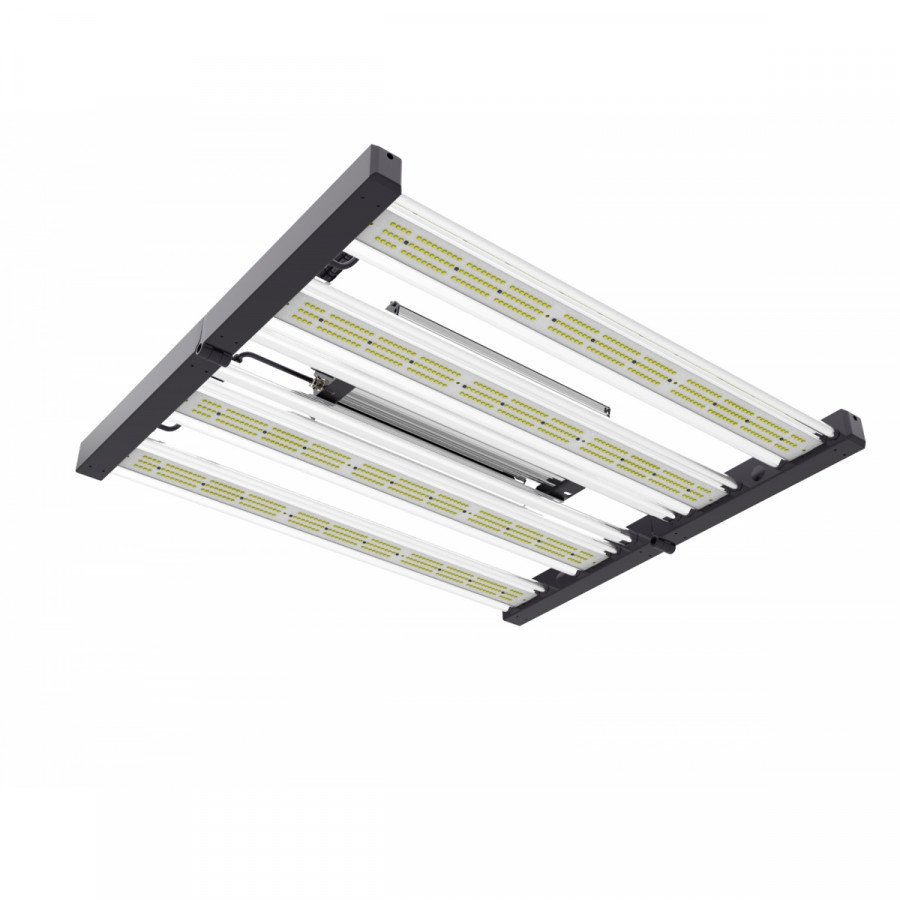

Discover the Florastar LED Ti 320W panel, Ti lighting from the Florastar brand has been designed for indoor horticulture. The Ti320W LED panel can be used for a growing area of 80x80cm.

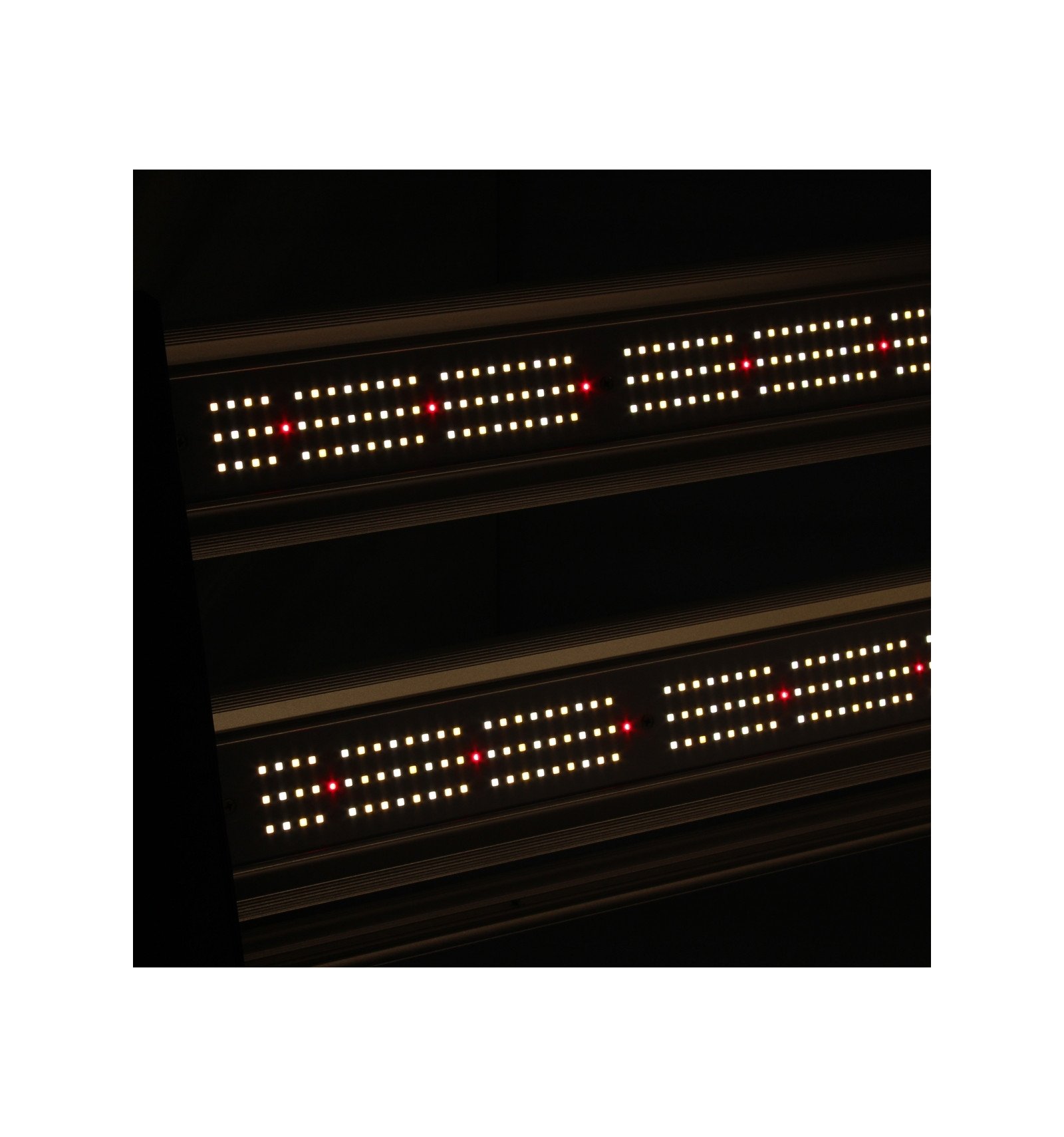

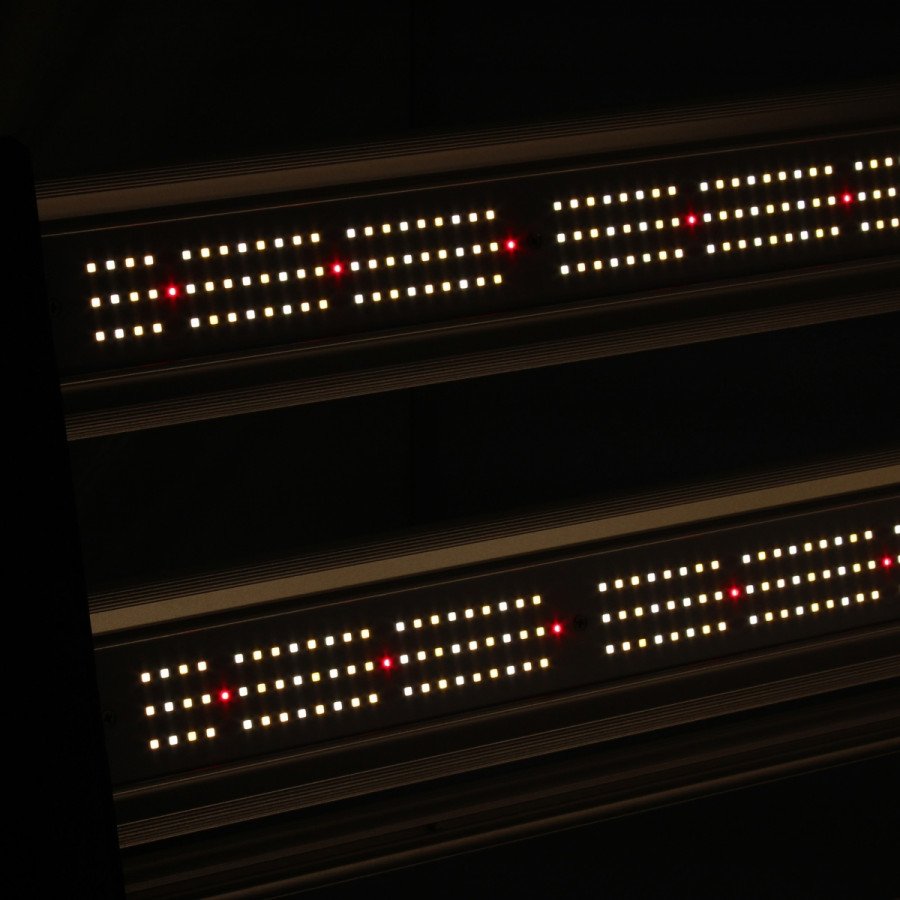

The LED panels adopt a Full Spectrum, they are composed of the new generation of Samsung LM310B and Osram 660nm Deep Red LEDs distributed over 4 or 6 bars. They are protected by a nano coating which provides, in addition to high waterproofing, light transmission much higher than standard coatings such as plastic shells or thermoformed plastics.
Features
- Dimensions: 666 x 592 x 103 mm
- Recommended use: Growth and Flowering
- Voltage: 240VAC
- Power: 320W
- Color temperature: 3000K + 4000K + 600nm
- Cultivation surface: 80x80cm
- Power variator: from 0 to 100%
- Led Samsung LM 301B 3000K + 4000K and Led Osram 660nm Deep Red
- IP65 waterproof case
04 — Questions sur ce produit
Product questions
Your questions about this product
- Is the Florastar LED Ti 320W panel delivered with a power variator or should it be purchased separately?
Indeed, the Florastar LED TI 320W horticultural panel is delivered with an integrated power variator. It will allow you to better adjust the light intensity at each stage of your plants' growth. So you will not need to invest in a separate variator. Good cultivation!
- Is the Ti 320W panel capable of operating without significant power loss after several months of continuous use in a humid environment?
The Florastar TI 320W LED panel is equipped with a nano coating ensuring a high level of waterproofing, making it perfectly suited for a humid environment like indoor growing. Specifically designed for horticulture, it uses Samsung LM310B and Osram 660nm LEDs known for their durability and stability.
Although there are no specific data after several months of continuous use in a humid environment, the quality of the components combined with the 3-year manufacturer warranty demonstrates reliable resistance without significant power loss.
- What is the actual electrical consumption under maximum flowering conditions of the TI 320W panel and what is its light output in micromol per second on 80x80cm?
The horticultural panel TI 320W - Florastar consumes approximately 320W under maximum flowering conditions, corresponding to its nominal power at 240VAC. Regarding its light output, it delivers a photosynthetically active flux (PPF) of 816 µmol/s over a recommended area of 80x80 cm.
This combination ensures excellent luminous efficiency of 2.55 µmol/Joule, thanks to a full spectrum that combines Samsung LM301B LEDs 3000K and 4000K with Osram 660nm Deep Red LEDs, perfectly suited for optimal floral growth in this area.
- What is the light output in umol/J and the PPFD measured at 40cm on a surface of 80x80cm in 320W max mode?
For the horticultural LED panel TI 320W from Florastar, the light output is 2.55 µmol/J, indicating excellent energy efficiency.
The total photosynthetic photon flux (PPF) is 816 µmol/s.
Regarding the PPFD at 40 cm on a surface of 80 x 80 cm, no precise direct measurement is available. However, by calculating from the PPF and the illuminated area (0.64 m²), we obtain an average estimate of about 1275 µmol/m²/s. This value is a good indication of the expected performance in the recommended area, assuming uniform light distribution.
- Compatible with a home automation management system to adjust brightness and spectrum?

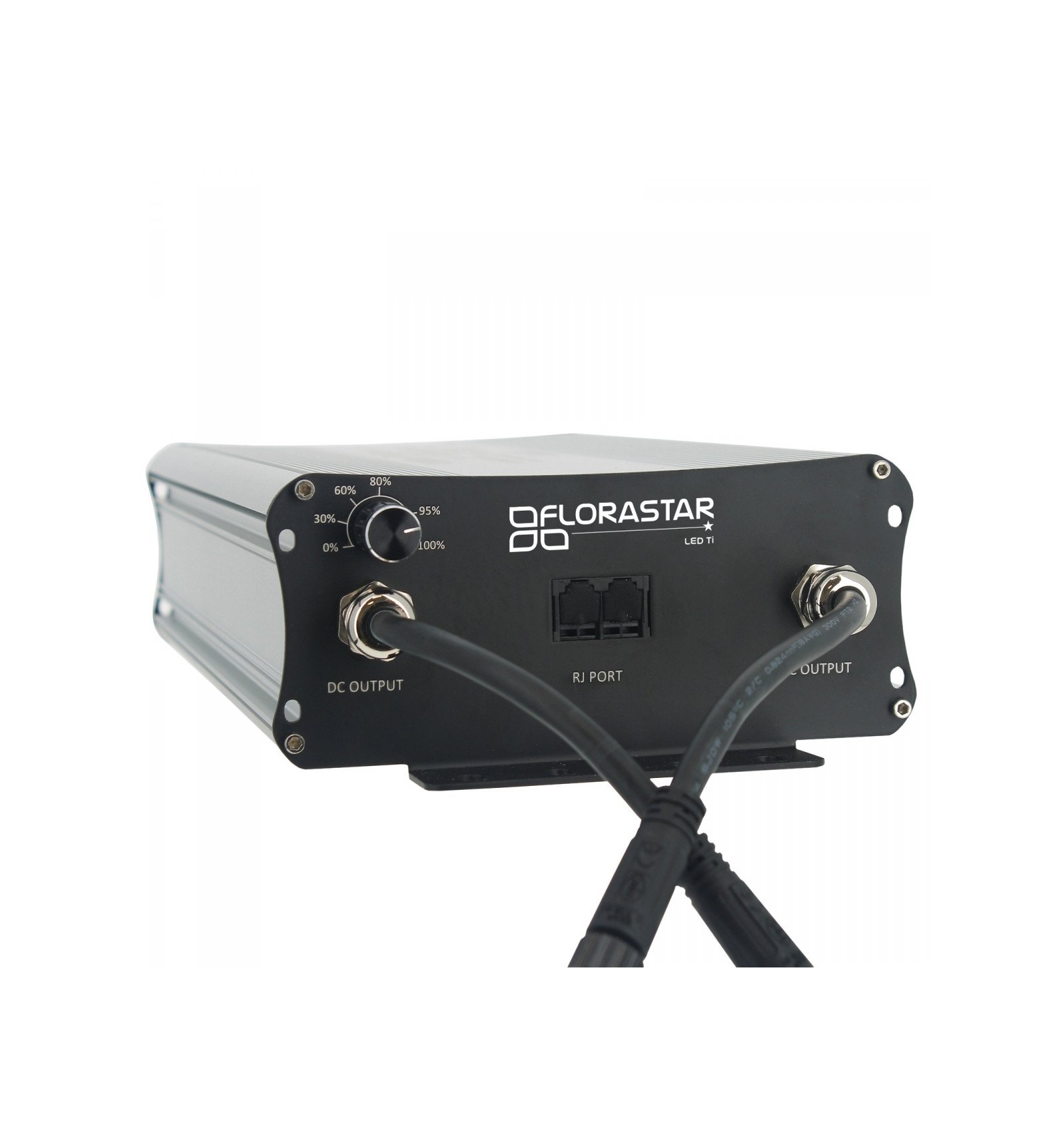

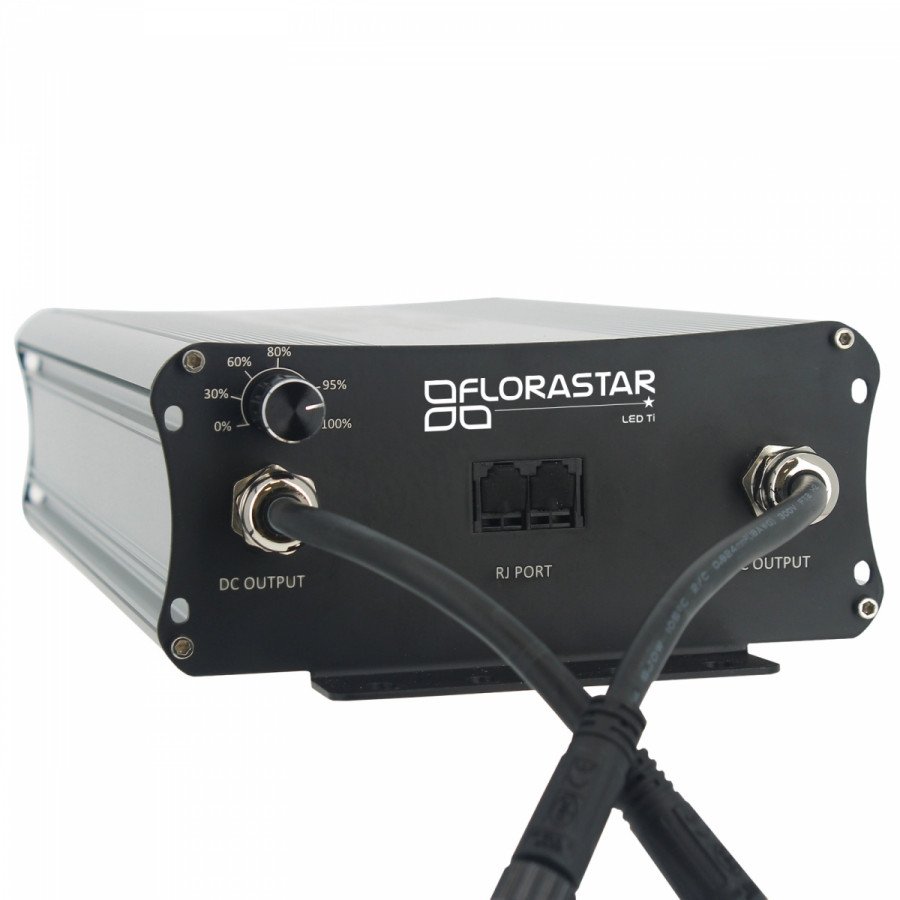

The Florastar TI 320W panel is indeed compatible with a home automation management system to adjust brightness, thanks to its dimmable driver and RJ port allowing remote control. However, the light spectrum is fixed (full spectrum) and cannot be dynamically changed via home automation.
- What is the thermal dissipation of the TI 320W panel, and is it compatible with an external power controller to optimize efficiency without overheating?
The horticultural panel TI 320W - Florastar features high-quality passive thermal dissipation thanks to its waterproof IP65 housing, which ensures good heat dissipation without active fans. This allows it to operate silently and without overheating, even at full power.
It is compatible with an external power controller via an RJ port and integrates an inverter system that allows power modulation from 0 to 100%. This feature offers the possibility to optimize light yield while controlling temperature, thus avoiding any risk of overheating.
In summary, the TI 320W is a reliable and flexible solution for optimized indoor cultivation, with effective thermal management and simplified remote control.
- Is the full spectrum of the LED panel TI 320W really suitable for both growth and flowering in an area of 80x80cm?
The Florastar LED panel TI 320W is perfectly suited for a growing area of 80x80 cm. Its full spectrum includes Samsung LEDs (LM310B or LM301B) and Osram 660nm Deep Red LEDs, providing an excellent balance between blue light for growth and deep red light for flowering. This combination effectively meets the plants’ needs at all stages of their cycle, ensuring a healthy and productive crop.
- What is the total light output in µmol/s of the TI 320W Florastar panel and its efficiency in µmol/J under standard operating conditions?
The TI 320W Florastar panel offers a total light output of 816 µmol/s under standard conditions, combining a spectrum of 3000K, 4000K, and 660 nm. Its energy efficiency is 2.55 µmol/J, making it an excellent choice for growth and flowering over an area of approximately 80x80 cm.
- What concrete yield gains can I expect by switching to this Florastar TI 320W LED panel compared to a classic HPS horticultural lighting over an area of 80x80cm?
The Florastar TI 320W panel offers several concrete advantages compared to a classic HPS lighting over an area of 80x80 cm:
- Energy efficiency: consuming 320W compared to often 400W for an equivalent HPS, it allows for reduced electricity consumption while providing powerful lighting.
- Adapted light output: with a PPF of 816 µmol/s, it perfectly meets your plants' photosynthetic needs, promoting optimal growth.
- Full and optimized spectrum: thanks to Samsung LM301B LEDs (3000K and 4000K) and Osram 660nm Deep Red, it effectively covers the growth and flowering phases, compared to the warmer spectrum of classic HPS.
- Longevity and maintenance: LEDs last longer and require less maintenance than HPS lamps that must be replaced regularly.
In summary, you can expect better yield due to a more suitable spectrum and improved efficiency, while reducing your energy costs and maintenance. The Florastar TI 320W is an excellent choice to optimize LED growing in this area.
- Can the power of the 3000K, 4000K, and 660nm LEDs be independently adjusted to optimize growth and flowering in the same growing session?
The TI 320W - Horticultural LED Panel - Florastar does not allow independent adjustment of the power of the 3000K, 4000K, and 660nm LEDs. It is equipped with a dimmer that affects the overall power of the lighting, from 0 to 100%, allowing to adjust the light intensity according to the plants' needs at each phase (growth or flowering).
This overall regulation remains very effective for optimizing your indoor cultivation, especially by modulating the distance of the panel from the canopy. For more precise control of the spectra, one would need to consider a system with independent channels, but this panel remains an excellent compromise for simple and efficient management.
- Can we optimize the light distribution and the penetration of the 320W spectrum on a micro surface of 60x60 cm with this Florastar TI320W panel?
The Florastar TI 320W LED horticultural panel is designed for an optimal surface of 80x80 cm, but it fits perfectly on a micro surface of 60x60 cm. Thanks to its Samsung LM310B and Osram 660nm Deep Red LEDs, the light spectrum is complete and effective for growth and flowering.
On a smaller surface, the light will be more concentrated, increasing the intensity and improving light penetration into the foliage. To optimize this distribution, it is important to precisely adjust the height of the panel to avoid overly bright spots or burns while ensuring uniform coverage.
In summary, the Florastar TI 320W can provide even light distribution and good spectral penetration on 60x60 cm, provided that its height and position are adapted.
- Does the panel really deliver its 320W while consuming 240VAC without overheating after several months of intensive use?
The horticultural LED panel TI 320W - Florastar operates well at its rated power of 320W under a 240VAC supply, thanks to high-quality components such as Samsung LM301B and Osram 660nm LEDs, known for their robustness and stability.
Regarding overheating, the design with optimized heat dissipation ensures limited heating, confirmed by several users who report silent operation and low temperatures even after prolonged use. The 3-year manufacturer warranty also attests to the product's reliability over time.
In summary, this panel holds its 320W without notable overheating issues during the first months of intensive use, making it a reliable choice for indoor LED cultivation.
- What is the average photon flux density (PPFD) measured at 30cm under the TI 320W panel on 80x80cm at 100% flowering and what is the effective g/Watt of the full spectrum Samsung LM301B + Osram 660nm spectrum?
The Florastar TI 320W horticultural LED panel develops a total photon flux (PPF) of 816 µmol/s when operating at 100% flowering, with a full spectrum combining Samsung LM301B and Osram 660nm LEDs. Over an area of 80x80 cm (0.64 m²) and at 30 cm distance, the average PPFD can be estimated at more than 150 µmol/m²/s, due to the light concentration at this height.
The photon efficiency of the spectrum, expressed in µmol/J, is 2.55 µmol/J, representing an excellent yield for a full spectrum panel combining Samsung LM301B and Osram 660nm.
| Parameter | Value |
|---|
| Total photon flux (PPF) | 816 µmol/s |
| Recommended area | 80 x 80 cm (0.64 m²) |
| Estimated average PPFD at 30 cm | >150 µmol/m²/s |
| Photon efficiency (µmol/J) | 2.55 µmol/J |
- Does the dimmer really live up to its promises under heavy use without power loss or flicker in the long term?
The dimmer integrated into the Florastar TI 320W LED panel is based on a Meanwell driver, known for its robustness and reliability. It allows for precise adjustment from 0 to 100% of the total power without perceptible flicker, even under heavy use.
Thanks to high-quality components such as Samsung LM301B and Osram 660nm LEDs, and excellent thermal dissipation ensured by a fanless design and an IP65 coating, this dimmer maintains its performance over the long term without power loss.
In summary, this system offers stable and durable control of brightness, perfectly suited for demanding indoor cultivation.
- With a Ti 320W LED panel covering 80x80cm and integrating Samsung LM301B plus Osram Deep Red, what ideal power do you recommend for SCROG under LED to optimize light penetration and yield without overheating the canopy?
For a Florastar TI 320W LED panel integrating Samsung LM301B and Osram Deep Red LEDs, covering an area of 80x80 cm in SCROG cultivation, it is recommended to adjust the power around
220 to 290 W (which is 70-90% of the total capacity). This range allows to achieve an optimal PPFD of 600 to 800 µmol/m²/s, essential for ensuring effective light penetration without overheating the canopy.
To maximize yield, place the panel at a height of 30 to 45 cm with good ventilation to limit thermal stress while maintaining high light intensity. The dimmable setting of the TI 320W offers this flexibility depending on the growth or flowering phase and the vegetative density of your SCROG.
This adjustment combines excellent light penetration and a full spectrum suitable for ensuring harmonious and productive development of your plants.
- What is the actual average power consumption of the LED panel TI 320W when used at 100% on a growing area of 80x80 cm?
The actual power consumption of the LED panel TI 320W - Florastar when used at 100% on a growing area of 80x80 cm is approximately 320 watts. This panel is specifically designed for this nominal power (240VAC, 1.45A) and offers excellent luminous efficiency of 2.55 µmol/J, ensuring good yield for your crop on this surface.
- What is the recommended dimmer management to optimize growth and flowering with this TI 320W panel?
To optimize growth and flowering with the TI 320W - Florastar panel, it is advisable to adjust the light intensity using the master dimmer:
- Growth phase: decrease the intensity to promote balanced development without excessive stress on young shoots.
- Flowering phase: gradually increase to the maximum to encourage generous flowering.
Also, consider adjusting the panel height, starting around 30 cm from the canopy for a good balance of PPFD (above 150 µmol/m²/s).
Even though it is not possible to modulate the spectra independently, the master dimmer offers a simple and effective management for your indoor crops.
